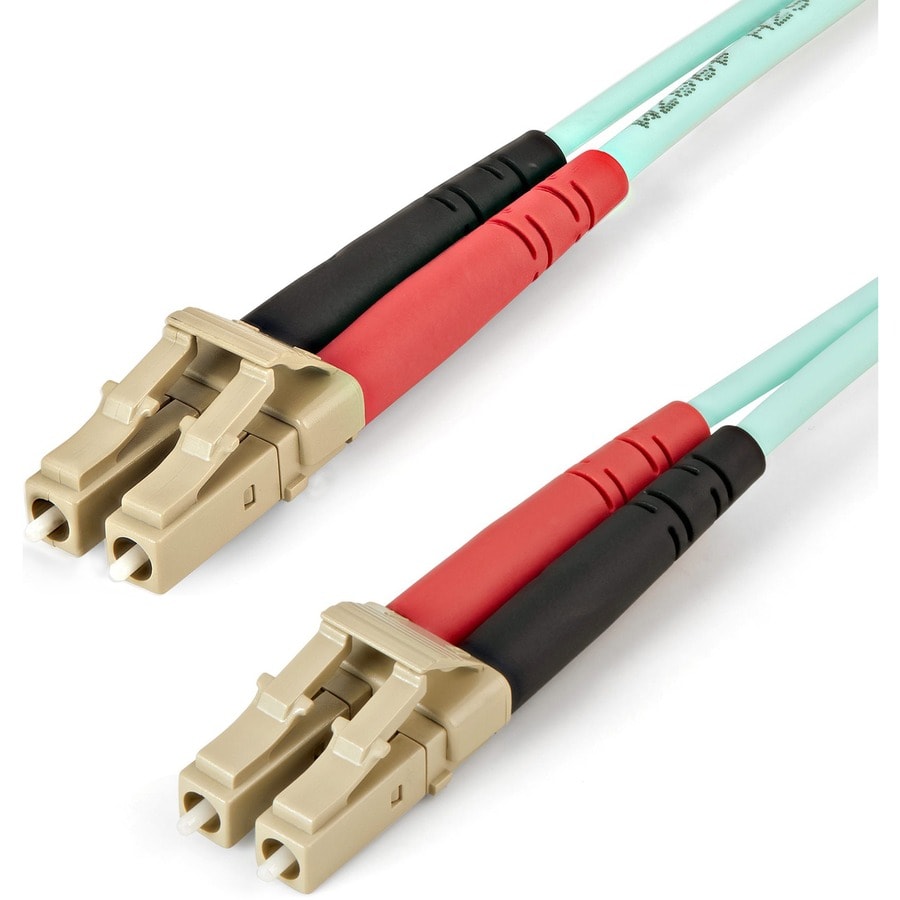

StarTech.com 2m (6ft) LC/UPC to LC/UPC OM4 Multimode Fiber Optic Cable, 50/125µm, 100G, Low Insertion Loss, LSZH Fiber Jumper Cord - 2m (6.6ft) OM4 Multimode LC/LC-UPC Fiber Cable; 1/10/40/100 Gbps Full Duplex; 50/125µm Core w/ Aramid Sheath; Bandwidth: 2000MHz·km at 850nm w/ VCSEL sourc
450FBLCLC2
Also known as SY5939329,IM5045DK
MARKETING INFORMATION
This fiber optic cable lets you connect 40GBase-SR4, 100GBase-SR10, SFP plus and QSFP plus transceivers in 40 and 100 Gigabit networks. The OM4 Duplex Multimode Fiber Optic Cable with LC connectors supports Vertical Cavity Surface Emitting Laser (VCSEL) and LED light sources. It is backward-compatible with your existing 50/125 equipment. Fiber cable is housed in a LSZH (Low-Smoke, Zero-Halogen) flame-retardant jacket to ensure minimal smoke, toxicity and corrosion when exposed to high sources of heat in the event of a fire. Compatible with 850nm VCSEL source, the network cable is ideal for use in industrial settings, central offices and schools as well as residential settings where building codes are a consideration. Laser-optimized multimode fiber is individually tested and certified to be within acceptable optical insertion loss limits for guaranteed compatibility and reliability.More from the Manufacturer
DETAILS
- Cable Type : Fiber Optic
- Cable Characteristic : Patch Cable
- Fiber Optic Mode : Multi-mode
- Fiber Optic Cable Core/Cladding Specification : 50/125 µm
- Cable Length : 6.6 ft (2 m)
- Connector Type on First End : LC Network - Male
- Connector Gender on First End : Male
- Connector on First End Details : 2 x LC Network - Male
- Connector Type on Second End : LC Network - Male
- Connector Gender on Second End : Male
- Connector on Second End Details : 2 x LC Network - Male
- Jacket Type : LSZH
- Device Supported : Network Device,Transceiver
- Data Transfer Rate : 100 Gbit/s
- Features : Halogen Free,Flame Retardant,Corrosion Resistant
- Color Family : Green
- Product Color : Aqua
- Weight (Approximate) : 1.20 oz (34.02 g)
- Country of Origin : China
- Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE),Restriction of Hazardous Substances (RoHS)
- Limited Warranty : Lifetime
- OM4 (50/125) 3500MHz multimode fiber
- Backward compatible with your existing 50/125 equipment
- Laser-optimized multimode fiber (LOMMF)
- Compatible with 850nm VCSEL source
- Attenuation loss meets or exceeds industry standards
SPECIFICATIONS
Manufacturer | StarTech.com |
Manufacturer Part Number | 450FBLCLC2 |
Manufacturer Website Address | http://www.startech.com |
Brand Name | StarTech.com |
Product Name | Fiber Optic Duplex Patch Network Cable |
Packaged Quantity | 1 Each |
Product Type | Network Cable |
Cable Type | Fiber Optic |
Cable Characteristic | Patch Cable |
Fiber Optic Mode | Multi-mode |
Cable Length | 6.6 ft (2 m) |
Connector Type on First End | LC Network - Male |
Connector Gender on First End | Male |
Connector on First End Details | 2 x LC Network - Male |
Connector Type on Second End | LC Network - Male |
Connector Gender on Second End | Male |
Connector on Second End Details | 2 x LC Network - Male |
Jacket Type | LSZH |
Device Supported | Network Device |
Device Supported | Transceiver |
Data Transfer Rate | 100 Gbit/s |
Features | Halogen Free |
Features | Flame Retardant |
Features | Corrosion Resistant |
Color Family | Green |
Product Color | Aqua |
Weight (Approximate) | 1.20 oz (34.02 g) |
Shipping Height | 0.23" (5.84 mm) |
Shipping Width | 7.87" (199.90 mm) |
Shipping Weight (Approximate) | 1.44 oz (40.82 g) |
Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Country of Origin | China |
Limited Warranty | Lifetime |
