StarTech.com 150ft CAT6 Ethernet Cable - Purple Snagless Gigabit 100W PoE UTP 650MHz Category 6 Patch Cord UL Certified Wiring/TIA - 150ft Purple CAT6 Ethernet cable delivers Multi Gigabit 1/2.5/5Gbps & 10Gbps up to 160ft - 650MHz - Fluke tested to ANSI/TIA-568-2.D Category 6 - 24 AWG stranded 100%
N6PATCH150PL
Also known as SY5928705
MARKETING INFORMATION
This Cat6cable delivers reliable Gigabit network connections, which ensures high-performance capability for your demanding Ethernet applications.
Find the length and color you need

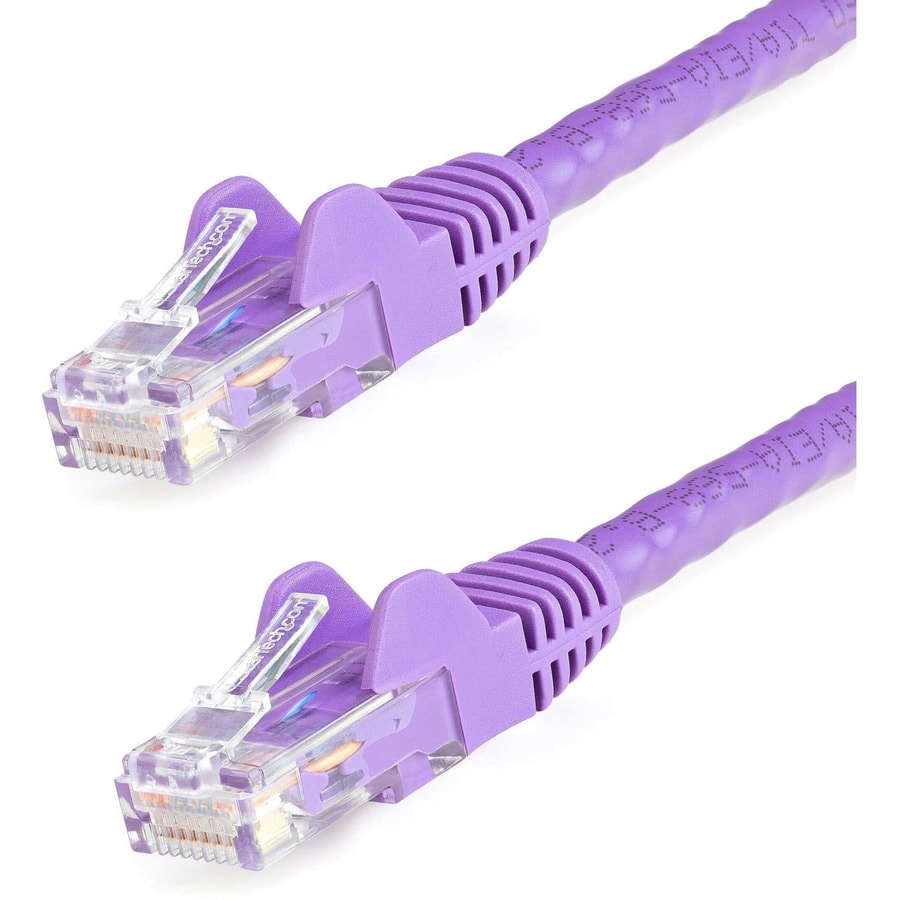

This 150-foot purple patch cable is perfect for use in network conduits and raceways. The cable is intended for longer distance applications, such as running up a post or throughout the office from a hub to a wall jack.
For easier network installations, our Cat6patch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.

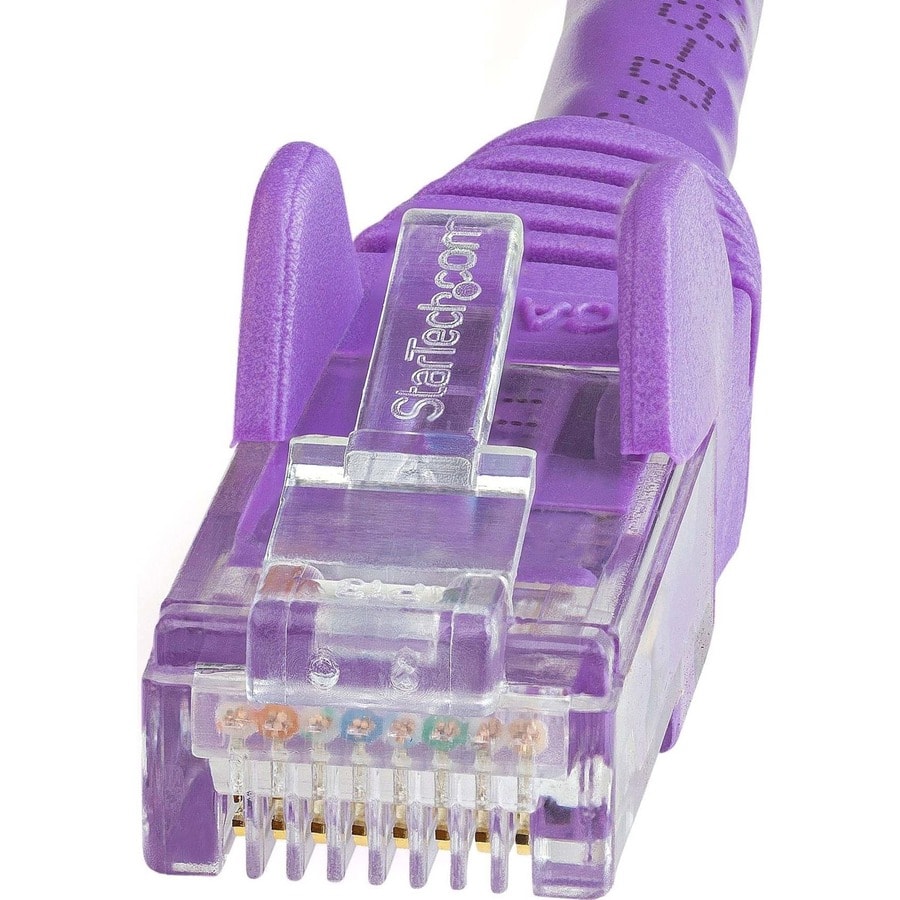

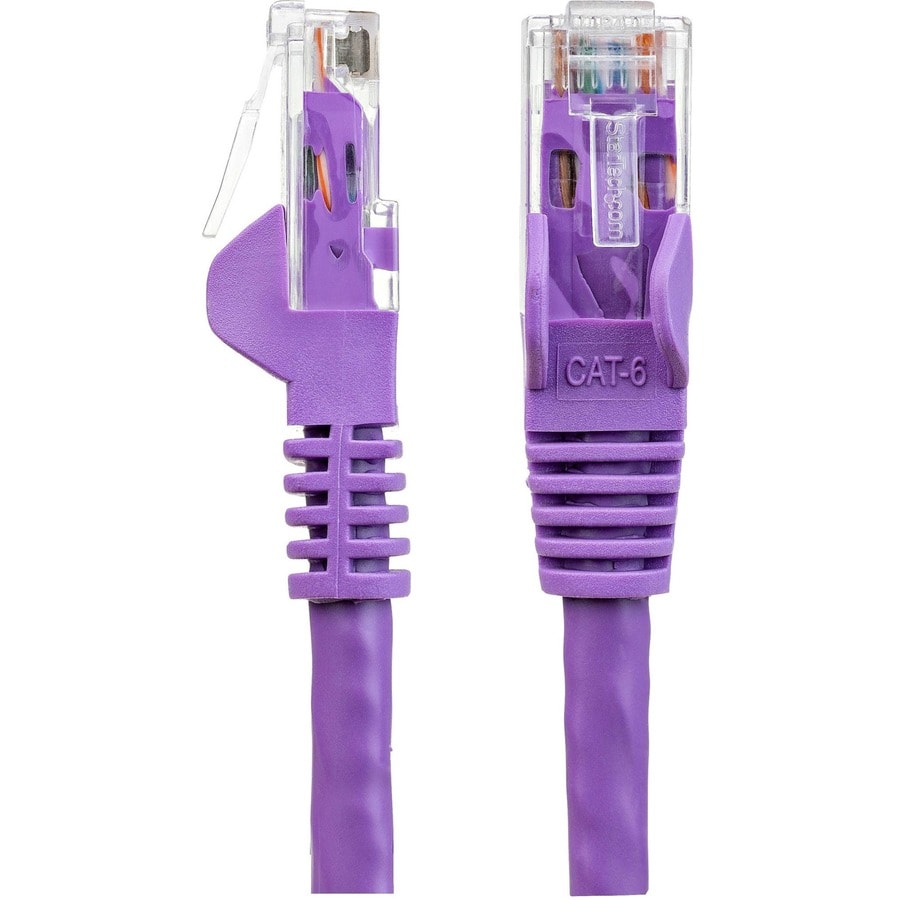

Snagless RJ45 clips help protect your network connections
For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.
The cable also features moldedboots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.
100% copper for outstanding value
Get the highest value for your cable investment with our Cat6 Ethernet cables. Each of our patch cables is manufactured using high-quality copper conductors and they are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.
24-gaugewire for high-performance network connection
Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K or 1080p video streaming, using cables that include 24 AWGcopper.
50-micron gold connectors provide peak conductivity
You can rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.
The N6PATCH150PL is backed by StarTech.com's lifetime warranty for guaranteed reliability.
More from the Manufacturer
DETAILS
- Cable Type : Category 6
- Cable Characteristic : Patch Cable
- Cable Length : 150 ft (45.72 m)
- Connector Type on First End : RJ-45 Network - Male
- Connector Gender on First End : Male
- Connector on First End Details : 1 x RJ-45 Network - Male
- Connector Type on Second End : RJ-45 Network - Male
- Connector Gender on Second End : Male
- Connector on Second End Details : 1 x RJ-45 Network - Male
- Connector Plating : Gold
- Shielding : No
- Jacket Type : CMG
- Device Supported : Network Device,Workstation,Hub,Wall Outlet,Distribution Panel,IP Phone
- American Wire Gauge : 24 AWG
- Data Transfer Rate : 10 Gbit/s
- Boot Type : Snagless,Molded
- Features : Molded,Stranded,Strain Relief,PoE++,Rust Resistant,Corrosion Resistant,Damage Resistant,Bend Resistant,Stress Resistant,PoE,Break Resistant,Near End Cross Talk (NEXT),Fray Resistant,Flexible
- Color Family : Purple
- Product Color : Purple
- Jacket Material : Polyvinyl Chloride (PVC)
- Weight (Approximate) : 4.20 lb (1905.09 g)
- Environmentally Friendly : Yes
- Country of Origin : China
- Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Limited Warranty : Lifetime
- High-quality 24 AWG copper wire
- ETL verified
- HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified
- POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
- QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
- EASY INSTALLATION: 150 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
- SPECS: Length: 150ft (45.7m) | Color: Purple | 650 MHz Rated | Structure: 4 Pair UTP | RJ45 | Jacket: PVC | Wire Gauge: 24 AWG Copper | Wiring: ANSI/T568B | ETL Verified | Warranty: Lifetime
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | N6PATCH150PL |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | Cat6 Patch Cable |
| Packaged Quantity | 1 Each |
| Product Type | Network Cable |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 150 ft (45.72 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector Gender on First End | Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector Gender on Second End | Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Connector Plating | Gold |
| Conductor | Copper |
| Shielding | No |
| Jacket Type | CMG |
| Device Supported | Network Device |
| Device Supported | Workstation |
| Device Supported | Hub |
| Device Supported | Wall Outlet |
| Device Supported | Distribution Panel |
| Device Supported | IP Phone |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Molded |
| Boot Type | Snagless |
| Features | Stranded |
| Features | Molded |
| Features | Strain Relief |
| Features | Flexible |
| Features | PoE++ |
| Features | Rust Resistant |
| Features | Corrosion Resistant |
| Features | Damage Resistant |
| Features | Bend Resistant |
| Features | Stress Resistant |
| Features | PoE |
| Features | Break Resistant |
| Features | Near End Cross Talk (NEXT) |
| Features | Fray Resistant |
| Color Family | Purple |
| Product Color | Purple |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 4.20 lb (1905.09 g) |
| Shipping Height | 1.97" (50.04 mm) |
| Shipping Width | 13.78" (350.01 mm) |
| Shipping Weight (Approximate) | 4.30 lb (1950.45 g) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Limited Warranty | Lifetime |
