MARKETING INFORMATION

This Cat6 cable delivers reliable Gigabit network connections, which ensures high-performance capability for your demanding Ethernet applications.

Find the length and color you need

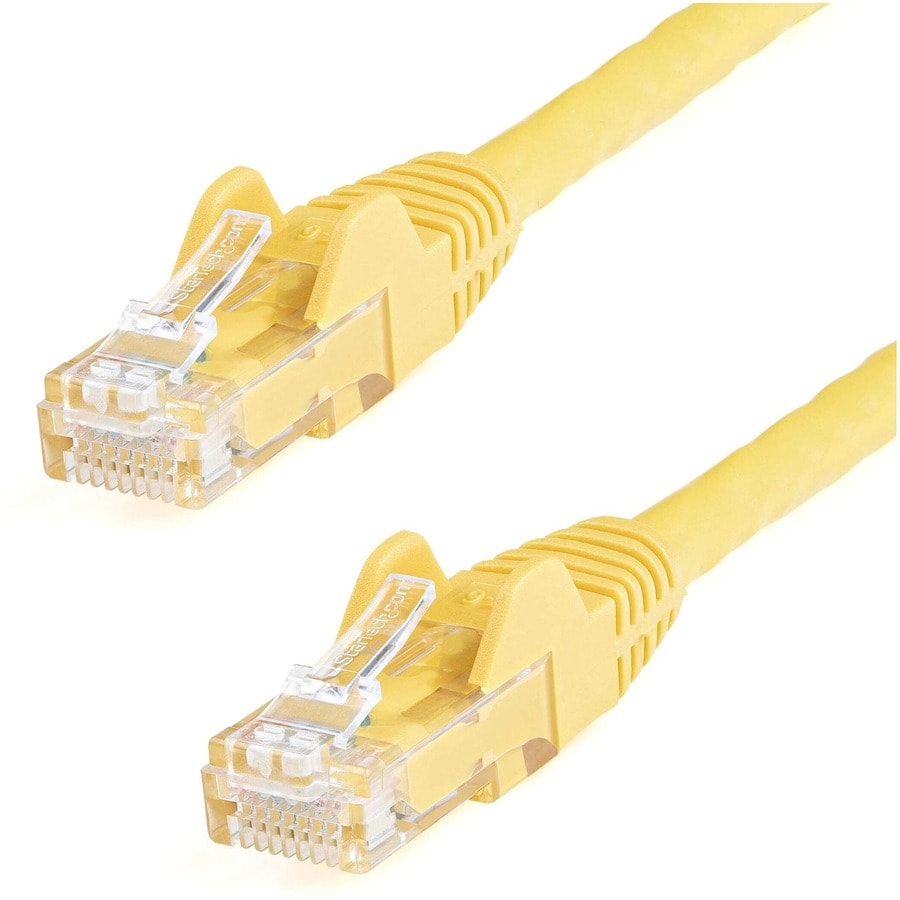

This 8-foot yellow patch cable is perfect for standard applications such as connecting from a wall jack to your laptop docking station or desktop computer.

For easier network installations, our Cat6 patch cables are available in a wide variety of lengths and colors. This ensures you have the right size of cable available when you need it and it lets you color code your connections for a more organized setup.

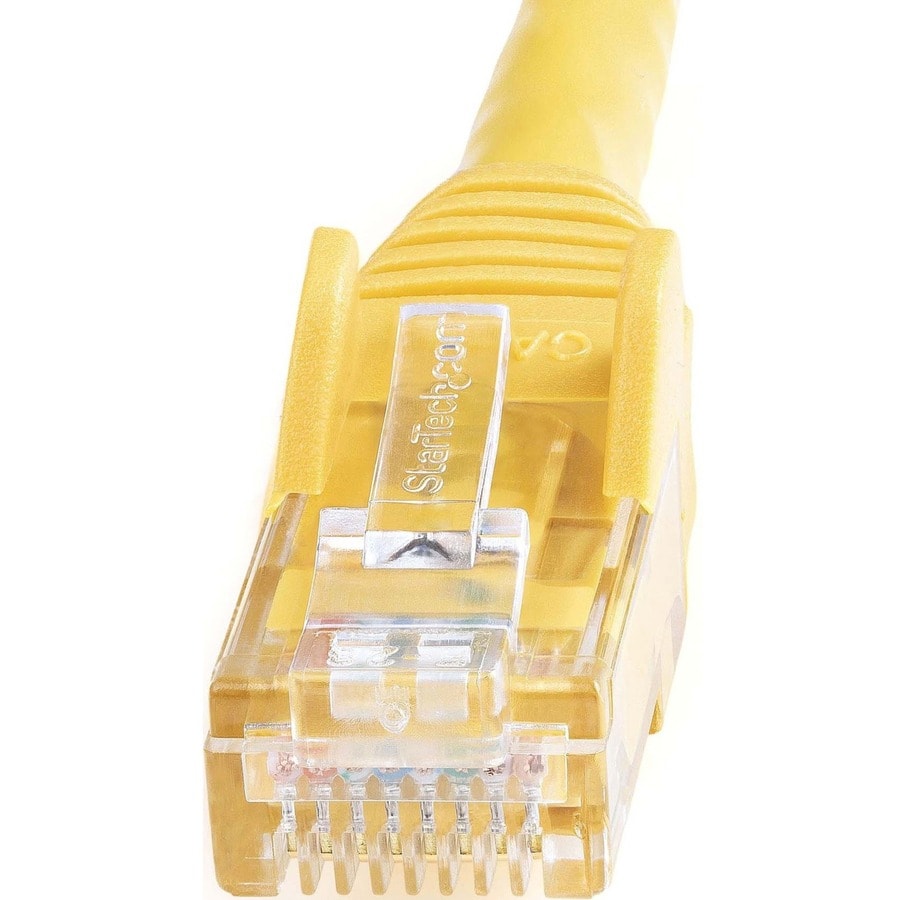

Snagless RJ45 clips help protect your network connections

For trouble-free cable runs, this durable cable features snagless connectors that protect the RJ45 clips during installation, making them less likely to snag or break.

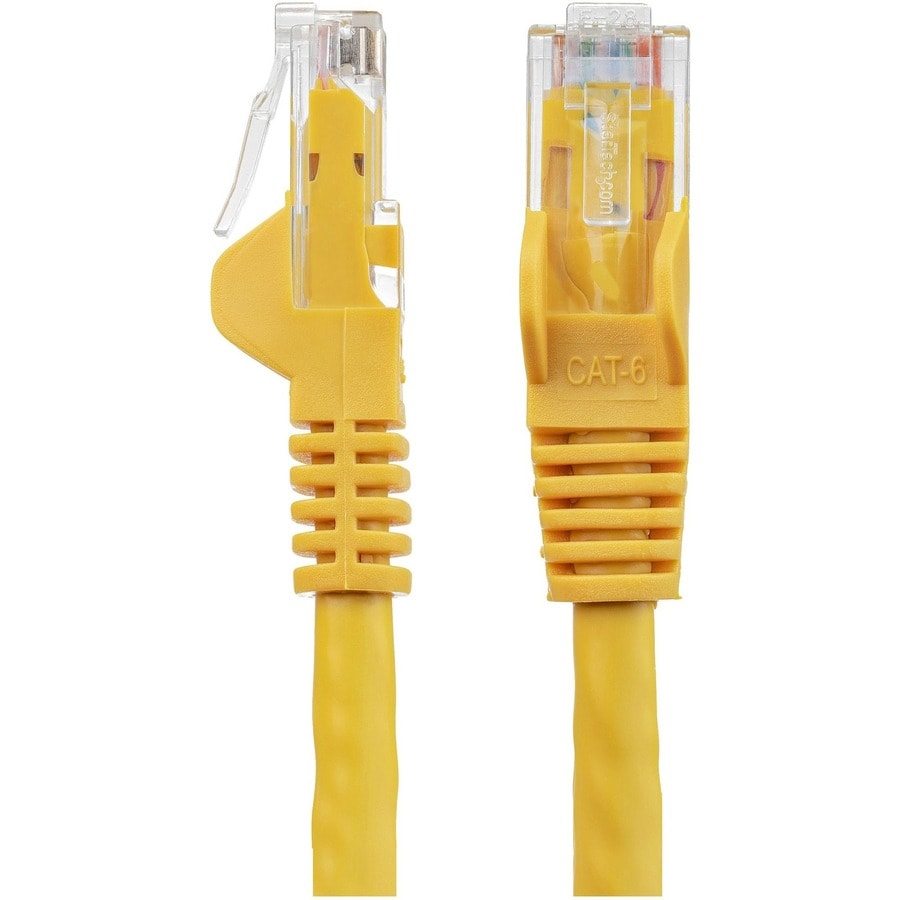

The cable also features molded boots which offer connector strain relief by stopping the RJ45 connector termination points from bending at sharp angles. This reduces the risk of damage to the cable, which could decrease network connectivity and performance.

100% copper for outstanding value

Get the highest value for your cable investment with our Cat6 Ethernet cables. Each of our patch cables is manufactured using high-quality copper conductors and they are carefully constructed and tested, to keep Near-End Crosstalk (NEXT) well within acceptable limits.

24-gauge wire for high-performance network connections

Ensure high-performance capability for your demanding Ethernet applications, such as Power-over-Ethernet and 4K or 1080p video streaming, using cables that include 24 AWG copper.

50-micron gold connectors provide peak conductivity

You can rely on our RJ45 connectors to deliver optimum conductivity while eliminating signal loss due to oxidation or corrosion.

The N6PATCH8YL is backed by StarTech.com's lifetime warranty for guaranteed reliability.

More from the Manufacturer

More from the Manufacturer

DETAILS

• Cable Type : Category 6
• Cable Characteristic : Patch Cable
• Cable Length : 8 ft (2.44 m)
• Connector Type on First End : RJ-45 Network - Male
• Connector Gender on First End : Male
• Connector on First End Details : 1 x RJ-45 Network - Male
• Connector Type on Second End : RJ-45 Network - Male
• Connector Gender on Second End : Male
• Connector on Second End Details : 1 x RJ-45 Network - Male
• Connector Plating : Gold
• Shielding : No
• Jacket Type : CMG
• Device Supported : Network Device,Workstation,Hub,Notebook,Docking Station,Desktop Computer,IP Phone,Network Wall Jack
• American Wire Gauge : 24 AWG
• Data Transfer Rate : 10 Gbit/s
• Boot Type : Snagless,Molded
• Features : Molded,Stranded,Strain Relief,Damage Resistant,Corrosion Resistant,Fray Resistant,Stress Resistant,Rust Resistant,Bend Resistant,Flexible,PoE++,PoE,Snag Resistant,Near End Cross Talk (NEXT),Heat Resistant
• Color Family : Yellow
• Product Color : Yellow
• Product Material : Copper
• Jacket Material : Polyvinyl Chloride (PVC)
• Weight (Approximate) : 3.70 oz (104.89 g)
• Environmentally Friendly : Yes
• Country of Origin : China
• Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
• Limited Warranty : Lifetime

• High-quality 24 AWG copper wire
• ETL verified
• HIGH PERFORMANCE CAT6 ETHERNET CABLE: 100% copper for error-free Multi Gigabit 1/2.5/5Gbps connections; 10Gbps up to 160'; Fluke patch cord tested to comply w/ANSI/TIA-568-2.D Category 6; ETL Verified
• POE SUPPORT: 24 AWG stranded copper conductors & UL Rated Wiring (E132276-A) supports up to 100W for PoE devices like VOIP phone & security systems; IEEE 802.3bt & DTE power compliance reduces cable heating
• QUALITY CONSTRUCTION: ETL & UL certified wire; 50-micron gold-plated connectors prevent rust/corrosion to avoid costly network downtime; High quality PVC jacket resists bending or fraying damage
• EASY INSTALLATION: 8 foot snagless patch cord for easy installation & flexible disconnection in wiring conduits; Compatible w/Cat5e & earlier standards; Molded boots available for constrained spaces
• SPECS: Length: 8ft (2.4m) | Color: Yellow | 650 MHz Rated | Structure: 4 Pair UTP | RJ45 | Jacket: PVC | Wire Gauge: 24 AWG Copper | Wiring: ANSI/T568B | ETL Verified | Warranty: Lifetime
