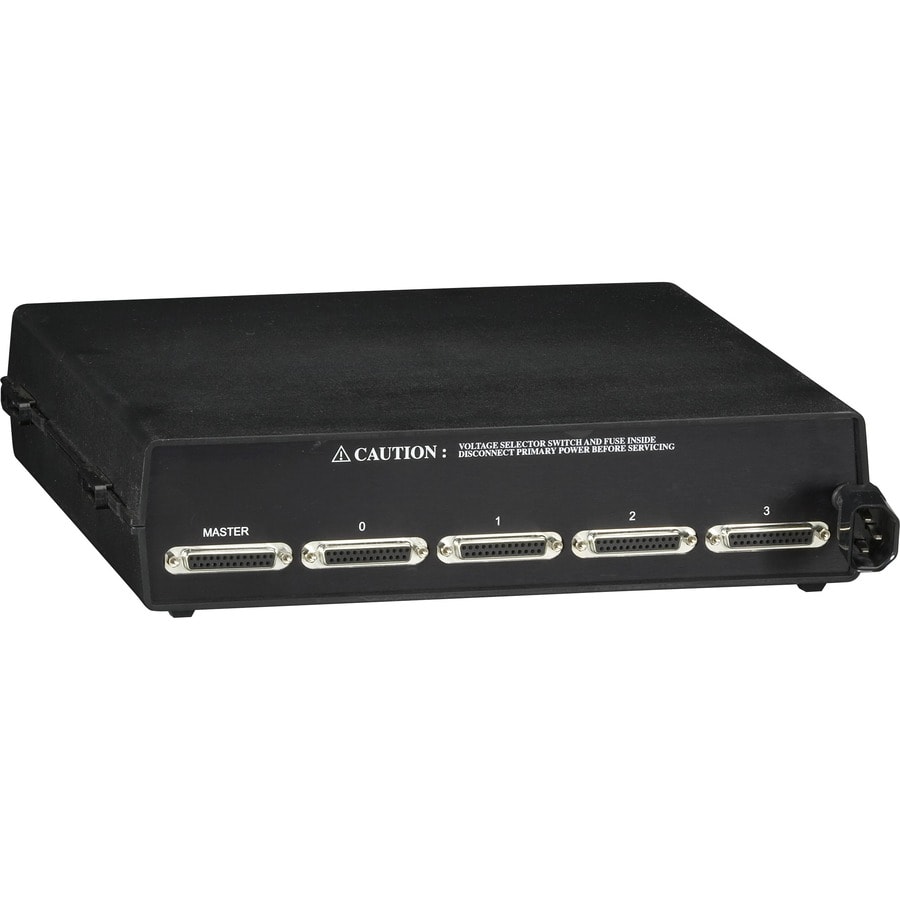

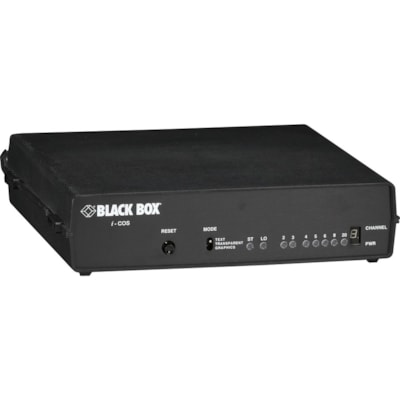

Black Box Async RS-232 DB25 Code Operated Switch - 4-Port - 5 x Serial Port - Automatic

SW853A-R3
Also known as SY5783904

Black Box Async RS-232 DB25 Code Operated Switch - 4-Port - 5 x Serial Port - Automatic RS-232 4-PORT SW853A-R3

New! Log in or create an account to see price and availability


MARKETING INFORMATION

  • DTE/DCE-selectable, so you can switch between a modem and a printer. There's no need for crossover cables.
  • Safe for use with laser printers.
  • Includes a hardware-handshake lead in each direction for added control.
  • No unintended triggering - no matter what data you're sending.
  • Also available with eight ports.
The integrated Code-Operated Switch, RS-232, 4-Port is an asynchronous RS-232 switch with four subordinate ports and one master port that enables you to switch serial devices with codes.

There's no unintended triggering with this switch - no matter what data you're sending. With an internal DIP switch, you select the arming character to use as a trigger.

You can set each port individually as DTE or DCE. That's handy for switching among modems and printers. And your connection is secure. Once a connection is made, other ports are locked out. (Remember that all ports need to be set to operate with identical speeds and word structures.)

For extra control, there's a hardware-handshake lead in each direction in case a device (or the computer) needs it.

The upgraded switch platform has several new features, including:

  • Integrated transceiver loopback for faster fault isolation.

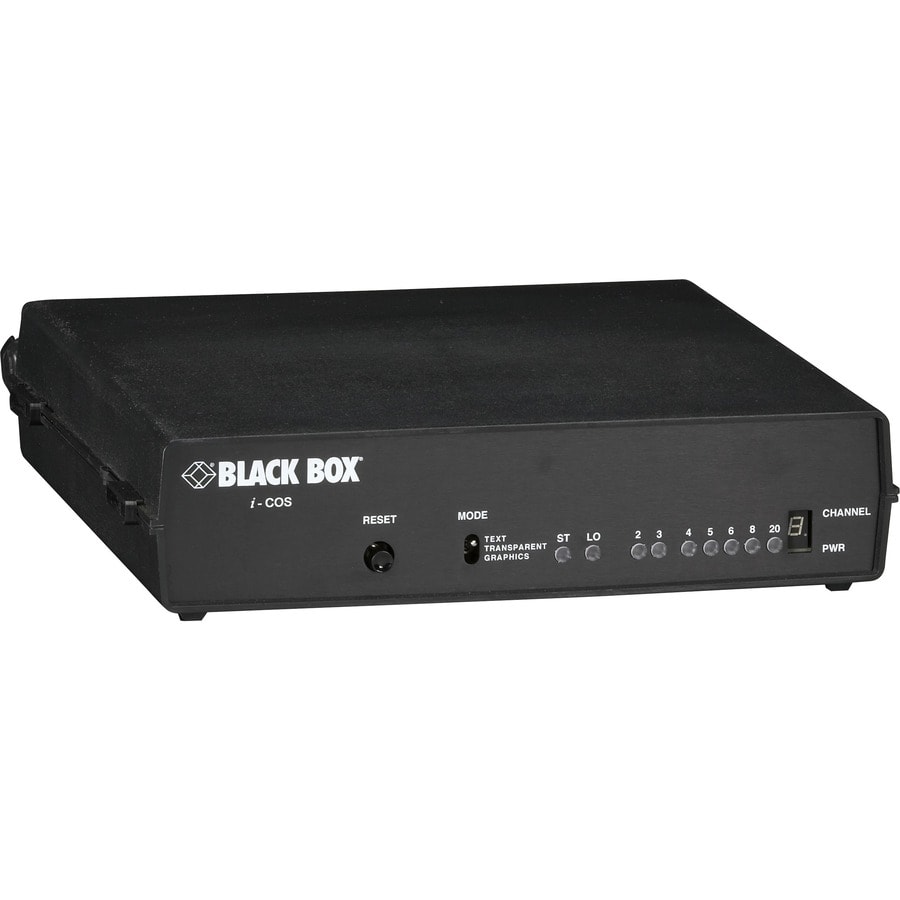

  • Enhanced front-panel LED display to provide a visual indication of more switch operations, including the status of data activity, switch time, port lockout, and control handshake.
  • Power-on initialization that includes port selection default.
  • Onboard programmable PROM to provide function updates and maintenance via active serial and JTAG connections.

DETAILS

  • Number of Input Devices Supported : 1
  • Number of Output Devices Supported : 4
  • Switching Type : Automatic
  • Input Connector Type : Parallel
  • Output Connector Type : Parallel
  • Number of Serial Ports : 5
  • Height : 2.50" (63.50 mm)
  • Width : 12.25" (311.15 mm)
  • Depth : 11.75" (298.45 mm)
  • Weight (Approximate) : 4 lb (1814.37 g)
  • Country of Origin : United States
  • TAA Compliant : Yes
  • Environmentally Friendly : Yes
  • Limited Warranty : 1 Year
  • Switch your serial devices with codes.
  • Supports speeds to 76.8 kbps.
  • Keeps your connection safe once a connection is made, other ports are locked out.
  • Integrated transceiver loopback for faster fault detection.

SPECIFICATIONS

Manufacturer Black Box Corporation
Manufacturer Part Number SW853A-R3
Manufacturer Website Address http://www.blackbox.com
Brand Name Black Box
Product Name Async RS-232 DB25 Code Operated Switch - 4-Port
Product Type Serial Switchbox
Number of Input Devices Supported 1
Number of Output Devices Supported 4
Switching Type Automatic
Input Connector Type Parallel
Output Connector Type Parallel
Number of Serial Ports 5
Frequency 50 Hz
Frequency 60 Hz
Height 2.50" (63.50 mm)
Width 12.25" (311.15 mm)
Depth 11.75" (298.45 mm)
Weight (Approximate) 4 lb (1814.37 g)
Certifications & Standards

CE
Country of Origin United States
TAA Compliant Yes
Environmentally Friendly Yes
Limited Warranty 1 Year
