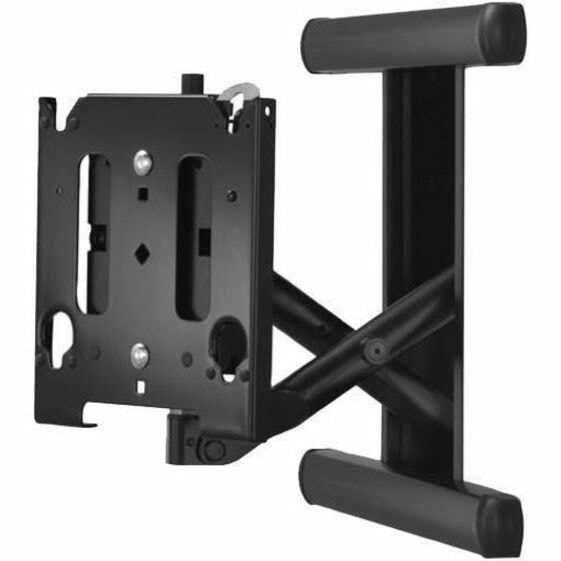

Chief MIWRFVB Mounting Arm for Flat Panel Display - Black - 26" to 40" Screen Support - 125 lb (56699.05 g) Load Capacity

MIWRFVB
Also known as SY5686576

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The MIWRFVB brings the in wall swing arm technology to the next level. The newest in wall mount from Chief provides everything needed to create a flush installation for any Plasma, LCDTV or monitor. Get perfect TV centering without cutting studs.

DETAILS

  • Device Supported : Flat Panel Display
  • Maximum Load Capacity : 125 lb (56699.05 g)
  • Minimum Screen Size Supported : 26"
  • Maximum Screen Size Supported : 40"
  • Features : Adjustable Angle,Adjustable Depth,Cable Management,Flexible,Tilt
  • Product Color : Black
  • Height : 17.20" (436.88 mm)
  • Width : 20.34" (516.64 mm)
  • Depth : 5.58" (141.73 mm)
  • Compatibility : 26" to 40" Displays
  • Country of Origin : United States
  • Sustains a maximum load capacity of 125 lb (56699.05 g)
  • Compatible with the screen size of 40"

SPECIFICATIONS

Manufacturer Legrand Group
Manufacturer Part Number MIWRFVB
Manufacturer Website Address http://www.legrand.com
Brand Name Chief
Product Series MIWRF
Product Model MIWRFVB
Product Name MIWRFVB In-Wall Swing Arm Mount
Product Type Mounting Arm
Device Supported Flat Panel Display
Maximum Load Capacity 125 lb (56699.05 g)
Minimum Screen Size Supported 26"
Maximum Screen Size Supported 40"
Features Cable Management
Features Tilt
Features Adjustable Depth
Features Adjustable Angle
Features Flexible
Product Color Black
Height 17.20" (436.88 mm)
Width 20.34" (516.64 mm)
Depth 5.58" (141.73 mm)
Package Contents

MIWRFVB In-Wall Swing Arm Mount Includes:

  • 1 x MSB-V with attached Mounting Buttons
  • 8 x Phillips Head Cap Screw, (M4 X 12mm)
  • 8 x Phillips Head Cap Screw, (M4 X 25mm)
  • 4 x Pan Head Screw, (M4 X 50mm)
  • 8 x Phillips Head Cap Screw, (M6 X 12mm)
  • 8 x Phillips Head Cap Screw, (M5 X 12mm)
  • 8 x Phillips Head Cap Screw, (M5 X 25mm)
  • 8 x Phillips Head Cap Screw, (M5 X 30mm)
  • 8 x Phillips Head Cap Screw, (M5 X 40mm)
  • 8 x Phillips Head Cap Screw, (M6 X 25mm)
  • 8 x Phillips Head Cap Screw, (M6 X 30mm)
  • 8 x Phillips Head Cap Screw, (M6 X 45mm)
  • 8 x Nylon Spacer, (0.750 x 0.344 x 0.50)
  • 4 x Washer, Flat, M4
  • 4 x Shoulder Washer, (6mm OD x 4.1 ID x 7mm)
  • 4 x Mounting Buttons
Compatibility 26" to 40" Displays
Country of Origin United States
