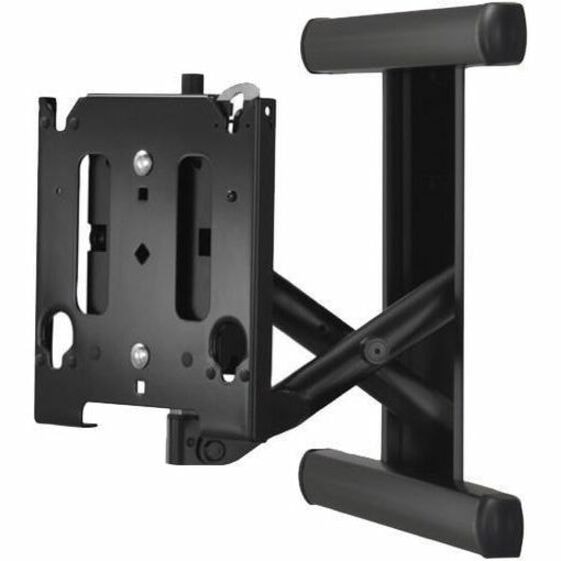

Chief MIWRF6000 Mounting Arm for Flat Panel Display - Black - Height Adjustable - 30" to 50" Screen Support - 125 lb (56699.05 g) Load Capacity

MIWRF6000B
Also known as SY5686574

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The MIWRF brings in-wall swing arm technology to the next level, creating a low profile installation for any flat panel display.

DETAILS

  • Device Supported : Flat Panel Display
  • Maximum Load Capacity : 125 lb (56699.05 g)
  • Minimum Screen Size Supported : 30"
  • Maximum Screen Size Supported : 50"
  • Height Adjustable : Yes
  • Features : Tilt,Swivel
  • Product Color : Black
  • Height : 17.20" (436.88 mm)
  • Width : 20.34" (516.64 mm)
  • Depth : 5.58" (141.73 mm)
  • Package Contents :
    • MIWRF6000 No-Profile In-Wall Swing Arm Mount
    • Mounting Hardware
    • Flat Panel Display Mounting Interface Bracket
  • Compatibility :

    Flat Screen Display

  • Country of Origin : United States
  • Limited Warranty : 10 Year
  • Can withstand a maximum weight of 125 lb (56699.05 g)
  • Compatible with the screen size of 50"

SPECIFICATIONS

Manufacturer Legrand Group
Manufacturer Part Number MIWRF6000B
Manufacturer Website Address http://www.legrand.com
Brand Name Chief
Product Series MIWRF
Product Model MIWRF6000
Product Name MIWRF6000 No-Profile In-Wall Swing Arm Mount
Product Type Mounting Arm
Device Supported Flat Panel Display
Maximum Load Capacity 125 lb (56699.05 g)
Minimum Screen Size Supported 30"
Maximum Screen Size Supported 50"
Maximum Adjustable Height 1" (25.40 mm)
Features Swivel
Features Tilt
Height Adjustable Yes
Product Color Black
Height 17.20" (436.88 mm)
Width 20.34" (516.64 mm)
Depth 5.58" (141.73 mm)
Package Contents
  • MIWRF6000 No-Profile In-Wall Swing Arm Mount
  • Mounting Hardware
  • Flat Panel Display Mounting Interface Bracket
Additional Information
  • Provides limitless centering of the flat panel on the wall between 16" center studs without cutting studs - no header/footer necessary
  • Low-profile design hides the mount behind the display
  • Centris Technology provides smooth, fingertip tilt
  • Provides post-installation height adjustment
  • ClickConnect Technology provides an audible click to confirm that the flat panel is locked in place
  • Roll: +/- 2°
  • Tilt: +2°, -15°
  • Swivel: 37° Left/Right
  • Extension: 9.9" (251 mm), not including MSB interface bracket
  • Depth in home position: 1.7" (43 mm); not including MSB interface bracket
Compatibility

Flat Screen Display

Recycled Yes
Post-consumer-waste% 30%
Country of Origin United States
Limited Warranty 10 Year
