Chief JWDIWUB Wall Mount for Flat Panel Display - Black - 26" to 40" Screen Support - 75 lb (34019.43 g) Load Capacity - 100 x 100, 400 x 400 - VESA Mount Compatible

JWDIWUB
Also known as SY5686537

New! Log in or create an account to see price and availability


MARKETING INFORMATION

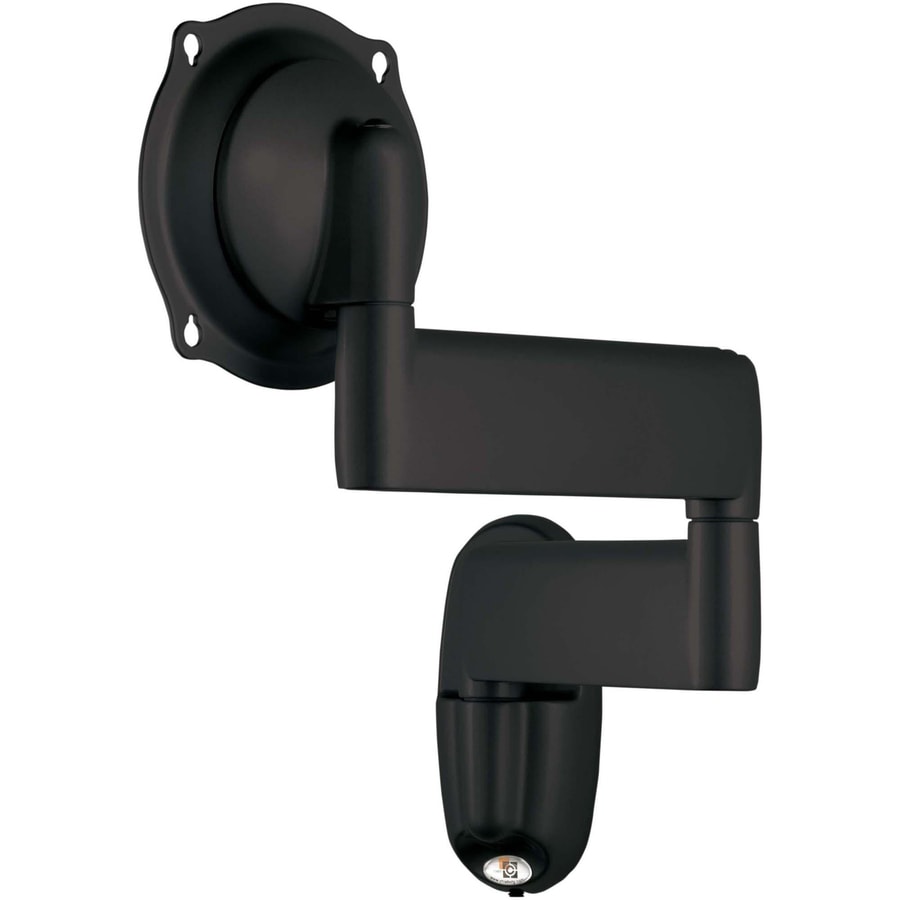

The JWDIWUB In-wall swing arm mount is a low-profile mount designed to conceal the mount in the wall. Easy installation by centering the flat panel at any position on the wall between 16" center studs.

DETAILS

  • Device Supported : Flat Panel Display
  • Maximum Load Capacity : 75 lb (34019.43 g)
  • Minimum Screen Size Supported : 26"
  • Maximum Screen Size Supported : 40"
  • Product Color : Black
  • VESA Mount Compatible : Yes
  • Mounting Pattern : 100 x 100,400 x 400
  • Compatibility : 26-40" Displays
  • Country of Origin : United States
  • Can withstand a maximum weight of 75 lb (34019.43 g)
  • Supports the screen size of 40"

SPECIFICATIONS

Manufacturer Legrand Group
Manufacturer Part Number JWDIWUB
Manufacturer Website Address http://www.legrand.com
Brand Name Chief
Product Series JWDIW
Product Model JWDIWUB
Product Name JWDIWUB In-Wall Swing Arm Mount
Product Type Wall Mount
Device Supported Flat Panel Display
Maximum Load Capacity 75 lb (34019.43 g)
Minimum Screen Size Supported 26"
Maximum Screen Size Supported 40"
Product Color Black
VESA Mount Compatible Yes
Mounting Pattern 400 x 400
Mounting Pattern 100 x 100
Additional Information
  • Roll:+/-5°
  • Tilt: +/-15°
  • Swivel: 90° Left/Right
  • Smooth extension up to 21" (538 mm) to achieve ideal viewing angle
Compatibility 26-40" Displays
Certifications & Standards

VESA 100 x 100 mm to 400 x 400 mm

Country of Origin United States
