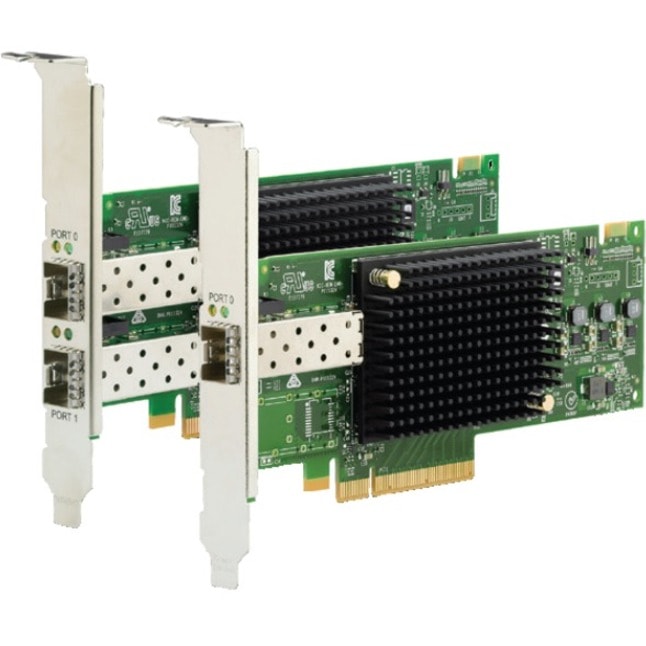

Lenovo Emulex 16Gb Gen6 FC Dual-port HBA - PCI Express 3.0 x8 - 16 Gbit/s - 2 x Total Fibre Channel Port(s) - SFP+ - Plug-in Card
01CV840
Also known as SY5673377,IM3105CM
MARKETING INFORMATION
The Emulex 16 Gb Generation 6 Fibre Channel (FC) host bus adapters (HBAs) are an ideal solution when requiring high-speed data transfer in storage connectivity for virtualized environments, data backup, and mission-critical applications.
This product guide describes the Emulex HBAs and provides essential pre-sales information to understand the products, their key features and specifications, and compatibility. This guide is intended for technical specialists, sales specialists, sales engineers, and IT architects who want to learn more about the adapters and consider their use in IT solutions.
DETAILS
- Total Number of Fibre Channel Ports : 2
- Host Interface : PCI Express 3.0 x8
- Fiber Optic Cable Core/Cladding Specification : 50/125 µm,62.5/125 µm
- Fiber Mode Supported : Multi-mode
- Data Transfer Rate : 16 Gbit/s
- Expansion Slot Type : SFP+
- Form Factor : Plug-in Card
- Card Height : Low-profile
- Height : 2.72" (69 mm)
- Width : 6.61" (168 mm)
- Package Contents :
- Emulex 16Gb Gen6 FC Dual-port HBA
- 3U (Standard) and 2U (low-profile) Adapter Brackets
- Publications Package
- Environmentally Friendly : Yes
- Limited Warranty : 1 Year
- To fulfill your need this fibre channel host bus adapter is a perfect choice
- Fibre Channel 2-port(s) are built for industry-leading performance, providing the quickest data throughput available for today's demanding computing environments and applications
- PCI Express 3.0 x8 interface provides enhanced bandwidth for the quick access of data by the operating system and applications
- With the data speed of 16 Gbit/s, get a quick response while updating or transferring files
SPECIFICATIONS
Manufacturer | Lenovo Group Limited |
Manufacturer Part Number | 01CV840 |
Manufacturer Website Address | http://www.lenovo.com |
Brand Name | Lenovo |
Product Name | Emulex 16Gb Gen6 FC Dual-port HBA |
Product Type | Fibre Channel Host Bus Adapter |
Total Number of Fibre Channel Ports | 2 |
Host Interface | PCI Express 3.0 x8 |
Fiber Mode Supported | Multi-mode |
Data Transfer Rate | 16 Gbit/s |
Expansion Slot Type | SFP+ |
Form Factor | Plug-in Card |
Card Height | Low-profile |
Height | 2.72" (69 mm) |
Width | 6.61" (168 mm) |
Package Contents |
|
Compatibility | Lenovo Storage Systems:
|
Environmentally Friendly | Yes |
Limited Warranty | 1 Year |
