CyberPower UPS Systems OL1500RTXL2UN Smart App Online - Capacity: 1500 VA / 1350 W - CyberPower OL1500RTXL2UN 1.5KVA Online UPS 2U sine wave LCD 100-125V RMCARD205 RT 3YR WTY

OL1500RTXL2UN
Also known as SY5633640,OL1500RTXL2UNCA

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

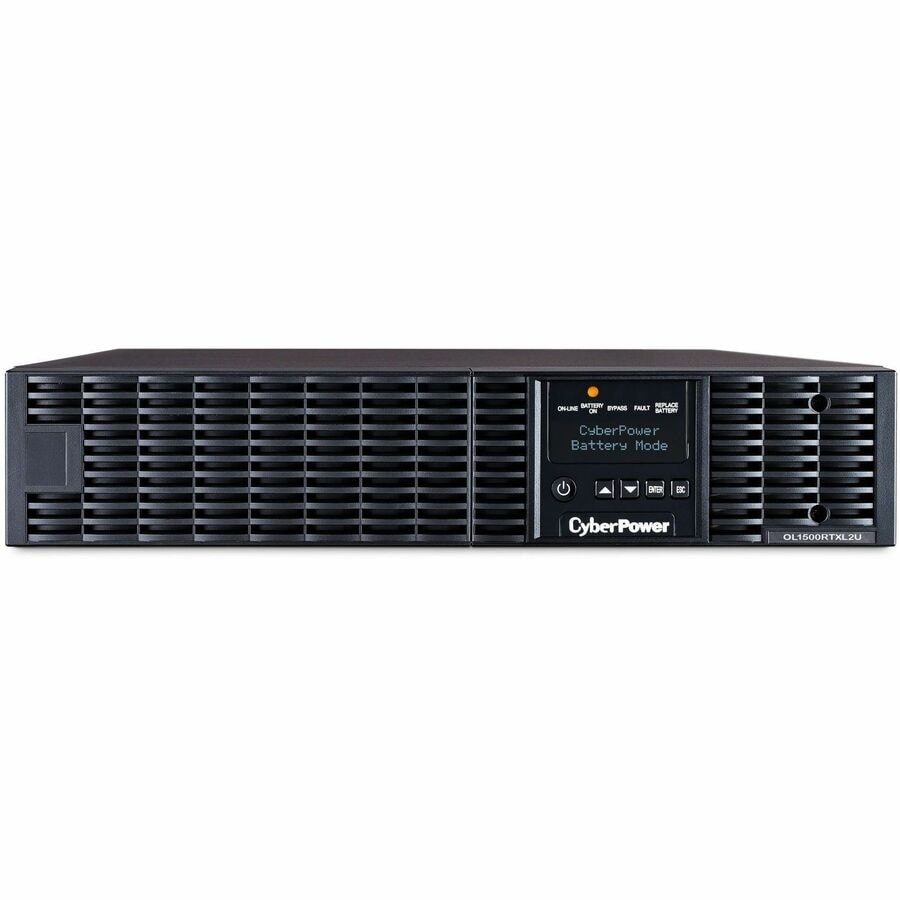

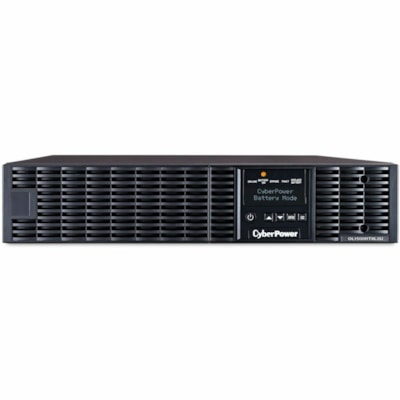

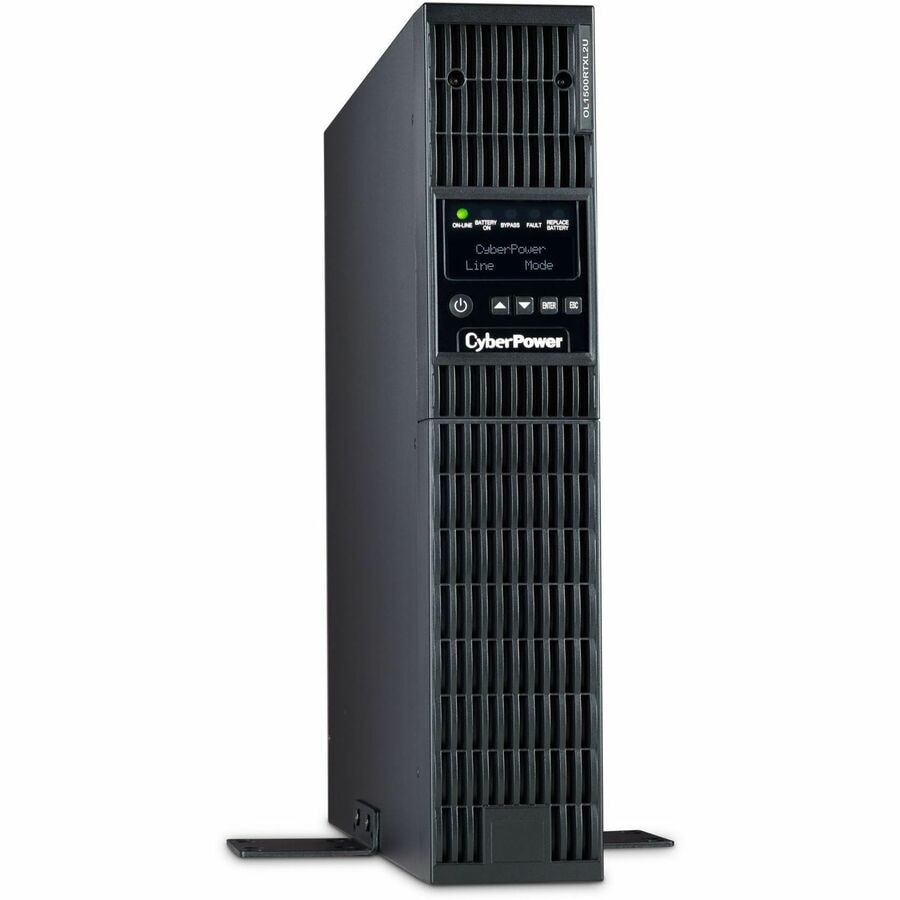

The CyberPower OL1500RTXL2UN is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL1500RTXL2UN offers generator compatibility and delivers clean AC power with zero transfer time. A factory installed RM card allows remote management and configuration of the UPS via a standard web browser, command line interface (CLI), or network management system (NMS). Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

DETAILS

  • Plug/Connector Type : NEMA 5-15P
  • Receptacle Type : NEMA 5-15R
  • Receptacle Detail : 8 x NEMA 5-15R
  • Transfer Time : 0 ns
  • Dataline Protection : RJ-11,RJ-45
  • Protection Type : Short Circuit
  • Overload Protection : Yes
  • EMI/RFI Noise Filter : Yes
  • Energy Saving : ECO Mode Efficiency >95%
  • Application/Usage : Mission Critical Equipment,Network Equipment,Generator
  • Cord Length : 10 ft (3048 mm)
  • Circuit Breaker Current Rating : 15 A
  • Crest Factor : 3:1
  • Load Capacity (VA) : 1.50 kVA
  • Load Capacity (Watt) : 1.35 kW
  • Input Voltage : 120 V AC,230 V AC
  • Input Voltage Range : 60 V AC - 69 V AC,100 V AC - 125 V AC
  • Output Voltage : 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC
  • Input Frequency : 40 Hz,70 Hz
  • Output Frequency : 50 Hz,60 Hz
  • Waveform Type : Sine Wave
  • Surge Energy Rating : 1780 J
  • Input Power Factor : 0.99
  • Output Power Factor : 0.9
  • Display : LCD
  • Network Management : Dry Contact,Relay Card,SNMP/HTTP Remote Monitoring
  • Alarm : Battery Mode,Low Battery,Overload,UPS Fault
  • Status Indicators :
    • Power On
    • Line Mode
    • Battery Mode
    • Bypass Mode
    • Fault
    • Replace Battery
  • Serial Port : Yes
  • Network (RJ-45) : Yes
  • USB : Yes
  • USB (HID Compliant) Port : Yes
  • EPO Port : Yes
  • Number of Batteries : 3
  • Battery Characteristics : Sealed
  • Battery Chemistry : Lead Acid
  • Battery Size : 12V
  • Battery Capacity : 9000 mAh
  • Backup/Run Time (Full Load) : 4 Minute
  • Backup/Run Time (Half Load) : 12.50 Minute
  • Typical Battery Recharge Time : 4 Hour
  • Replaceable Battery : Yes
  • Maximum Operating Temperature : 104°F (40°C)
  • Storage Temperature : -4°F (-20°C) - 113°F (45°C)
  • Maximum Operating Elevation : 10000 ft (3048000 mm)
  • Maximum Storage Elevation : 50000 ft (15240000 mm)
  • Operating Humidity : 0% - 90%
  • Storage Relative Humidity : 0% - 95%
  • Sound Emission (A-Weighted) : 55 dB(A)
  • Thermal Dissipation : 478 BTU/h
  • Product Color : Black

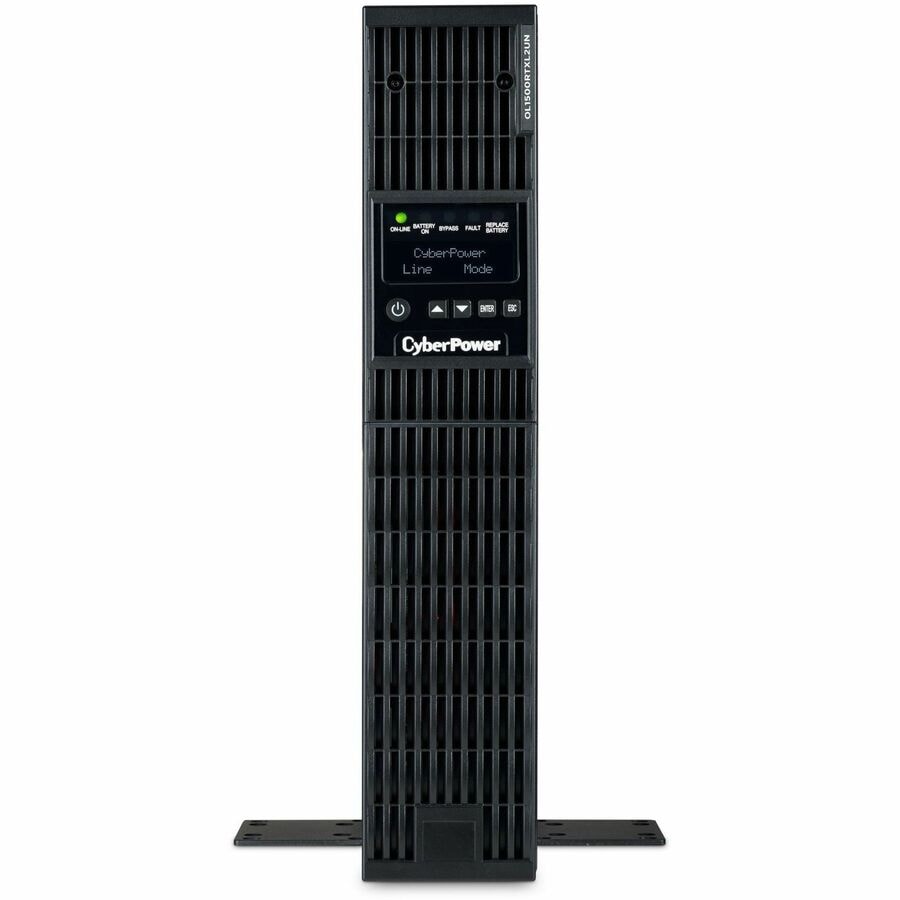

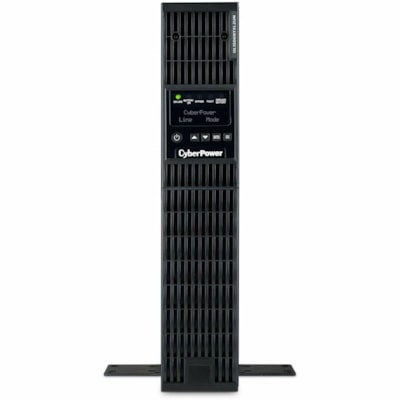

  • Form Factor : Rack/Tower

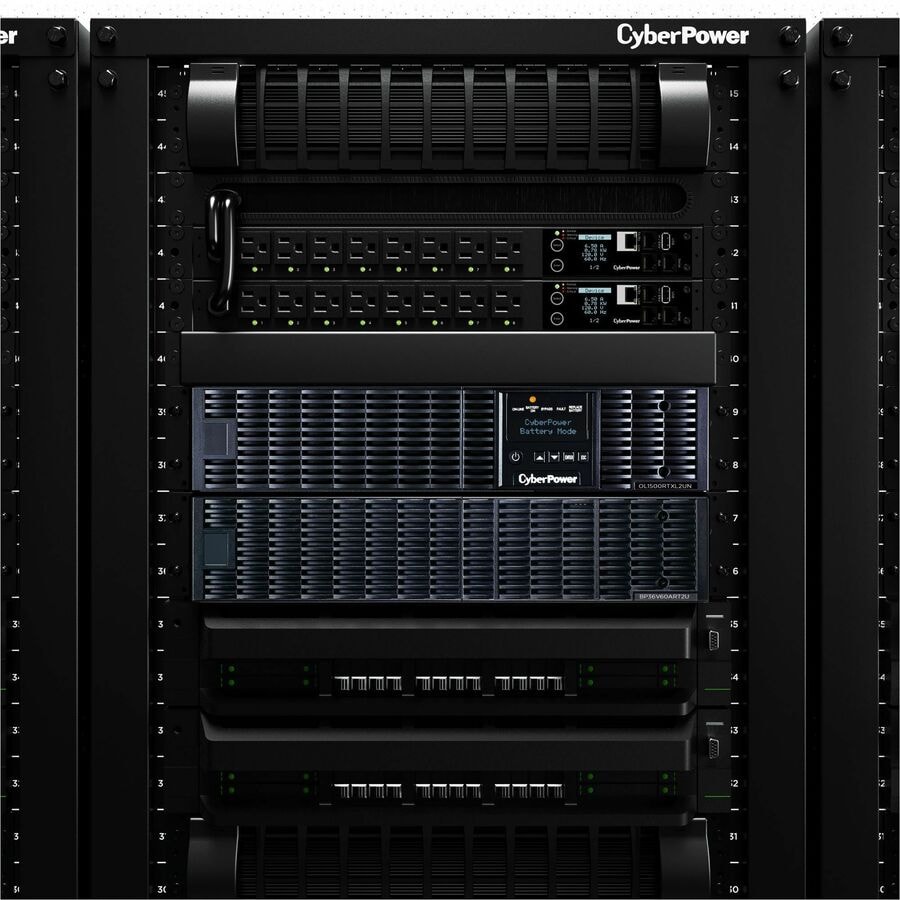

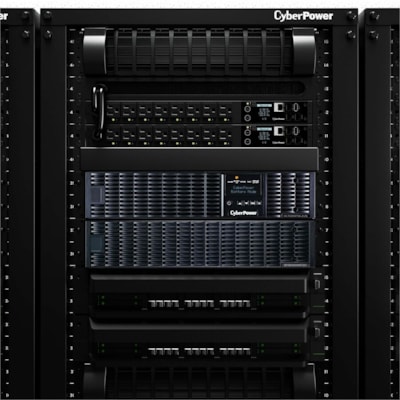

  • Rack Height : 2U

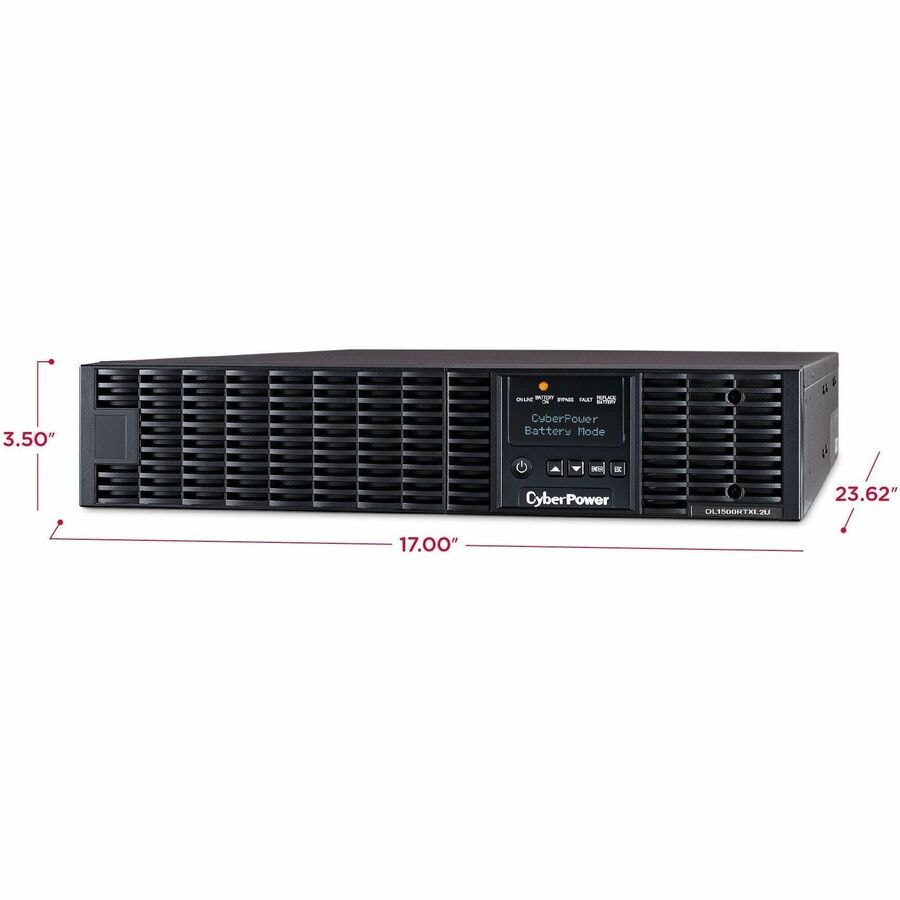

  • Height : 3.50" (88.90 mm)
  • Width : 17" (431.80 mm)
  • Depth : 16.90" (429.26 mm)
  • Weight (Approximate) : 39.60 lb (17962.26 g)
  • Software Included : PowerPanel® Business
  • Energy Star : Yes
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Capacity: 1500 VA / 1350 W
  • Power Factor (PF): 0.9
  • Topology: Double-Conversion
  • Waveform: Sine Wave
  • Output: 100, 110, 115, 120, 125 V ±2% (configurable)
  • Plug type & cord: NEMA 5-15P, 10 ft. cord

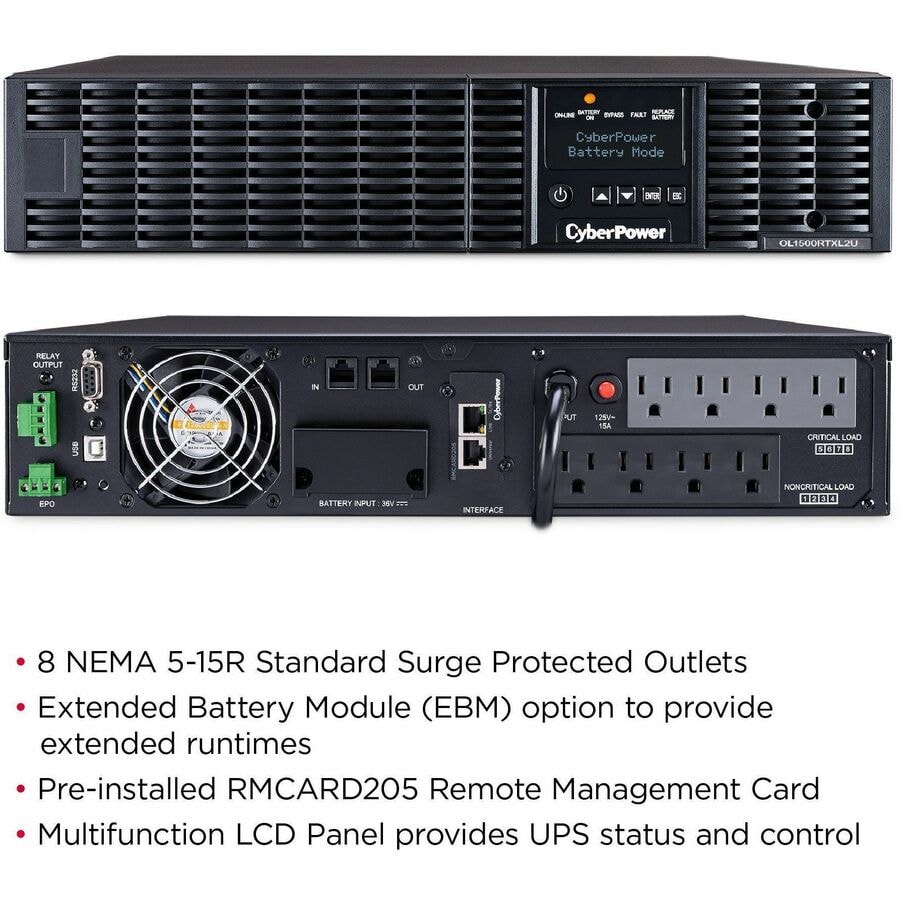

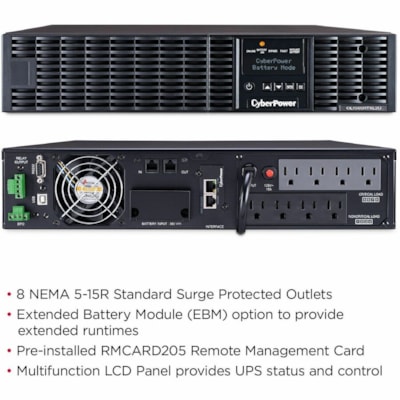

  • Outlet types: 8 × NEMA 5-15R
  • Monitoring & Management: USB, Serial, RMCARD205, Relay, EPO
  • Data line surge protection: Telephone, Network
  • Management software: PowerPanel® Business Edition

SPECIFICATIONS

Manufacturer CyberPower Systems, Inc
Manufacturer Part Number OL1500RTXL2UN
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series Smart App Online UPS
Product Model OL1500RTXL2UN
Product Name OL1500RTXL2UN 1.5KVA Online UPS 2U sine wave LCD 100-125V RMCARD205 RT 3YR WTY
Product Type Double Conversion Online UPS
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 8 x NEMA 5-15R
Transfer Time 0 ns
Dataline Protection RJ-11
Dataline Protection RJ-45
Protection Type Short Circuit
Overload Protection Yes
EMI/RFI Noise Filter Yes
Energy Saving ECO Mode Efficiency >95%
Application/Usage Network Equipment
Application/Usage Mission Critical Equipment
Application/Usage Generator
Cord Length 10 ft (3048 mm)
Crest Factor 3:1
Circuit Breaker Current Rating 15 A
Load Capacity (VA) 1.50 kVA
Load Capacity (Watt) 1.35 kW
Input Voltage 230 V AC
Input Voltage 120 V AC
Input Voltage Range 100 V AC - 125 V AC
Input Voltage Range 60 V AC - 69 V AC
Output Voltage 100 V AC
Output Voltage 110 V AC
Output Voltage 115 V AC
Output Voltage 120 V AC
Output Voltage 125 V AC
Input Frequency 40 Hz
Input Frequency 70 Hz
Output Frequency 50 Hz
Output Frequency 60 Hz
Waveform Type Sine Wave
Surge Energy Rating 1780 J
Input Power Factor 0.99
Output Power Factor 0.9
Display LCD
Network Management Relay Card
Network Management Dry Contact
Network Management SNMP/HTTP Remote Monitoring
Alarm Overload
Alarm Low Battery
Alarm Battery Mode
Alarm UPS Fault
Status Indicators
  • Power On
  • Line Mode
  • Battery Mode
  • Bypass Mode
  • Fault
  • Replace Battery
Serial Port Yes
Modem (RJ-11) Yes
Network (RJ-45) Yes
USB Yes
USB (HID Compliant) Port Yes
EPO Port Yes
Number of Batteries 3
Battery Characteristics Sealed
Battery Chemistry Lead Acid
Battery Size 12V
Battery Capacity 9000 mAh
Backup/Run Time (Full Load) 4 Minute
Backup/Run Time (Half Load) 12.50 Minute
Typical Battery Recharge Time 4 Hour
Replaceable Battery Yes
Maximum Operating Temperature 104°F (40°C)
Storage Temperature -4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation 10000 ft (3048000 mm)
Maximum Storage Elevation 50000 ft (15240000 mm)
Operating Humidity 0% - 90%
Storage Relative Humidity 0% - 95%
Sound Emission (A-Weighted) 55 dB(A)
Thermal Dissipation 478 BTU/h
Color Family Black
Product Color Black
Form Factor Rack/Tower
Rack Height 2U
Height 3.50" (88.90 mm)
Width 17" (431.80 mm)
Depth 16.90" (429.26 mm)
Weight (Approximate) 39.60 lb (17962.26 g)
Package Contents
  • OL1500RTXL2UN 1.5KVA Online UPS 2U sine wave LCD 100-125V RMCARD205 RT 3YR WTY
  • User Manual
  • USB Cable
  • Phone Cable
  • Serial Cable
  • Registration Card
  • Mounting Hardware
Additional Information
  • Replacement Battery Cartridge Quantity: 1
  • Smart Battery Management (SBM) Mode: Yes
  • Circuit Breaker: 15A
  • Cold Start: Yes
  • Input Power Factor: 0.99
  • Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
  • Crest Factor: 3:1
  • ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
  • Harmonic Distortion: < 3% at Linear Load
  • On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
  • Output Power Factor: 0.9
  • Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
  • Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
  • VA by Input Type: 1,500 (1.5 kVA) at 120, 125 V input
  • Watts by Input Type: 1,350 (1.4 kW) at 120, 125 V input
  • Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
  • Dry Contacts: Yes
  • Expansion Slot: Yes - RMCARD205 pre-installed
  • LCD: Multifunction LCD
  • LED Indicators: Power On (White)
  • Management Cable: USB Cable
  • Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
  • Rotatable LCD Control Panel Option: Yes
  • Serial Port: 1 Serial
  • Upgradeable firmware: Yes
  • Material of Construction: Metal
  • Mounting Hardware: Yes
  • ECO Mode Thermal Dissipation: 207 BTU/hr
  • Operating Elevation: 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity: 0 - 90 % (non-condensing)
  • Operating Temperature: 32 - 104 °F (0 - 40 °C)
  • Storage Elevation: 0 - 50000 ft (0 - 15239 m)
Certifications & Standards
  • UL 1778
  • CSA C22.2 NO.107.3-05
  • FCC DOC Class B
Software Included PowerPanel® Business
Energy Star Yes
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $400000 Lifetime
