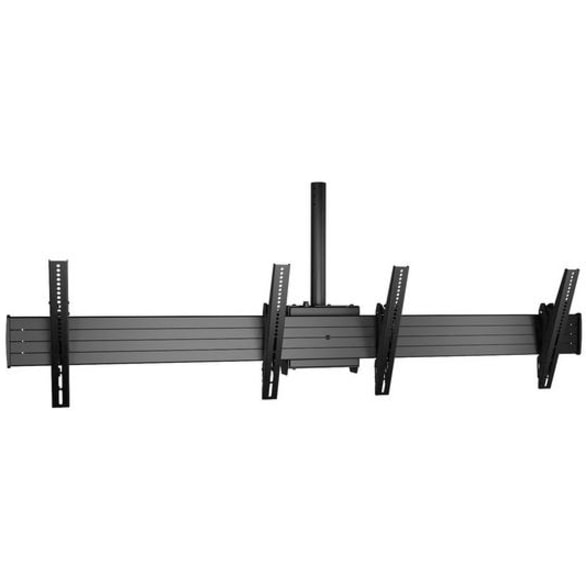

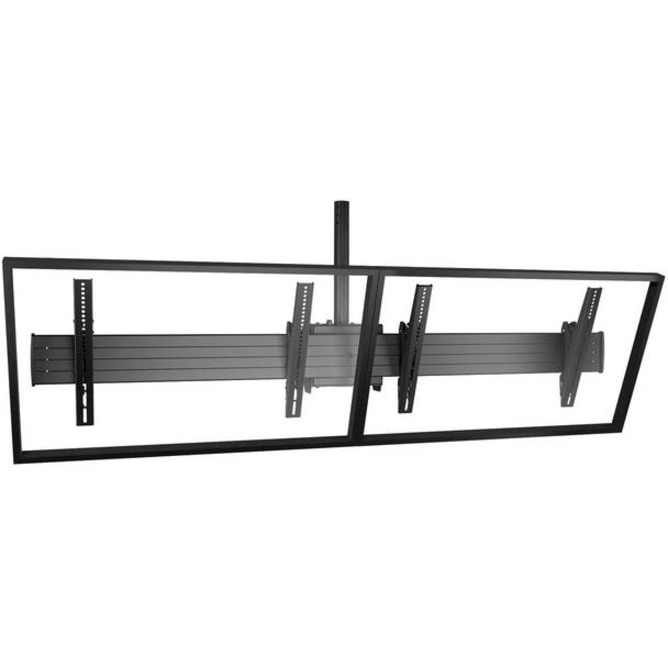

Chief Fusion 2x1 Menu Board Ceiling TV Mount - For 40-55 Inch TVs - Tilt TV Mount - Black - Chief Fusion 2x1 Menu Board Ceiling TV Mount - For Displays 40-55" - Black

LCM2X1U
Also known as SY5591340

Chief Fusion 2x1 Menu Board Ceiling TV Mount - For 40-55 Inch TVs - Tilt TV Mount - Black - Chief Fusion 2x1 Menu Board Ceiling TV Mount - For Displays 40-55" - Black LING 2 X 1 MENU BOARD

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Chief's Fusion ceiling TV mount make it possible to construct menu boards in prominent locations where walls aren't available. Combine to easily create longer menu boards. Great for digital signage installations. This menu board features a single drop for fast installation, micro-adjustable roll for perfect leveling, and 360 degree swivel for optimal viewing angles.

DETAILS

  • Device Supported : Digital Signage Appliance,Flat Panel Display
  • Maximum Load Capacity : 125 lb (56699.05 g)
  • Minimum Screen Size Supported : 40"
  • Maximum Screen Size Supported : 55"
  • Features : Tilt,Swivel,360° Swivel,Adjustable Roll
  • Product Color : Black
  • Compatibility :
    • 1.5" NPT Thread
    • Chief CPA Pinned Ceiling Plates
    • Chief CPA Pinned Column Systems
  • Country of Origin : China
  • Limited Warranty : 10 Year
  • Can withstand a maximum weight of 125 lb (56699.05 g)
  • Compatible with the screen size of 55"

SPECIFICATIONS

Manufacturer Legrand Group
Manufacturer Part Number LCM2X1U
Manufacturer Website Address http://www.legrand.com
Brand Name Chief
Product Line FUSION
Product Model LCM2X1U
Product Name FUSION Ultrawide Ceiling Mounted Menu Board - For Displays 42-50"
Product Type Ceiling Mount
Device Supported Digital Signage Appliance
Device Supported Flat Panel Display
Maximum Load Capacity 125 lb (56699.05 g)
Minimum Screen Size Supported 40"
Maximum Screen Size Supported 55"
Features Swivel
Features Tilt
Features 360° Swivel
Features Adjustable Roll
Product Color Black
Package Contents
  • 1 x FUSION Large Ceiling Mounted 2 x 1 Menu Board
  • 2 x Interface Bracket Hardware Kit
  • 4 x Interface Bracket
  • 1 x Back Cover
  • 1 x Bottom Stop Collar
  • 1 x Bottom Coupling
  • Mounting Hardware
Additional Information
  • Tool-free screen engagement
  • Single drop for fast installation
  • Secure displays with optional pad-lock security
  • Single horizontal extrusion keeps screens aligned
  • Mounting Pattern Compatibility (Universal Versions): Any width x 100 - 400 mm
Compatibility
  • 1.5" NPT Thread
  • Chief CPA Pinned Ceiling Plates
  • Chief CPA Pinned Column Systems
Certifications & Standards UL
Recycled Yes
Post-consumer-waste% 30%
Country of Origin China
Limited Warranty 10 Year
