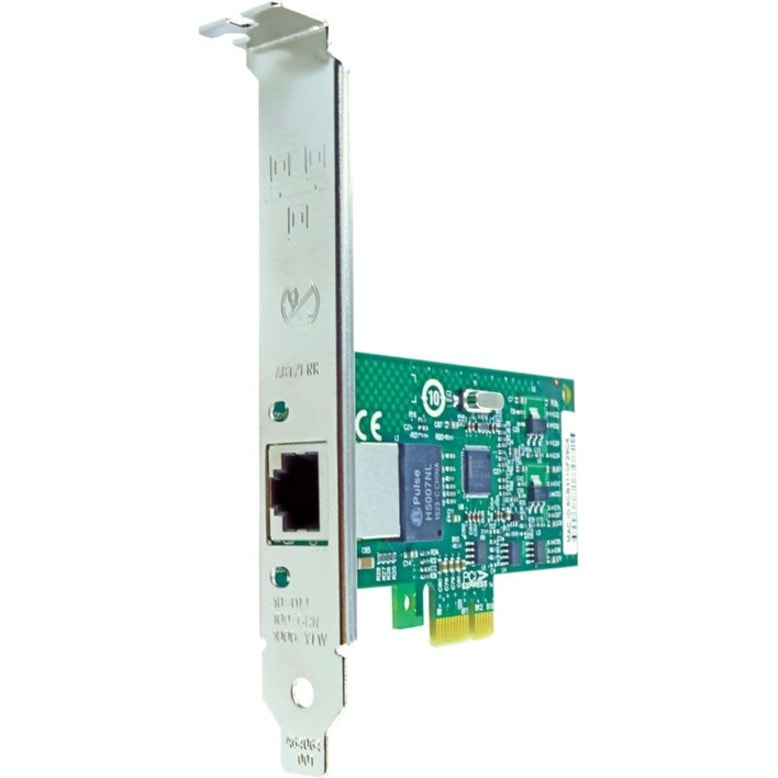

Axiom 10/100/1000Mbs Single Port RJ45 PCIe x1 NIC Card for HP - E0X95AA - 1000Mbs Single Port RJ45 PCIe x1 NIC Card
E0X95AA-AX
Also known as SY5590149,DHE0X95AAAXCA
MARKETING INFORMATION
Axiom's family of network server adapters provide a wide-range of solutions to boost network performance and improve IT flexibility. Available band-widths range from 100Mbs to 100Gbs on interfaces ranging from 32-Bit PCI to PCIe 4.0 x16. Each adapter provides standard connector options from single port, dual port, quad ports in copper and/or fiber-based connections.
Axiom network interface cards accelerate applications with enterprise-proven connectivity. These solutions are available for designated branded OEM systems. Each Axiom network adapter is 100-percent tested to ensure long-term reliability and performance in high transaction and mission-critical applications.
- Optimized for virtualization.
- Maximizes I/O consolidation with high performance ports.
- Leverages and protects existing IT investments.
- Delivers cost reductions in operating expense and total cost expense.
- Provide connectivity and scalability required for enterprise environments.
- Deliver enterprise-class connectivity.
- Supports both data and storage I/O with an adapter that can integrate with your existing Fibre Channel and Ethernet networks, extending the value of your network investments.
- Achieve convergence - Run concurrent TCP/IP and storage (iSCSI or Fibre Channel) traffic over a single link.
- Includes Full Height and Half Height Mounting Brackets
DETAILS
- Host Interface : PCI Express 1.1 x1
- Total Number of Ports : 1
- Number of Network (RJ-45) Ports : 1
- Media Type Supported : Twisted Pair
- Network Technology : 1000Base-T
- Form Factor : Plug-in Card
- Height : 3.94" (100 mm)
- Width : 0.55" (14 mm)
- Depth : 2.17" (55 mm)
- Weight (Approximate) : 1.44 oz (40.82 g)
- Device Supported : Workstation
- Limited Warranty : 3 Year
- Enjoy the super fast Gigabit Ethernet connection by inserting this Gigabit Ethernet card into your computer
- Enjoy superfast data transfer of up to 1000 MB/s with PCI Express 1.1 x1 card, between the network card and motherboards
- Connect to a wired network with this single port network adapter for a hassle-free and quick response
- Supports cost-efficient twisted pair cables for speedy data transfer up to 100 meters
- With the 1000Base-T technology get up to 1000Mbps data transfer rate over the twisted pair cable
SPECIFICATIONS
| Manufacturer | Axiom Memory Solutions |
| Manufacturer Part Number | E0X95AA-AX |
| Manufacturer Website Address | http://search.axiomupgrades.com |
| Brand Name | Axiom |
| Product Name | PCIe x1 1Gbs Single Port Copper Network Adapter for HP |
| Product Type | Gigabit Ethernet Card |
| Host Interface | PCI Express 1.1 x1 |
| Total Number of Ports | 1 |
| Number of Network (RJ-45) Ports | 1 |
| Media Type Supported | Twisted Pair |
| Network Technology | 1000Base-T |
| Form Factor | Plug-in Card |
| Height | 3.94" (100 mm) |
| Width | 0.55" (14 mm) |
| Depth | 2.17" (55 mm) |
| Weight (Approximate) | 1.44 oz (40.82 g) |
| Device Supported | Workstation |
| Limited Warranty | 3 Year |
