MARKETING INFORMATION

Axiom's family of network server adapters provide a wide-range of solutions to boost network performance and improve IT flexibility. Available band-widths range from 100Mbs to 100Gbs on interfaces ranging from 32-Bit PCI to PCIe 4.0 x16. Each adapter provides standard connector options from single port, dual port, quad ports in copper and/or fiber-based connections.
Axiom network interface cards accelerate applications with enterprise-proven connectivity. These solutions are available for designated branded OEM systems. Each Axiom network adapter is 100-percent tested to ensure long-term reliability and performance in high transaction and mission-critical applications.

• Optimized for virtualization.
• Maximizes I/O consolidation with high performance ports.
• Leverages and protects existing IT investments.
• Delivers cost reductions in operating expense and total cost expense.
• Provide connectivity and scalability required for enterprise environments.
• Deliver enterprise-class connectivity.
• Supports both data and storage I/O with an adapter that can integrate with your existing Fibre Channel and Ethernet networks, extending the value of your network investments.
• Achieve convergence - Run concurrent TCP/IP and storage (iSCSI or Fibre Channel) traffic over a single link.
• Includes Full Height and Half Height Mounting Brackets

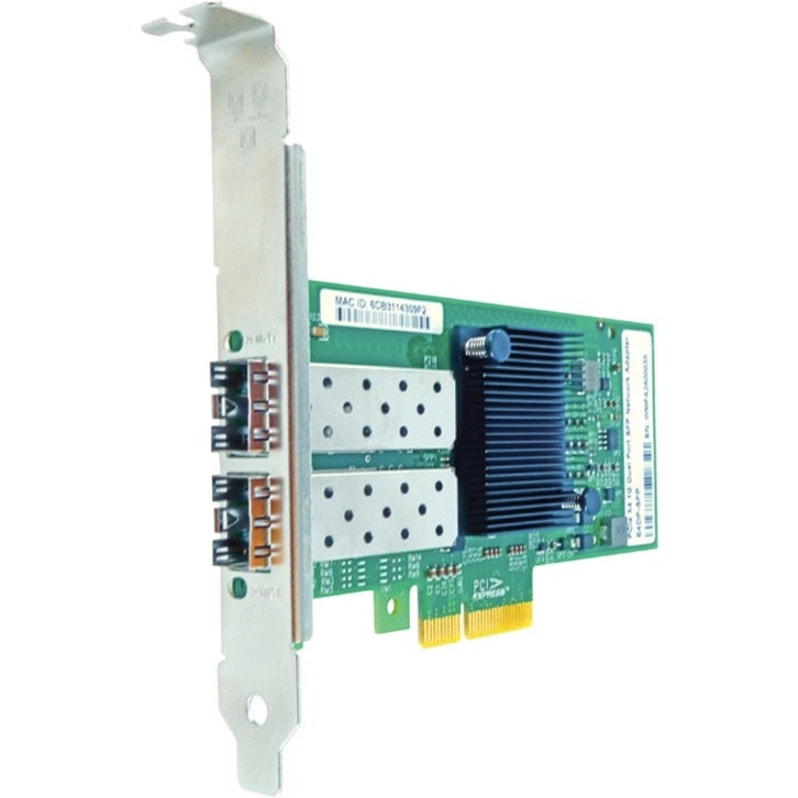

DETAILS

• Host Interface : PCI Express 2.1 x4
• Total Number of Ports : 2
• Expansion Slot Type : SFP
• Media Type Supported : Optical Fiber
• Network Technology : 1000Base-X
• Form Factor : Plug-in Card
• Height : 5.12" (130 mm)
• Width : 0.51" (13 mm)
• Depth : 3.03" (77 mm)
• Weight (Approximate) : 2.56 oz (72.57 g)
• Device Supported : Server
• Limited Warranty : 3 Year

• This Gigabit Ethernet card guarantees a replacement networking interface to client, server or workstation
• This 2000MB/s bandwidth adapter is ideal for PCs with PCI Express 2.1 x4 slots, ensuring top level network connectivity for your desktops
• For high bandwidth connectivity, add this efficient dual port gigabit ethernet card to your server or workstation
• Supports optical fiber cable to span longer distances and provides data transmission rates par excellence between servers and network components
• With the 1000Base-X technology get up to 1000Mbps data transfer rate over the supported network cable
