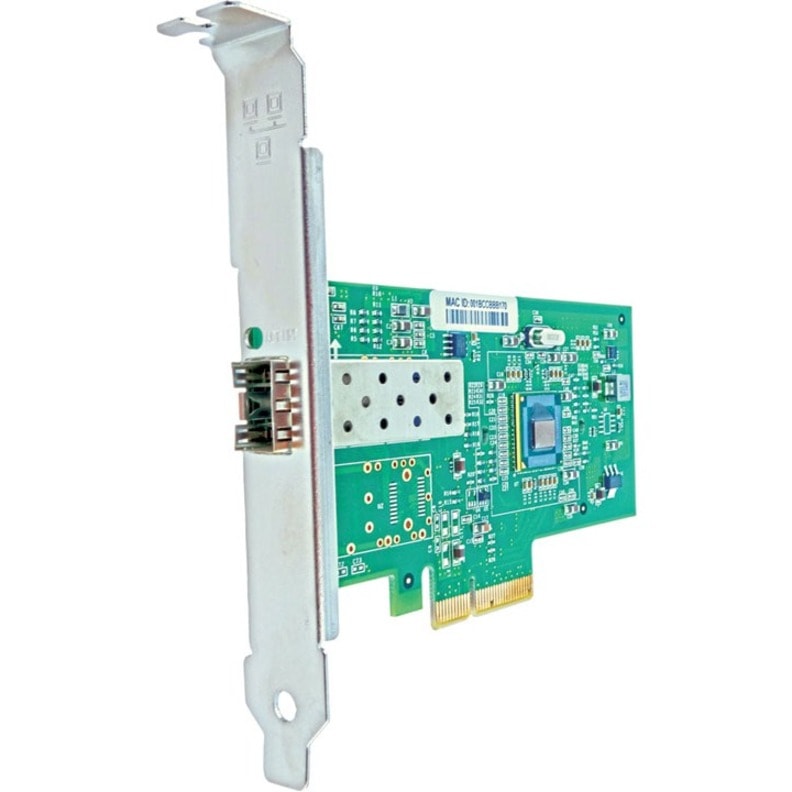

Axiom 1Gbs Single Port SFP PCIe x4 NIC Card for Dell - GF668 - 1Gbs Single Port SFP PCIe x4 NIC Card

GF668-AX
Also known as SY5555354

Axiom 1Gbs Single Port SFP PCIe x4 NIC Card for Dell - GF668 - 1Gbs Single Port SFP PCIe x4 NIC Card E X4 NIC CARD FOR DELL - GF668

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Axiom's family of network server adapters provide a wide-range of solutions to boost network performance and improve IT flexibility. Available band-widths range from 100Mbs to 100Gbs on interfaces ranging from 32-Bit PCI to PCIe 4.0 x16. Each adapter provides standard connector options from single port, dual port, quad ports in copper and/or fiber-based connections.
Axiom network interface cards accelerate applications with enterprise-proven connectivity. These solutions are available for designated branded OEM systems. Each Axiom network adapter is 100-percent tested to ensure long-term reliability and performance in high transaction and mission-critical applications.

  • Optimized for virtualization.
  • Maximizes I/O consolidation with high performance ports.
  • Leverages and protects existing IT investments.
  • Delivers cost reductions in operating expense and total cost expense.
  • Provide connectivity and scalability required for enterprise environments.
  • Deliver enterprise-class connectivity.
  • Supports both data and storage I/O with an adapter that can integrate with your existing Fibre Channel and Ethernet networks, extending the value of your network investments.
  • Achieve convergence - Run concurrent TCP/IP and storage (iSCSI or Fibre Channel) traffic over a single link.
  • Includes Full Height and Half Height Mounting Brackets

DETAILS

  • Host Interface : PCI Express 2.1 x4
  • Total Number of Ports : 1
  • Expansion Slot Type : SFP
  • Media Type Supported : Optical Fiber
  • Network Technology : 1000Base-X
  • Form Factor : Plug-in Card
  • Height : 5.20" (132 mm)
  • Width : 0.47" (12 mm)
  • Depth : 2.72" (69 mm)
  • Weight (Approximate) : 1.92 oz (54.43 g)
  • Device Supported : Server
  • Limited Warranty : 3 Year
  • This 2000 MB/s bandwidth PCI Express 2.1 x4 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
  • This single port gigabit ethernet card enables you to connect your computer system to your existing network
  • With the 1000Base-X technology get up to 1000Mbps data transfer rate over the supported network cable

SPECIFICATIONS

Manufacturer Axiom Memory Solutions
Manufacturer Part Number GF668-AX
Manufacturer Website Address http://search.axiomupgrades.com
Brand Name Axiom
Product Name PCIe x4 1Gbs Single Port Fiber Network Adapter for Dell
Product Type Gigabit Ethernet Card
Host Interface PCI Express 2.1 x4
Total Number of Ports 1
Expansion Slot Type SFP
Media Type Supported Optical Fiber
Network Technology 1000Base-X
Form Factor Plug-in Card
Height 5.20" (132 mm)
Width 0.47" (12 mm)
Depth 2.72" (69 mm)
Weight (Approximate) 1.92 oz (54.43 g)
Device Supported Server
Limited Warranty 3 Year
