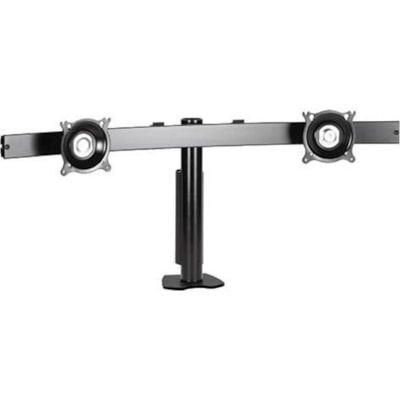

Chief KTC225 Desk Mount for Flat Panel Display - Black - 30" Screen Support - 35 lb (15875.73 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Steel

KTC225B
Also known as SY5523869

Chief KTC225 Desk Mount for Flat Panel Display - Black - 30" Screen Support - 35 lb (15875.73 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Steel Horizontal Desk Clamp Mount

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Chief's KTC225 is designed to provide a rock solid, desk clamp solution for graphic designers, broadcasters and other users who commonly work with multiple small flat panel TVs, LCDs or monitors. Provides ergonomic adjustability for hassle-free, fingertip positioning of each monitor.

DETAILS

  • Device Supported : Flat Panel Display
  • Maximum Load Capacity : 35 lb (15875.73 g)
  • Maximum Screen Size Supported : 30"
  • Product Color : Black
  • Product Material : Steel
  • VESA Mount Compatible : Yes
  • Mounting Pattern : 75 x 75,100 x 100
  • Height : 26" (660.40 mm)
  • Width : 30" (762 mm)
  • Compatibility :

    Up to 30" Wide Monitor

  • Country of Origin : United States
  • Limited Warranty : 10 Year
  • Can withstand a maximum weight of 35 lb (15875.73 g)
  • Compatible with the screen size of 30"

SPECIFICATIONS

Manufacturer Legrand Group
Manufacturer Part Number KTC225B
Manufacturer Website Address http://www.legrand.com
Brand Name Chief
Product Series KTC
Product Model KTC225
Product Name KTC Series Widescreen Dual Monitor Desk Clamp Mount
Product Type Desk Mount
Device Supported Flat Panel Display
Maximum Load Capacity 35 lb (15875.73 g)
Maximum Screen Size Supported 30"
Product Color Black
VESA Mount Compatible Yes
Mounting Pattern 100 x 100
Mounting Pattern 75 x 75
Product Material Steel
Height 26" (660.40 mm)
Width 30" (762 mm)
Package Contents
  • KTC225 Widescreen Dual Monitor Desk Clamp Mount
  • 1 x Array Assembly, Dual, 34"
  • 1 x Desk Clamp
  • 1 x Sheath, Cable Management, 8"
  • 1 x Pole, Mount Freestanding, 14"
  • 6 x Bumper
  • 1 x Key, Hex, 5/32"
  • 1 x Key, Hex, 7/32"
  • 1 x Clamp, Pole 2" Pipe
  • 8 x Screw, Phillips Pan Head, M4 x 12mm
  • 8 x Screw, Phillips Pan Head, M4 x 20mm
  • 8 x Screw, Phillips Pan Head, M4 x 30mm
  • 8 x Spacer, Nylon, 3/8" (used with item Q)
  • 8 x Spacer, Nylon, 3/4" (used with item R)
  • 2 x Screw, Button Head Cap, 1/4-20 x 3/4"
  • 1 x Screw, Flat Head Cap, 3/8-16 x 1"
  • 2 x Washer, Flat, 1/4"
  • 1 x Pipe Cap, 1.75 OD
Additional Information
  • Tilt:+/-15º
  • Roll: +/-90º
  • Yaw: +/-15º
  • Desk Thickness: 0 - 3.25"
  • Centris Technology provides smooth, fingertip tilt in all directions
  • Screen angle stays set in place until you decide to re-adjust
  • Independent adjustment of each screen for proper ergonomic alignment
  • Teardrop hole pattern makes mounting the screens quick and easy
  • Conceal and protect cables using snap-on covers and cable clip
  • Heavy-duty, solid steel desk clamp and oversized pole for unmatched stability
  • Integrated cable managemen
Compatibility

Up to 30" Wide Monitor
Certifications & Standards

VESA:

  • 75 x 75 mm
  • 100 x 100 mm
Country of Origin United States
Limited Warranty 10 Year
