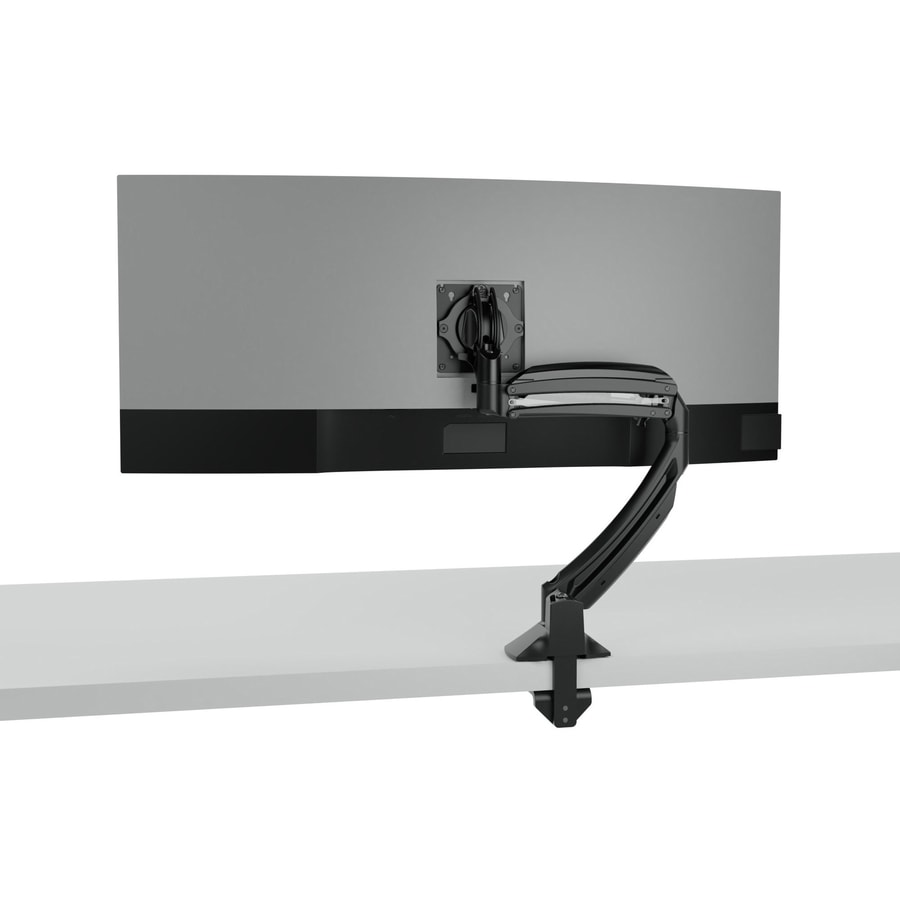

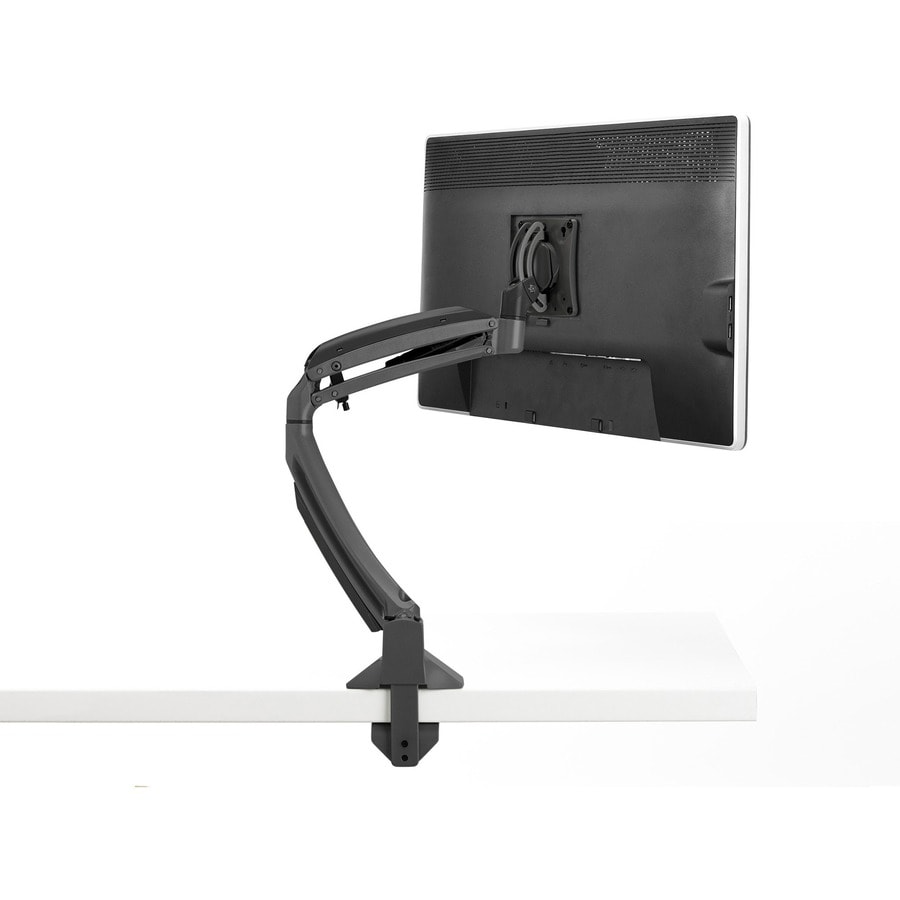

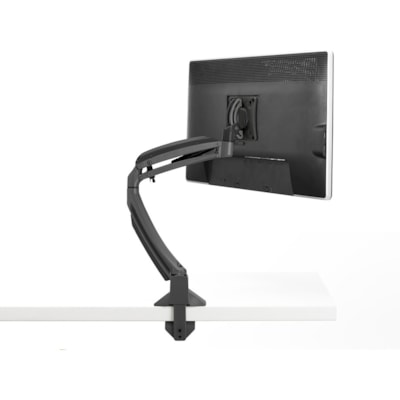

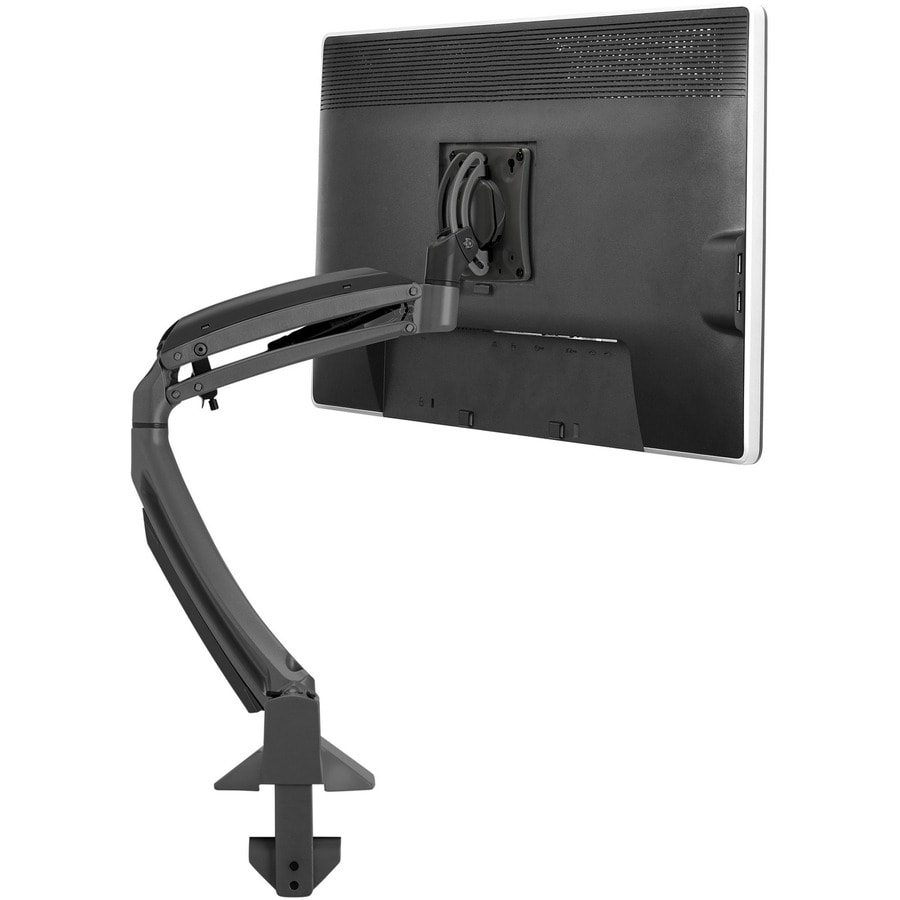

Chief Kontour K1D Dynamic Single Monitor Arm Desk Mount - Adjustable Arm - For 10-38 Inch Monitors - Black - Chief Kontour Single Arm Desk Mount - For Displays 10-32" - Black

K1D120B
Also known as SY5523862

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Kontour K1D Dynamic Desk Clamp Mount is the perfect monitor solution for the office, healthcare facilities and more. Centris Extreme Tilt technology lets you effortlessly position the monitor with just your fingertips. Tilt up to 75 degrees or down 10 degrees for optimal viewing whether you're sitting or standing. Height adjusts up to 13" using smooth-motion, gas-spring technology. Clamp to the edge of your desk to display your single monitor in an optimal, ergonomic position above your worksurface to enhance productivity and comfort. Use the included kit to mount through a standard grommet hole or bolt hole or clamp to the edge of your desk. Three-step installation and quick-release monitor interface allow easy mounting and maintenance. Tool-free, cable-management covers create a clean, professional look. Solidly constructed arm is forged with aluminum for a sleek touch.

DETAILS

  • Device Supported : Flat Panel Display
  • Number of Displays Supported : 1
  • Maximum Load Capacity : 25 lb (11339.81 g)
  • Minimum Screen Size Supported : 10"
  • Maximum Screen Size Supported : 30"
  • Height Adjustable : Yes
  • Features : Tilt,Ergonomic,Quick Release Mechanism
  • Color Family : Black
  • Product Color : Black
  • Product Material : Aluminum
  • VESA Mount Compatible : Yes
  • Mounting Pattern : 75 x 75,100 x 100
  • Depth : 3.64" (92.46 mm)
  • Thickness : 2.50" (63.50 mm)
  • Compatibility : Single Monitor
  • Country of Origin : United States
  • Limited Warranty : 10 Year
  • Can withstand a maximum weight of 25 lb (11339.81 g)
  • Supports the screen size of 30"

SPECIFICATIONS

Manufacturer Legrand Group
Manufacturer Part Number K1D120B
Manufacturer Website Address http://www.legrand.com
Brand Name Chief
Product Line KONTOUR
Product Series K1
Product Model K1D120B
Product Name Kontour K1D120B Mounting Arm for Flat Panel Display - Black
Packaged Quantity 1 Each
Product Type Mounting Arm
Device Supported Flat Panel Display
Number of Displays Supported 1
Maximum Load Capacity 25 lb (11339.81 g)
Minimum Screen Size Supported 10"
Maximum Screen Size Supported 30"
Maximum Adjustable Height 20.60" (523.24 mm)
Features Quick Release Mechanism
Features Ergonomic
Features Tilt
Height Adjustable Yes
Color Family Black
Product Color Black
VESA Mount Compatible Yes
Mounting Pattern 100 x 100
Mounting Pattern 75 x 75
Product Material Aluminum
Depth 3.64" (92.46 mm)
Thickness 2.50" (63.50 mm)
Additional Information
  • Enhanced 3-step installation and quick-release monitor interface for easy mounting and maintenance, with included tool storage in the updated base
  • Easily clamps to edge of desk, through standard grommet hole, or through bolt hole with included kit
  • Tool-free cable management covers for a clean, professional look
Compatibility Single Monitor
Country of Origin United States
Limited Warranty 10 Year
