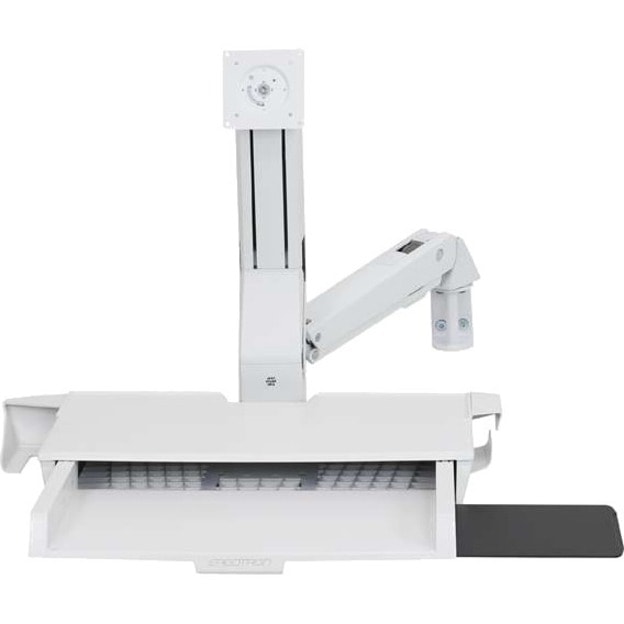

Ergotron StyleView Mounting Arm for Monitor, Bar Code Reader, Keyboard, Mouse - Height Adjustable - 24" Screen Support - 32 lb (14514.96 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Aluminum, Plastic

45-260-216
Also known as SY5506481

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Durable aluminum construction! Also features a worksurface with pull-out keyboard tray, which facilitates caregiver workflow.

Holds a monitor, bar-code scanner, keyboard, wrist rest and mouse on the same arm, providing easy, single-motion height adjustment. Work sitting or standing with the arm's ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.

DETAILS

  • Device Supported : Monitor,Bar Code Reader,Keyboard,Mouse
  • Maximum Load Capacity : 32 lb (14514.96 g)
  • Maximum Screen Size Supported : 24"
  • Height Adjustable : Yes
  • Features : Durable,Cable Management,Sturdy,Flexible,Foldable,Tilt,Pan,Rotate
  • Product Color : White
  • Product Material : Aluminum,Plastic
  • VESA Mount Compatible : Yes
  • Mounting Pattern : 75 x 75,100 x 100
  • Weight (Approximate) : 32 lb (14514.96 g)
  • Country of Origin : China
  • Limited Warranty : 5 Year
  • Can withstand a maximum weight of 32 lb (14514.96 g)
  • Compatible with the screen size of 24"

SPECIFICATIONS

Manufacturer Ergotron, Inc
Manufacturer Part Number 45-260-216
Manufacturer Website Address http://www.ergotron.com
Brand Name Ergotron
Product Line StyleView
Product Name StyleView Sit-Stand Combo Arm with Worksurface (white)
Product Type Mounting Arm
Device Supported Monitor
Device Supported Keyboard
Device Supported Mouse
Device Supported Bar Code Reader
Maximum Load Capacity 32 lb (14514.96 g)
Maximum Screen Size Supported 24"
Features Rotate
Features Pan
Features Tilt
Features Foldable
Features Sturdy
Features Cable Management
Features Durable
Features Flexible
Height Adjustable Yes
Product Color White
VESA Mount Compatible Yes
Mounting Pattern 100 x 100
Mounting Pattern 75 x 75
Product Material Plastic
Product Material Aluminum
Weight (Approximate) 32 lb (14514.96 g)
Additional Information
  • Weight Capacity: display = 6-18 lbs (2.7-8.2 kg); worksurface = 10 lbs (4.5 kg); keyboard, mouse and barcode scanner = 4 lbs (1.8 kg)
  • Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
  • Monitor up/down tilt = +25°/-5°
  • Patented CF™ lift-and-pivot motion technology provides premium 25-inch (64 cm) LCD height adjustment, portrait to landscape rotation and 30° tilt
  • Fold-down worksurface / keyboard tray to support workflow needs. Worksurface is 22.75"W x 10.6"D (57.8 x 26.9 cm). Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm). Maximum allowable keyboard height = 1.35" (34 mm)
  • Back-tilt keyboard tray adjustable from 0° to -10°
Country of Origin China
Limited Warranty 5 Year
