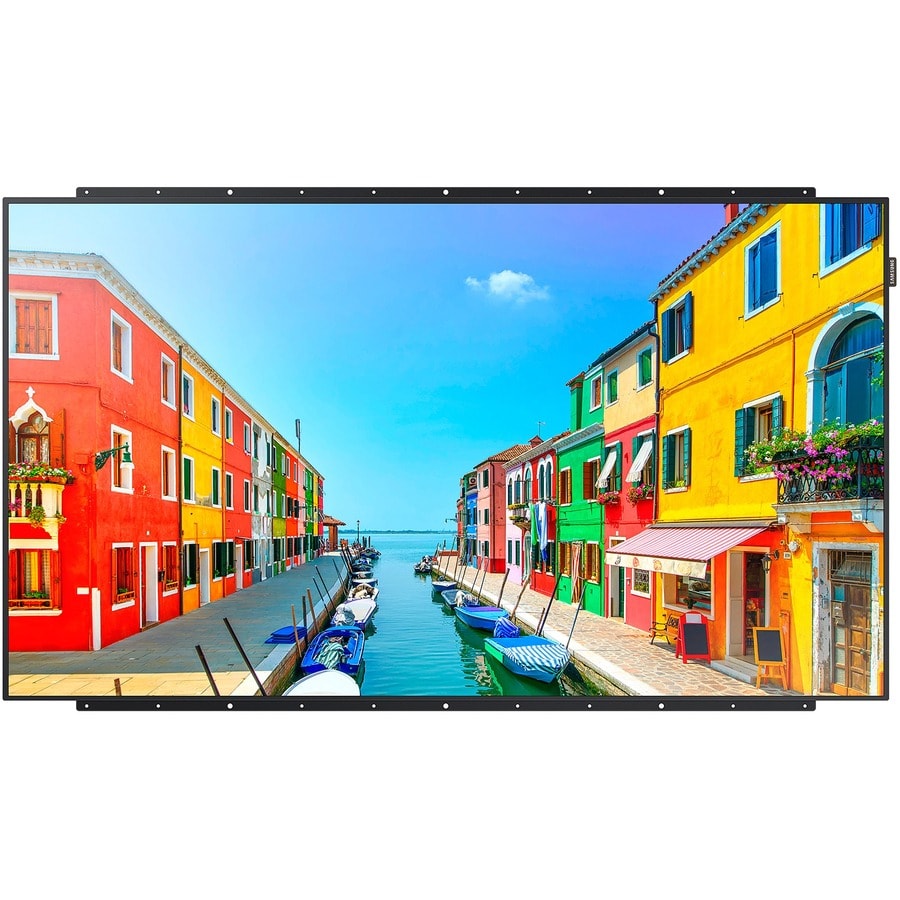

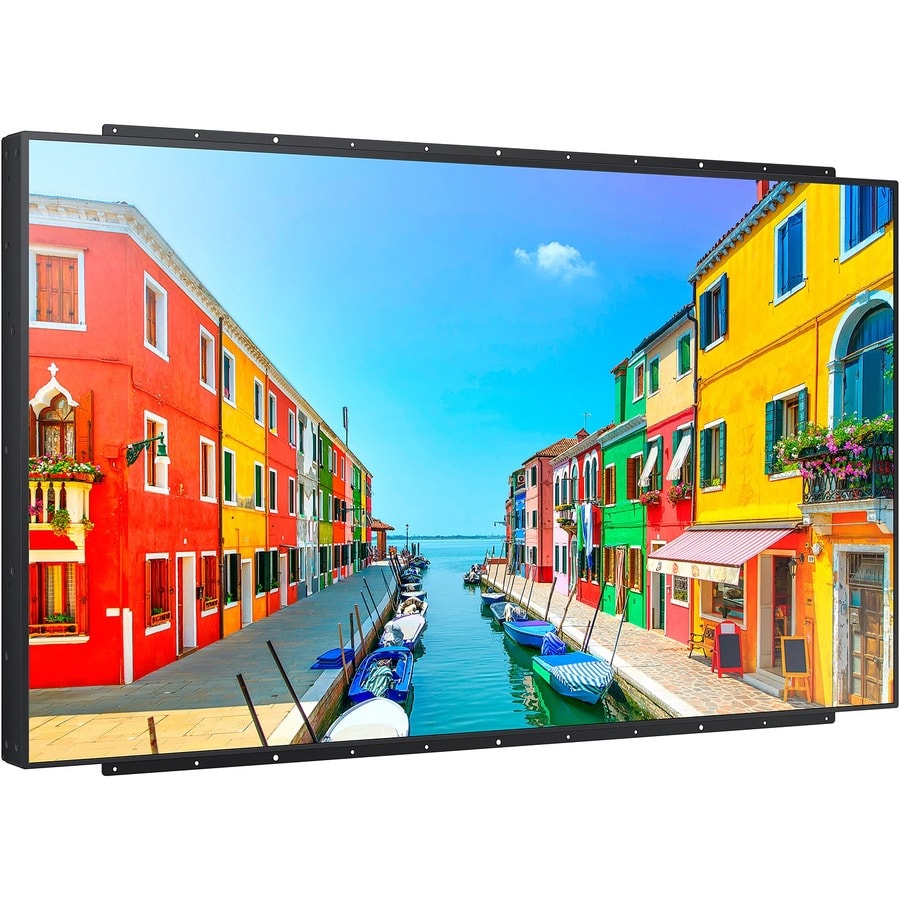

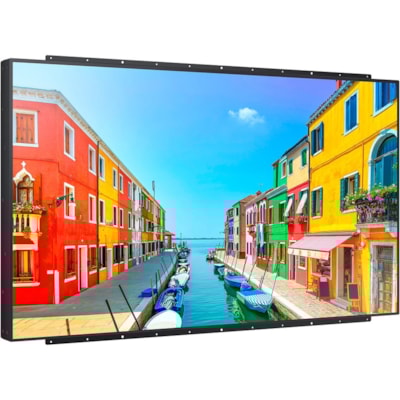

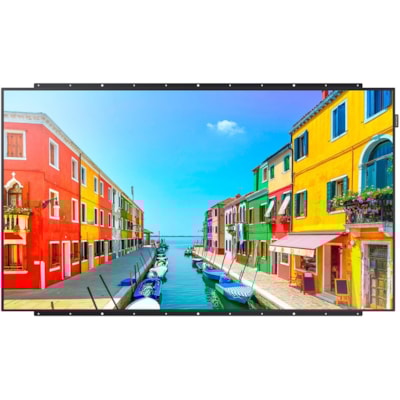

Samsung OM46D-K OMD-K Series 46" High Brightness Display - 46" (1168.40 mm) LCD Cortex A9 1 GHz - 1.50 GB DDR3 SDRAM - 1920 x 1080 - 16:9 - 8 ms - Direct LED - 2500 cd/m² - HDMI - USB - DVI - Serial - Wireless LAN - Ethernet
LH46OMDPKBC/GO
Also known as SY5358885
MARKETING INFORMATION
Samsung OMD-K Series High Brightness Displays provide easily readable text and bright graphics in high ambient light environments and outdoor applications, along with all-weather durability when installed in a customized housing.* And with our SMART Signage Platform, you can manage your content without external devices.DETAILS
- Processor Type : Cortex A9
- Processor Speed : 1 GHz
- Standard Memory : 1.50 GB
- Memory Technology : DDR3 SDRAM
- Viewable Screen Size : 46" (1168.40 mm)
- Display Screen Type : LCD
- Response Time : 8 ms
- Display Resolution : 1920 x 1080
- Backlight Technology : Direct LED
- Aspect Ratio : 16:9
- Scan Format : 1080p
- Native Contrast Ratio : 5,000:1
- Brightness : 2500 cd/m²
- Ethernet : Yes
- Wireless LAN : Yes
- USB : Yes
- DVI : Yes
- HDMI : Yes
- DisplayPort : Yes
- Audio Line Out : Yes
- Serial : Yes
- Operating System : Linux
- Input Voltage : 120 V AC,230 V AC
- VESA Mount Compatible : Yes
- VESA Mount Standard : 600 x 400
- Height : 23.20" (589.28 mm)
- Width : 40.80" (1036.32 mm)
- Depth : 5.60" (142.24 mm)
- Weight (Approximate) : 41.23 lb (18700 g)
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)

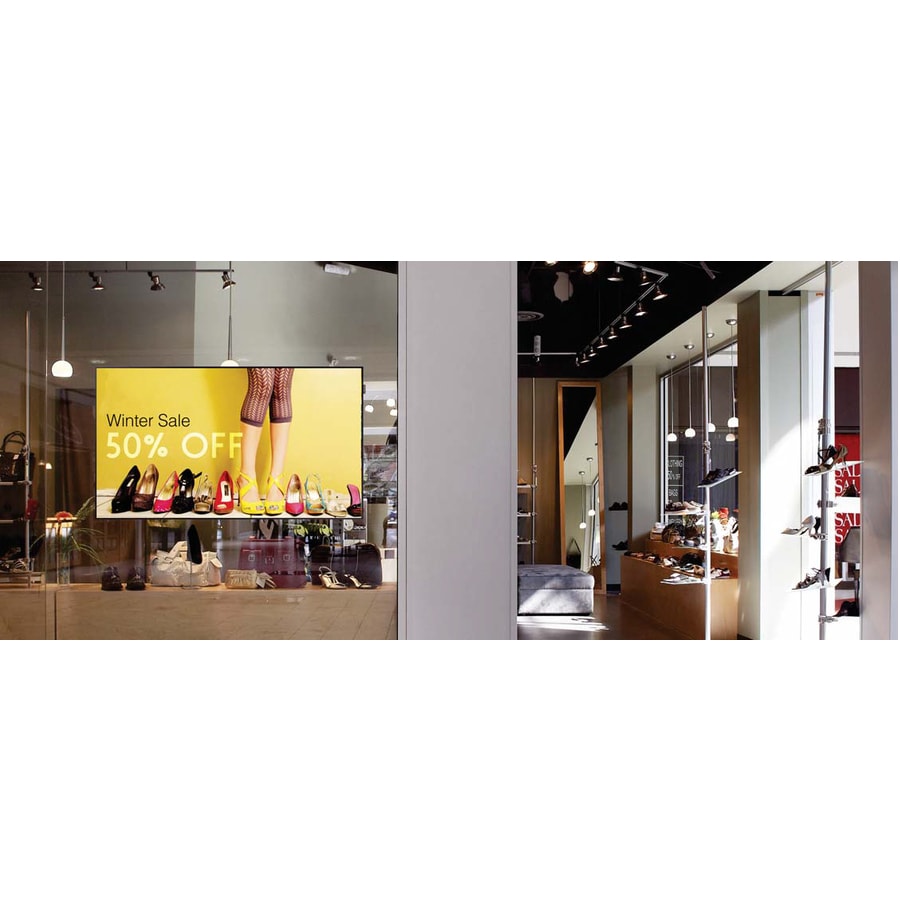

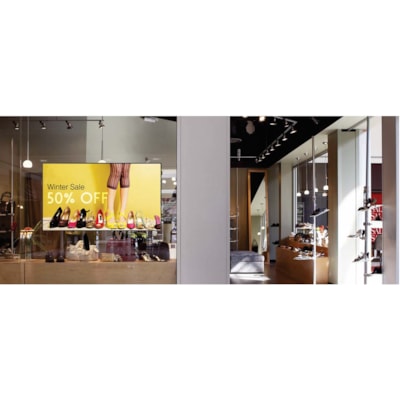

- Digital Signage Display - Ideal for rack, passageway, booth or display counter
- Cortex A9 1 GHz processor executes heavy and power-hungry applications seamlessly with efficient-power
- Experience luminescent visual images with LCD display
- Offers exceptionally smooth and crisp viewing experience due to its 1920 x 1080 full HD resolution
- Features 1920 x 1080 resolution and 1080p scan format for producing sharp and bright images
- Direct LED lighting offers a brighter picture result
SPECIFICATIONS
| Manufacturer | Samsung |
| Manufacturer Part Number | LH46OMDPKBC/GO |
| Manufacturer Website Address | http://www.samsung.com |
| Brand Name | Samsung |
| Product Series | OMD-K |
| Product Model | OM46D-K |
| Product Name | OM46D-K OMD-K Series 46" High Brightness Display |
| Product Type | Digital Signage Display |
| Features | Pivot Display |
| Features | Media Player |
| Features | Smart Scheduling |
| Features | Video Wall |
| Features | Picture by Picture (PbP) |
| Features | Picture in Picture |
| Features | Anti-retention |
| Features | Lamp Error Detection |
| Features | Daisy Chain |
| Features | Button Lock |
| Features | Plug and Play |
| Features | Temperature Sensor |
| Features | Ambient Light Sensor |
| Processor Type | Cortex A9 |
| Processor Speed | 1 GHz |
| Standard Memory | 1.50 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Card Supported | SD |
| Viewable Screen Size | 46" (1168.40 mm) |
| Display Screen Type | LCD |
| Display Resolution | 1920 x 1080 |
| Response Time | 8 ms |
| Aspect Ratio | 16:9 |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Backlight Technology | Direct LED |
| Scan Format | 1080p |
| Native Contrast Ratio | 5,000:1 |
| Brightness | 2500 cd/m² |
| Ethernet | Yes |
| Ethernet Technology | Ethernet |
| Wireless LAN | Yes |
| USB | Yes |
| USB Standard | USB 2.0 |
| DVI | Yes |
| VGA | Yes |
| HDMI | Yes |
| Component Video | Yes |
| Composite Video | Yes |
| DisplayPort | Yes |
| Network (RJ-45) | Yes |
| Audio Line In | Yes |
| Audio Line Out | Yes |
| Serial | Yes |
| Operating System | Linux |
| Input Voltage | 120 V AC |
| Input Voltage | 230 V AC |
| Power Consumption | 300 W |
| VESA Mount Compatible | Yes |
| VESA Mount Standard | 600 x 400 |
| Height | 23.20" (589.28 mm) |
| Width | 40.80" (1036.32 mm) |
| Depth | 5.60" (142.24 mm) |
| Weight (Approximate) | 41.23 lb (18700 g) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
