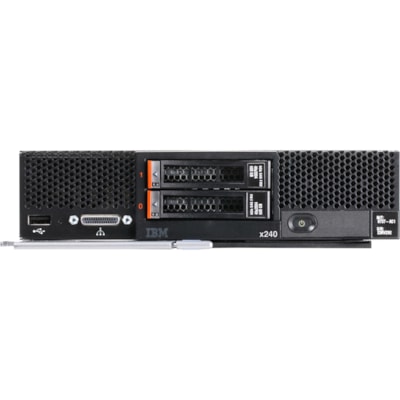

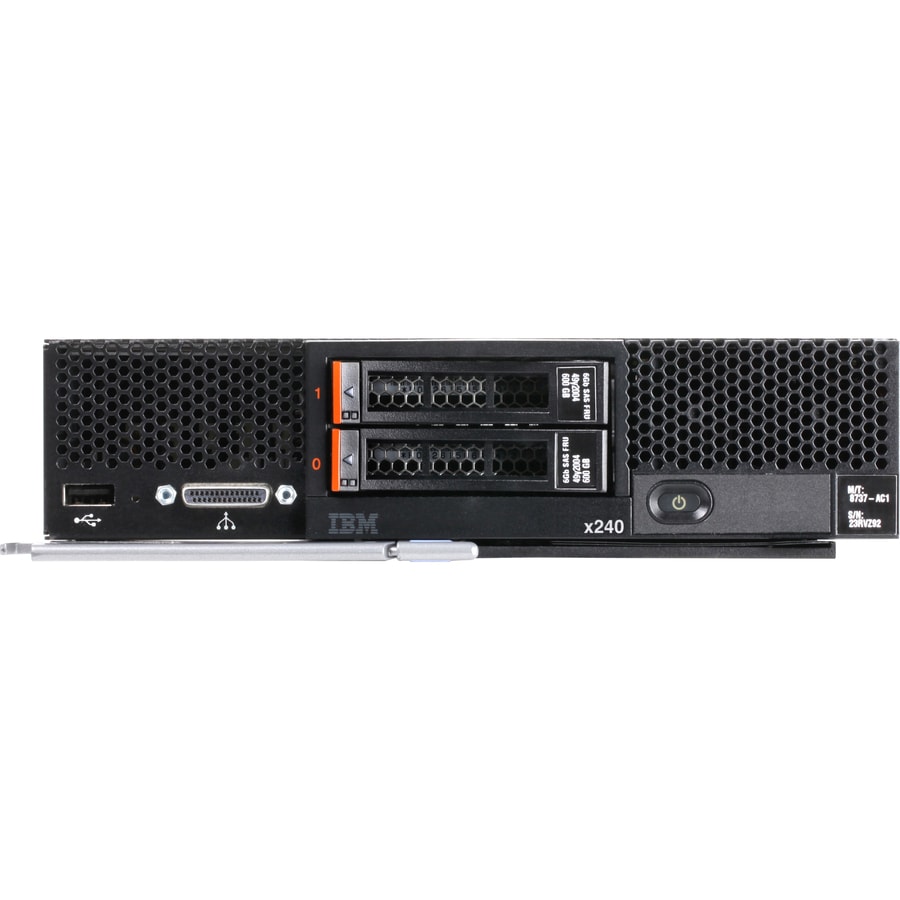

Lenovo PureFlex System x240 873722U Blade Server - 1 Xeon E5-2620 v2 2.10 GHz - 8 GB RAM - Serial ATA/600, 6Gb/s SAS Controller - Intel C600 Chip - 2 Processor Support - DDR3 SDRAM - 0, 1, 1E RAID Levels - G200eR2 Up to 16 MB Graphic Card - 2 x SFF Bay(s)

873722U
Also known as SY5353221

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The IBM Flex System™ x240 Compute Node is a high-performance server that offers outstanding performance for virtualization with new levels of CPU performance and memory capacity, and flexible configuration options. The x240 Compute Node is an efficient server designed to run a broad range of workloads, armed with advanced management capabilities allowing you to manage your physical and virtual IT resources from a single-pane of glass.

DETAILS

  • Number of Processors Supported : 2
  • Number of Processors Installed : 1
  • Processor Type : Xeon
  • Processor Model : E5-2620 v2
  • Processor Core : Hexa-core (6 Core)
  • Processor Speed : 2.10 GHz
  • Cache : 15 MB
  • Chipset Manufacturer : Intel
  • Chipset Model : C600
  • Standard Memory : 8 GB
  • Memory Technology : DDR3 SDRAM
  • Total Number of Memory Slots : 24
  • Controller Type : Serial ATA/600,6Gb/s SAS
  • RAID Supported : Yes
  • RAID Levels : 0, 1, 1E
  • Number of Total Expansion Bays : 2
  • Number of Internal 2.5" Bays : 2
  • Total Number of Expansion Slots : 2
  • Graphics Controller Model : G200eR2
  • Graphics Memory Capacity : 16 MB
  • Total Number of USB Ports : 1
  • Remote Management : Yes
  • Operating System : No
  • Package Contents :
    • Flex System x240 Compute Node
    • Statement of Limited Warranty
    • Important Notices
    • Documentation CD
  • Form Factor : Blade
  • Height : 2.20" (55.88 mm)
  • Width : 8.60" (218.44 mm)
  • Depth : 19.40" (492.76 mm)
  • Weight (Approximate) : 15.65 lb (7100 g)
  • Limited Warranty : 3 Year
  • Experience high performance, built-in security and remote management capabilities with Intel Xeon 2.10 GHz processor
  • With 8 GB memory, improve system performance to execute complex applications

SPECIFICATIONS

Manufacturer Lenovo Group Limited
Manufacturer Part Number 873722U
Manufacturer Website Address http://www.lenovo.com
Brand Name Lenovo
Product Line PureFlex System
Product Series x240
Product Model 873722U
Product Name Flex System x240 Compute Node
Product Type Server
Number of Processors Supported 2
Number of Processors Installed 1
Processor Type Xeon
Processor Model E5-2620 v2
Processor Core Hexa-core (6 Core)
Processor Speed 2.10 GHz
Maximum Turbo Speed 2.60 GHz
Cache 15 MB
QuickPath Interconnect 7.20 GT/s
64-bit Processing Yes
Hyper-Threading Yes
Chipset Manufacturer Intel
Chipset Model C600
Standard Memory 8 GB
Memory Technology DDR3 SDRAM
Memory Standard DDR3-1600/PC3-12800
Total Number of Memory Slots 24
Controller Type Serial ATA/600
Controller Type 6Gb/s SAS
RAID Supported Yes
RAID Levels 0, 1, 1E
Number of Total Expansion Bays 2
Number of Internal 2.5" Bays 2
Total Number of Expansion Slots 2
Number of PCI Express x16 Slots 2
Graphics Controller Model G200eR2
Graphics Memory Capacity 16 MB
Total Number of USB Ports 1
Remote Management Yes
Operating System No
Form Factor Blade
Height 2.20" (55.88 mm)
Width 8.60" (218.44 mm)
Depth 19.40" (492.76 mm)
Weight (Approximate) 15.65 lb (7100 g)
Package Contents
  • Flex System x240 Compute Node
  • Statement of Limited Warranty
  • Important Notices
  • Documentation CD
Compatibility
  • Microsoft Windows Server 2008 HPC Edition
  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2008, Datacenter x64 Edition
  • Microsoft Windows Server 2008, Enterprise x64 Edition
  • Microsoft Windows Server 2008, Standard x64 Edition
  • Microsoft Windows Server 2008, Web x64 Edition
  • Microsoft Windows Server 2012
  • Red Hat Enterprise Linux 5 Server with Xen x64 Edition
  • Red Hat Enterprise Linux 5 Server x64 Edition
  • Red Hat Enterprise Linux 6 Server x64 Edition
  • SUSE Linux Enterprise Server 11 for AMD64/EM64T
  • SUSE Linux Enterprise Server 11 with Xen for AMD64/EM64T
  • VMware vSphere 5.0 (ESXi)
  • VMware vSphere 5.1 (ESXi)
Certifications & Standards
  • ASHRAE Class A3
  • FCC - Verified to comply with Part 15 of the FCC Rules Class A
  • Canada ICES-004, issue 3 Class A
  • UL/IEC 60950-1
  • CSA C22.2 No. 60950-1
  • NOM-019
  • Argentina IEC 60950-1
  • Japan VCCI, Class A
  • IEC 60950-1 (CB Certificate and CB Test Report)
  • China CCC (GB4943); (GB9254, Class A); (GB17625.1)
  • Taiwan BSMI CNS13438, Class A; CNS14336
  • Australia/New Zealand AS/NZS CISPR 22, Class A
  • Korea KN22, Class A, KN24
  • Russia/GOST ME01, IEC 60950-1, GOST R 51318.22, GOST R
  • 51318.249, GOST R 51317.3.2, GOST R 51317.3.3
  • IEC 60950-1 (CB Certificate and CB Test Report)
  • CE Mark (EN55022 Class A, EN60950-1, EN55024, EN61000-3-2,
  • EN61000-3-3)
  • CISPR 22, Class A
  • TUV-GS (EN60950-1/IEC 60950-1, EK1-ITB2000)
Limited Warranty 3 Year
