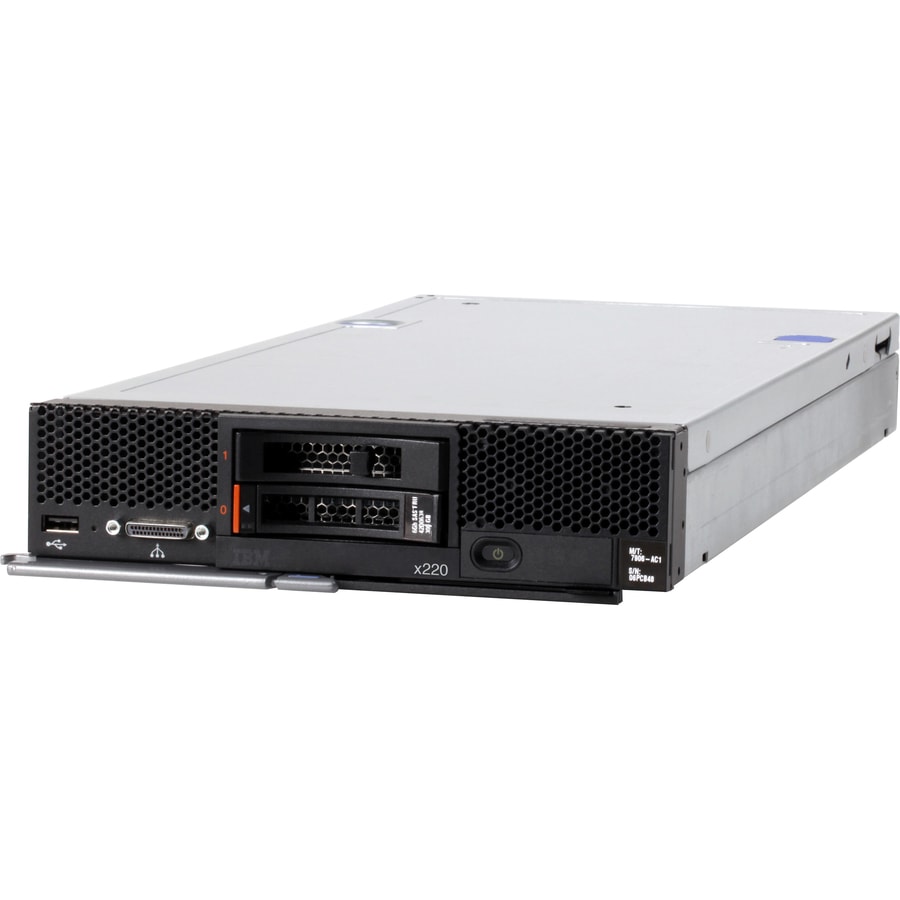

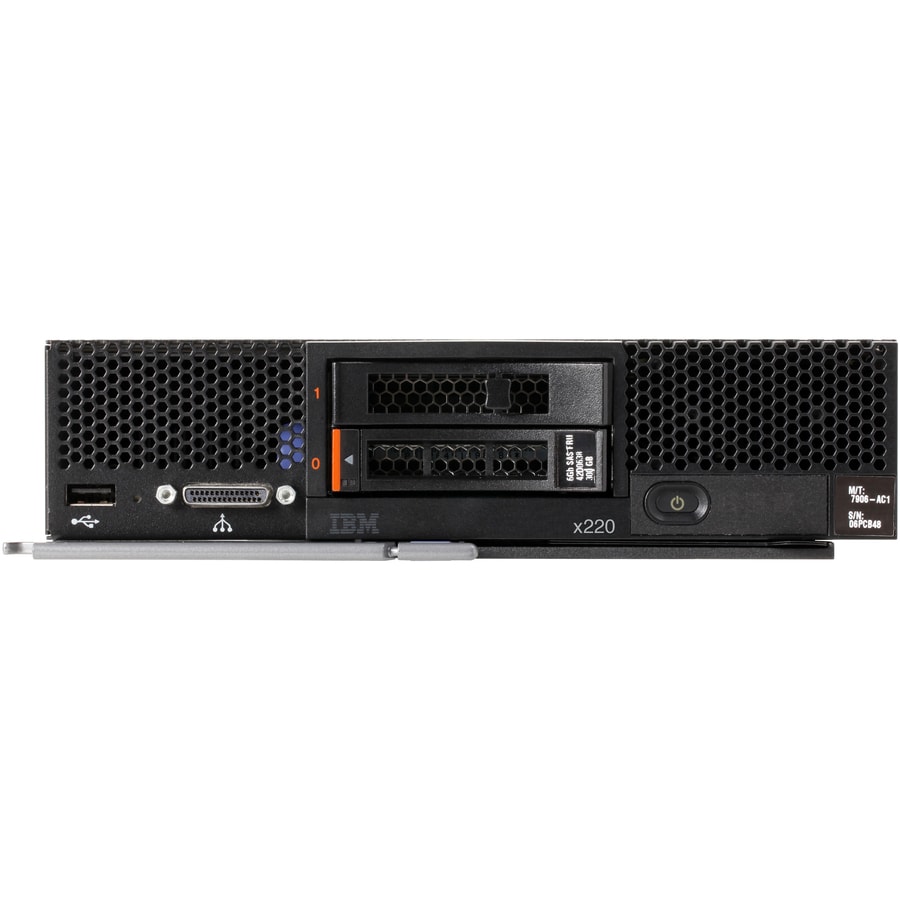

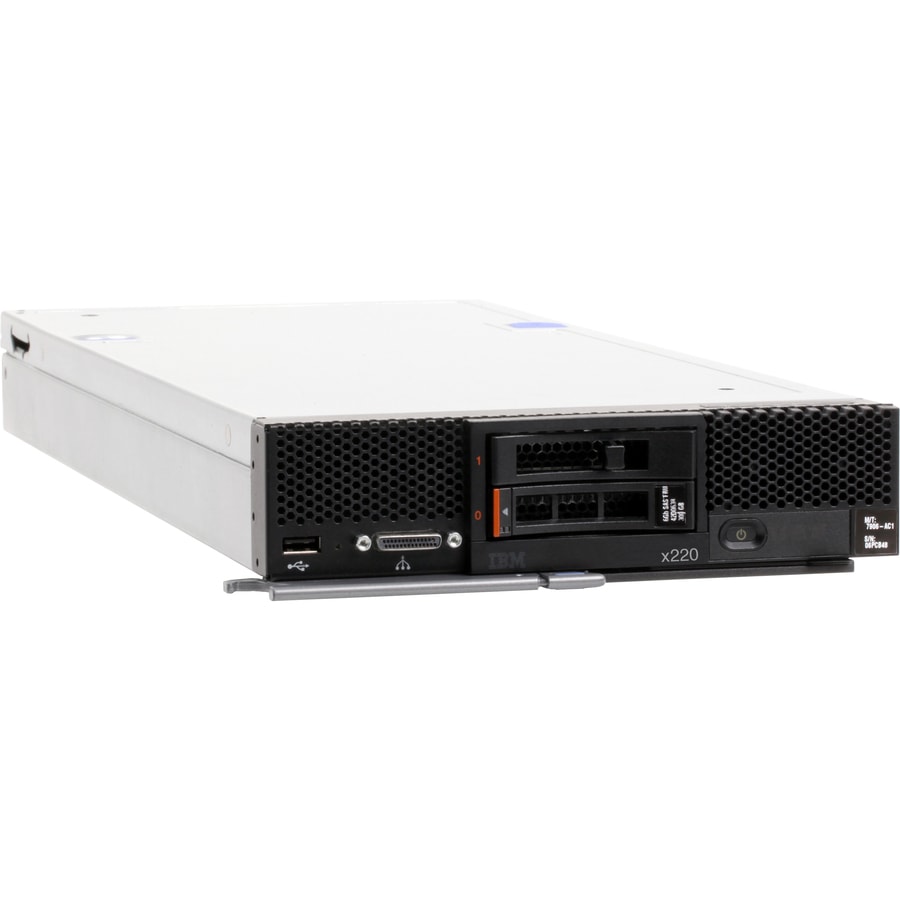

Lenovo Flex System x220 7906G4U Server - 1 Xeon E5-2430 2.20 GHz - 4 GB RAM - Serial ATA/600 Controller - Intel C600 Chip - 2 Processor Support - 96 GB RAM Support - DDR3 SDRAM - 0, 1 RAID Levels - G200eR2 Up to 16 MB Graphic Card - Gigabit Ethernet - 2 x SFF Bay(s)
7906G4U
Also known as SY5353106
MARKETING INFORMATION
The IBM Flex System x220 Compute Node is the next generation cost-optimized compute node designed for less demanding workloads and low-density virtualization. The x220 is efficient and equipped with flexible configuration options and advanced management to run a broad range of workloads.DETAILS
- Number of Processors Supported : 2
- Number of Processors Installed : 1
- Processor Type : Xeon
- Processor Model : E5-2430
- Processor Core : Hexa-core (6 Core)
- Processor Speed : 2.20 GHz
- Cache : 15 MB
- Chipset Manufacturer : Intel
- Chipset Model : C600
- Standard Memory : 4 GB
- Maximum Memory Supported : 96 GB
- Memory Technology : DDR3 SDRAM
- Total Number of Memory Slots : 12
- Controller Type : Serial ATA/600
- RAID Supported : Yes
- RAID Levels : 0, 1
- Number of Total Expansion Bays : 2
- Number of Internal 2.5" Bays : 2
- Total Number of Expansion Slots : 2
- Graphics Controller Model : G200eR2
- Graphics Memory Capacity : 16 MB
- Ethernet Technology : Gigabit Ethernet
- Total Number of USB Ports : 3
- Network (RJ-45) : Yes
- Remote Management : Yes
- Operating System : No
- Package Contents :
- Flex System x220 7906G4U Server
- Statement of Limited Warranty
- Important Notices
- Documentation CD that contains the Installation and User's Guide
- Height : 2.20" (56 mm)
- Width : 8.54" (217 mm)
- Depth : 19.37" (492 mm)
- Weight (Approximate) : 14.11 lb (6400 g)
- Limited Warranty : 3 Year
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 2.20 GHz processor
- 4 GB memory is great for multitasking
- Gigabit Ethernet port for ultra-fast network speeds
SPECIFICATIONS
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7906G4U |
| Manufacturer Website Address | http://www.lenovo.com |
| Brand Name | Lenovo |
| Product Line | Flex System |
| Product Series | x220 |
| Product Model | 7906G4U |
| Product Name | Flex System x220 7906G4U Server |
| Product Type | Server |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Type | Xeon |
| Processor Model | E5-2430 |
| Processor Core | Hexa-core (6 Core) |
| Processor Speed | 2.20 GHz |
| Cache | 15 MB |
| QuickPath Interconnect | 7.20 GT/s |
| 64-bit Processing | Yes |
| Hyper-Threading | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C600 |
| Standard Memory | 4 GB |
| Maximum Memory Supported | 96 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1333/PC3-10600 |
| Total Number of Memory Slots | 12 |
| Controller Type | Serial ATA/600 |
| RAID Supported | Yes |
| RAID Levels | 0, 1 |
| Number of Total Expansion Bays | 2 |
| Number of Internal 2.5" Bays | 2 |
| Total Number of Expansion Slots | 2 |
| Graphics Controller Model | G200eR2 |
| Graphics Memory Capacity | 16 MB |
| Ethernet Technology | Gigabit Ethernet |
| Total Number of USB Ports | 3 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Operating System | No |
| Height | 2.20" (56 mm) |
| Width | 8.54" (217 mm) |
| Depth | 19.37" (492 mm) |
| Weight (Approximate) | 14.11 lb (6400 g) |
| Package Contents |
|
| Compatibility |
|
| Certifications & Standards |
|
| Limited Warranty | 3 Year |
