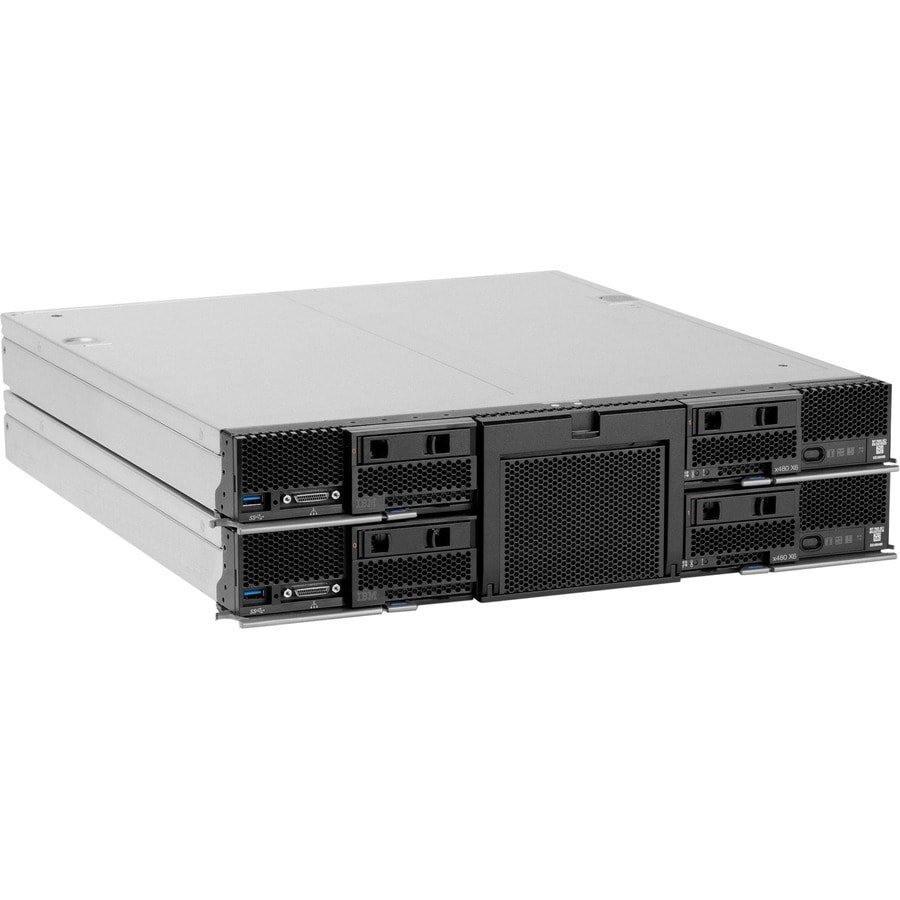

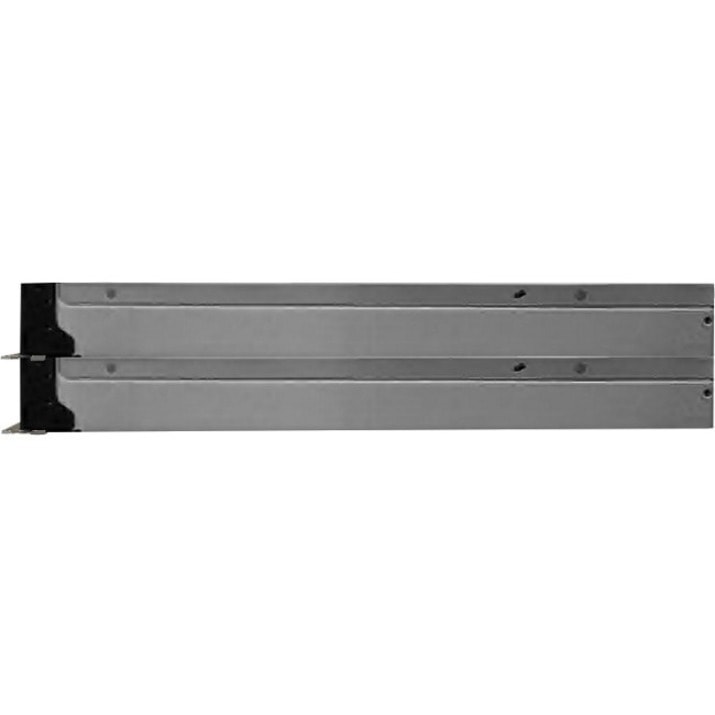

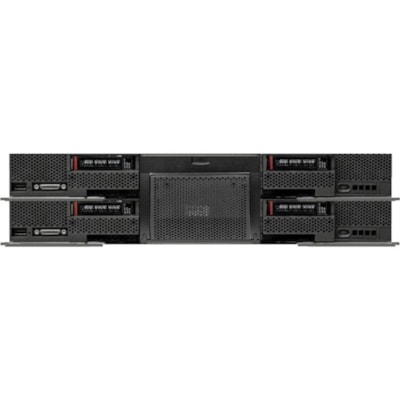

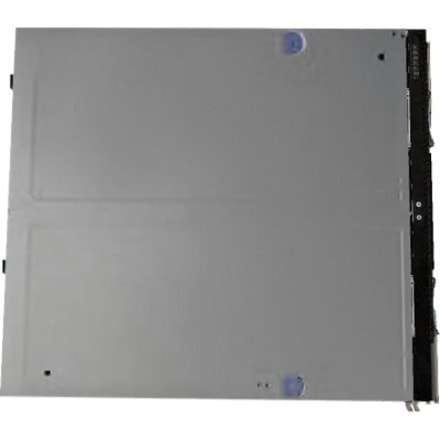

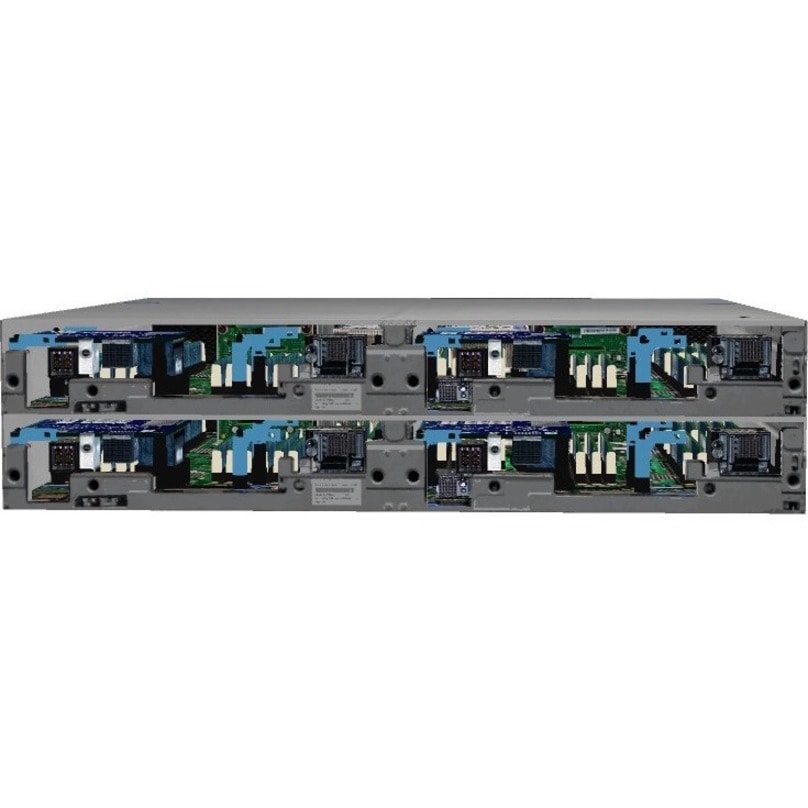

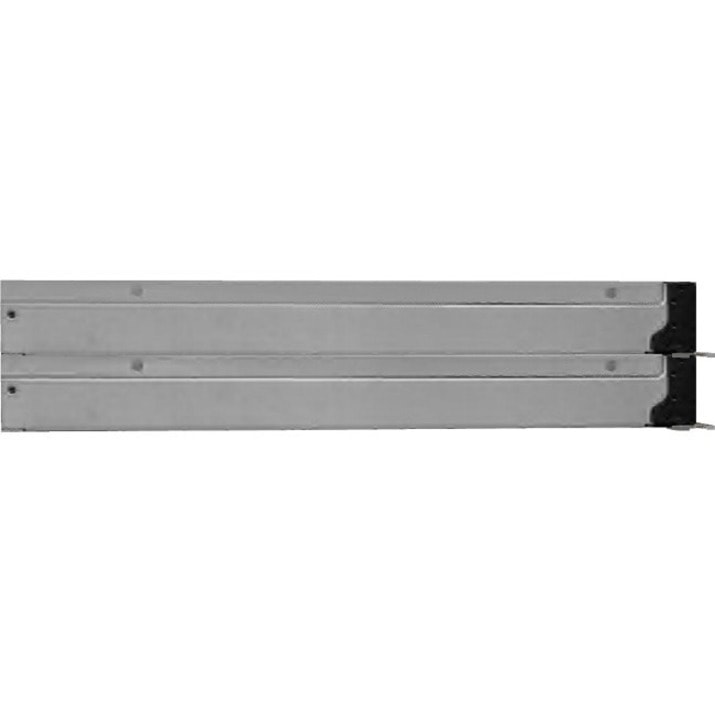

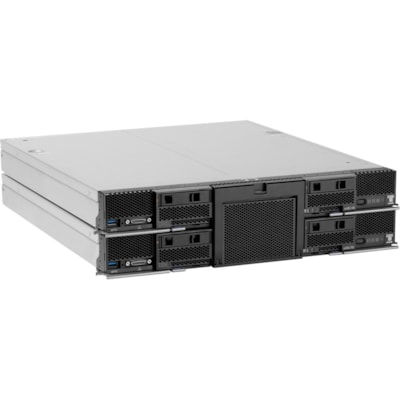

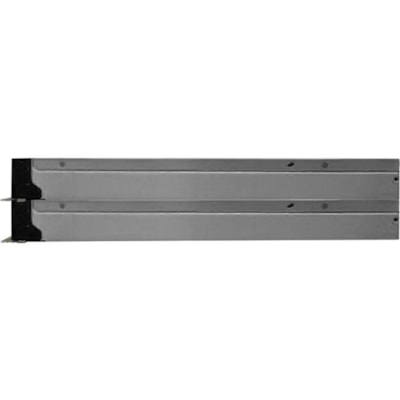

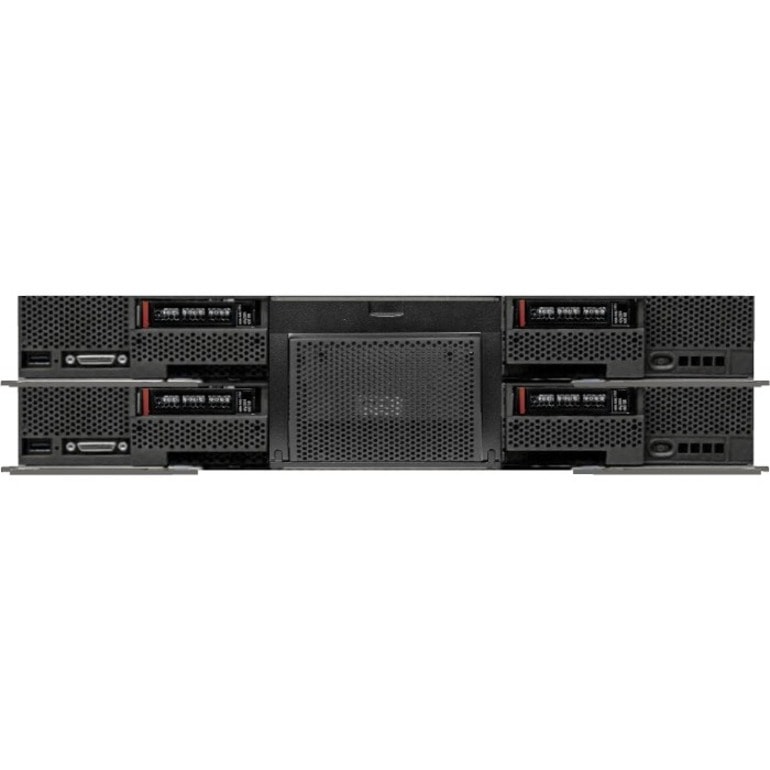

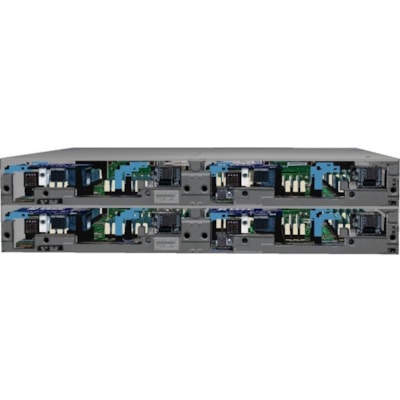

Lenovo Flex System x480 X6 7903H2U Rack Server - 2 Xeon E7-4850 v2 2.30 GHz - 32 GB RAM - 12Gb/s SAS Controller - Intel C602J Chip - 2 Processor Support - DDR3 SDRAM - 0, 1, 10, 1E RAID Levels - G200eR2 Up to 16 MB Graphic Card - 2 x SFF Bay(s)
7903H2U
Also known as SY5353092
MARKETING INFORMATION
The IBM® Flex System® X6 Compute Node family, composed of the x880 X6, x480 X6, and x280 X6, are high-performance scalable compute nodes that are designed to take on the most demanding workloads. The performance, flexibility, and resiliency features enable the X6 to run mission-critical workloads, such as key business applications, database, analytics, and large virtual machine deployments.DETAILS
- Number of Processors Supported : 2
- Number of Processors Installed : 2
- Processor Type : Xeon
- Processor Model : E7-4850 v2
- Processor Core : Dodeca-core (12 Core)
- Processor Speed : 2.30 GHz
- Cache : 24 MB
- Chipset Manufacturer : Intel
- Chipset Model : C602J
- Standard Memory : 32 GB
- Memory Technology : DDR3 SDRAM
- Total Number of Memory Slots : 96
- Optical Drive Type : No
- Controller Type : 12Gb/s SAS
- RAID Supported : Yes
- RAID Levels : 0, 1, 10, 1E
- Number of Total Expansion Bays : 2
- Number of Internal 2.5" Bays : 2
- Total Number of Expansion Slots : 4
- Graphics Controller Model : G200eR2
- Graphics Memory Capacity : 16 MB
- Total Number of USB Ports : 3
- Number of USB 2.0 Ports : 2
- Number of USB 3.0 Ports : 1
- Remote Management : Yes
- Operating System : No
- Package Contents :
- Flex System x480 X6 7903H2U Server
- Statement of Limited Warranty
- Important Notices
- Documentation CD that contains the Installation and Service Guide
- Form Factor : Rack
- Height : 2.19" (55.63 mm)
- Width : 17.14" (435.36 mm)
- Depth : 19.70" (500.38 mm)
- Weight (Approximate) : 27.01 lb (12250 g)
- Limited Warranty : 3 Year
- Experience high performance, built-in security and remote management capabilities with Intel Xeon 2.30 GHz processor
- 32 GB powerful memory for any computational task
- RAID provides data reliability, fault tolerance and improves overall performance
SPECIFICATIONS
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 7903H2U |
| Manufacturer Website Address | http://www.lenovo.com |
| Brand Name | Lenovo |
| Product Line | Flex System |
| Product Series | x480 X6 |
| Product Model | 7903H2U |
| Product Name | Flex System x480 X6 7903H2U Server |
| Product Type | Server |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 2 |
| Processor Type | Xeon |
| Processor Model | E7-4850 v2 |
| Processor Core | Dodeca-core (12 Core) |
| Processor Speed | 2.30 GHz |
| Maximum Turbo Speed | 2.80 GHz |
| Cache | 24 MB |
| QuickPath Interconnect | 7.20 GT/s |
| 64-bit Processing | Yes |
| Hyper-Threading | Yes |
| Chipset Manufacturer | Intel |
| Chipset Model | C602J |
| Standard Memory | 32 GB |
| Memory Technology | DDR3 SDRAM |
| Memory Standard | DDR3-1600/PC3-12800 |
| Total Number of Memory Slots | 96 |
| Optical Drive Type | No |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| RAID Levels | 0, 1, 10, 1E |
| Number of Total Expansion Bays | 2 |
| Number of Internal 2.5" Bays | 2 |
| Total Number of Expansion Slots | 4 |
| Number of PCI Express x8 Slots | 2 |
| Number of PCI Express x16 Slots | 2 |
| Graphics Controller Model | G200eR2 |
| Graphics Memory Capacity | 16 MB |
| Total Number of USB Ports | 3 |
| Number of USB 2.0 Ports | 2 |
| Number of USB 3.0 Ports | 1 |
| Remote Management | Yes |
| Operating System | No |
| Form Factor | Rack |
| Height | 2.19" (55.63 mm) |
| Width | 17.14" (435.36 mm) |
| Depth | 19.70" (500.38 mm) |
| Weight (Approximate) | 27.01 lb (12250 g) |
| Package Contents |
|
| Compatibility |
|
| Certifications & Standards |
|
| Limited Warranty | 3 Year |
