MARKETING INFORMATION

Abstract

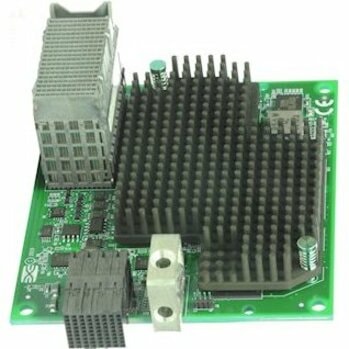

The IBM Flex System™ CN4054 and CN4054R 10Gb Virtual Fabric Adapters are 4-port 10Gb converged network adapters (CNA) for Intel processor-based compute nodes that support Ethernet, iSCSI, and FCoE. The adapters support up to eight virtual NIC (vNIC) devices, where each physical 10 GbE port can be divided into four virtual ports with flexible bandwidth allocation. The CN4054 Virtual Fabric Adapter Upgrade adds FCoE and iSCSI hardware initiator functionality to either adapter. The CN4054R adds support for compute nodes with the Intel Xeon E5-2600 v2 processors. The IBM Flex System EN4054 4-port 10Gb Ethernet Adapter is based on similar hardware but simply operates as a straight 4-port 10 GbE adapter. The EN4054 it is supported by POWER7 processor-based compute nodes

DETAILS

• Host Interface : PCI Express x8
• Total Number of Ports : 4
• Network Technology : 10GBase-X
• Form Factor : Plug-in Card
• Width : 3.90" (99.06 mm)
• Depth : 3.10" (78.74 mm)
• Weight (Approximate) : 4.80 oz (136.08 g)
• Package Contents :
  • Flex System CN4054 10Gb Virtual Fabric Adapter
  • Documentation CD
  • Important Notices Flyer
• Device Supported : Server
• Limited Warranty : 1 Year

• To accelerate IT services, increase data center efficiency and double your bandwidth without doubling your costs and complexity use this 10Gigabit Ethernet
• Enjoy superfast data transfer of up to 4000 MB/s with PCI Express x8 card, between the network card and motherboards
• This quad ports network adapter is designed to meet the multi-port network connectivity needs of today's data centered environments demanding virtualization, converged infrastructure, and power reduction
• With the 10GBase-X technology get up to 10Gbps data transfer rate over the supported network cable
