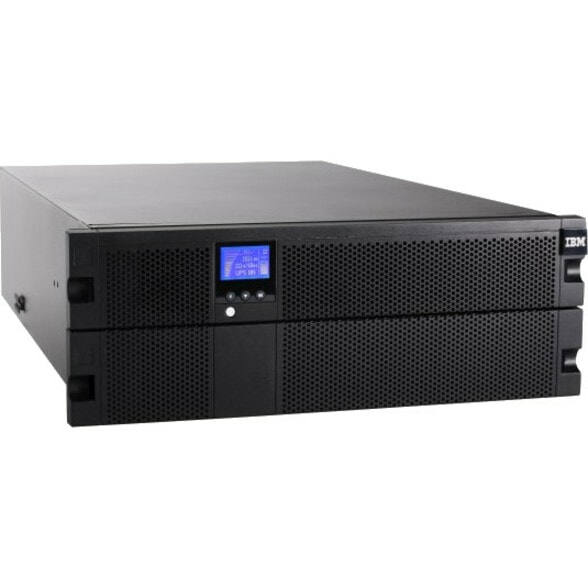

Lenovo 5395-6AX 6000VA Rack-mountable UPS - 4U Rack-mountable - 4 Hour Recharge - 5 Minute Stand-by - 200 V AC Input - 208 V AC Output - Serial Port - USB - 2 x IEC 60320 C13, 4 x NEMA 5-15R Receptacle(s) - SNMP Manageable
53956AX
Also known as SY5350879
MARKETING INFORMATION
In today's high availability server environments, unplanned power outages or line quality irregularities can have a considerable financial impact on small, medium, and large enterprise businesses. Selecting the right uninterruptible power supply (UPS) can efficiently, reliably, and affordably help protect against these potentially costly incidents.Two new power-dense IBM 6000VA LCD Rack UPS (machine type 5395) offerings provide maximum protection, increased efficiency, and simplified power management to safeguard IBM System x and BladeCenter server environments.
DETAILS
- Plug/Connector Type : IEC 60320 C14
- Receptacle Type : IEC 60320 C13,NEMA 5-15R
- Receptacle Detail : 2 x IEC 60320 C13,4 x NEMA 5-15R
- Load Capacity (VA) : 6 kVA
- Load Capacity (Watt) : 5.60 kW
- Input Voltage : 200 V AC
- Output Voltage : 208 V AC
- Surge Energy Rating : 1200 J
- Network Management : SNMP Manageable
- Serial Port : Yes
- USB : Yes
- Battery Characteristics : Maintenance-free, Sealed, Spill-proof
- Battery Chemistry : Lead Acid
- Backup/Run Time (Full Load) : 5 Minute
- Backup/Run Time (Half Load) : 11 Minute
- Hot Swappable : Yes
- Typical Battery Recharge Time : 4 Hour
- Height : 6.80" (172.72 mm)
- Width : 19" (482.60 mm)
- Depth : 28.90" (734.06 mm)
- Rack Height : 4U
- Form Factor : Rack-mountable
- Weight (Approximate) : 158.73 lb (72000 g)
- Software Included : IBM UPS Manager Power Management Software
- Limited Warranty : 3 Year
- Experience higher efficiency with lower energy cost
- Keep your sensitive devices powered with a backup of up to 5 minute at full load
- Prevent critical data loss by staying powered during a blackout with up to 5.60 kW load capacity
- 6 kVA load capacity provides sufficient backup during power failures
SPECIFICATIONS
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 53956AX |
| Manufacturer Website Address | http://www.lenovo.com |
| Brand Name | Lenovo |
| Product Model | 5395-6AX |
| Product Name | 5395-6AX 6000VA Rack-mountable UPS |
| Product Type | Line-interactive UPS |
| Plug/Connector Type | IEC 60320 C14 |
| Receptacle Type | NEMA 5-15R |
| Receptacle Type | IEC 60320 C13 |
| Receptacle Detail | 2 x IEC 60320 C13 |
| Receptacle Detail | 4 x NEMA 5-15R |
| Emergency Power OFF | Yes |
| Load Capacity (VA) | 6 kVA |
| Load Capacity (Watt) | 5.60 kW |
| Input Voltage | 200 V AC |
| Output Voltage | 208 V AC |
| Surge Energy Rating | 1200 J |
| Network Management | SNMP Manageable |
| Serial Port | Yes |
| USB | Yes |
| Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
| Battery Chemistry | Lead Acid |
| Backup/Run Time (Full Load) | 5 Minute |
| Backup/Run Time (Half Load) | 11 Minute |
| Typical Battery Recharge Time | 4 Hour |
| Hot Swappable | Yes |
| Height | 6.80" (172.72 mm) |
| Width | 19" (482.60 mm) |
| Depth | 28.90" (734.06 mm) |
| Rack Height | 4U |
| Form Factor | Rack-mountable |
| Weight (Approximate) | 158.73 lb (72000 g) |
| Package Contents |
|
| Certifications & Standards | ANSI/IEEE C62.41 |
| Software Included | IBM UPS Manager Power Management Software |
| Limited Warranty | 3 Year |
