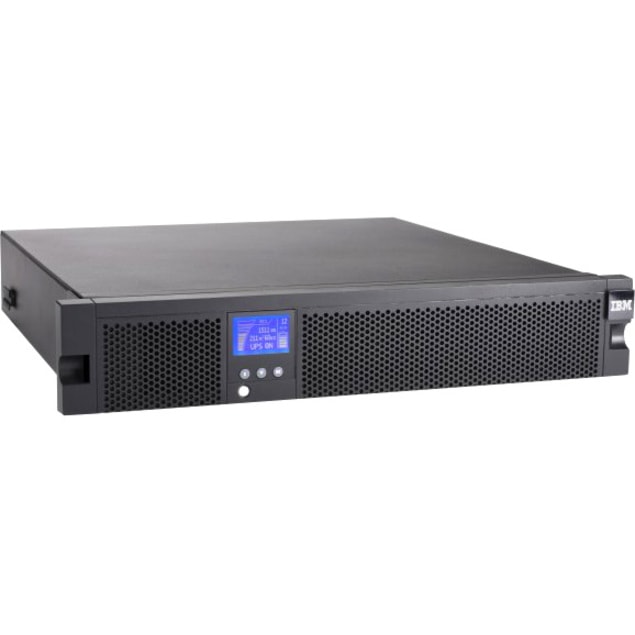

Lenovo 5395-1AX 1500VA Rack-mountable UPS - 2U Rack-mountable - 4 Hour Recharge - 5 Minute Stand-by - 120 V AC Input - 120 V AC Output - Serial Port - USB - 2 x IEC 60320 C13, 4 x NEMA 5-15R Receptacle(s) - SNMP Manageable
53951AX
Also known as SY5350872
MARKETING INFORMATION
The IBM 1500VA LCD 2U Rack uninterruptible power supply (UPS) delivers 1000 watts of power in only 2U of rack space, providing smart energy management and the highest level of power protection that today's IT infrastructures require. With an efficiency rating of 95% or greater, the UPS helps reduce energy usage and cooling costs, improves energy management, and optimizes workload performance and availability for IBM System x and BladeCenter server applications. This high-density UPS packs more real power (watts) into a space-saving 2U of rack space to protect more equipment and leaves room for expanding IT systems.
DETAILS
- Plug/Connector Type : IEC 60320 C14
- Receptacle Type : IEC 60320 C13,NEMA 5-15R
- Receptacle Detail : 2 x IEC 60320 C13,4 x NEMA 5-15R
- Load Capacity (VA) : 1.50 kVA
- Load Capacity (Watt) : 1 kW
- Input Voltage : 120 V AC
- Output Voltage : 120 V AC
- Surge Energy Rating : 1200 J
- Network Management : SNMP Manageable
- Serial Port : Yes
- USB : Yes
- Battery Characteristics : Maintenance-free, Sealed, Spill-proof
- Battery Chemistry : Lead Acid
- Backup/Run Time (Full Load) : 5 Minute
- Backup/Run Time (Half Load) : 11 Minute
- Hot Swappable : Yes
- Typical Battery Recharge Time : 4 Hour
- Height : 3.30" (83.82 mm)
- Width : 17.20" (436.88 mm)
- Depth : 18.50" (469.90 mm)
- Rack Height : 2U
- Form Factor : Rack-mountable
- Weight (Approximate) : 40.50 lb (18370.49 g)
- Software Included : IBM UPS Manager Power Management Software
- Limited Warranty : 3 Year
- Works adequately in situations where the supply is prone to sags and surges
- 1 kW load capacity - backup power for your valuable electronics
- Keep your sensitive devices powered with a backup of up to 5 minute at full load
- 1.50 kVA load capacity provides sufficient backup during power failures
SPECIFICATIONS
Manufacturer | Lenovo Group Limited |
Manufacturer Part Number | 53951AX |
Manufacturer Website Address | http://www.lenovo.com |
Brand Name | Lenovo |
Product Model | 5395-1AX |
Product Name | 5395-1AX 1500VA Rack-mountable UPS |
Product Type | Line-interactive UPS |
Plug/Connector Type | IEC 60320 C14 |
Receptacle Type | NEMA 5-15R |
Receptacle Type | IEC 60320 C13 |
Receptacle Detail | 4 x NEMA 5-15R |
Receptacle Detail | 2 x IEC 60320 C13 |
Emergency Power OFF | Yes |
Load Capacity (VA) | 1.50 kVA |
Load Capacity (Watt) | 1 kW |
Input Voltage | 120 V AC |
Output Voltage | 120 V AC |
Surge Energy Rating | 1200 J |
Network Management | SNMP Manageable |
Serial Port | Yes |
USB | Yes |
Battery Characteristics | Maintenance-free, Sealed, Spill-proof |
Battery Chemistry | Lead Acid |
Backup/Run Time (Full Load) | 5 Minute |
Backup/Run Time (Half Load) | 11 Minute |
Typical Battery Recharge Time | 4 Hour |
Hot Swappable | Yes |
Height | 3.30" (83.82 mm) |
Width | 17.20" (436.88 mm) |
Depth | 18.50" (469.90 mm) |
Rack Height | 2U |
Form Factor | Rack-mountable |
Weight (Approximate) | 40.50 lb (18370.49 g) |
Package Contents |
|
Certifications & Standards | ANSI/IEEE C62.41 |
Software Included | IBM UPS Manager Power Management Software |
Limited Warranty | 3 Year |
