MARKETING INFORMATION

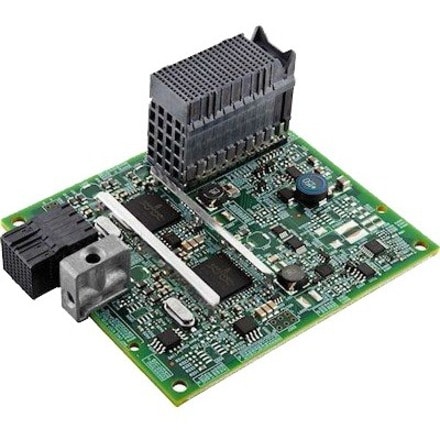

The IBM Flex System™ EN2024 4-port 1Gb Ethernet Adapter is a quad-port Gigabit Ethernet network adapter. When it is combined with the IBM Flex System EN2092 1Gb Ethernet Scalable Switch, clients can leverage an end-to-end 1 Gb solution on the IBM Flex System Enterprise Chassis. The EN2024 adapter is based on the Broadcom 5718 controller and offers a PCIe 2.0 x1 host interface with MSI/MSI-X. It also supports I/O virtualization features like VMware NetQueue and Microsoft VMQ technologies.

DETAILS

• Host Interface : PCI Express x1
• Total Number of Ports : 4
• Network Technology : 1000Base-X
• Form Factor : Plug-in Card
• Width : 3.94" (100 mm)
• Depth : 3.15" (80 mm)
• Weight (Approximate) : 0.46 oz (13 g)
• Package Contents :
  • Flex System EN2024 4-port 1Gb Ethernet Adapter
  • Documentation CD
  • Important Notices flyer
• Device Supported : Server
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 1 Year

• Enjoy the super fast Gigabit Ethernet connection by inserting this Gigabit Ethernet card into your computer
• This 250 MB/s bandwidth PCI Express x1 adapter ensures easy connectivity and plug-in form-factor for affordable and reliable Ethernet network
• With quad ports on a single card, save valuable expansion slots on your system for other purposes
• With the 1000Base-X technology get up to 1000Mbps data transfer rate over the supported network cable
