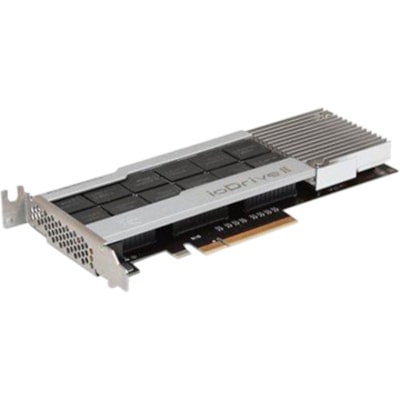

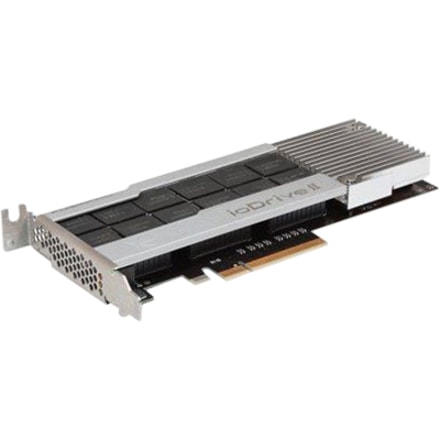

Lenovo 785 GB Solid State Drive - Internal - PCI Express (PCI Express 2.0 x8) - 1536 MB/s Maximum Read Transfer Rate - 1 Year Warranty

46C9081
Also known as SY5350517

Lenovo 785 GB Solid State Drive - Internal - PCI Express (PCI Express 2.0 x8) - 1536 MB/s Maximum Read Transfer Rate - 1 Year Warranty Adapter

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The IBM® 365GB, 785GB and 1.2TB MLC Mono and 2.4TB MLC Duo High IOPS Adapters for IBM System x®, IBM BladeCenter®, and IBM Flex System™ are second-generation adapters that come with many of the benefits of standard storage in addition to enterprise-class high performance of more than 900,000 sustained input/output operations per second (IOPS). These adapters are designed primarily for performance-hungry enterprise servers and computing appliances while providing the added benefits of lower power and cooling costs, low management impact, and smaller storage footprints.

DETAILS

  • Storage Capacity : 785 GB
  • Platform Supported : PC
  • Maximum Read Transfer Rate : 1536 MB/s
  • Maximum Write Transfer Rate : 1126.40 MB/s
  • Drive Interface : PCI Express
  • Drive Interface Standard : PCI Express 2.0 x8
  • Drive Type : Internal
  • Height : 0.60" (15.24 mm)
  • Width : 2.80" (71.12 mm)
  • Depth : 6.60" (167.64 mm)
  • Weight (Approximate) : 4.87 oz (138 g)
  • Limited Warranty : 1 Year
  • Provides sufficient storage capacity of 785 GB for your computer
  • The high-read speed of 1536 MB/s maximizes system performance and saves time while you are doing complex tasks
  • With the high-write speed of 1126.40 MB/s, get a quick response when updating or transferring files
  • PCI Express 2.0 x8 interface provides enhanced bandwidth for the quick access of data by the operating system and applications

SPECIFICATIONS

Manufacturer Lenovo Group Limited
Manufacturer Part Number 46C9081
Manufacturer Website Address http://www.lenovo.com
Brand Name Lenovo
Product Name 785GB High IOPS MLC Mono Adapter
Product Type Solid State Drive
Storage Capacity 785 GB
Platform Supported PC
Features Low Power Consumption
Maximum Read Transfer Rate 1536 MB/s
Maximum Write Transfer Rate 1126.40 MB/s
Drive Interface PCI Express
Drive Interface Standard PCI Express 2.0 x8
Drive Type Internal
Height 0.60" (15.24 mm)
Width 2.80" (71.12 mm)
Depth 6.60" (167.64 mm)
Weight (Approximate) 4.87 oz (138 g)
Package Contents
  • 785GB High IOPS MLC Mono Adapter
  • 2U Bracket Loose
  • USB Key with Documentation
  • Quick Install Guide
  • Important Notices Document
  • Warranty Flyer
  • Environmental Notices
  • IBM Safety Information
  • Solid State Storage Technical Update
System Requirements

Operating System(s):

  • Microsoft Windows Server 2008 R2
  • Microsoft Windows Server 2008, Enterprise x64 Edition
  • Microsoft Windows Server 2008, Standard x64 Edition
  • Red Hat Enterprise Linux 6 Server x64 Edition
  • Red Hat Enterprise Linux 5 Server x64 Edition
  • SUSE Linux Enterprise Server 11 for AMD64/EM64T
  • SUSE Linux Enterprise Server 10 for AMD64/EM64T
  • VMware vSphere 5
  • VMware ESX 4.1
  • VMware ESXi 4.1
Compatibility
  • IBM BladeCenter HS23 7875
  • IBM BladeCenter HS23E 8038
  • IBM BladeCenter HX5
  • IBM Flex System x220 Compute Node
  • IBM Flex System x240 Compute Node
  • IBM System x iDataPlex dx360 M4
  • IBM System x3530 M4
  • IBM System x3550 M4
  • IBM System x3630 M4
  • IBM System x3650 M4
  • IBM System x3690 X5
  • IBM System x3750 M4
  • IBM System x3850 X5
Certifications & Standards
  • United States FCC 47, Part 15, Subpart B, Class A
  • Canada ICES-003, Class A
  • Japan VCCI, Class A
  • Australia/New Zealand C-Tick-CISPR 22:2009, Class A
  • Taiwan BSMI - CNS 13438, Class A
  • CE Mark (EN55022, EN55024, EN61000-3-2, EN61000-3-3)
  • Korea KN22, KN24, Class A
  • Low Voltage Directive IEC/EN 60950-1:2006
  • UL
  • TUV
  • cUL
  • VDE
  • EMC
  • MIC
  • KCC
Limited Warranty 1 Year
