MARKETING INFORMATION

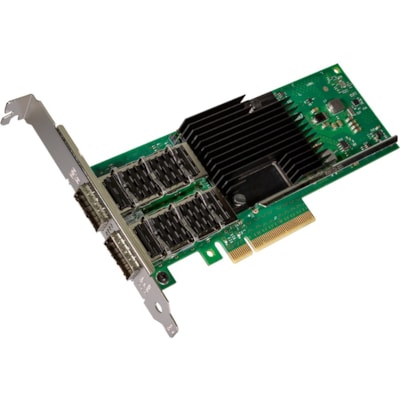

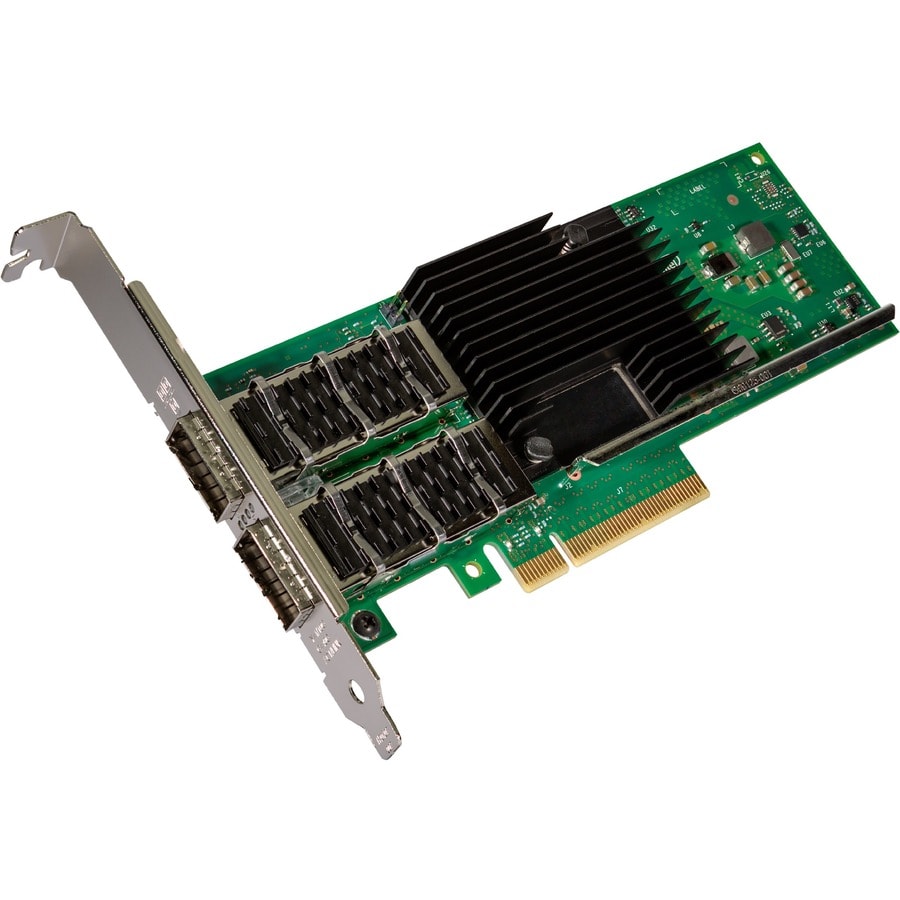

The dual-port Intel Ethernet Converged Network Adapter XL710 is an energy-efficient 40GbE adapter that is backwards compatible to 10GbE.

The XL710 is part of the Intel® Ethernet 700 Series Network Adapters. These adapters are the foundation for server connectivity, providing broad interoperability, critical performance optimizations, and increased agility for Communications, Cloud, and Enterprise IT network solutions.

• Interoperability - Multiple speeds and media types for broad compatibility backed by extensive testing and validation.
• Optimization - Intelligent offloads and accelerators to unlock network performance in servers with Intel® Xeon® processors.
• Agility - Both Kernel and Data Plane Development Kit (DPDK) drivers for scalable packet processing.

Intel® Ethernet 700 Series delivers networking performance across a wide range of network port speeds through intelligent offloads, sophisticated packet processing, and quality open source drivers.

All Intel® Ethernet 700 Series Network Adapters include these feature-rich technologies:

Flexible and Scalable I/O for Virtualized Infrastructures

Intel® Virtualization Technology (Intel® VT), delivers outstanding I/O performance in virtualized server environments.

I/O bottlenecks are reduced through intelligent offloads, enabling near-native performance and VM scalability. These offloads include Virtual Machine Device Queues (VMDq) and Flexible Port Partitioning using SR-IOV with a common Virtual Function driver for networking traffic per Virtual Machine (VM). Host-based features supported include:

VMDQ for Emulated Path: VMDQ, enables a hypervisor to represent a single network port as multiple network ports that can be assigned to the individual VMs. Traffic handling is offloaded to the network controller, delivering the benefits of port partitioning with little to no administrative overhead by the IT staff.

SR-IOV for Direct Assignment: Adapter-based isolation and switching for various virtual station instances enables optimal CPU usage in virtualized environments.

• Up to 128 virtual functions (VFs), each VF can support a unique and separate data path for I/O related functions within the PCI Express hierarchy.
• Use of SR-IOV with a networking device, for example, allows the bandwidth of a single port (function) to be partitioned into smaller slices that can be allocated to specific VMs or guests, via a standard interface.

Intel® Ethernet Adaptive Virtual Function (Intel® Ethernet AVF): Customers deploying mass-scale VMs or containers for their network infrastructure now have a common VF driver. This driver eases SR-IOV hardware upgrades or changes, preserves base-mode functionality in hardware and software, and supports an advanced set of features in the Intel® Ethernet 700 Series.

Enhanced Network Virtualization Overlays (NVO)

Network virtualization has changed the way networking is done in the data center, delivering accelerations across a wide range of tunneling methods.

DETAILS

• Chipset Manufacturer : Intel
• Chipset Model : XL710-BM2
• Host Interface : PCI Express 3.0 x8
• Total Number of Ports : 2
• Expansion Slot Type : QSFP+
• Media Type Supported : Optical Fiber
• Maximum Data Transfer Rate : 40 Gbit/s
• Network Technology : 40GBase-CR4,40GBase-SR4,40GBAse-LR4
• Form Factor : Plug-in Card
• Device Supported : Server
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)

• Supports 4x10GbE, 1x40GbE or 2x40GbE configurations
• PCI Express* (PCIe) v3.0, x8
• Exceptional low power adapters
• Network Virtualization offloads including VXLAN, GENEVE, NVGRE, MPLS, and VXLAN-GPE with Network Service Headers (NSH)
• Intel® Ethernet Flow Director for hardware based application traffic steering
• Dynamic Device Personalization (DDP) enables increased packet processing efficiency for NFV and Cloud deployments
• Data Plane Development Kit (DPDK) optimized for efficient packet processing
• Excellent small packet performance for network appliances and Network Functions Virtualization (NFV)
• Intelligent offloads to enable high performance on servers with Intel® Xeon® processors
• I/O virtualization innovations for maximum performance in a virtualized server
