Tripp Lite series B078-101-USB2 USB Server Interface Unit with Virtual Media Support - 1 Computer(s) - 100 ft (30480 mm) Range - 1 x Network (RJ-45) x USB x VGA
B078-101-USB2
Also known as SY5320106
MARKETING INFORMATION

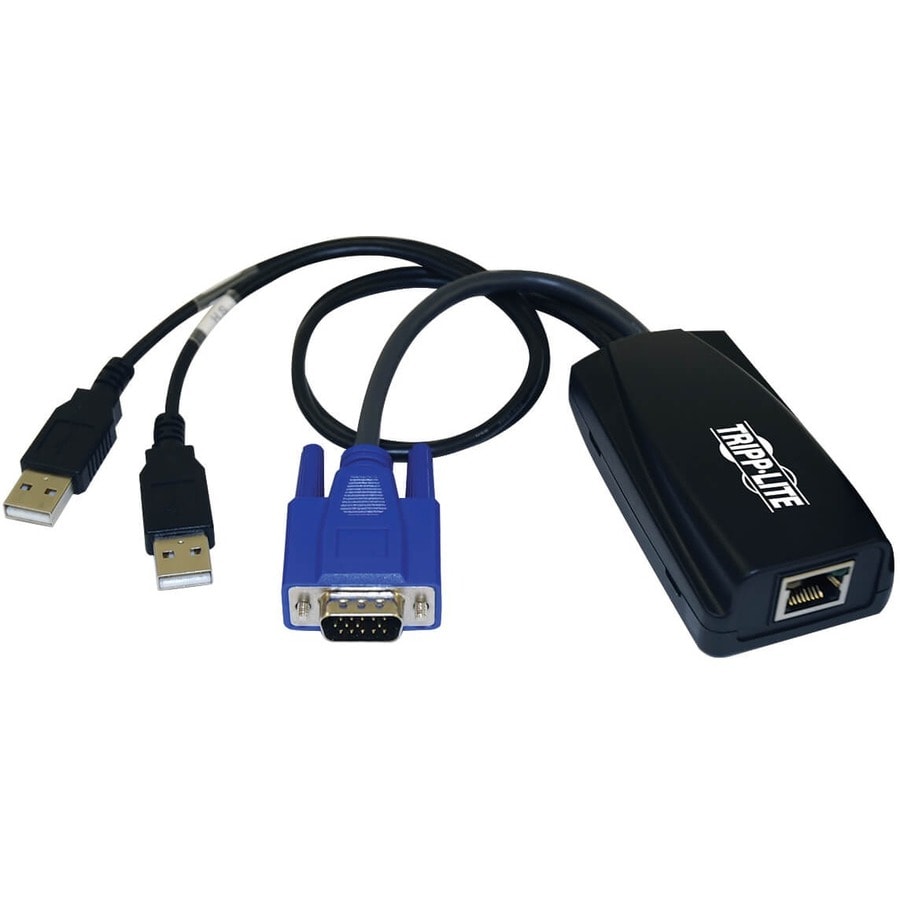

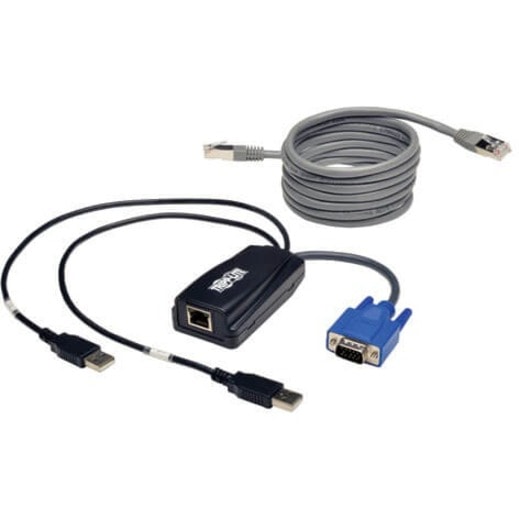

The Tripp Lite NetCommander USB Server Interface Unit (SIU) with Virtual Media support connects to the HD15 port and USB ports on a computer/server, and converts them to a single RJ45 connector. Ordinary Cat5e patch cable can then be used to connect the server to the switch ports on a Tripp Lite NetCommander Cat5 IP KVM switch. Supports Virtual Media, with data transfer rates up to 12Mbps.
DETAILS
- Connectivity Technology : Wired
- Number of Computers Supported : 1
- Maximum Operating Distance : 100 ft (30480 mm)
- Network (RJ-45) : Yes
- USB : Yes
- VGA : Yes
- Number of Network (RJ-45) Ports : 1
- Country of Origin : Taiwan
- TAA Compliant : Yes
- Limited Warranty : 3 Year
SPECIFICATIONS
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B078-101-USB2 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Line | NetCommander |
| Product Model | B078-101-USB2 |
| Product Name | B078-101-USB2 USB Server Interface Unit with Virtual Media Support |
| Product Type | KVM Extender |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 100 ft (30480 mm) |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Limited Warranty | 3 Year |
