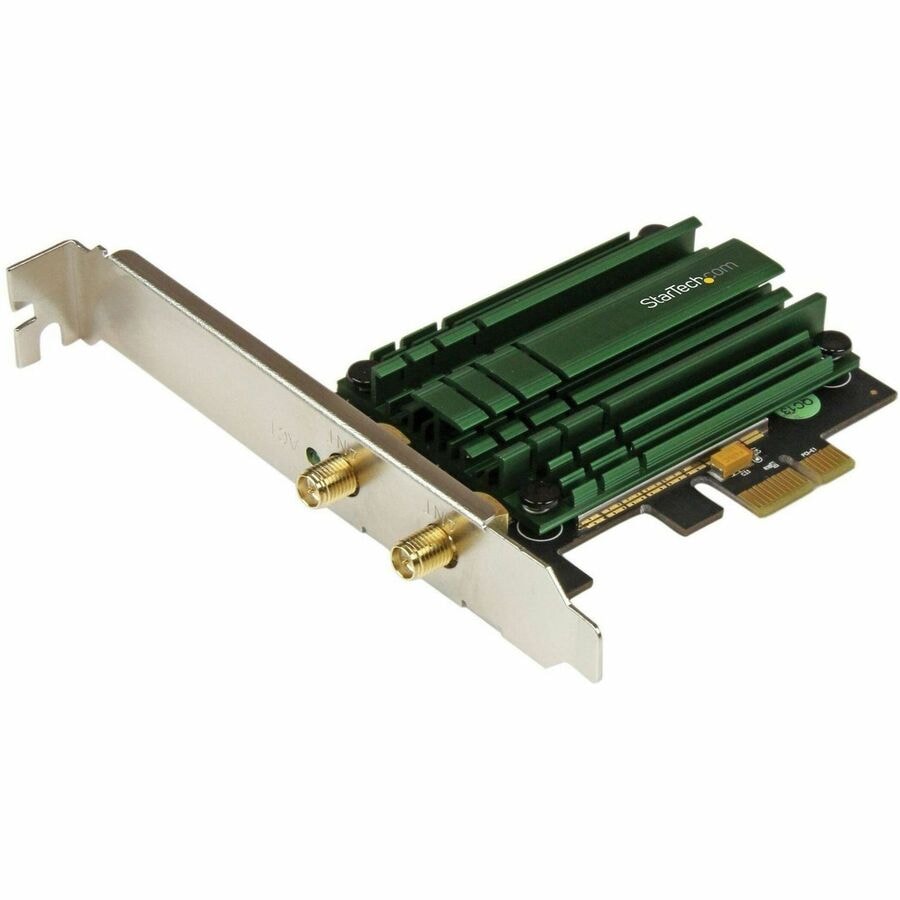

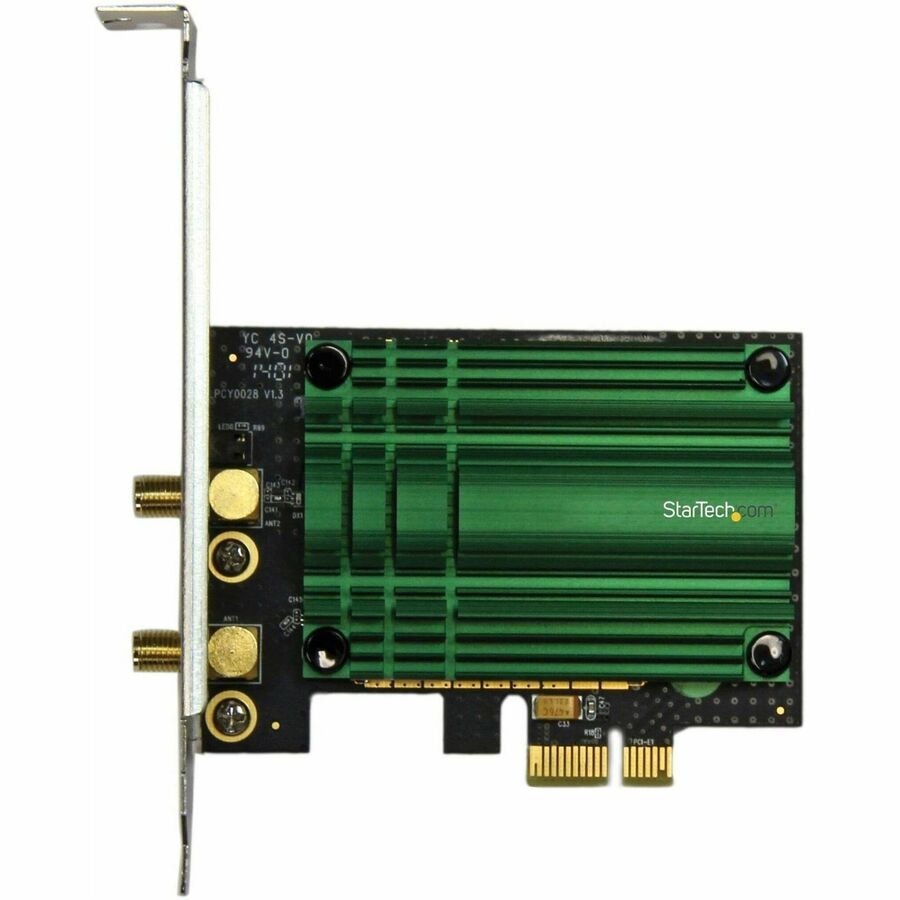

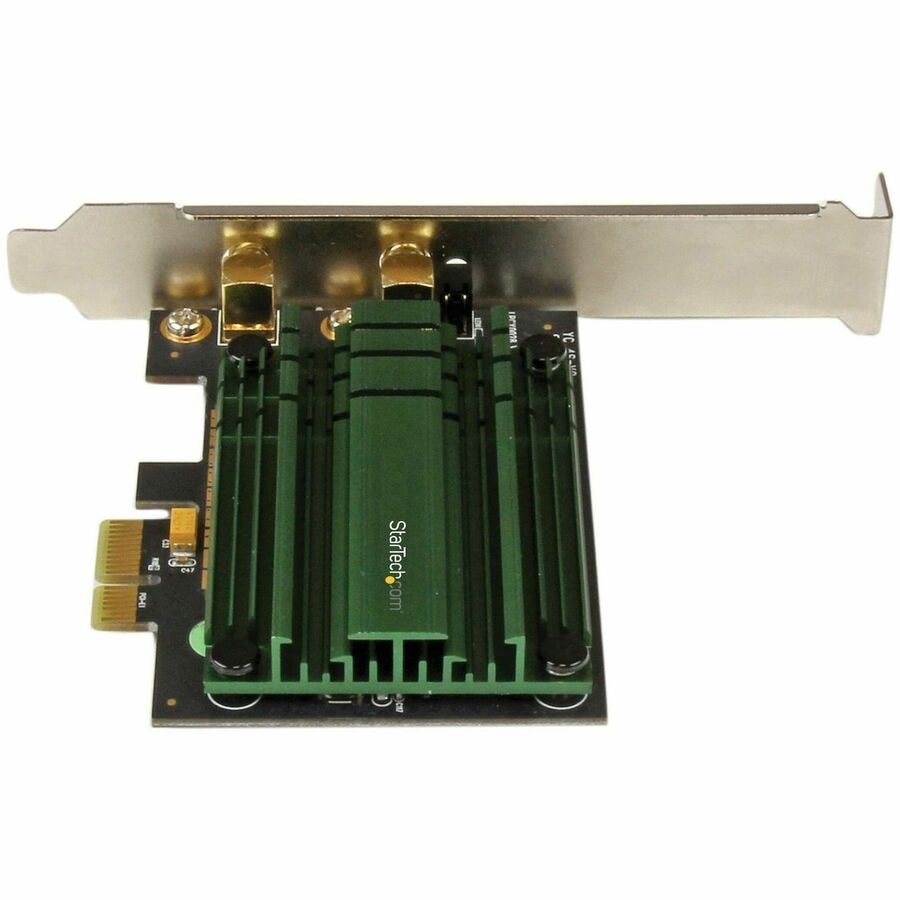

StarTech.com PCI Express AC1200 Dual Band Wireless-AC Network Adapter - PCIe 802.11ac WiFi Card - Add high speed 802.11ac WiFi connectivity to a desktop PC through a PCI Express slot with dual band 2.4 / 5GHz frequencies and up to 867Mbps - PCI Express AC1200 Dual Band Wireless-AC Network Adapter -
PEX867WAC22
Also known as SY5319136,IM05886X
MARKETING INFORMATION
The PEX867WAC22 PCI Express AC1200 Wireless Network Adapter lets you add dual-band Wireless-AC connectivity to a desktop computer through a PCIe slot.
With increased demand on network resources, this Wireless-AC adapter gives you exceptional speed and range for your office or home wireless network when paired with an 802.11ac router. This dual-band WiFi adapter supports maximum data rates of up to 867 Mbps on the 5GHz band (3x the speed of Wireless-N), plus up to 300 Mbps on the 2.4GHz band, making it the perfect solution for applications like HD video streaming, online conferencing, file transfers and gaming.

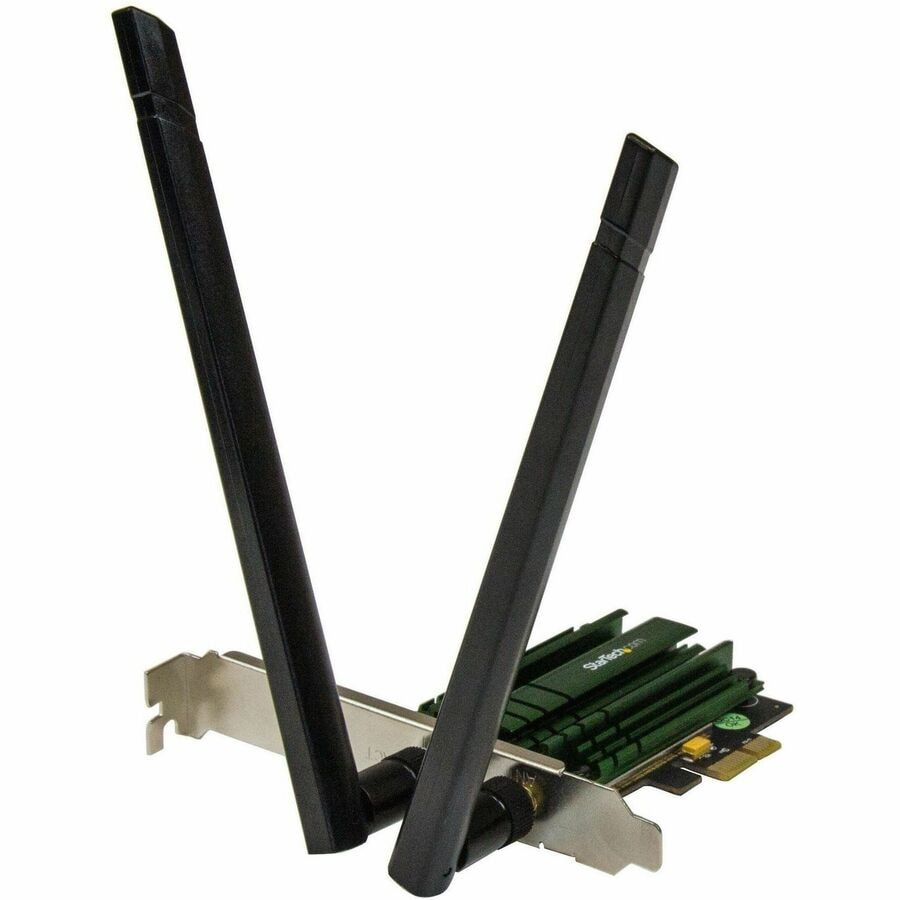

This versatile PCIe wireless card features a 2T2R (2 transmitter, 2 receiver) detachable antenna design, with an included magnetic antenna stand that can easily be mounted to the top or side of your PC case. Plus, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers. To integrate with all of your networking devices, the adapter is also backward compatible with 802.11a/b/g/n networks.
Backed by a StarTech.com 2-year warranty, with free lifetime technical support.
More from the Manufacturer
DETAILS
- Wi-Fi Generation : Wi-Fi 5
- Wireless LAN Standard : IEEE 802.11ac
- ISM Band : Yes
- UNII Band : Yes
- ISM Maximum Frequency : 2.48 GHz
- UNII Maximum Frequency : 5.85 GHz
- Wireless Transmission Speed : 1.17 Gbit/s
- Host Interface : PCI Express x1
- Form Factor : Internal
- Height : 4.70" (119.38 mm)
- Width : 0.70" (17.78 mm)
- Weight (Approximate) : 2.90 oz (82.21 g)

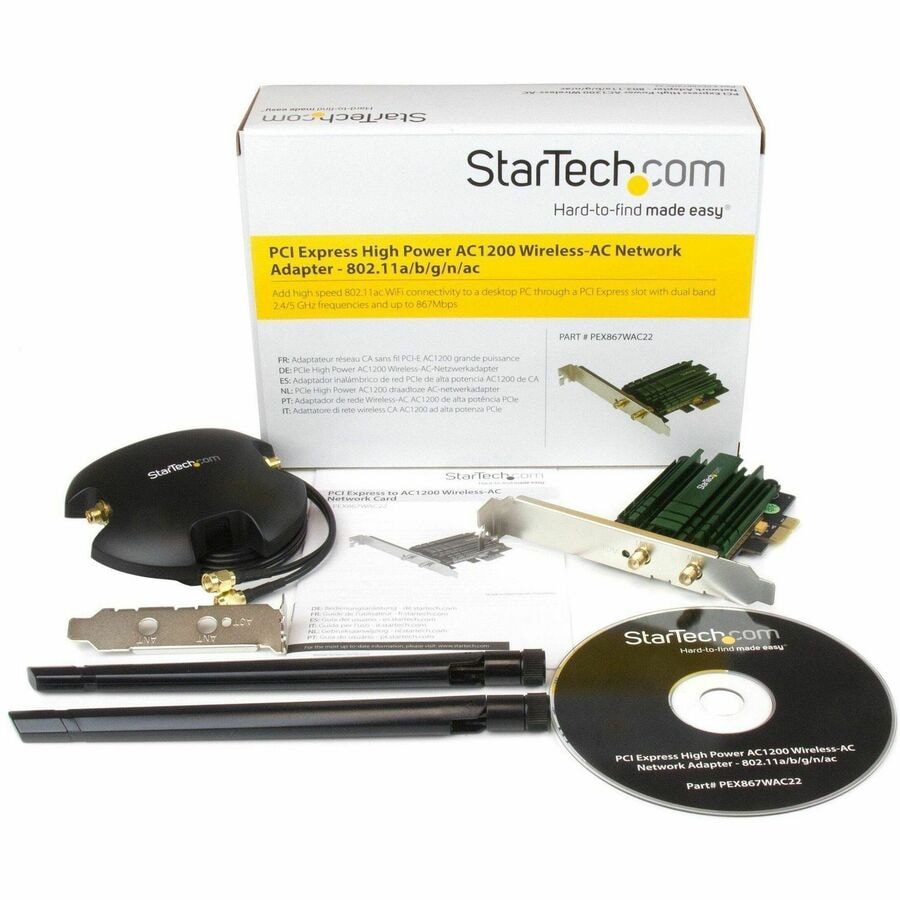

- Package Contents :
- PCI Express Wireless AC Card
- 2 x 5 dBi Dual Band Antennas
- 1 x Antenna Stand
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
- Device Supported : Desktop Computer
- Environmentally Friendly : Yes
- Country of Origin : Taiwan
- TAA Compliant : Yes
- Limited Warranty : 2 Year
- Wireless AC1200 compatible (867 Mbps + 300 Mbps)
- Compliant with 802.11 a/b/g/n/ac standards
- Dual band 2.4 / 5 GHz support (802.11ac is 5 GHz only)
- PCI Express host interface
- 2 Transmitter/2 Receiver (2x2:2) antenna configuration

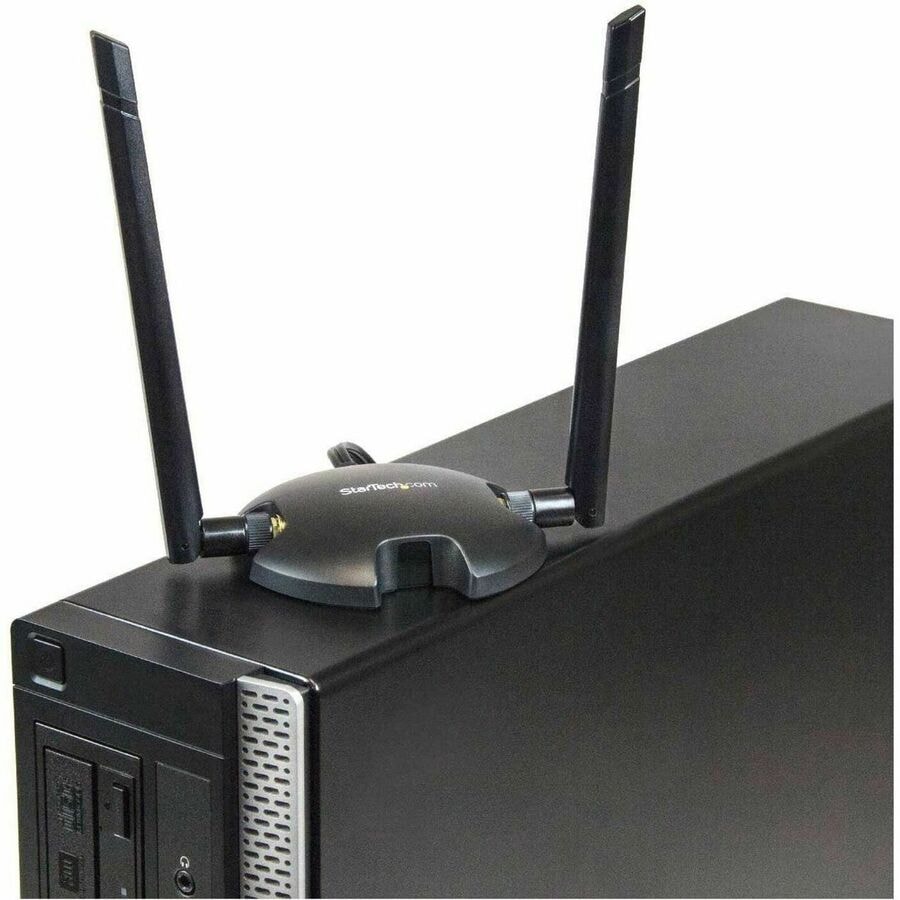

- Included magnetic antenna stand for side-mounting on your PC case
- Supports WEP (64-128-bit), WPA and WPA2 wireless security
- Supports WMM Quality of Service
- Supports Soft AP mode

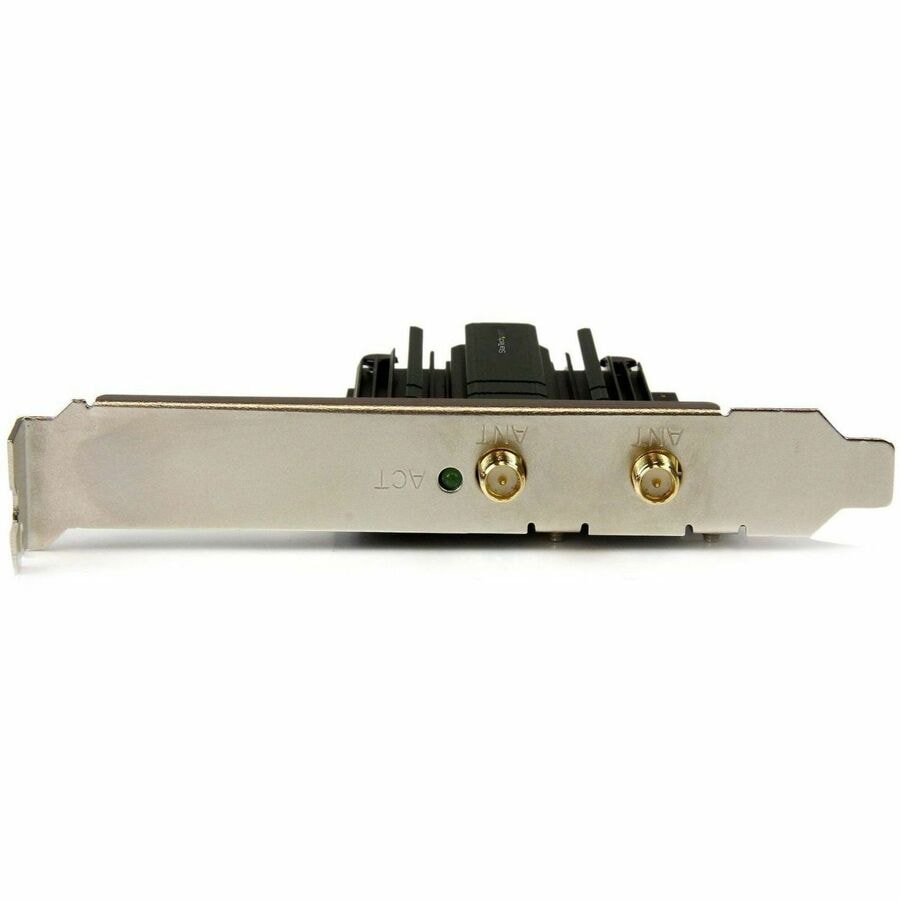

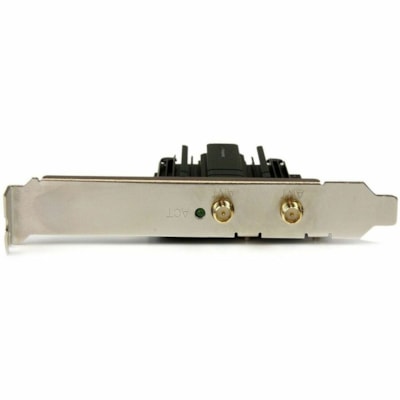

- Configured with standard profile bracket, low profile/half-height bracket included
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX867WAC22 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | PCI Express Wireless AC Card |
| Packaged Quantity | 1 Each |
| Product Type | Wi-Fi Adapter |
| Wi-Fi Generation | Wi-Fi 5 |
| Wireless LAN Standard | IEEE 802.11ac |
| ISM Band | Yes |
| UNII Band | Yes |
| ISM Minimum Frequency | 2.40 GHz |
| ISM Maximum Frequency | 2.48 GHz |
| UNII Minimum Frequency | 5.18 GHz |
| UNII Maximum Frequency | 5.85 GHz |
| Number of Antennas | 2 |
| Antenna Gain (Isotropic) | 5 dBi |
| Antenna Connector | RP-SMA Connector |
| Wireless Transmission Speed | 1.17 Gbit/s |
| Wireless Security |
|
| Features | LED Indicator |
| Features | Quality of Service (QoS) |
| Host Interface | PCI Express x1 |
| Form Factor | Internal |
| Height | 4.70" (119.38 mm) |
| Width | 0.70" (17.78 mm) |
| Length | 3.40" (86.36 mm) |
| Weight (Approximate) | 2.90 oz (82.21 g) |
| Package Contents |
|
| System Requirements |
|
| Device Supported | Desktop Computer |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Limited Warranty | 2 Year |
