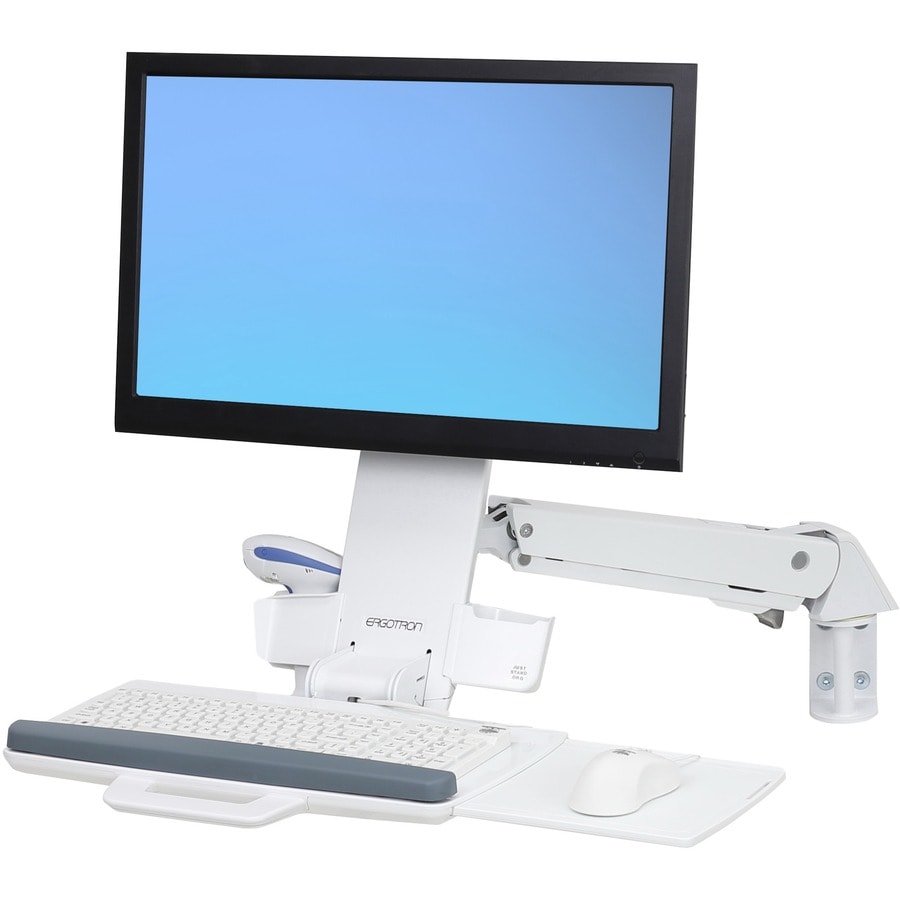

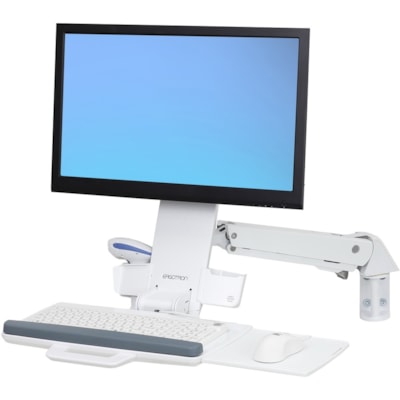

Ergotron StyleView Mounting Arm for Monitor, Keyboard, Bar Code Reader, Mouse - Height Adjustable - 24" Screen Support - 29.10 lb (13200 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Aluminum, Plastic

45-266-216
Also known as SY5303803

Ergotron StyleView Mounting Arm for Monitor, Keyboard, Bar Code Reader, Mouse - Height Adjustable - 24" Screen Support - 29.10 lb (13200 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Aluminum, Plastic M NO WORKSURFACE BRIGHT WHIT E TEXTURE

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Durable aluminum construction! Holds a monitor, bar-code scanner, keyboard, wrist rest and mouse on the same arm, providing easy, single-motion height adjustment.

Work sitting or standing with the arm's ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.

DETAILS

  • Device Supported : Monitor,Keyboard,Bar Code Reader,Mouse
  • Maximum Load Capacity : 29.10 lb (13200 g)
  • Maximum Screen Size Supported : 24"
  • Height Adjustable : Yes
  • Features : Durable,Cable Management,Flexible,Ergonomic,Adjustable Depth,Foldable,Tilt,Pan,360° Rotation
  • Maximum Adjustable Depth : 39.75" (1009.65 mm)
  • Product Material : Aluminum,Plastic
  • VESA Mount Compatible : Yes
  • Mounting Pattern : 75 x 75,100 x 100
  • Depth : 12" (304.80 mm)
  • Weight (Approximate) : 24.70 lb (11203.73 g)
  • Country of Origin : China
  • Limited Warranty : 5 Year
  • Can withstand a maximum weight of 29.10 lb (13200 g)
  • Supports the screen size of 24"

SPECIFICATIONS

Manufacturer Ergotron, Inc
Manufacturer Part Number 45-266-216
Manufacturer Website Address http://www.ergotron.com
Brand Name Ergotron
Product Line StyleView
Product Name StyleView Sit-Stand Combo Arm (White)
Product Type Mounting Arm
Device Supported Mouse
Device Supported Bar Code Reader
Device Supported Keyboard
Device Supported Monitor
Maximum Load Capacity 29.10 lb (13200 g)
Maximum Screen Size Supported 24"
Maximum Adjustable Height 25" (635 mm)
Maximum Adjustable Depth 39.75" (1009.65 mm)
Features Adjustable Depth
Features Tilt
Features Foldable
Features Ergonomic
Features Flexible
Features Cable Management
Features Durable
Features 360° Rotation
Features Pan
Height Adjustable Yes
VESA Mount Compatible Yes
Mounting Pattern 100 x 100
Mounting Pattern 75 x 75
Product Material Plastic
Product Material Aluminum
Depth 12" (304.80 mm)
Weight (Approximate) 24.70 lb (11203.73 g)
Additional Information
  • Weight Capacity: display = 6-18 lbs (2.7-8.2 kg) or up to 25 lbs (11.4 kg) with tilt and lift lock-out features engaged; keyboard, mouse and barcode scanner = 4 lbs (1.8 kg)
  • Lift Range: LCD and keyboard adjusts 20" (51 cm) in tandem with single-motion; LCD adjusts 5" (13 cm) independently; maximum LCD height adjustment = 25" (64 cm)
  • Fold-down keyboard tray to support workflow needs. Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm)
  • Fold-down keyboard tray to support workflow needs. Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm)
Country of Origin China
Limited Warranty 5 Year
