Tripp Lite series KVM Switch Accessories - NetCommander USB Server Interface Unit (SIU) - 8-Pack - 1 Computer(s) - 100 ft (30480 mm) Range - 1 x Network (RJ-45) x USB x VGA
B078-101-USB-8
Also known as SY5302828,IMEL0632
MARKETING INFORMATION

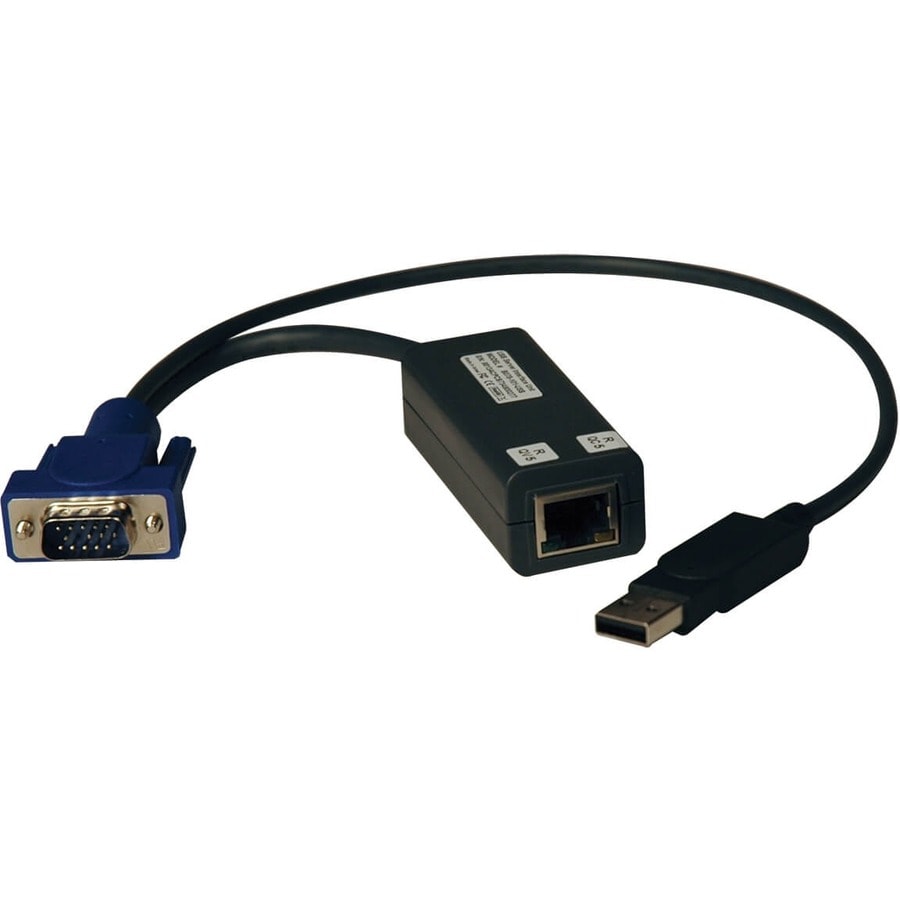

The B078-101-USB-8 is an 8-Pack of Tripp Lite's B078-101-USB-1 NetCommander USB Server Interface Units (SIU). Each SIU connects to the HD15 port and USB port on a computer/server, and converts them to a single RJ45 connector. Ordinary Cat5e patch cables can then be used to connect the server to the switch ports on a Tripp Lite B070 / B072-Series NetCommander Cat5 KVM switch. Use of Cat5e cables frees up space in the installation that would ordinarily be filled by traditional, thicker KVM cables. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
DETAILS
- Connectivity Technology : Wired
- Number of Computers Supported : 1
- Maximum Operating Distance : 100 ft (30480 mm)
- Network (RJ-45) : Yes
- USB : Yes
- VGA : Yes
- Number of Network (RJ-45) Ports : 1
- Environmentally Friendly : Yes
- Country of Origin : Taiwan
- TAA Compliant : Yes
- Limited Warranty : 3 Year
- 8-Pack of B078-101-USB-1 Server Interface Units
- Needed to connect a USB Server to a B070 / B072-Series NetCommander KVM switch via Cat5e cable
- Easy to install; no software needed
- No power supply required
- Allows a recommended maximum distance of 100ft from KVM to computer/server via Cat5e cable
- Compact and lightweight design
SPECIFICATIONS
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | B078-101-USB-8 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | B078-101-USB-8 |
| Product Name | KVM Switch Accessories - NetCommander USB Server Interface Unit (SIU) - 8-Pack |
| Packaged Quantity | 8 |
| Product Type | KVM Extender |
| Connectivity Technology | Wired |
| Number of Computers Supported | 1 |
| Maximum Operating Distance | 100 ft (30480 mm) |
| Network (RJ-45) | Yes |
| USB | Yes |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 1 |
| Environmentally Friendly | Yes |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Limited Warranty | 3 Year |
