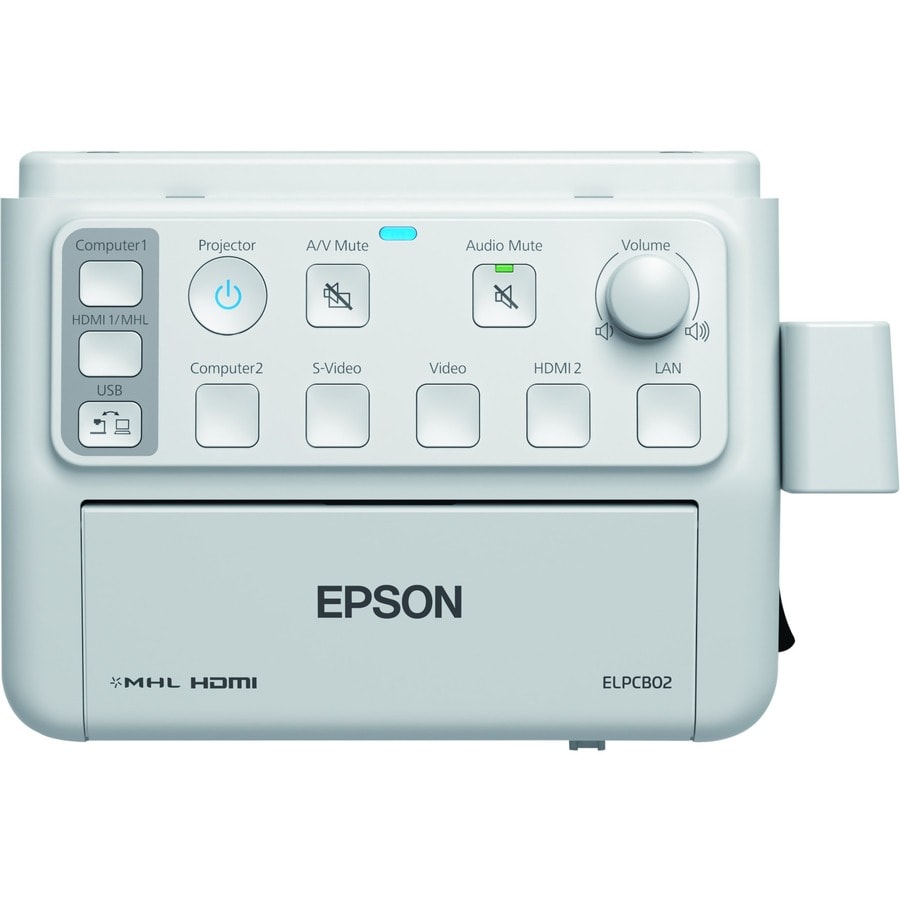

Epson PowerLite Pilot 2 (ELPCB02) Connection and Control Box

V12H614020
Also known as SY5271452

New! Log in or create an account to see price and availability


MARKETING INFORMATION

The projector AV control box that optimizes connectivity in the classroom.

Experience a new degree of connectivity and control in classroom projection with the PowerLite Pilot 2, a convenient wall-mounted AV control box for Epson short-throw and ultra-short-throw projectors. The PowerLite Pilot 2 supports an array of devices, and makes it easier than ever to operate your audio/video sources, computer, iPod® and more - including displaying the latest high-definition and popular MHL-enabled mobile devices. And, with greater flexibility, consolidated cable management and intuitive buttons, it's the perfect solution for simple, streamlined control of classroom multimedia devices - everything you'd expect from the world leader in multimedia projection.

DETAILS

  • Height : 8.90" (226.06 mm)
  • Width : 9.10" (231.14 mm)
  • Depth : 3.60" (91.44 mm)
  • Weight (Approximate) : 2.70 lb (1224.70 g)
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 2 Year

SPECIFICATIONS

Manufacturer Epson Corporation
Manufacturer Part Number V12H614020
Manufacturer Website Address http://epson.ca
Brand Name Epson
Product Line PowerLite Pilot
Product Series 2
Product Model ELPCB02
Product Name PowerLite Pilot 2 (ELPCB02) Connection and Control Box
Product Type Projector Connection & Control Box
Height 8.90" (226.06 mm)
Width 9.10" (231.14 mm)
Depth 3.60" (91.44 mm)
Weight (Approximate) 2.70 lb (1224.70 g)
Package Contents
  • PowerLite Pilot 2 (ELPCB02) Connection and Control Box
  • External AC Power Adapter
  • Power Cord
  • Cable Cover
  • iPod/Interactive Pen Holder
  • HDMI Cable Clamp
  • User Guide CD
  • Installation Manual
  • Template Sheet
  • Warranty Statement
Additional Information
  • Projector Control: Power on/off, Source selection (computer 1/computer 2/video/S-video/USB[A/B]/HDMI1/HDMI2/LAN), A/V Mute
  • Audio Control: Audio Mute (for all sources), Volume adjustments (except for AUX in/Mic Input/Rec. out), Mic volume control
  • Power Supply Voltage 100 - 240 V AC/DC
  • Power Consumption 12 W
I/O Port:
  • Input Video: VGA x 2, Composite Video, S-video, HDMI x 2 (HDMI 1 supports MHL), USB-A, USB-B
  • Input Audio: Stereo mini jack (3.5 mm) x 4, RCA connector (L & R), Mic. In (6.3 mm)
  • Output Video: VGA x 2, Composite Video, S-video, HDMI x 2, USB-A, USB-B
  • Output Audio: Stereo mini jack (3.5 mm) x 2 Control RS-232c (9-pin crossover/null modem type)
Compatibility Epson Projectors:
  • PowerLite 420 Series
  • PowerLite 430 Series
  • PowerLite 570 Series
  • PowerLite 580 Series
  • BrightLink 570 Series
  • BrightLink 580 Series
  • BrightLink 590 Series
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 2 Year
