MARKETING INFORMATION

The CyberPower Smart App Sinewave PR500LCDRT1U uninterruptible power supply (UPS) with LCD Control Panel and Active PFC compatible pure sine wave output safeguards mission-critical servers, telecom equipment, and internetworking hardware. Automatic Voltage Regulation (AVR) delivers consistent and clean AC power.

The Multifuction LCD Panel is available to check status, adjust operating settings, and run systems tests. This UPS uses Patented GreenPower UPS™ advanced circuitry that reduces UPS energy costs compared to competitive models.

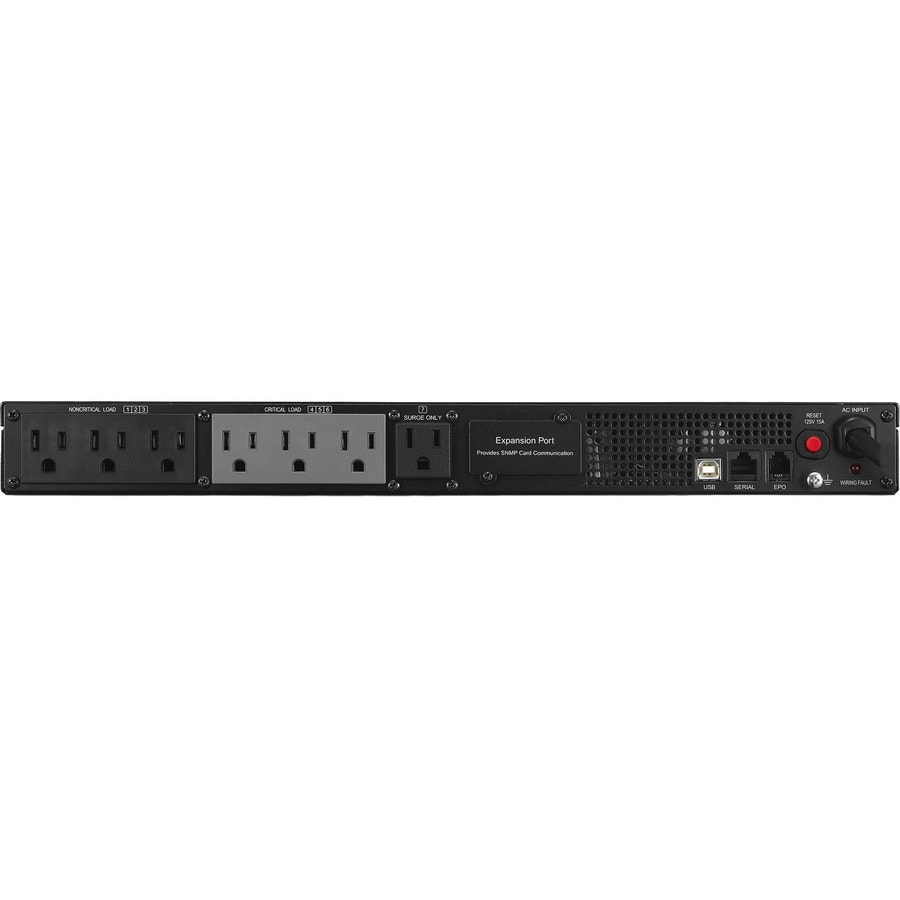

The PR500LCDRT1U unit has a capacity of 500VA/400Watts, (7) receptacles NEMA 5-15R, NEMA 5-15P Plug, and (2) maintenance-free, user-replaceable 6V/9Ah batteries. This unit offers connectivity via 1 HID USB, 1 DB9 serial and 1 emergency power off (EPO) port.

PowerPanel® Business Edition UPS Management software, Three-Year Warranty, and $400,000 Connected Equipment Guarantee are included.

• 500 VA load capacity - work without any interruption during power outages
• 400 W load capacity - backup power for your valuable electronics
• Keep your sensitive devices powered with a backup of up to 3 minute at full load

DETAILS

• AVR : Yes
• Plug/Connector Type : NEMA 5-15P
• Receptacle Type : NEMA 5-15R
• Receptacle Detail : 7 x NEMA 5-15R
• EMI/RFI Noise Filter : Yes
• Load Capacity (VA) : 500 VA
• Input Voltage : 120 V AC
• Output Voltage : 120 V AC
• Waveform Type : Pure Sine Wave
• Status Indicators :
  • Power On
  • Wiring Fault
• Serial Port : Yes
• USB (HID Compliant) Port : Yes
• EPO Port : Yes
• DC System Voltage : 6 V DC
• Number of Batteries : 2
• Battery Characteristics : Maintenance-free
• Battery Chemistry : Lead Acid
• Battery Capacity : 9000 mAh
• Backup/Run Time (Full Load) : 3 Minute
• Backup/Run Time (Half Load) : 12 Minute
• Typical Battery Recharge Time : 6 Hour
• Form Factor : Rack/Tower
• Height : 1.75" (44.45 mm)
• Width : 17.25" (438.15 mm)
• Depth : 9.50" (241.30 mm)
• Weight (Approximate) : 19.80 lb (8981.13 g)
• Software Included : PowerPanel Business Edition
• Energy Star : No
• Country of Origin : China
• Environmentally Friendly : Yes
• Environmental Compliance : Restriction of Hazardous Substances (RoHS)
• Limited Warranty : 3 Year

• Experience higher efficiency with lower energy cost
• Up to 3 minute runtime on full load to preserve critical data from power shortage interruptions
