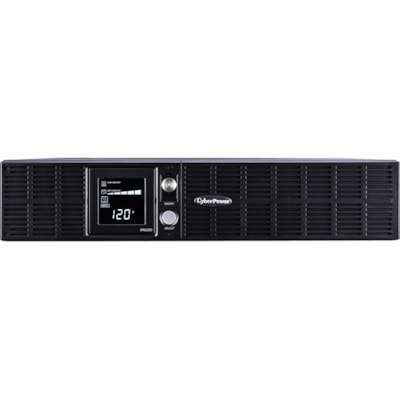

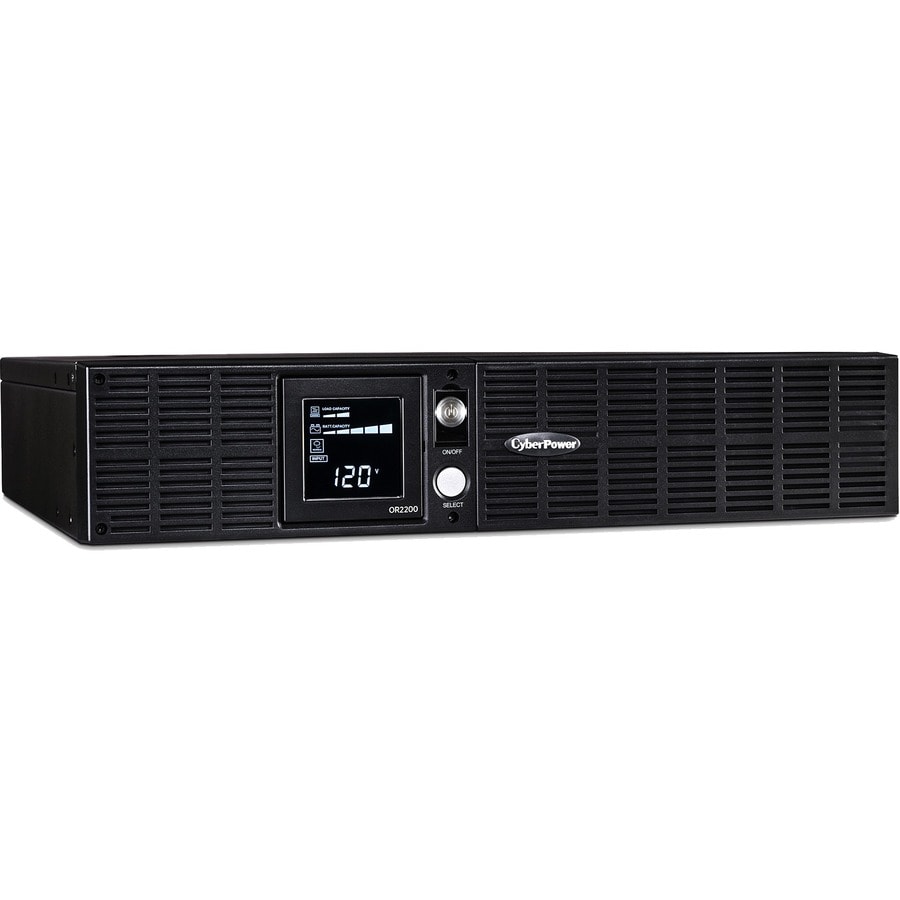

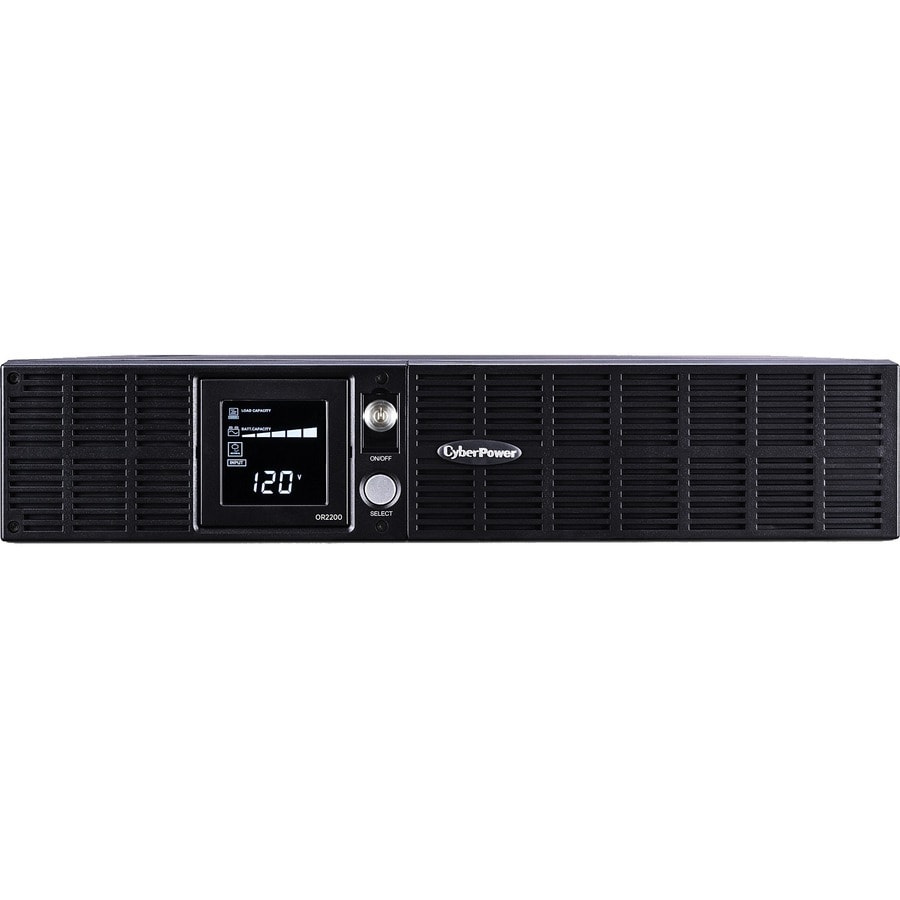

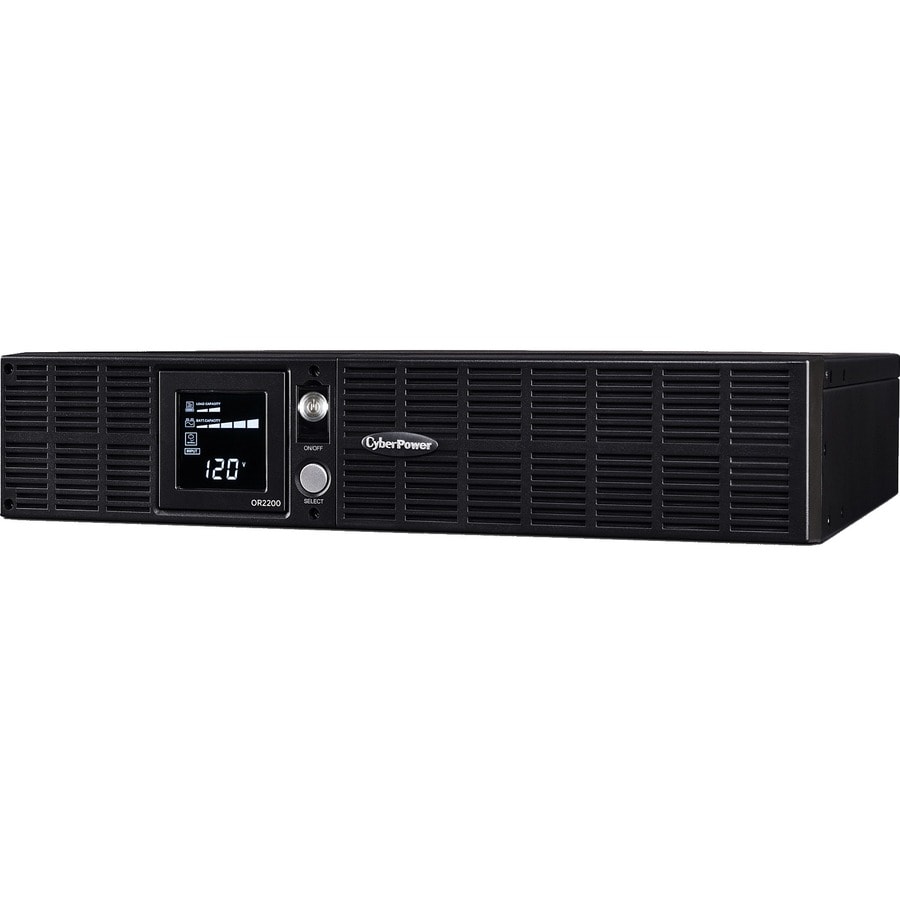

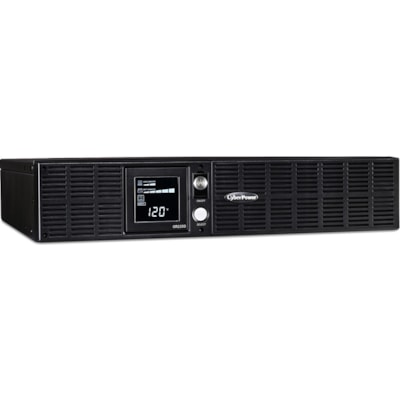

CyberPower OR2200LCDRT2U Smart App LCD UPS Systems - 120 VAC, NEMA 5-20P, 2U, Rack / Tower, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

OR2200LCDRT2U
Also known as SY5229207,OR2200LCDRT2UCA

CyberPower OR2200LCDRT2U Smart App LCD UPS Systems - 120 VAC, NEMA 5-20P, 2U, Rack / Tower, 8 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty er 2U - line-interactive - 120 VAC - 1320Watt - 20

New! Log in or create an account to see price and availability


MARKETING INFORMATION

A rack/tower convertible UPS with line interactive topology, the CyberPower Smart App LCD OR2200LCDRT2U provides battery backup (using simulated sine wave output) and surge protection for office servers, corporate and department networks, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR2200LCDRT2U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The OR2200LCDRT2U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

DETAILS

  • AVR : Yes
  • Plug/Connector Type : NEMA 5-20P
  • Receptacle Type : NEMA 5-20R
  • Receptacle Detail : 8 x NEMA 5-20R
  • Number of Battery & Surge Outlets : 8
  • Transfer Time : 10 ms
  • Dataline Protection : RJ-11,RJ-45
  • Protection Type : Surge
  • Overload Protection : Yes
  • EMI/RFI Noise Filter : Yes
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • Load Capacity (VA) : 2 kVA
  • Input Voltage : 120 V AC
  • Output Voltage : 120 V AC
  • Input Frequency : 63 Hz
  • Waveform Type : Simulated Sine Wave
  • Surge Energy Rating : 1840 J
  • Network Management : SNMP Manageable
  • Alarm : Battery Mode
  • Status Indicators : LCD : Multifunction LCD

  • Serial Port : Yes
  • Network (RJ-45) : Yes
  • USB (HID Compliant) Port : Yes
  • Number of Batteries : 4
  • Battery Chemistry : Lead Acid
  • Battery Size : 12V
  • Battery Capacity : 9000 mAh
  • Backup/Run Time (Full Load) : 5 Minute
  • Backup/Run Time (Half Load) : 13 Minute
  • Typical Battery Recharge Time : 8 Hour
  • Replaceable Battery : Yes
  • Maximum Operating Temperature : 104°F (40°C)
  • Product Color : Black

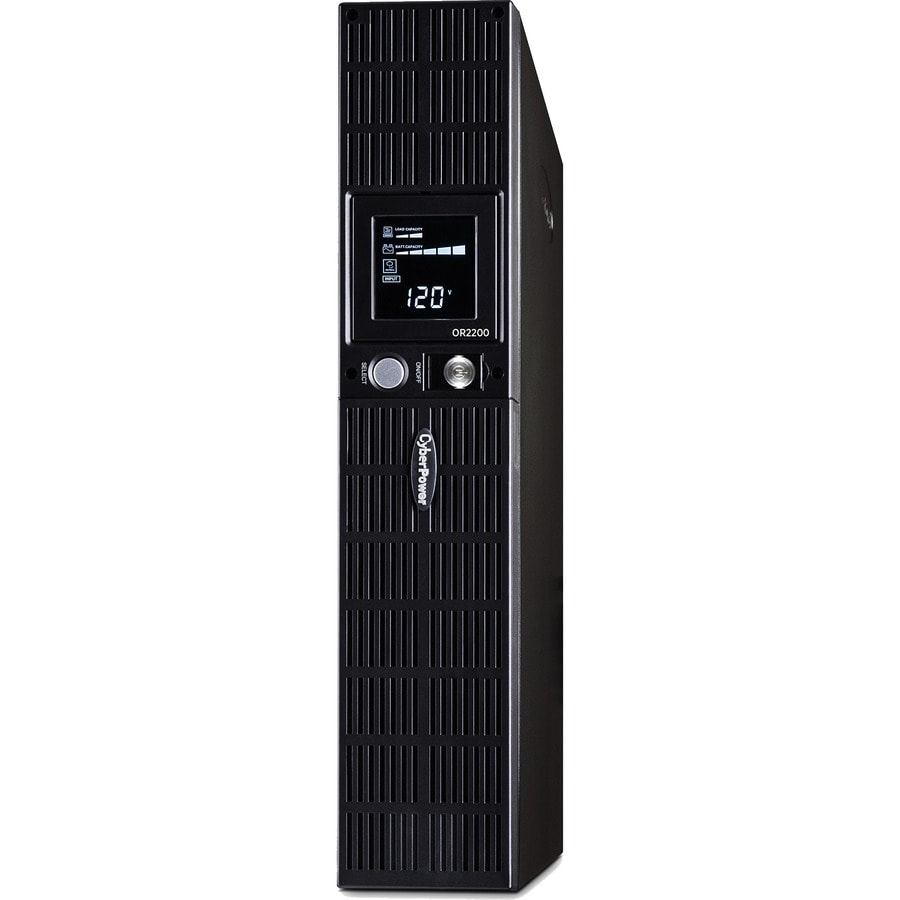

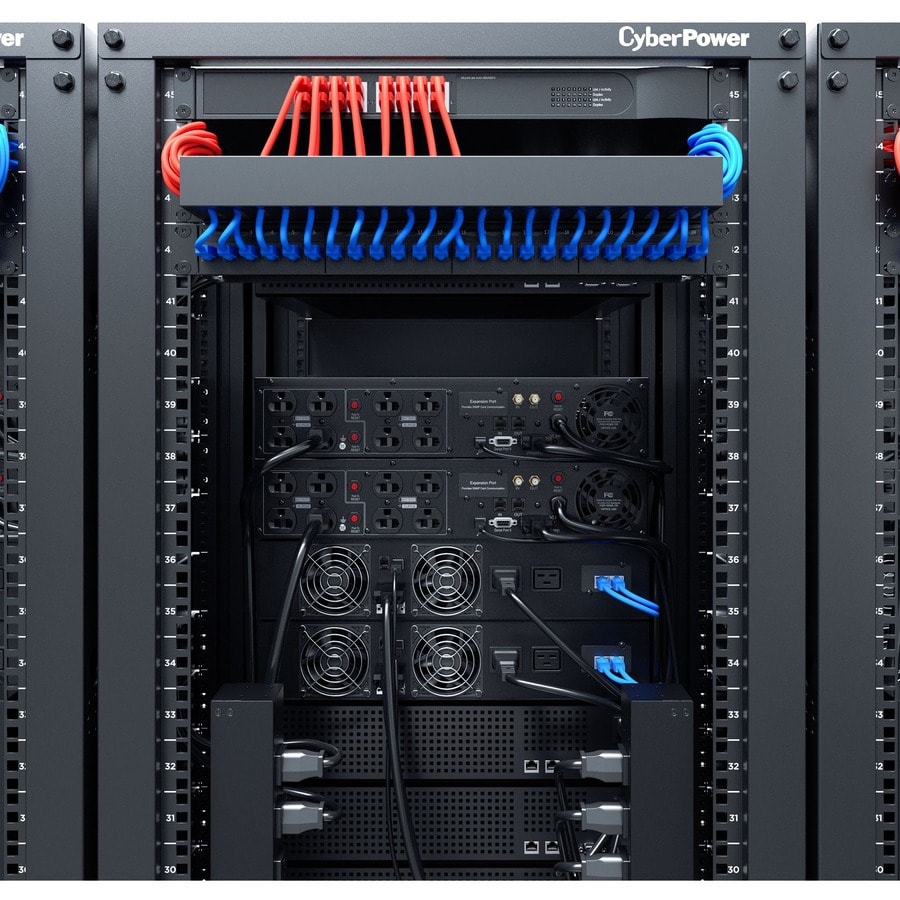

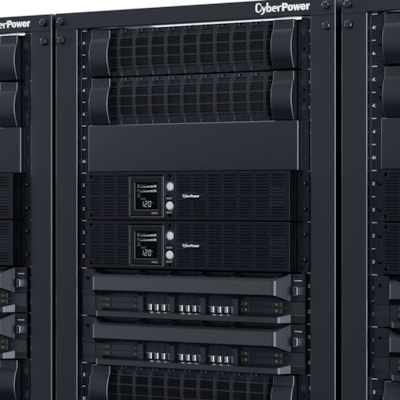

  • Form Factor : Rack/Tower
  • Rack Height : 2U
  • Height : 3.50" (88.90 mm)
  • Width : 17.25" (438.15 mm)
  • Depth : 15.75" (400.05 mm)
  • Weight (Approximate) : 52.70 lb (23904.32 g)
  • Software Included : PowerPanel Business Edition UPS Management
  • Energy Star : Yes
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Capacity: 2000 VA / 1320 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 10%
  • Plug type & cord: NEMA 5-20P (right angle), 10 ft. cord

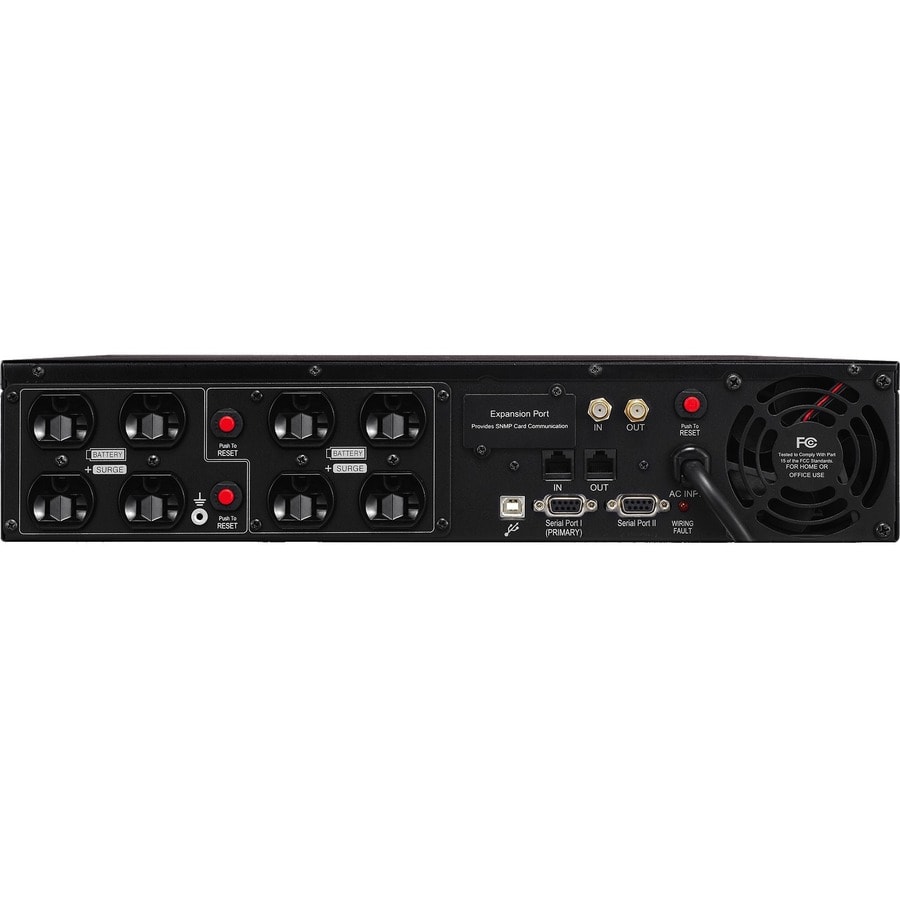

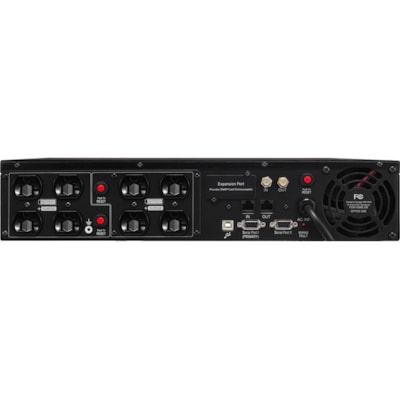

  • Outlet types: 8 × NEMA 5-20R
  • Communication: USB, Serial, SNMP
  • Management software: PowerPanel® Business
  • Remote management: Yes, with optional RMCARD205
  • ENERGY STAR® certified: Yes

SPECIFICATIONS

Manufacturer CyberPower Systems, Inc
Manufacturer Part Number OR2200LCDRT2U
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series Smart App LCD UPS
Product Model OR2200LCDRT2U
Product Name Smart App Intelligent LCD OR2200LCDRT2U 2200VA UPS LCD RT
Product Type Line-interactive UPS
AVR Yes
Plug/Connector Type NEMA 5-20P
Receptacle Type NEMA 5-20R
Receptacle Detail 8 x NEMA 5-20R
Number of Battery & Surge Outlets 8
Transfer Time 10 ms
Dataline Protection RJ-11
Dataline Protection RJ-45
Protection Type Surge
Overload Protection Yes
EMI/RFI Noise Filter Yes
Energy Saving GreenPower UPS™ Bypass Technology
Load Capacity (VA) 2 kVA
Input Voltage 120 V AC
Output Voltage 120 V AC
Input Frequency 63 Hz
Waveform Type Simulated Sine Wave
Surge Energy Rating 1840 J
Network Management SNMP Manageable
Alarm Battery Mode
Status Indicators LCD : Multifunction LCD
Serial Port Yes
Modem (RJ-11) Yes
Network (RJ-45) Yes
USB (HID Compliant) Port Yes
Number of Batteries 4
Battery Chemistry Lead Acid
Battery Size 12V
Battery Capacity 9000 mAh
Backup/Run Time (Full Load) 5 Minute
Backup/Run Time (Half Load) 13 Minute
Typical Battery Recharge Time 8 Hour
Replaceable Battery Yes
Maximum Operating Temperature 104°F (40°C)
Color Family Black
Product Color Black
Form Factor Rack/Tower
Rack Height 2U
Height 3.50" (88.90 mm)
Width 17.25" (438.15 mm)
Depth 15.75" (400.05 mm)
Weight (Approximate) 52.70 lb (23904.32 g)
Package Contents
  • Smart App Intelligent LCD OR2200LCDRT2U 2200VA UPS LCD RT
  • PowerPanel Business Edition Software
  • User Manual
  • USB Cable
  • Serial Cable
  • Registration Card
Additional Information
  • Replacement Battery Cartridge Quantity: 1
  • Circuit Breaker: 20 A
  • Plug Style: Right Angle - 45° Offset
  • Automatic Voltage Regulation: Single Boost
  • On Battery Frequency: 50/60 Hz ± 1%
  • Output Power Factor: 0.7
  • Overload Protection: Internal Circuitry Limiting
  • USB Charge Port: No
  • USB Charge Port Amperage COMPUTED: None
  • Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
  • Management Cable: USB Cable
  • Serial Port: 1 Serial
  • Software (Free Download): PowerPanel® Business
  • Form Factor: Rack / Tower
  • Material of Construction: Metal
  • Operating Relative Humidity: 0 - 95 % (non-condensing)
  • Operating Temperature: 32 - 104 °F (0 - 40 °C)
Certifications & Standards
  • UL1778
  • cUL 107.1
  • FCC DOC Class B
  • CSAC22.2
Software Included PowerPanel Business Edition UPS Management
Energy Star Yes
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $300000 Lifetime
