StarTech.com Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter Network Card - Intel i350 NIC - Add dual Gigabit Ethernet ports to a client, server or workstation through a PCI Express slot - Dual Port PCI Express (PCIe x4) Gigabit Ethernet Server Adapter - Intel i350 Chipset NIC - 2 Po

ST2000SPEXI
Also known as SY5179921

New! Log in or create an account to see price and availability


MARKETING INFORMATION

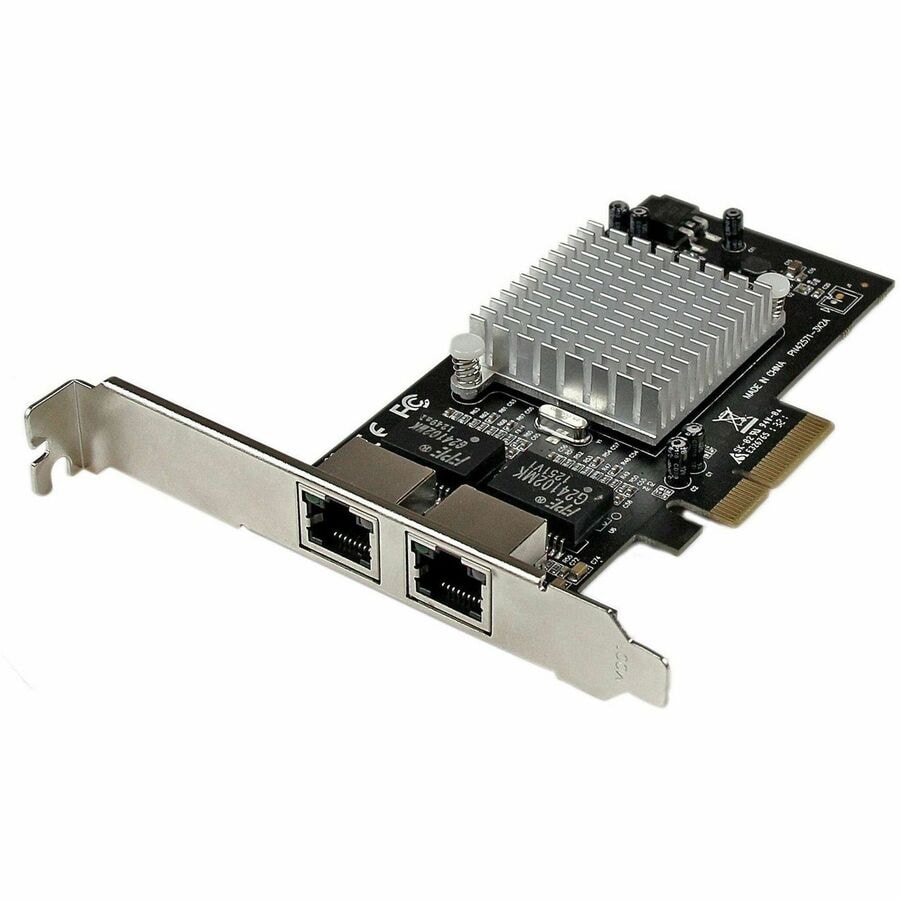

The ST2000SPEXI PCI Express Dual Port Gigabit Network Card lets you add two gigabit Ethernet ports to a desktop computer through a single, four-lane (x4 or higher)PCI Express slot.Each port is fully compatible with IEEE 802.3/u/ab standards, for 10/100/1000 Mbps auto-negotiation.

This 2-port GbE network card is based on the high-performance Intel® I350 chipset, which offers several advanced driver options including IEEE 802.3ad link aggregation / teaming support, enabling you to add additional bandwidth to your system. Support for Jumbo Frames, full-duplex operation and 802.1q VLAN tagging also aid in creating an efficient network configuration.

Also useful for virtualization applications (check your VM software for chipset compatibility)or setting up a dual-homed host configuration, this dual-port network card lets you accommodate several complex network scenarios, to meet your business needs. For added versatility, the controller card is equipped with a standard profile bracket and includes a low-profile/half-height bracket for installation in small form-factor computers.

Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Chipset Manufacturer : Intel
  • Chipset Model : I350-AM2
  • Host Interface : PCI Express x4
  • Total Number of Ports : 2
  • Number of Network (RJ-45) Ports : 2
  • Media Type Supported : Twisted Pair
  • Maximum Data Transfer Rate : 8 Gbit/s
  • Network Technology : 10/100/1000Base-T
  • Form Factor : Plug-in Card
  • Height : 4.80" (121.92 mm)
  • Width : 0.70" (17.78 mm)
  • Depth : 2.60" (66.04 mm)
  • Weight (Approximate) : 2.80 oz (79.38 g)
  • Package Contents :
    • 2 Port Network Card
    • 1 x Low Profile Bracket
    • 1 x Driver CD
    • 1 x Instruction Manual
  • Device Supported : Computer
  • Environmentally Friendly : Yes
  • Country of Origin : China
  • Limited Warranty : 2 Year
  • Two 10/100/1000Mbps compatible RJ-45 Ethernet ports
  • Fully Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE802.3ad (link aggregation) and supports IEEE 802.1Q VLAN tagging
  • Jumbo Frame support up to 9k bytes
  • Teaming Support
  • Supports Checksum Offload (IP, TCP, UDP), Transmit Segmentation Offload (TCP, UDP) and Large send Offload
  • Wake-on-LAN / Remote Wake-up support
  • Configured with standard profile bracket, low profile/half-height bracket included
  • Supports Intel Virtualization Technology (VT-c, VMDq, SR-IOV)
  • Four-lane (x4) PCI Express compatible with x4, x8 and x16 PCIe slots
  • Compatible with PCI Express Base Specification 2.1 (backward compatible with 1.0a/1.1)

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number ST2000SPEXI
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 2 Port Network Card
Packaged Quantity 1 Each
Product Type Gigabit Ethernet Card
Chipset Manufacturer Intel
Chipset Model I350-AM2
Host Interface PCI Express x4
Total Number of Ports 2
Network (RJ-45) Yes
USB No
Serial Port No
Ethernet AUI No
XJACK No
PoE (RJ-45) Port No
Number of Network (RJ-45) Ports 2
Media Type Supported Twisted Pair
Maximum Data Transfer Rate 8 Gbit/s
Network Technology 10/100/1000Base-T
InfiniBand No
Form Factor Plug-in Card
Height 4.80" (121.92 mm)
Width 0.70" (17.78 mm)
Depth 2.60" (66.04 mm)
Length 2.60" (66.04 mm)
Weight (Approximate) 2.80 oz (79.38 g)
Package Contents
  • 2 Port Network Card
  • 1 x Low Profile Bracket
  • 1 x Driver CD
  • 1 x Instruction Manual
Device Supported Computer
System Requirements
  • Windows® 7, 8, 8.1, 10
  • Windows Server® 2008 R2, 2012, 2012 R2, 2016, 2019
  • Linux 2.4.x to 4.11.x LTS versions only
Environmentally Friendly Yes
Country of Origin China
Limited Warranty 2 Year
