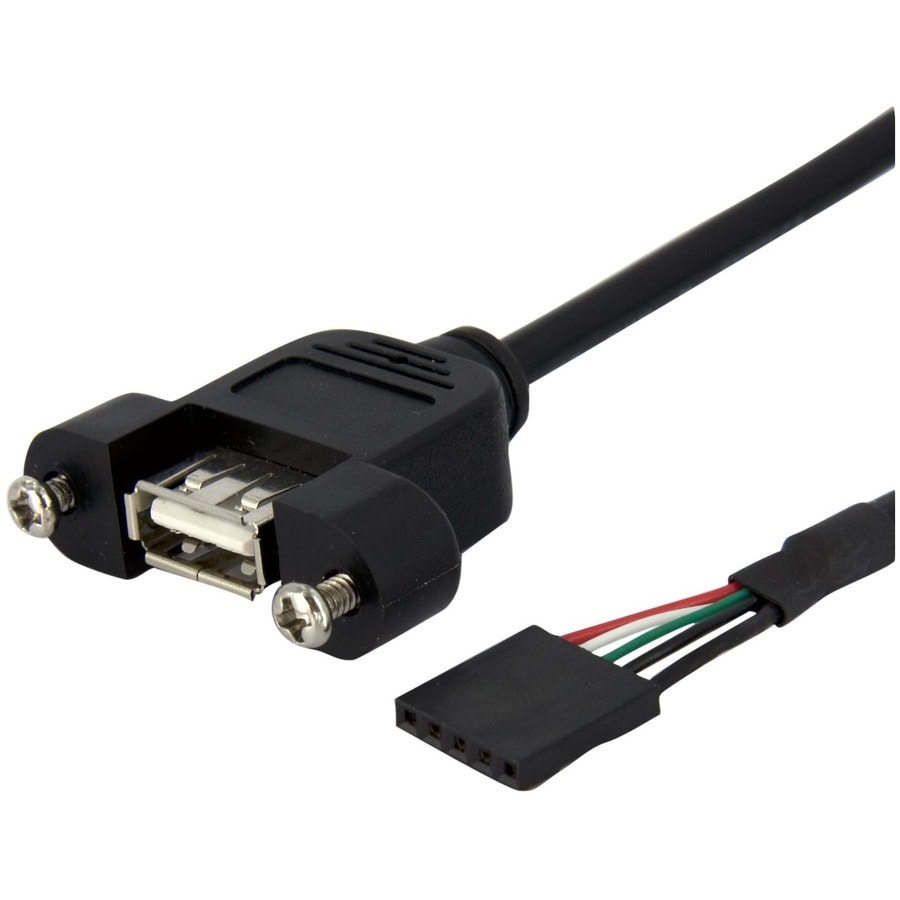

StarTech.com 3 ft Panel Mount USB Cable - USB A to Motherboard Header Cable F/F - Connect a panel mount USB-A port to your motherboard header - USB Header to USB A - USB A to Motherboard Header - Panel Mount USB Cable - Panel Mount USB Port - USB Panel Mount Adapter - 3 ft Panel Mount USB Cable F/F
USBPNLAFHD3
Also known as SY5178285,DHUSBPNLAFHD3CA
MARKETING INFORMATION
The USBPNLAFHD3 3ft Panel Mount USB Cable enables you to add a well-secured, easy to access USB 2.0 port to your PC, offering a convenient solution for connecting bootable thumb drives or authentication fobs etc. to the motherboard USB connection.The adapter features one female USB header connector and one female panel mount USB-A port and gives you an extension of 3ft, enabling you to place the cable as needed within the system case.
The USBPNLAFHD3 is backed by StarTech.com's lifetime warranty for guaranteed reliability.
More from the Manufacturer
DETAILS
- Cable Type : IDC/USB
- Cable Length : 3 ft (0.91 m)
- Connector Type on First End : USB 2.0 Type A - Female
- Connector on First End Details : 1 x 4-pin USB 2.0 Type A - Female
- Connector Type on Second End : IDC USB 2.0 Header - Female
- Connector on Second End Details : 1 x 5-pin IDC USB 2.0 Header - Female
- Connector Plating : Nickel
- Device Supported : Motherboard,Storage Drive,PC
- American Wire Gauge : 24/28 AWG
- Color Family : Black
- Product Color : Black
- Jacket Material : Polyvinyl Chloride (PVC)
- Weight (Approximate) : 0.60 oz (17.01 g)
- Environmentally Friendly : Yes
- Country of Origin : China
- Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Waste Electrical and Electronic Equipment Directive (WEEE)
- Limited Warranty : Lifetime
- 1x USB-A female connector
- 1x USB-A panel mount female port
- Offers 3' in cable length
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | USBPNLAFHD3 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 3 ft Panel Mount USB Cable - USB A to Motherboard Header Cable F/F |
| Packaged Quantity | 1 Each |
| Product Type | Data Transfer Cable |
| Cable Type | IDC/USB |
| Cable Length | 3 ft (0.91 m) |
| Connector Type on First End | USB 2.0 Type A - Female |
| Connector on First End Details | 1 x 4-pin USB 2.0 Type A - Female |
| Connector Type on Second End | IDC USB 2.0 Header - Female |
| Connector on Second End Details | 1 x 5-pin IDC USB 2.0 Header - Female |
| Connector Plating | Nickel |
| Conductor | Copper |
| Device Supported | Motherboard |
| Device Supported | Storage Drive |
| Device Supported | PC |
| American Wire Gauge | 24/28 AWG |
| Color Family | Black |
| Product Color | Black |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Weight (Approximate) | 0.60 oz (17.01 g) |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Limited Warranty | Lifetime |
