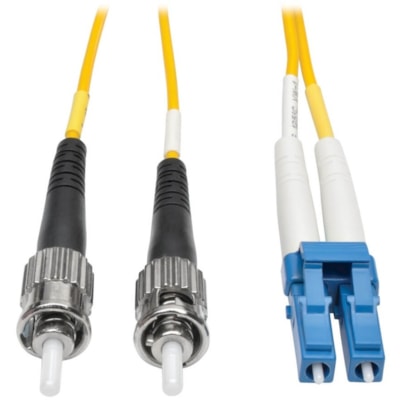

Tripp Lite series Fiber Optic Duplex Patch Cable - 10 ft (3.05 m) Fiber Optic Network Cable for Network Device - First End: 2 x LC Network - Male - Second End: 2 x ST Network - Male - Patch Cable - OFNR - 9/125 µm - Yellow
N368-03M
Also known as SY5125238
MARKETING INFORMATION

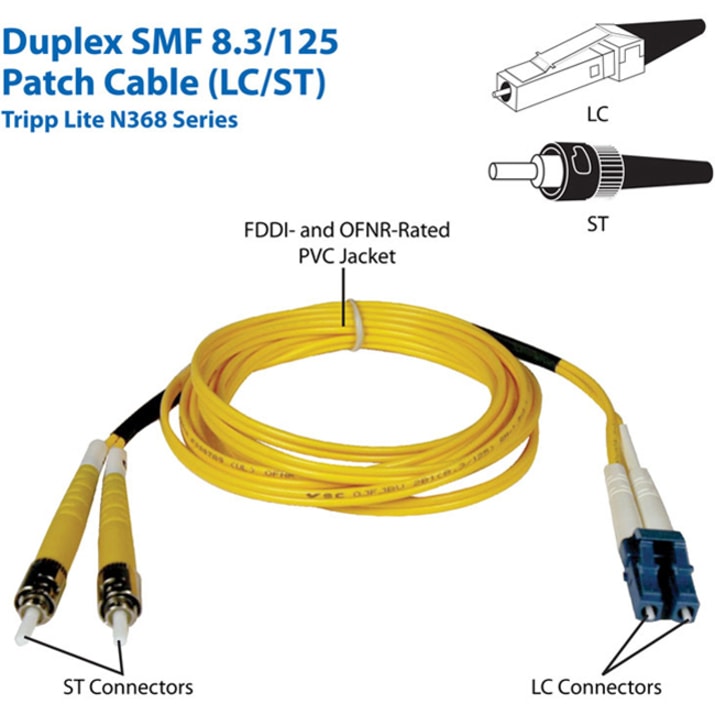

Tripp Lite's 3-meter, single mode duplex fiber optic LC/ST patch cable is manufactured from 9/125 zipcord fiber. The cable has LC connectors on one end, ST connectors on the other, a PVC jacket, and is FDDI and OFNR rated. Duplex single mode fiber is most commonly used in LAN applications. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
DETAILS
- Cable Type : Fiber Optic
- Cable Characteristic : Patch Cable
- Fiber Optic Mode : Single-mode
- Fiber Optic Cable Core/Cladding Specification : 9/125 µm
- Cable Length : 10 ft (3.05 m)
- Connector Type on First End : LC Network - Male
- Connector on First End Details : 2 x LC Network - Male
- Connector Type on Second End : ST Network - Male
- Connector on Second End Details : 2 x ST Network - Male
- Jacket Type : OFNR
- Device Supported : Network Device
- Color Family : Yellow
- Product Color : Yellow
- Jacket Material : Polyvinyl Chloride (PVC)
- Environmentally Friendly : Yes
- Country of Origin : China
- Environmental Compliance : Restriction of Hazardous Substances (RoHS)
- Limited Warranty : Lifetime
- Premium PVC 9/125 micron singlemode patch cables
- Attenuation loss meets or exceeds the latest industry standards
- Twice the bandwidth throughput of multimode cable
SPECIFICATIONS
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N36803M |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | N368-03M |
| Product Name | Fiber Optic Duplex Patch Cable |
| Product Type | Network Cable |
| Cable Type | Fiber Optic |
| Cable Characteristic | Patch Cable |
| Fiber Optic Mode | Single-mode |
| Cable Length | 10 ft (3.05 m) |
| Connector Type on First End | LC Network - Male |
| Connector on First End Details | 2 x LC Network - Male |
| Connector Type on Second End | ST Network - Male |
| Connector on Second End Details | 2 x ST Network - Male |
| Conductor | Copper |
| Jacket Type | OFNR |
| Device Supported | Network Device |
| Color Family | Yellow |
| Product Color | Yellow |
| Jacket Material | Polyvinyl Chloride (PVC) |
| Shipping Height | 0.10" (2.54 mm) |
| Shipping Width | 7" (177.80 mm) |
| Shipping Weight (Approximate) | 1.60 oz (45.36 g) |
| Certifications & Standards | FDDI Rated |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | China |
| Limited Warranty | Lifetime |
