StarTech.com USB 3.0 to Gigabit Ethernet NIC Network Adapter - 10/100/1000 Mbps - Add Gigabit Ethernet network connectivity to a Laptop or Desktop through a USB 3.0 port - USB 3.0 to Gigabit Ethernet - USB 3.0 Gigabit Adapter - USB 3.0 to Ethernet - USB 3.0 Ethernet Adapter - 10/100/1000 Mbps USB 3.
USB31000NDS
Also known as SY5122775,DHUSB31000NDSCA,IM73396T
MARKETING INFORMATION

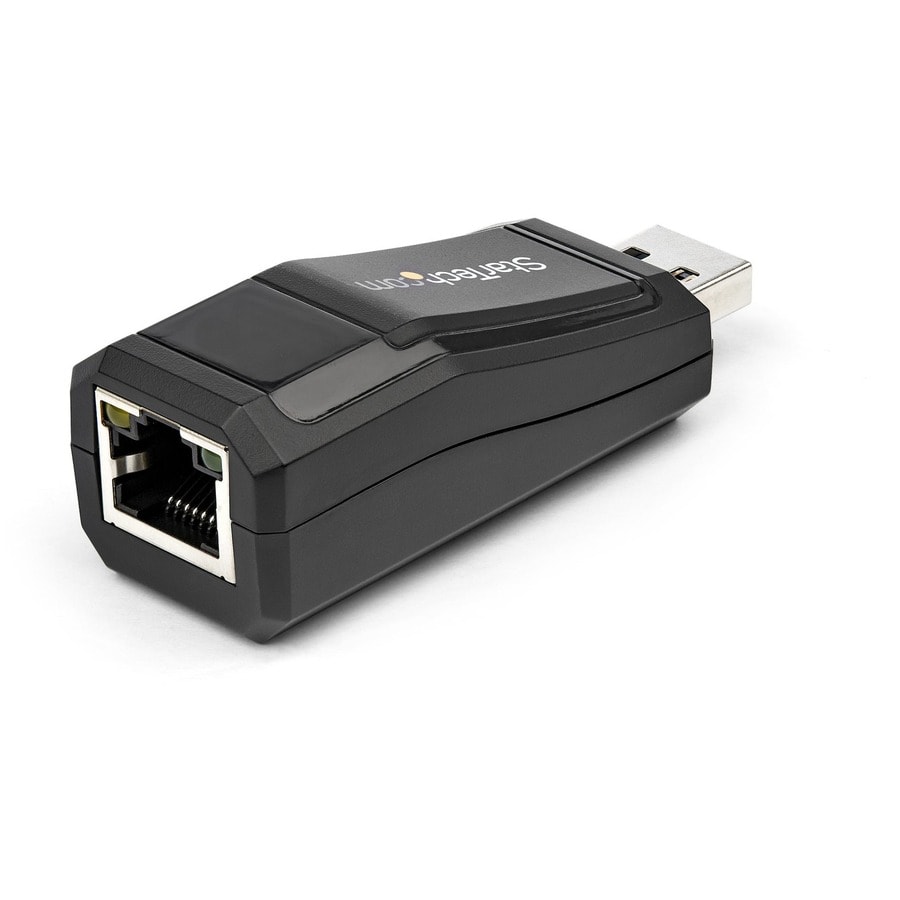

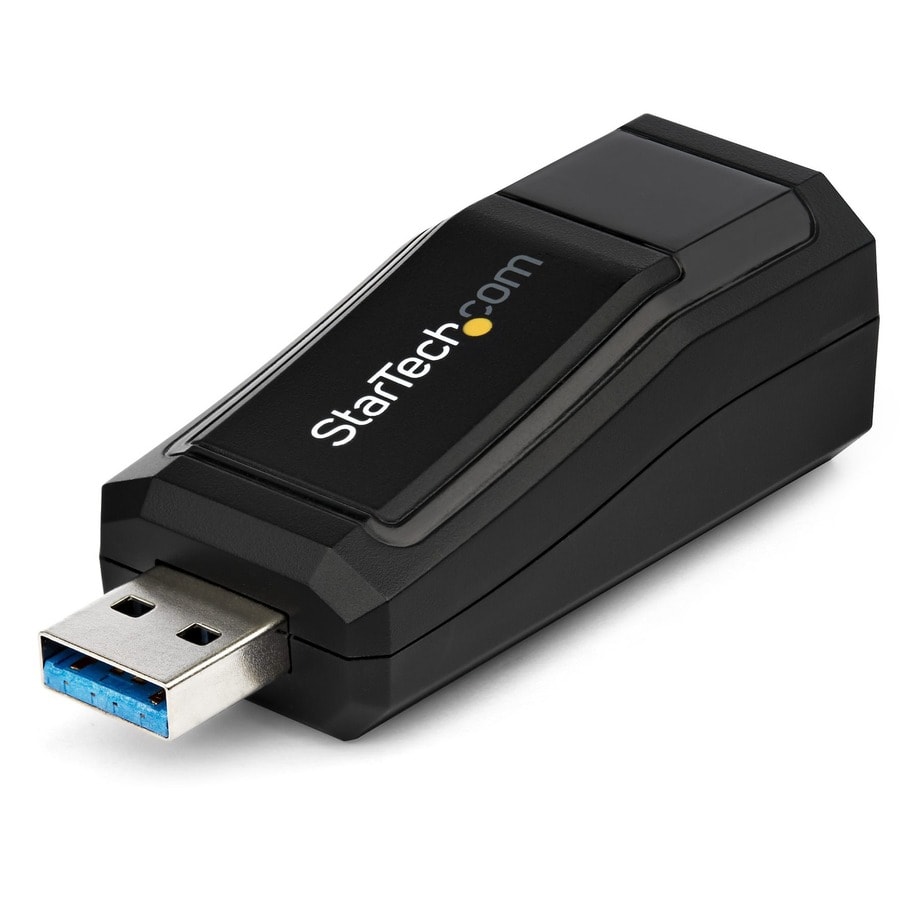

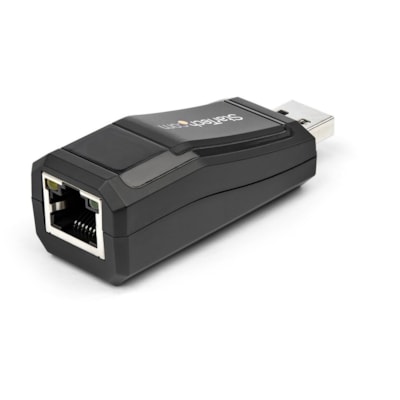

The USB31000NDS USB 3.0 to Gigabit Ethernet Network Adapter adds a single RJ45 Ethernet port to a USB-enabled computer system, with support for Gigabit network connections at full bandwidth when used with a USB 3.0 host connection, unlike USB 2.0 adapters.This compact USB 3.0 NIC works with 10/100/1000 Mbps networks and offers backward compatibility with USB 2.0/1.x computer systems (speed limited by USB bus), making it an ideal portable replacement LAN adapter or laptop accessory. Support for features such as Jumbo Frames, VLAN tagging and Wake on LAN (WOL), provides versatile Gigabit network performance for home or business use.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
DETAILS
- Chipset Model : ASIX - AX88179
- Host Interface : USB
- Total Number of Ports : 1
- Number of Network (RJ-45) Ports : 1
- Media Type Supported : Twisted Pair
- Maximum Data Transfer Rate : 8 Gbit/s
- Network Technology : 10/100/1000Base-T
- Height : 1" (25.40 mm)
- Width : 0.90" (22.86 mm)
- Depth : 2.70" (68.58 mm)
- Weight (Approximate) : 0.80 oz (22.68 g)

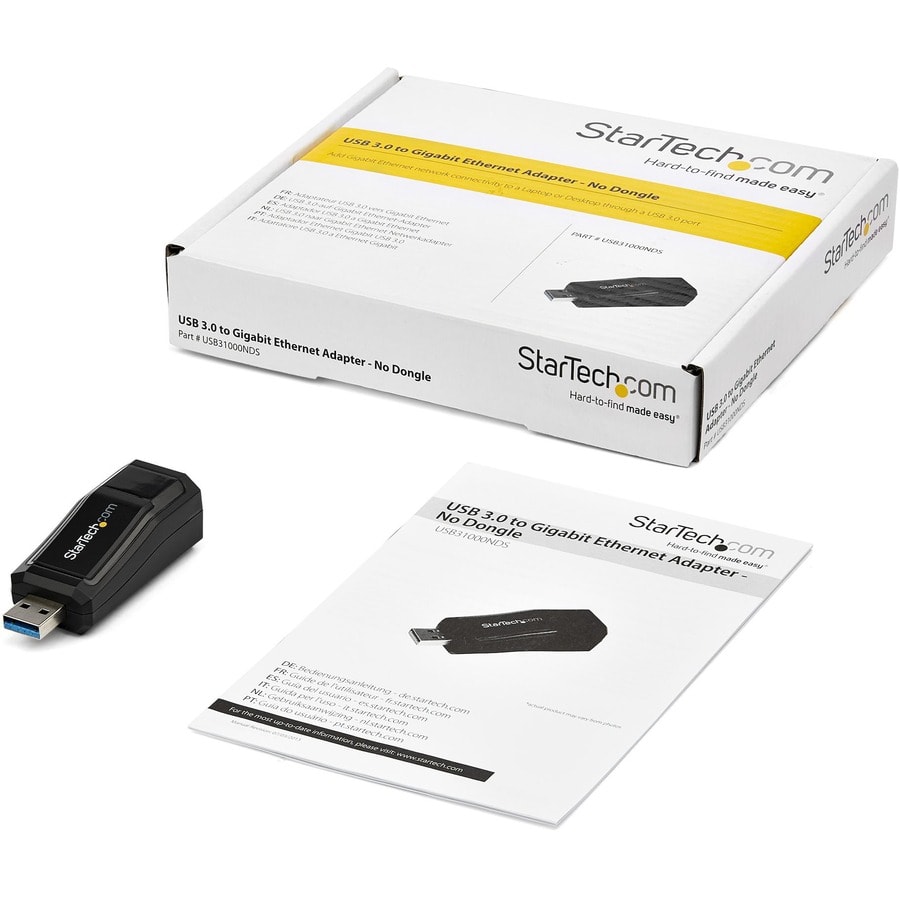

- Package Contents :
- USB 3.0 to Gigabit Ethernet NIC Network Adapter - 10/100/1000 Mbps
- 1 x Driver CD
- 1 x Instruction Manual
- Device Supported : PC
- Environmentally Friendly : Yes
- Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin : China
- Limited Warranty : 2 Year
- Full Gigabit bandwidth support over USB 3.0
- IEEE 802.3, 802.3u and 802.3ab (10BASE-T, 100BASE-TX, and 1000BASE-T) compatible
- USB-Powered
- Crossover Detection & Auto-Correction (Auto MDIX)
- IEEE 802.1Q VLAN Tagging support
- Jumbo Frame support
- Supports Checksum Offload (IPv4, IPv6, TCP, UDP) and Large Send Offload

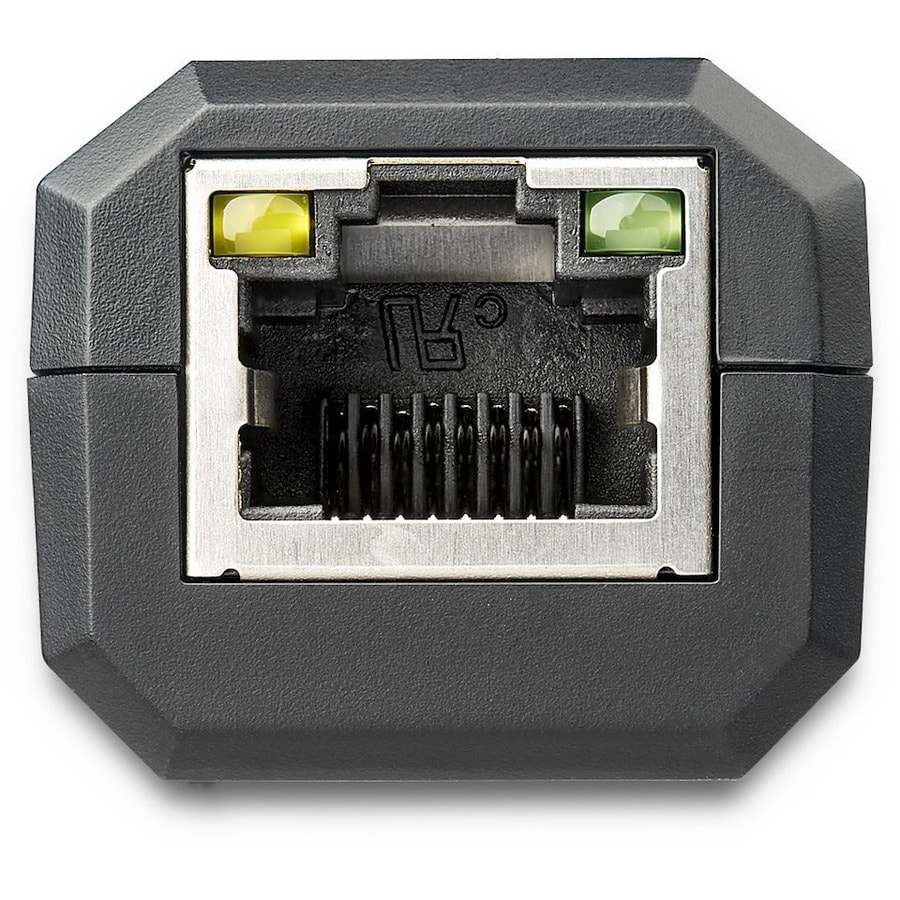

- Activity and Link LED indicators
- Compact, lightweight design
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | USB31000NDS |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | USB 3.0 to Gigabit Ethernet NIC Network Adapter 10/100/1000 Mbps |
| Packaged Quantity | 1 Each |
| Product Type | Gigabit Ethernet Adapter |
| Chipset Model | ASIX - AX88179 |
| Host Interface | USB |
| Total Number of Ports | 1 |
| Network (RJ-45) | Yes |
| USB | No |
| Serial Port | No |
| Ethernet AUI | No |
| XJACK | No |
| PoE (RJ-45) Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Media Type Supported | Twisted Pair |
| Maximum Data Transfer Rate | 8 Gbit/s |
| Network Technology | 10/100/1000Base-T |
| InfiniBand | No |
| Height | 1" (25.40 mm) |
| Width | 0.90" (22.86 mm) |
| Depth | 2.70" (68.58 mm) |
| Length | 2.70" (68.58 mm) |
| Weight (Approximate) | 0.80 oz (22.68 g) |
| Package Contents |
|
| Device Supported | PC |
| Operating System Compatibility | Linux 2.6.25 Torvalds |
| Operating System Compatibility | Mac OS 13 Ventura |
| Operating System Compatibility | Mac OS 11.3 Big Sur |
| Operating System Compatibility | Mac OX 10.15 Catalina |
| Operating System Compatibility | Mac OS X 10.6 Snow Leopard |
| Operating System Compatibility | Windows Server 2022 |
| Operating System Compatibility | Windows Server 2016 |
| Operating System Compatibility | Windows Server 2012 |
| Operating System Compatibility | Windows Server 2008 R2 Standard |
| Operating System Compatibility | Windows Server 2003 |
| Operating System Compatibility | Windows 11 |
| Operating System Compatibility | Windows 10 |
| Operating System Compatibility | Windows 8.1 |
| Operating System Compatibility | Windows 8 |
| Operating System Compatibility | Windows 7 |
| Operating System Compatibility | Windows Vista |
| Operating System Compatibility | Windows XP |
| Operating System Compatibility | Windows Server 2019 |
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Limited Warranty | 2 Year |
