CyberPower UPS Systems OL2200RTXL2U Smart ApCyberPower OL2200RTXL2U Smart App Online UPS Systemsp Online - Capacity: 2200 VA / 1800 W - 100 - 125 VAC, NEMA 5-20P, 2U, Rack / Tower, Sine Wave, 7 Outlets, LCD, PowerPanel® Business, $400000 CEG, 3YR Warranty

OL2200RTXL2U
Also known as SY4970015,OL2200RTXL2UCA

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Prevent business interruptions and safeguard mission-critical enterprise network equipment.

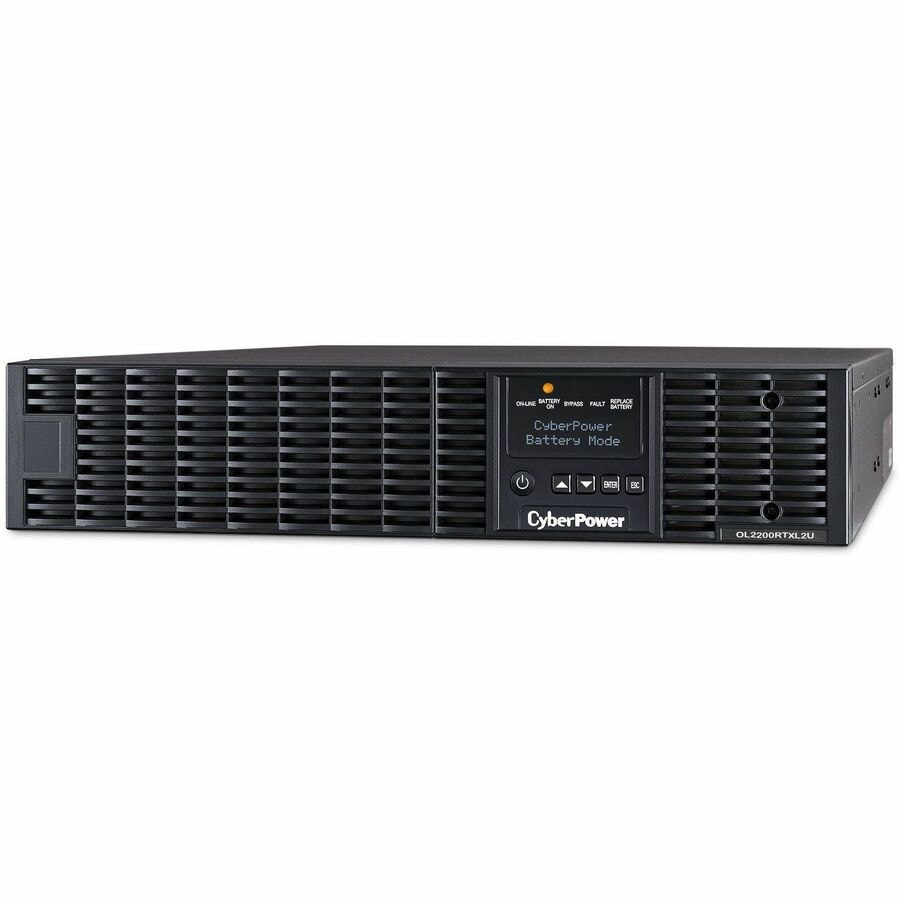

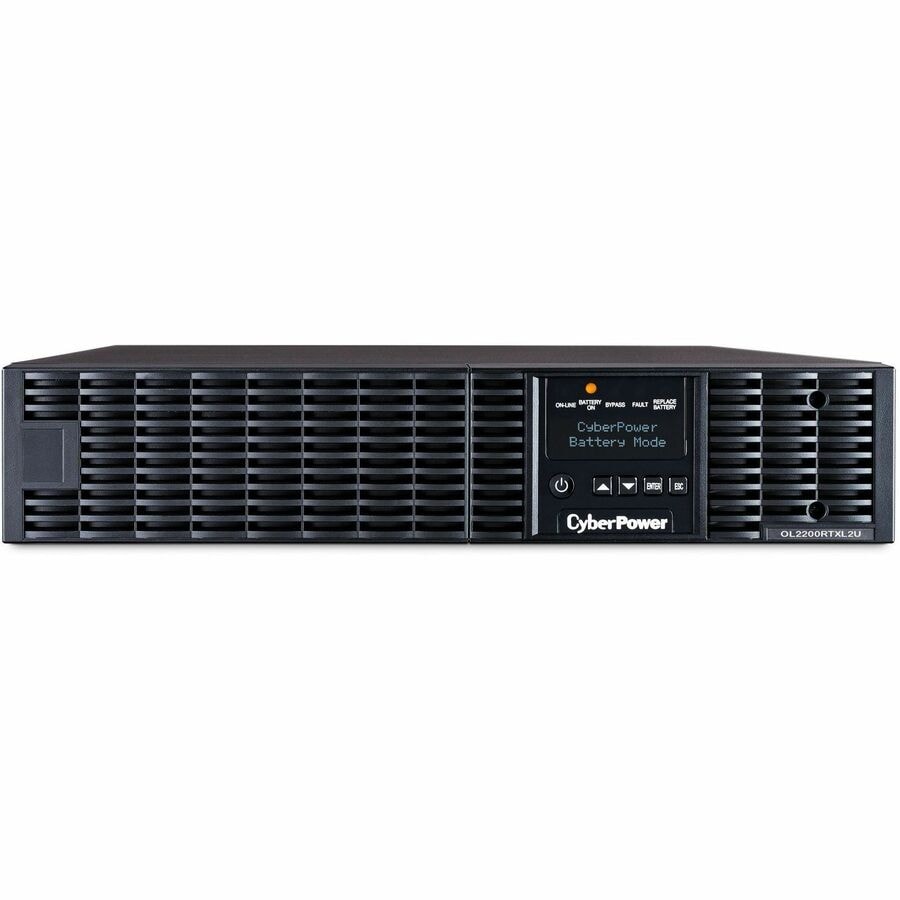

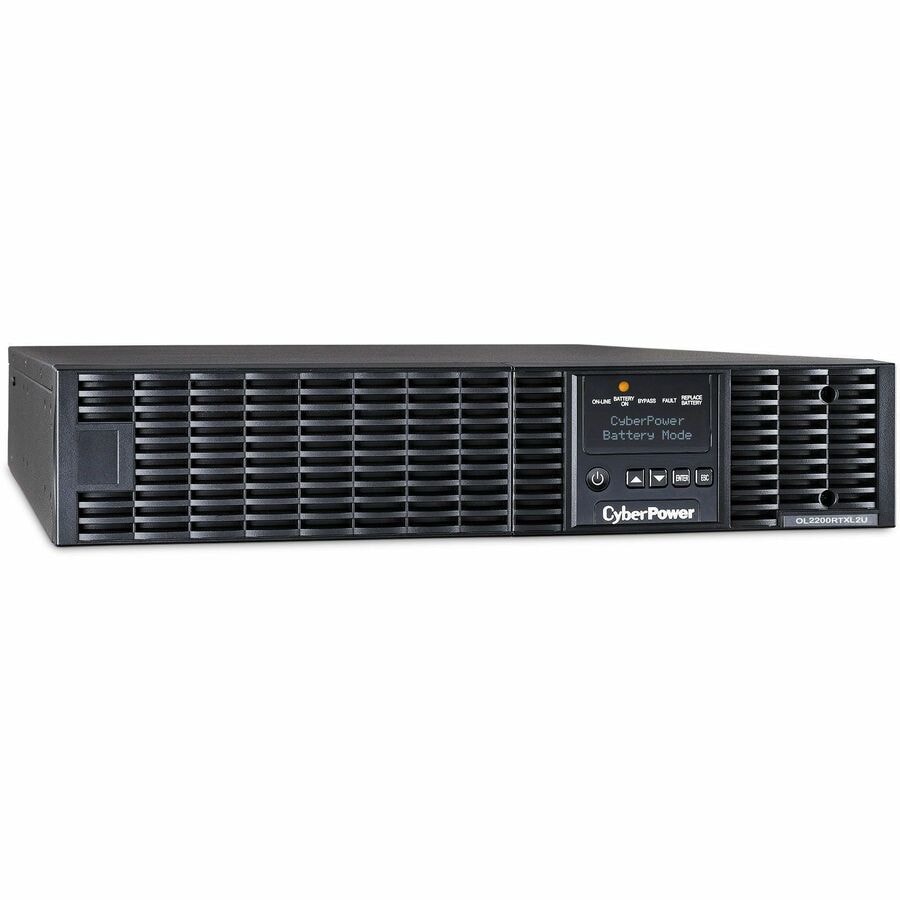

The CyberPower OL2200RTXL2U is a rack/tower UPS with double conversion topology. It provides sine wave output to critical applications and equipment that require seamless power correction. The Extended Battery Module (EBM) expands runtime, and Fast Charge Technology restores full backup power faster. This model comes with an extendable LCD control panel, Smart Battery Management charging technology, and energy-saving GreenPower UPS™ ECO Mode.

The OL2200RTXL2U offers generator compatibility and delivers clean AC power with zero transfer time. Its sine wave output keeps sensitive equipment working by preventing unnecessary shutdowns that can occur with simulated sine wave output.

With a $400,000 lifetime connected equipment guarantee and a three-year warranty, you can trust CyberPower's commitment to high quality.

DETAILS

  • Plug/Connector Type : NEMA 5-20P,NEMA L5-20P
  • Receptacle Type : NEMA 5-20R,NEMA L5-20R

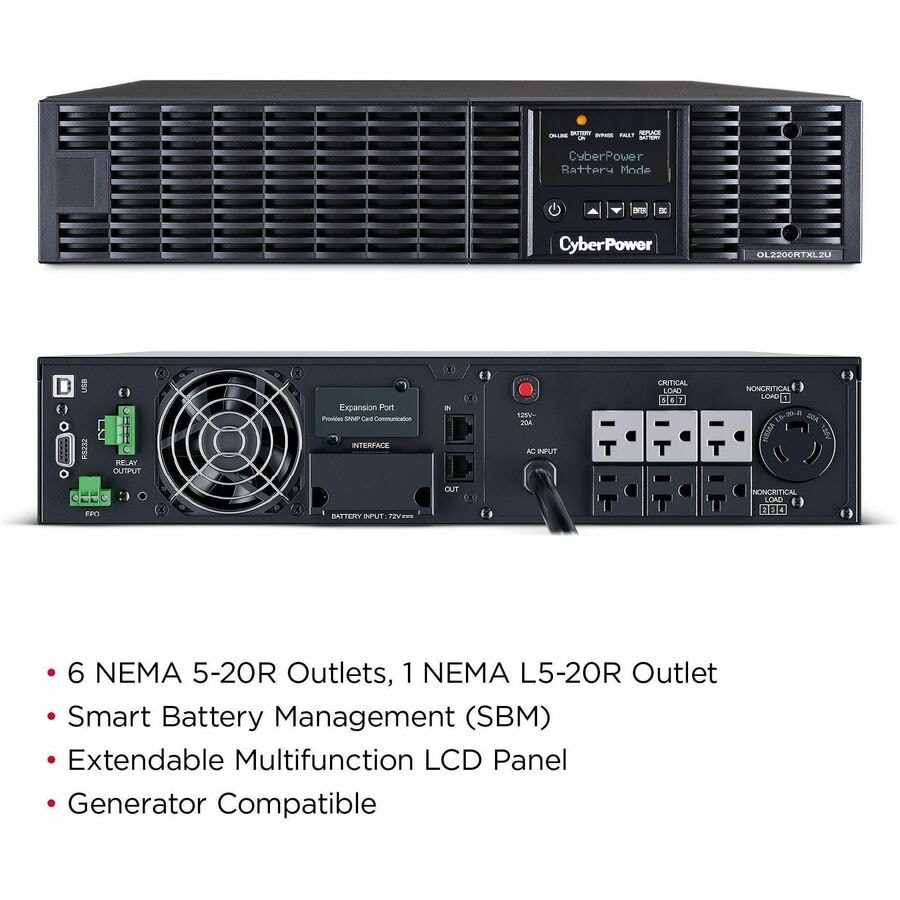

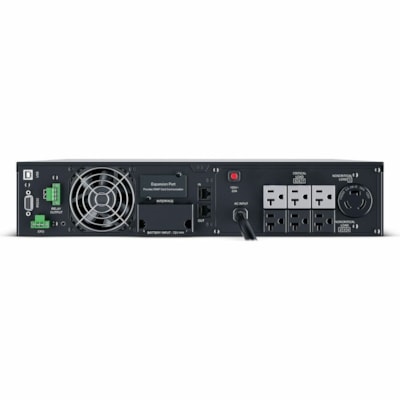

  • Receptacle Detail : 6 x NEMA 5-20R,1 x NEMA L5-20R
  • Transfer Time : 0 ns
  • Dataline Protection : RJ-45,RJ-11
  • Protection Type : Short Circuit
  • Overload Protection : Yes
  • EMI/RFI Noise Filter : Yes
  • Energy Saving : ECO Mode Efficiency >95%
  • Application/Usage : Mission Critical Equipment,Network Device,Storage Device,PBX System,VoIP Device,Server,Generator
  • Cord Length : 10 ft (3048 mm)
  • Circuit Breaker Current Rating : 30 A
  • Crest Factor : 3:1
  • Load Capacity (VA) : 2.20 kVA
  • Load Capacity (Watt) : 1.80 kW
  • Input Voltage : 120 V AC,230 V AC
  • Input Voltage Range : 60 V AC - 69 V AC,100 V AC - 125 V AC
  • Output Voltage : 100 V AC,110 V AC,115 V AC,120 V AC,125 V AC
  • Input Frequency : 40 Hz,70 Hz
  • Output Frequency : 50 Hz,60 Hz
  • Waveform Type : Sine Wave
  • Surge Energy Rating : 1335 J
  • Input Power Factor : 0.99
  • Output Power Factor : 0.8
  • Display : LCD
  • Network Management : Dry Contact,Relay Card,SNMP/HTTP Remote Monitoring
  • Alarm : Battery Mode,Low Battery,Overload,UPS Fault
  • Status Indicators :
    • Power On (White)
    • Line Mode (Green)
    • Battery Mode (Yellow)
    • Bypass Mode (Yellow)
    • Fault (Red)
    • Replace Battery (Red)
  • Serial Port : Yes
  • USB : Yes
  • USB (HID Compliant) Port : Yes
  • EPO Port : Yes
  • Number of Batteries : 6
  • Battery Characteristics : Maintenance-free/Sealed
  • Battery Chemistry : Lead Acid
  • Battery Size : 12V
  • Battery Capacity : 9000 mAh

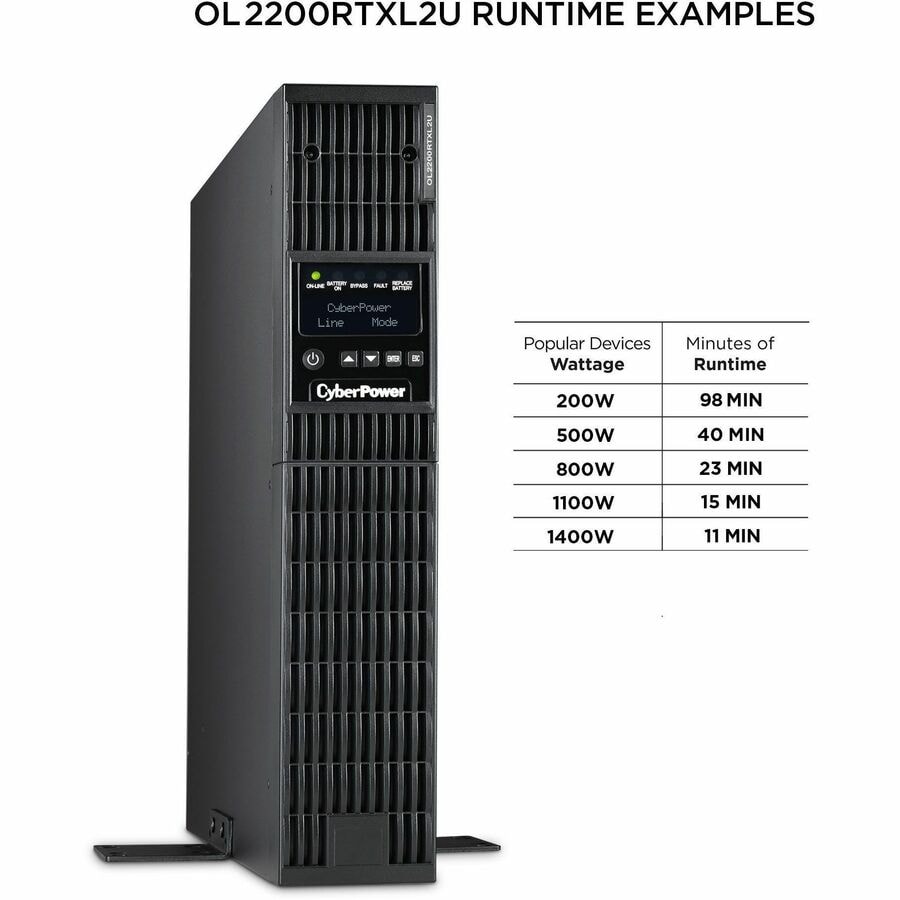

  • Backup/Run Time (Full Load) : 8 Minute
  • Backup/Run Time (Half Load) : 21 Minute
  • Typical Battery Recharge Time : 4 Hour
  • Replaceable Battery : Yes
  • Maximum Operating Temperature : 104°F (40°C)
  • Storage Temperature : -4°F (-20°C) - 113°F (45°C)
  • Maximum Operating Elevation : 10000 ft (3048000 mm)
  • Maximum Storage Elevation : 50000 ft (15240000 mm)
  • Operating Humidity : 0% - 90%
  • Storage Relative Humidity : 0% - 95%
  • Thermal Dissipation : 541 BTU/h
  • Product Color : Black

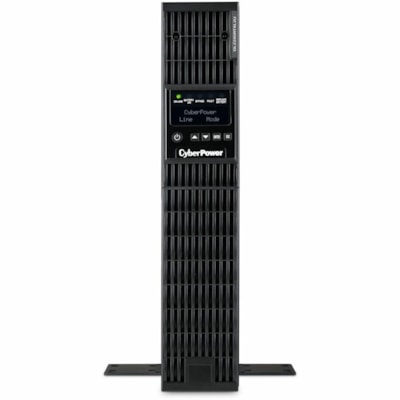

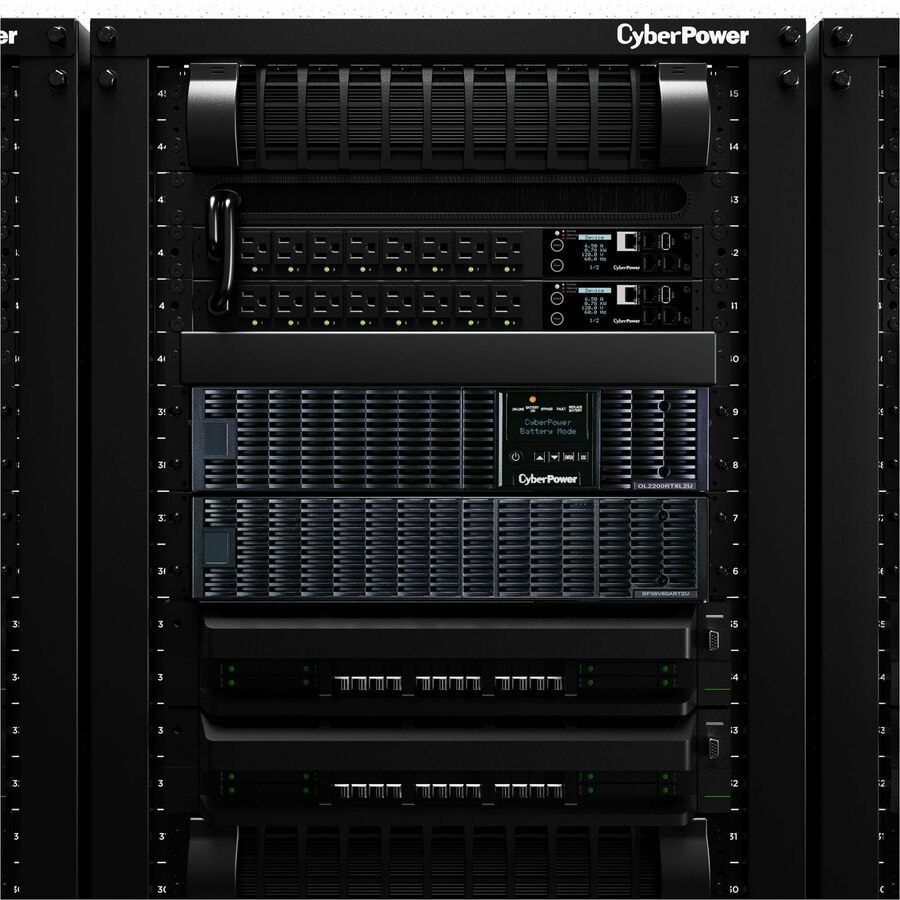

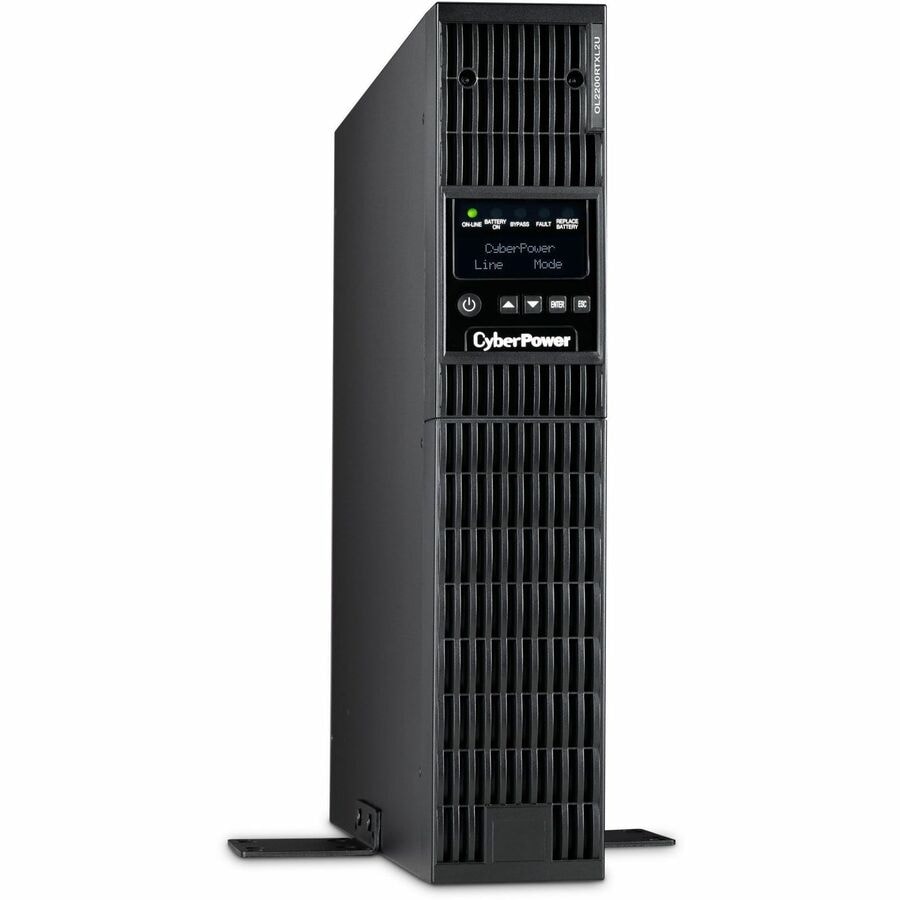

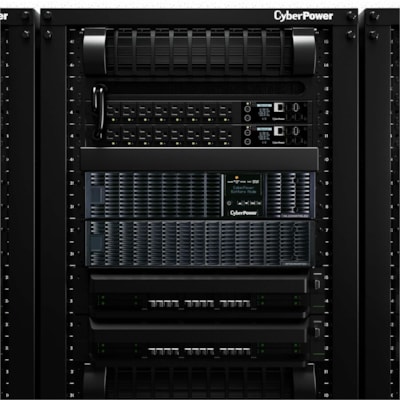

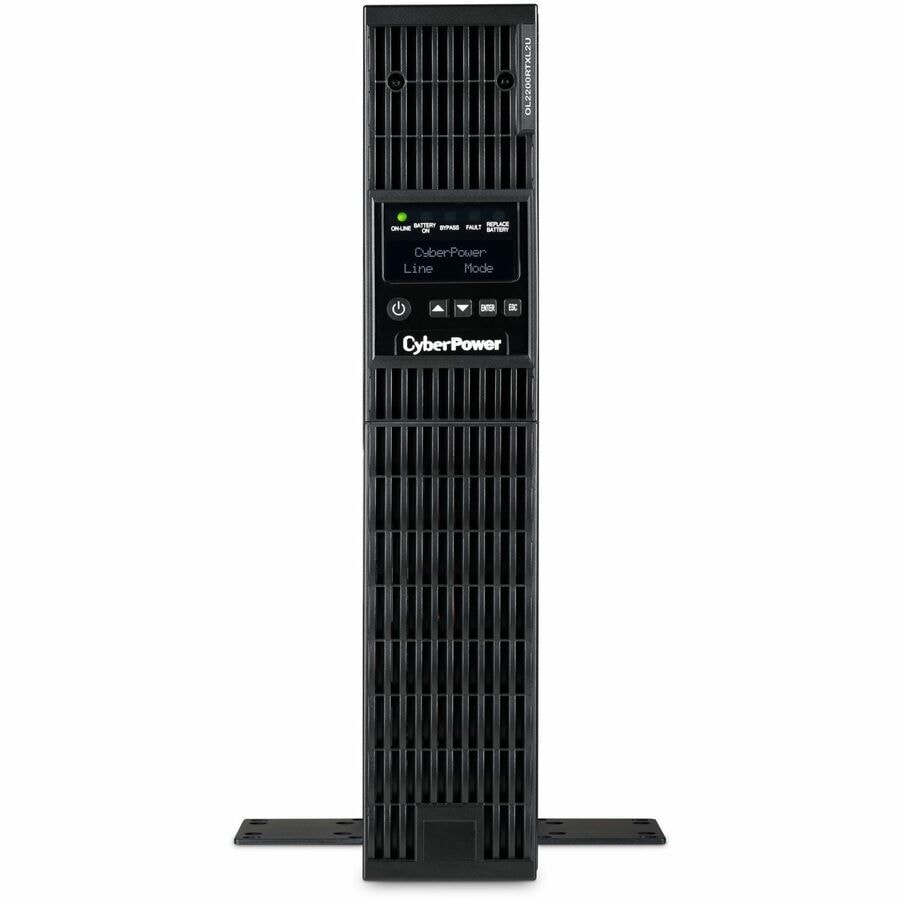

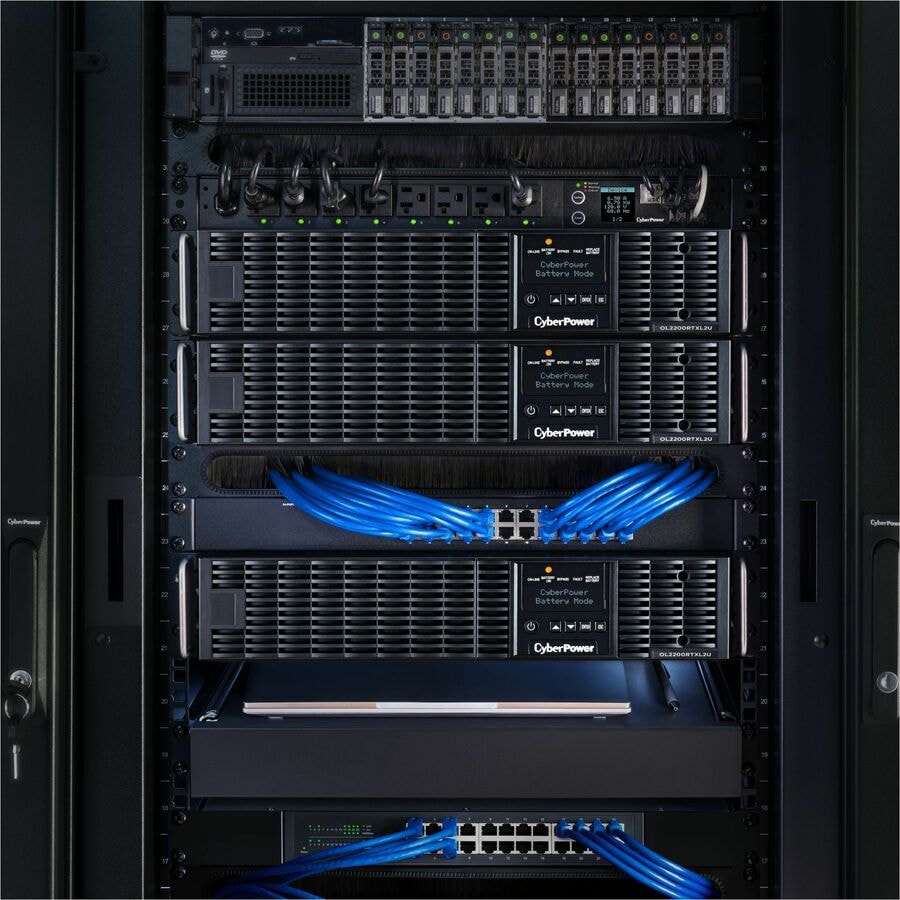

  • Form Factor : Rack/Tower
  • Rack Height : 2U

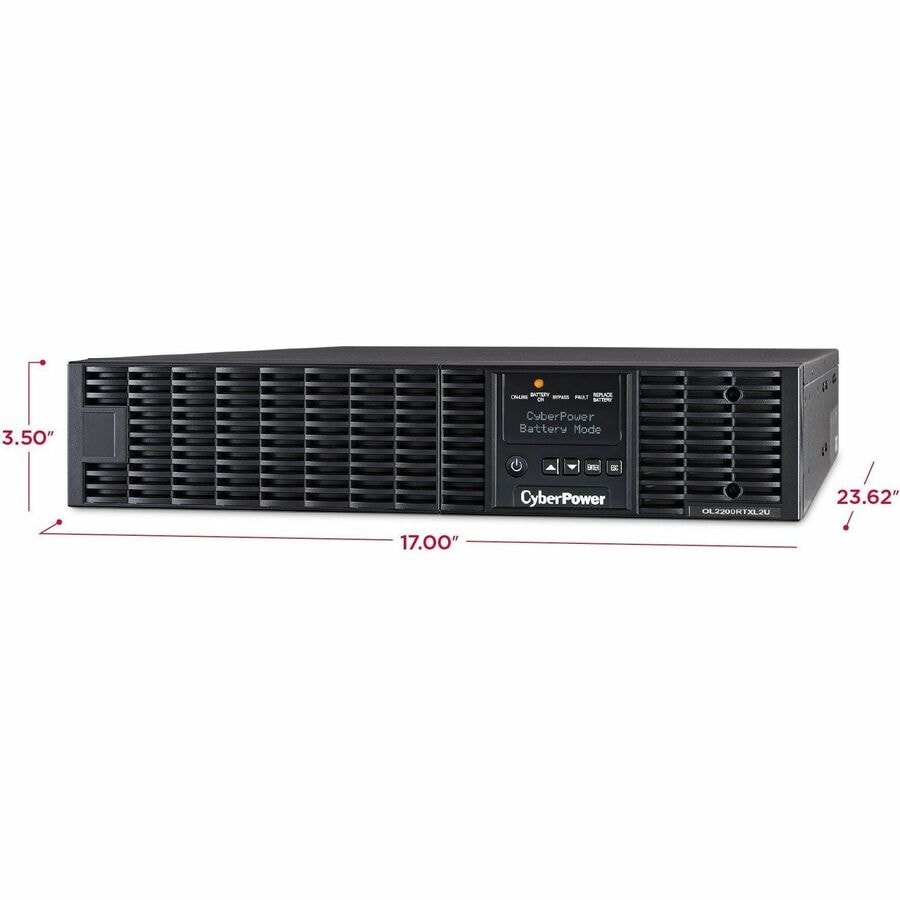

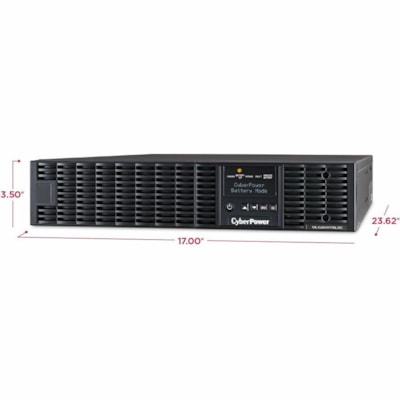

  • Height : 3.50" (88.90 mm)
  • Width : 17" (431.80 mm)
  • Depth : 23.62" (599.95 mm)
  • Weight (Approximate) : 68.20 lb (30935 g)
  • Software Included : PowerPanel® Business
  • Energy Star : No
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Capacity: 2200 VA / 1800 W
  • Power Factor (PF): 0.82
  • Topology: Double-Conversion
  • Waveform: Sine Wave
  • Output: 100, 110, 115, 120, 125 V ±2% (configurable)
  • Plug type & cord: NEMA 5-20P, 10 ft. cord

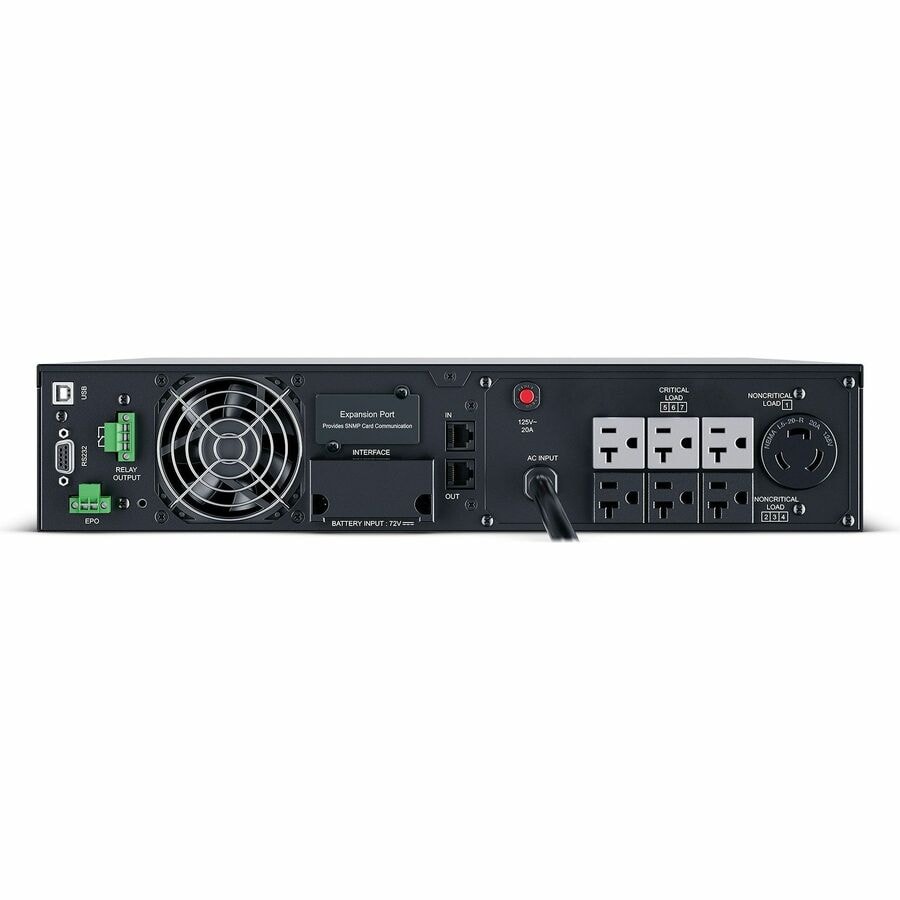

  • Outlet types: 6 × NEMA 5-20R, 1 × L5-20R
  • Monitoring & Management: USB, Serial, Network, Relay, EPO
  • Data line surge protection: Telephone, Network
  • Management software: PowerPanel® Business Edition

SPECIFICATIONS

Manufacturer CyberPower Systems, Inc
Manufacturer Part Number OL2200RTXL2U
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series Smart App Online UPS
Product Model OL2200RTXL2U
Product Name Smart App Online OL2200RTXL2U 2200VA 100-125V Sine Wave LCD Rack/Tower UPS
Product Type Double Conversion Online UPS
Plug/Connector Type NEMA L5-20P
Plug/Connector Type NEMA 5-20P
Receptacle Type NEMA L5-20R
Receptacle Type NEMA 5-20R
Receptacle Detail 6 x NEMA 5-20R
Receptacle Detail 1 x NEMA L5-20R
Transfer Time 0 ns
Dataline Protection RJ-45
Dataline Protection RJ-11
Protection Type Short Circuit
Overload Protection Yes
EMI/RFI Noise Filter Yes
Energy Saving ECO Mode Efficiency >95%
Application/Usage Generator
Application/Usage Server
Application/Usage PBX System
Application/Usage Storage Device
Application/Usage Network Device
Application/Usage Mission Critical Equipment
Application/Usage VoIP Device
Cord Length 10 ft (3048 mm)
Crest Factor 3:1
Circuit Breaker Current Rating 30 A
Load Capacity (VA) 2.20 kVA
Load Capacity (Watt) 1.80 kW
Input Voltage 120 V AC
Input Voltage 230 V AC
Input Voltage Range 60 V AC - 69 V AC
Input Voltage Range 100 V AC - 125 V AC
Output Voltage 110 V AC
Output Voltage 125 V AC
Output Voltage 120 V AC
Output Voltage 115 V AC
Output Voltage 100 V AC
Input Frequency 70 Hz
Input Frequency 40 Hz
Output Frequency 50 Hz
Output Frequency 60 Hz
Waveform Type Sine Wave
Surge Energy Rating 1335 J
Input Power Factor 0.99
Output Power Factor 0.8
Display LCD
Network Management SNMP/HTTP Remote Monitoring
Network Management Dry Contact
Network Management Relay Card
Alarm UPS Fault
Alarm Battery Mode
Alarm Low Battery
Alarm Overload
Status Indicators
  • Power On (White)
  • Line Mode (Green)
  • Battery Mode (Yellow)
  • Bypass Mode (Yellow)
  • Fault (Red)
  • Replace Battery (Red)
Serial Port Yes
USB Yes
USB (HID Compliant) Port Yes
EPO Port Yes
Number of Batteries 6
Battery Characteristics Maintenance-free/Sealed
Battery Chemistry Lead Acid
Battery Size 12V
Battery Capacity 9000 mAh
Backup/Run Time (Full Load) 8 Minute
Backup/Run Time (Half Load) 21 Minute
Typical Battery Recharge Time 4 Hour
Replaceable Battery Yes
Maximum Operating Temperature 104°F (40°C)
Storage Temperature -4°F (-20°C) - 113°F (45°C)
Maximum Operating Elevation 10000 ft (3048000 mm)
Maximum Storage Elevation 50000 ft (15240000 mm)
Operating Humidity 0% - 90%
Storage Relative Humidity 0% - 95%
Thermal Dissipation 541 BTU/h
Color Family Black
Product Color Black
Form Factor Rack/Tower
Rack Height 2U
Height 3.50" (88.90 mm)
Width 17" (431.80 mm)
Depth 23.62" (599.95 mm)
Weight (Approximate) 68.20 lb (30935 g)
Package Contents
  • Smart App Online OL2200RTXL2U 2200VA 100-125V Sine Wave LCD Rack/Tower UPS
  • User Manual
  • Registration card
  • 2 x Rackmount rails
  • 2 x Hanging brackets
  • 2 xRackmount ears
  • USB communication cable
  • Serial interface cable (RS-232)
  • 8 x M5X7L black flat head screws
  • 12 x M5X12L black pan head screws
  • 6 x M5X6L silver pan head screws
  • 8 x Plastic washers
  • 12 x Screw hole dust covers
  • 12 x Rubber pads
  • Software download card
Additional Information
  • Replacement Battery Cartridge Quantity: 1
  • Smart Battery Management (SBM) Mode: Yes
  • Circuit Breaker: 20A
  • Cold Start: Yes
  • Input Power Factor: 0.99
  • Input Voltage Range: 60 VAC - 69 VAC for 0-60% Load
  • Crest Factor: 3:1
  • ECO Mode Voltage Regulation: ±10%, ±15% (Configurable)
  • Harmonic Distortion: < 3% at Linear Load
  • On Battery Frequency: 50/60 Hz ± 0.25Hz (auto-sensing or configurable)
  • Output Power Factor: 0.82
  • Overload Protection: Line Mode: 105% ~ 125% Load - 1 min
  • Short Circuit Protection: UPS Output Cut Off Immediately or Input Fuse / Circuit Breaker Protection
  • VA by Input Type: 2,200 (2.2 kVA) at 120, 125 V input
  • Watts by Input Type: 1,800 (1.8 kW) at 120, 125 V input
  • Phone / Network Protection RJ11/RJ45: 1-In / 1-Out (Combo)
  • Dry Contacts: Yes
  • Expansion Slot: Yes - with optional RMCARD205 or RELAYIO500
  • LCD: Multifunction LCD
  • LED Indicators: Power On (White)
  • Management Cable: USB Cable
  • Removable LCD Control Panel Option: Yes - Requires DB26 cable (not included)
  • Rotatable LCD Control Panel Option: Yes
  • Serial Port: 1 Serial
  • Upgradeable firmware: Yes
  • Material of Construction: Metal
  • Mounting Hardware: Yes
  • ECO Mode Thermal Dissipation: 249 BTU/hr
  • Operating Elevation: 0 - 10000 ft (0 - 3048 m)
  • Operating Relative Humidity: 0 - 90 % (non-condensing)
  • Operating Temperature: 32 - 104 °F (0 - 40 °C)
  • Storage Elevation: 0 - 50000 ft (0 - 15239 m)
Certifications & Standards
  • UL1778
  • CSA C22.2 NO.107.3-05
  • FCC DOC Class A
Software Included PowerPanel® Business
Energy Star No
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 3 Year
Directly Connected Equipment Guarantee $400000 Lifetime
