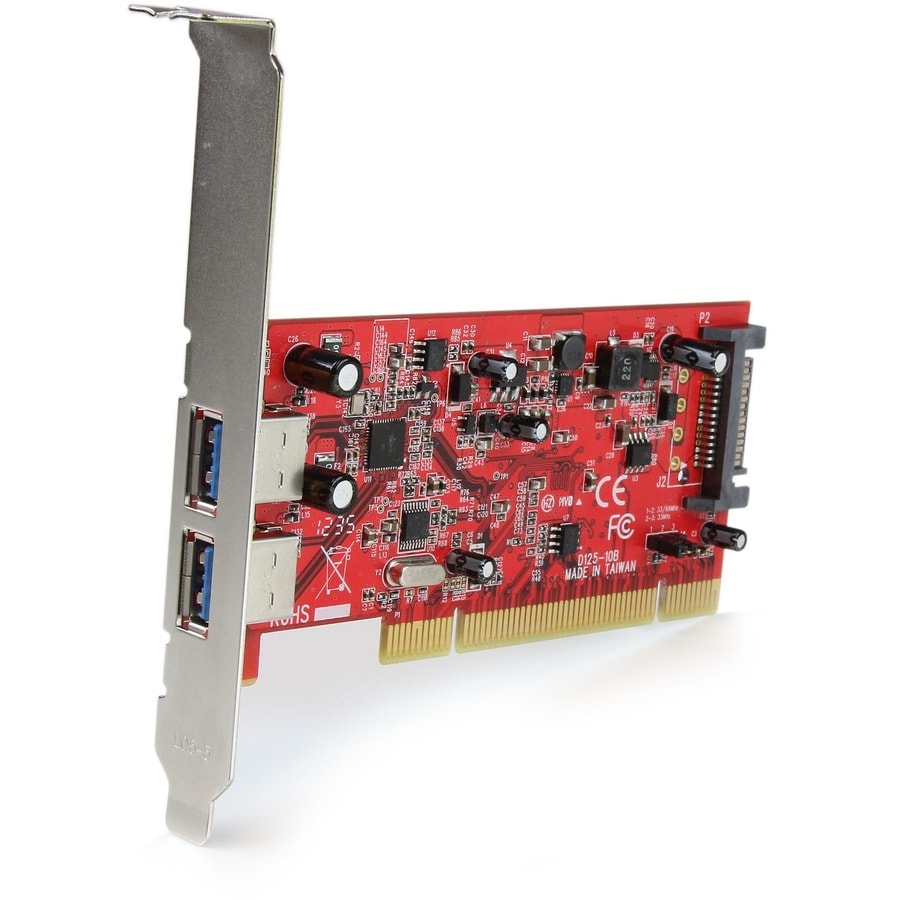

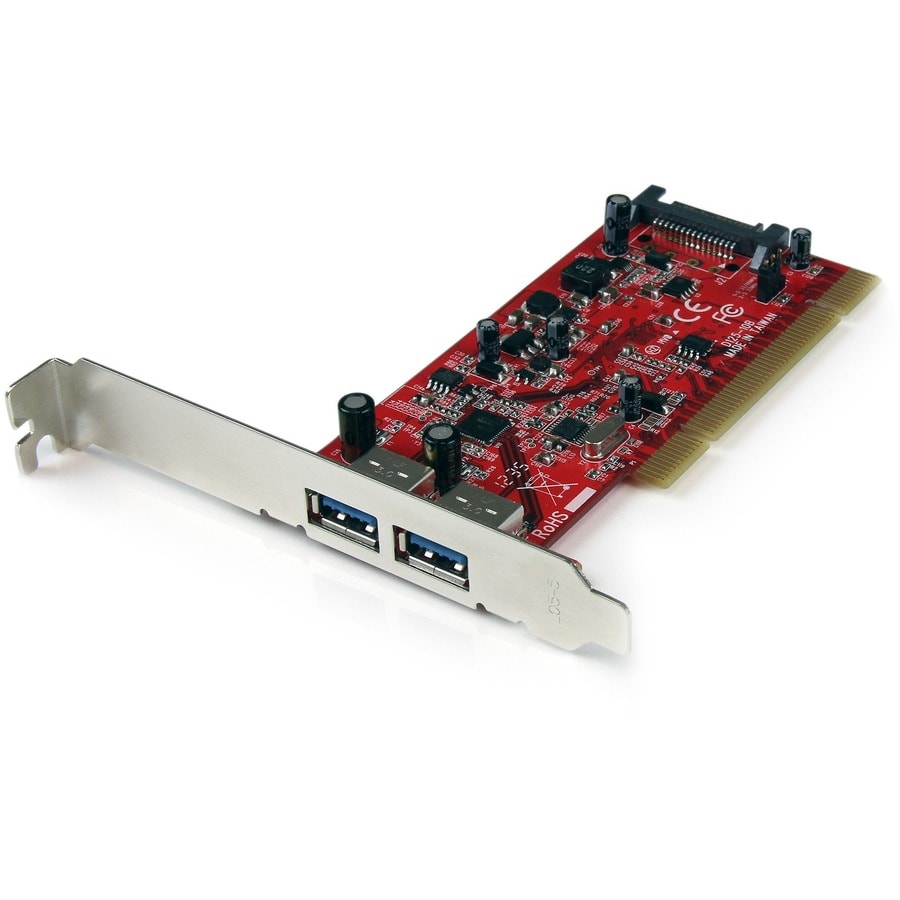

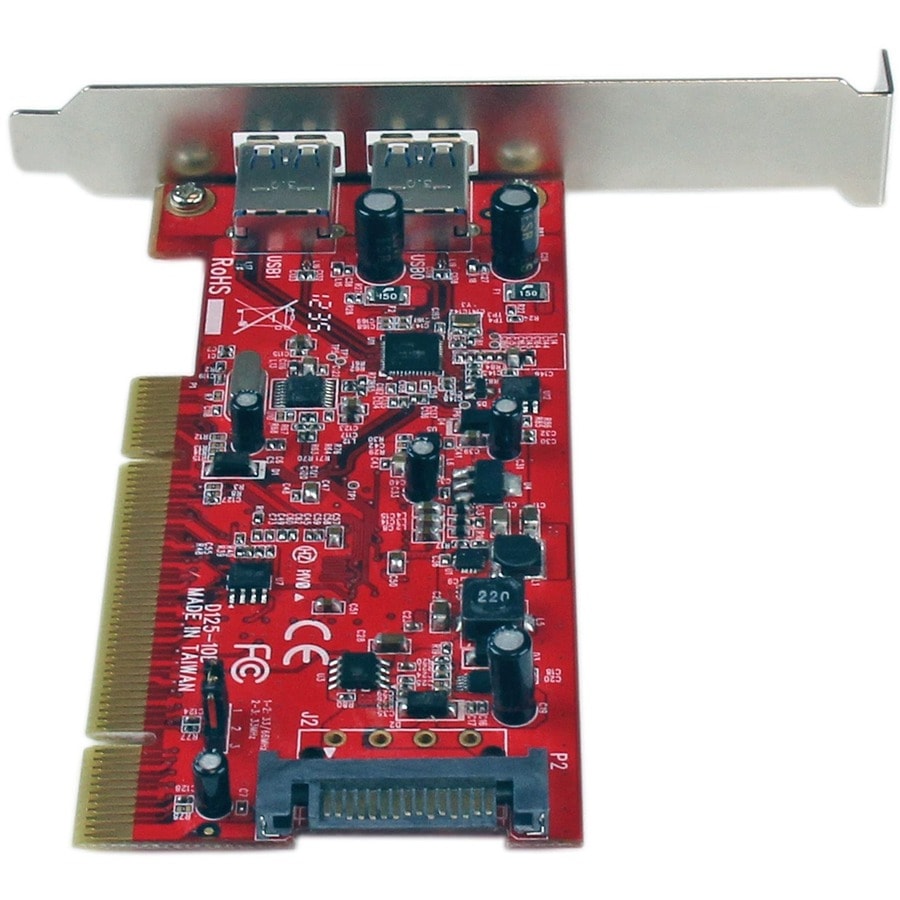

StarTech.com 2 Port PCI SuperSpeed USB 3.0 Adapter Card with SATA Power - 5Gbps - Add 2 SuperSpeed USB 3.0 ports to a computer through a PCI slot - pci usb 3.0 adapter - pci usb 3.0 adapter card - pci usb 3.0 card -pci usb 3.0 controller
PCIUSB3S22
Also known as SY4936626
MARKETING INFORMATION
The PCIUSB3S22 2-Port PCI to USB 3.2 Gen 1 Card enables you to connect USB 3.2 Gen 1 peripherals to a PC through a legacy PCI host bus, which doubles the data transfer speeds when used with USB 3.2 Gen 1 peripherals than would be possible with a USB 2.0 host connection - up to 1.3 Gbps (PCI bus limit).
The card features an optional SATA power connection, which enables each port to supply up to 900mA of power to USB 3.2 Gen 1 bus-powered devices.
By supporting a legacy (PCI) host connection, the card adds updated peripheral connectivity, without having to upgrade to a PCIe-equipped motherboard or rely on the backward compatibility of USB 3.2 Gen 1 peripherals.
Guaranteed to provide reliable performance, the PCIUSB3S22 PCI USB 3.2 Gen 1 card is backed by lifetime warranty and free lifetime technical support.
More from the Manufacturer
DETAILS
- Host Interface : PCI-X
- Data Transfer Rate : 5 GB/s
- UASP Support : Yes
- Total Number of USB Ports : 2
- Number of USB 3.2 Ports : 2
- Number of SATA Ports : 1
- Operating System Supported : Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019
- Color Family : Red
- Product Color : Red
- Form Factor : Plug-in Card
- Height : 2.20" (55.88 mm)
- Width : 0.40" (10.16 mm)
- Length : 4.80" (121.92 mm)
- Weight (Approximate) : 2.12 oz (60 g)
- Package Contents :
- 2 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA Power
- 1x Low Profile Bracket
- 1x Driver CD
- 1x Instruction Manual
- Platform Supported : PC
- Country of Origin : Taiwan
- TAA Compliant : Yes
- Environmentally Friendly : Yes
- Environmental Certification : REACH,WEEE,RoHS
- Environmental Compliance : Waste Electrical and Electronic Equipment Directive (WEEE)
- Limited Warranty : Lifetime

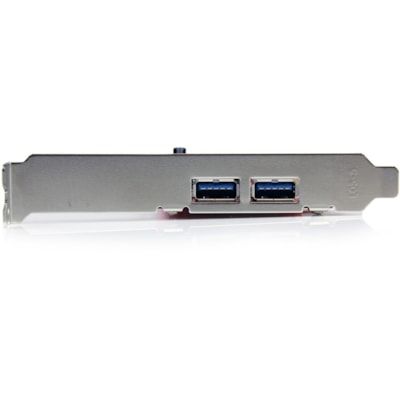

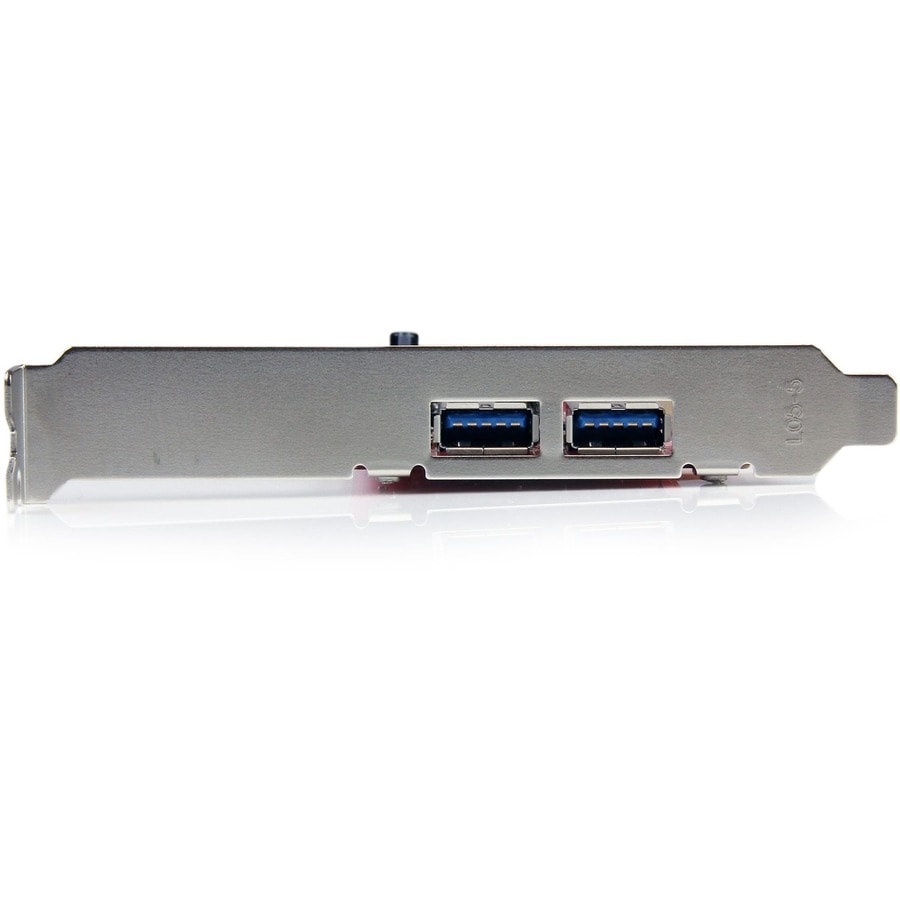

- 2 external Super Speed USB 3.0 ports
- Provides up to 900mA of power over USB 3.0
- Backward compatible with USB 2.0/1.x devices
- Compliant with USB 3.0 base specification 1.0 and xHCI specification 0.95
- Compliant with PCI Specification 3.0
- Includes a Low Profile/Half-Height installation bracket
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PCIUSB3S22 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 2 Port PCI SuperSpeed (5Gbps) USB 3.0 Adapter Card with SATA Power |
| Packaged Quantity | 1 Each |
| Product Type | USB Adapter |
| Host Interface | PCI-X |
| Data Transfer Rate | 5 GB/s |
| UASP Support | Yes |
| Total Number of USB Ports | 2 |
| Number of USB 3.2 Ports | 2 |
| Number of SATA Ports | 1 |
| Operating System Supported | Windows Server 2012 |
| Operating System Supported | Windows Server 2008 R2 |
| Operating System Supported | Windows Server 2003 |
| Operating System Supported | Windows Server 2019 |
| Operating System Supported | Windows Server 2016 |
| Operating System Supported | Windows Vista |
| Operating System Supported | Windows 7 |
| Operating System Supported | Windows 8 |
| Operating System Supported | Windows 8.1 |
| Operating System Supported | Windows 10 |
| Operating System Supported | Windows 11 |
| Operating System Supported | Windows XP |
| Color Family | Red |
| Product Color | Red |
| Form Factor | Plug-in Card |
| Height | 2.20" (55.88 mm) |
| Width | 0.40" (10.16 mm) |
| Length | 4.80" (121.92 mm) |
| Thickness | 0.40" (10.16 mm) |
| Weight (Approximate) | 2.12 oz (60 g) |
| Package Contents |
|
| Platform Supported | PC |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
| Environmental Certification | WEEE |
| Environmental Certification | REACH |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Limited Warranty | Lifetime |
