StarTech.com PCI Express Wireless N Adapter - 300 Mbps PCIe 802.11 b/g/n Network Adapter Card - 2T2R 2.2 dBi - Add high speed Wireless-N connectivity to a desktop PC through PCI Express - PCIe Wireless Network Card / PCI Express Wireless NIC / Wireless PCIe N Card - Wireless 802.11 N / G (300 Mbps)
PEX300WN2X2
Also known as SY4927855,DHPEX300WN2X2CA,IM95691S
MARKETING INFORMATION

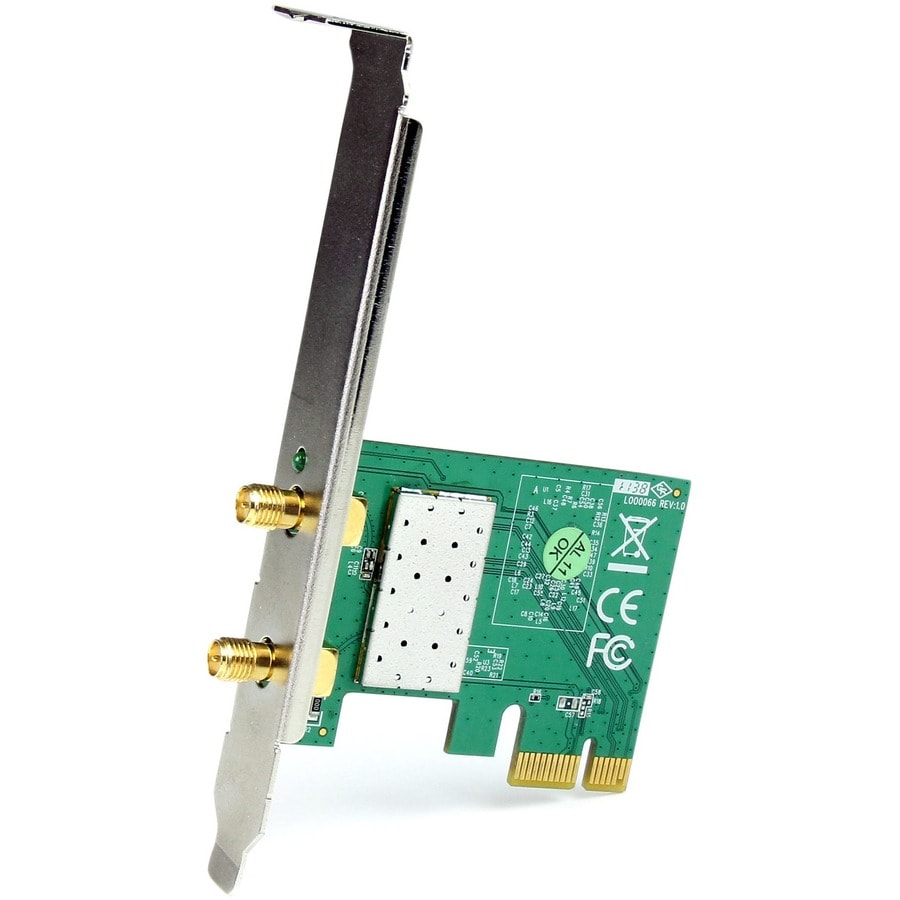

The PEX300WN2X2 PCI Express Wireless N Card (PCIe x1) adds high speed wireless network connectivity to almost any PCI Express-enabled desktop/workstation PC. Using a 2T2R (2 Transmitter/2 Receiver) design over the 2.4GHz frequency, this PCIe wireless card provides up to 300Mbps of data bandwidth over an 802.11n network, while improving signal reception and range.
Backward compatible with 802.11b/g networks (11/54Mbps), this WiFi N adapter offers a versatile wireless networking solution with support for standard and advanced security options such as WEP, WPA and WPA2, along with wireless Quality of Service (QoS) support and quick and easy setup through WPS.
This easy-to-install PCI Express 2.0 card is backed by StarTech.com's 2-year warranty and free lifetime technical support, making for an excellent wireless upgrade or first-time setup option.
More from the Manufacturer
DETAILS
- Wi-Fi Generation : Wi-Fi 4
- Wireless LAN Standard : IEEE 802.11n
- ISM Band : Yes
- UNII Band : No
- ISM Maximum Frequency : 2.48 GHz
- Wireless Transmission Speed : 300 Mbit/s
- Host Interface : PCI Express x1
- Form Factor : Plug-in Card
- Height : 0.70" (17.78 mm)
- Width : 1.90" (48.26 mm)
- Depth : 3" (76.20 mm)
- Weight (Approximate) : 1.30 oz (36.85 g)

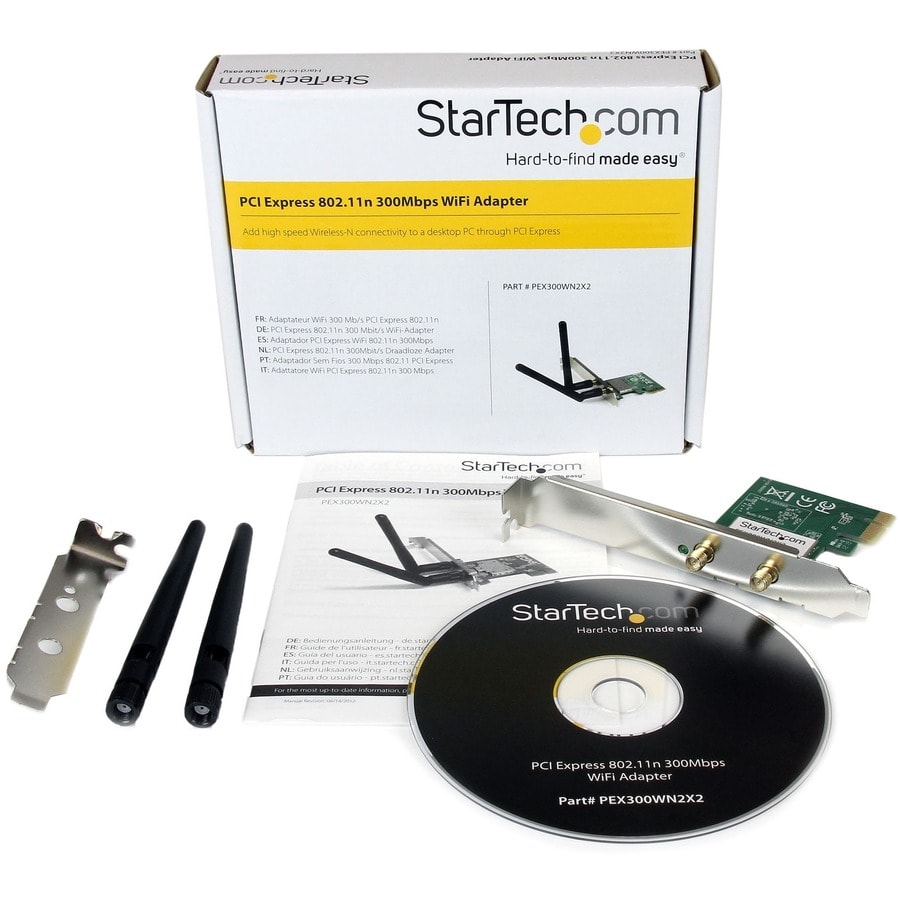

- Package Contents :
- PCI Express Wireless Networking Card
- 2 x Antenna
- 1 x Low Profile Bracket
- 1 x Driver CD
- 1 x Instruction Manual
- Device Supported : Desktop Computer
- Environmentally Friendly : Yes
- Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin : Taiwan
- TAA Compliant : Yes
- Limited Warranty : 2 Year
- 2 Transmitter/2 Receiver (2x2:2) antenna configuration
- Compliant with IEEE 802.11n standard, with support for up to 300Mbps of wireless data bandwidth
- Backward compatible with IEEE 802.11b/g standards for up to 11/54Mbps connections respectively with Wireless-B and Wireless-G networks
- Supported security features: WEP (64-128-bit), WPA, WPA2, WPS
- Support for WMM/WMM-PS Quality of Service (QoS)
- Infrastructure and Ad-Hoc network modes support

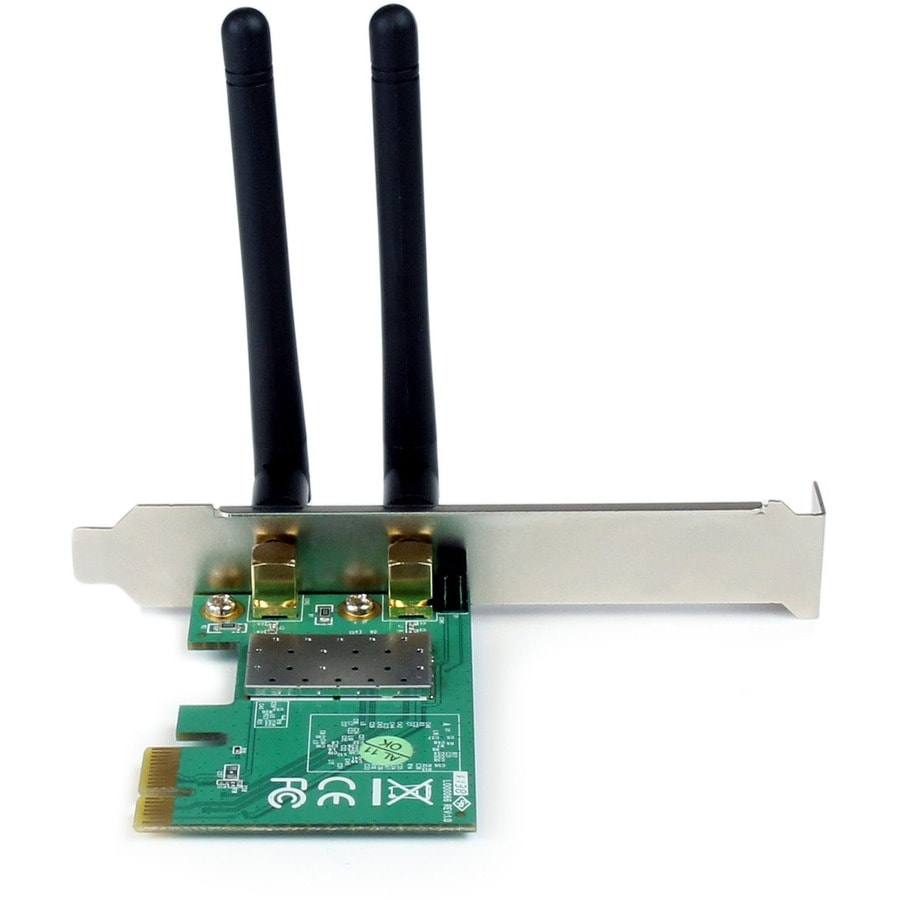

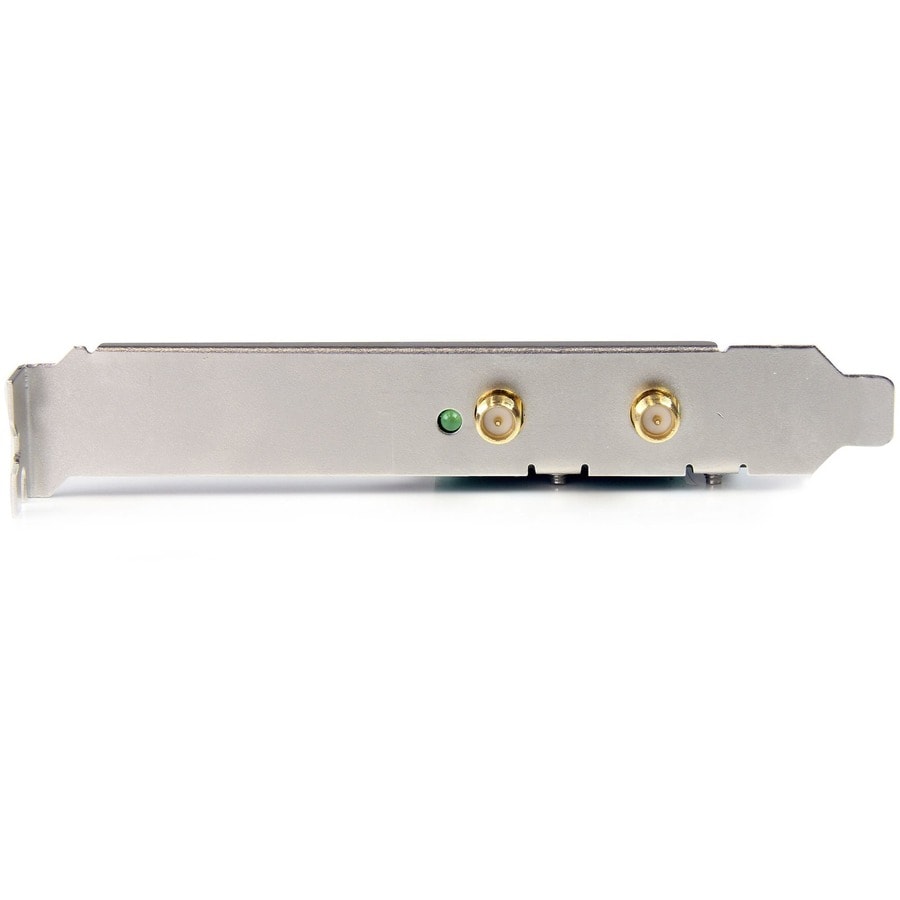

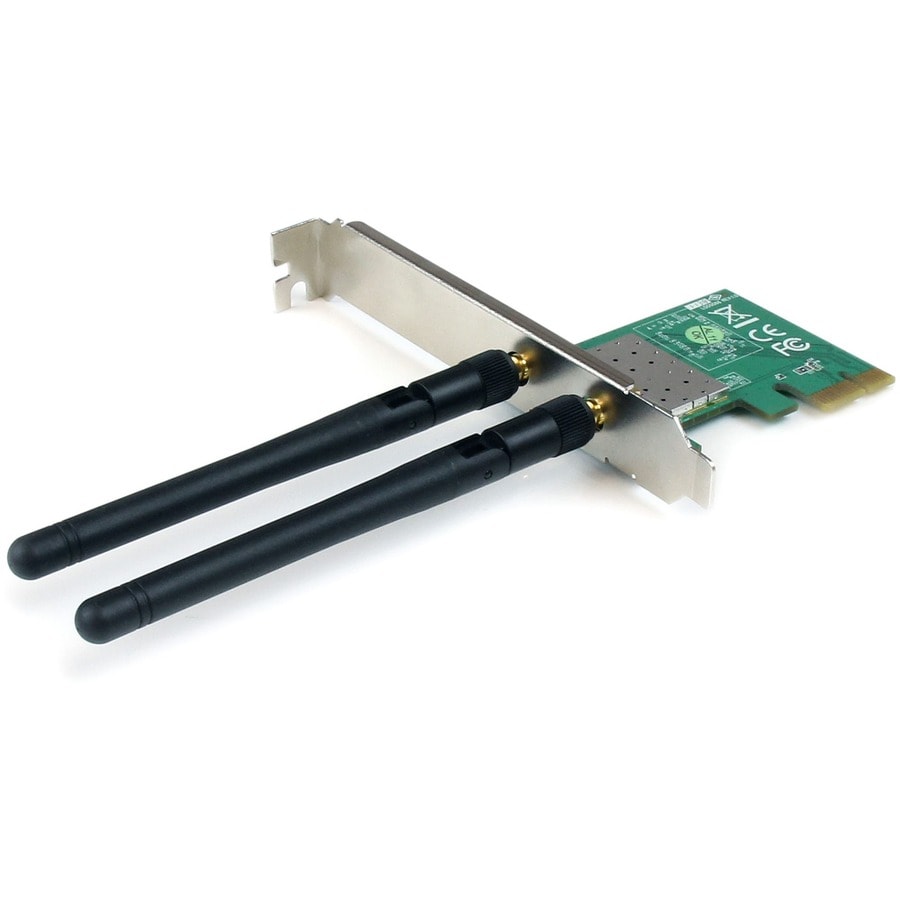

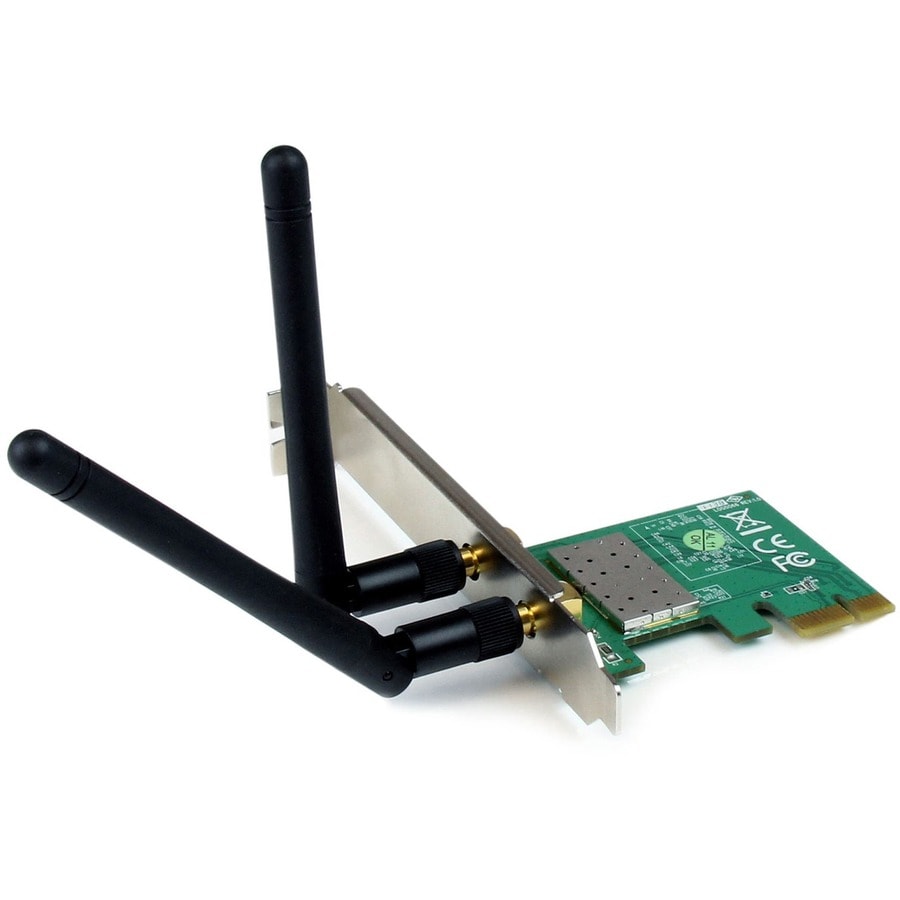

- Dual detachable 2dBi antennas
- Includes Low Profile/Half-Height installation bracket
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | PEX300WN2X2 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | PCI Express Wireless Networking Card |
| Packaged Quantity | 1 Each |
| Product Type | Wi-Fi Adapter |
| Wi-Fi Generation | Wi-Fi 4 |
| Wireless LAN Standard | IEEE 802.11n |
| ISM Band | Yes |
| UNII Band | No |
| ISM Minimum Frequency | 2.40 GHz |
| ISM Maximum Frequency | 2.48 GHz |
| Number of Antennas | 2 |
| Antenna Gain (Isotropic) | 2 dBi |
| Antenna Connector | RP-SMA Connector |
| Wireless Transmission Speed | 300 Mbit/s |
| Wireless Security |
|
| Features | Quality of Service (QoS) |
| Host Interface | PCI Express x1 |
| Form Factor | Plug-in Card |
| Height | 0.70" (17.78 mm) |
| Width | 1.90" (48.26 mm) |
| Depth | 3" (76.20 mm) |
| Length | 3" (76.20 mm) |
| Weight (Approximate) | 1.30 oz (36.85 g) |
| Package Contents |
|
| System Requirements |
|
| Device Supported | Desktop Computer |
| Certifications & Standards |
|
| Platform Supported | PC |
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Limited Warranty | 2 Year |
