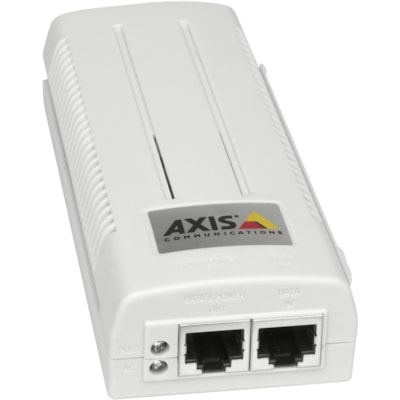

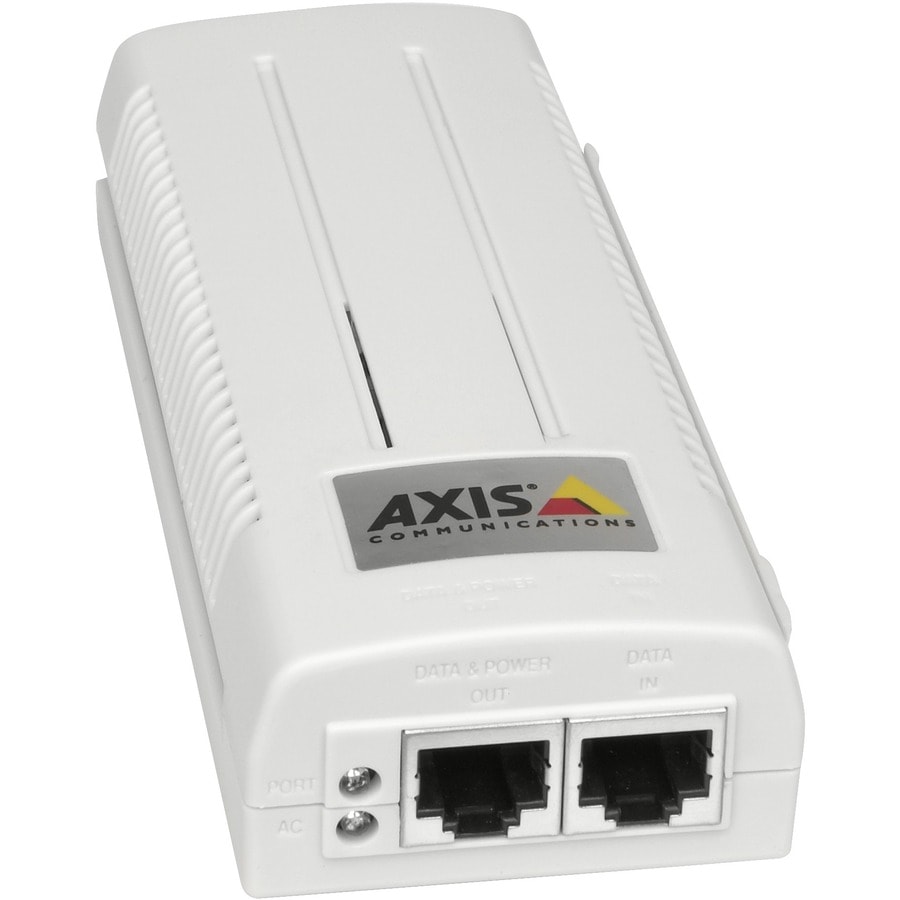

AXIS T8120 Midspan 15 W 1-Port - 110 V AC, 220 V AC Input - 48 V DC Output - 1 Output Port(s) - 15.40 W - Wall Mountable

5026-204
Also known as SY4917967

New! Log in or create an account to see price and availability


MARKETING INFORMATION

Power over Ethernet (PoE) offers an easy, fast and cost-effective solution for supplying power to network video products without the need to install power outlets and electrical cabling. Simply connect the Axis PoE midspans and PoE splitters to the network, and the network video products are supplied with power.

Axis PoE midspans provide power (max. 15.4 W per port) over Ethernet cables to network video products with built-in PoE support. For a network video product without built-in PoE support, a PoE splitter must be used to separate power and data coming over the network cable.

DETAILS

  • Input Voltage : 110 V AC,220 V AC
  • Maximum Output Voltage : 48 V DC
  • Minimum Input Current : 500 mA
  • Maximum Output Power : 15.40 W
  • Output Ports : 1
  • Mount Type : Wall Mountable
  • Height : 1.22" (31 mm)
  • Width : 2.36" (60 mm)
  • Depth : 5.71" (145 mm)
  • Weight (Approximate) : 15.87 oz (450 g)
  • Compatibility :
    • Video Encoders

    Axis Network Cameras:

    • PTZ
    • PTZ Dome
  • Certifications & Standards :
    • IEEE 802.3
    • IEEE 802.3af
    • FCC Part 15 Class B
    • EN55022 (CISPR 22) Class B

    Safety:

    • cUL
    • UL
    • TUV
    • CE
  • Limited Warranty : 3 Year

SPECIFICATIONS

Manufacturer Axis Communications
Manufacturer Part Number 5026-204
Manufacturer Website Address http://www.axis.com
Brand Name AXIS
Product Model T8120
Product Name T8120 Midspan 15 W 1-Port
Product Type PoE Injector
Input Voltage 110 V AC
Input Voltage 220 V AC
Maximum Output Voltage 48 V DC
Minimum Input Current 500 mA
Minimum Frequency 47 Hz
Maximum Frequency 63 Hz
Maximum Output Power 15.40 W
Output Ports 1
Mount Type Wall Mountable
Height 1.22" (31 mm)
Width 2.36" (60 mm)
Depth 5.71" (145 mm)
Weight (Approximate) 15.87 oz (450 g)
Compatibility
  • Video Encoders

Axis Network Cameras:

  • PTZ
  • PTZ Dome
Certifications & Standards
  • IEEE 802.3
  • IEEE 802.3af
  • FCC Part 15 Class B
  • EN55022 (CISPR 22) Class B

Safety:

  • cUL
  • UL
  • TUV
  • CE
Limited Warranty 3 Year
