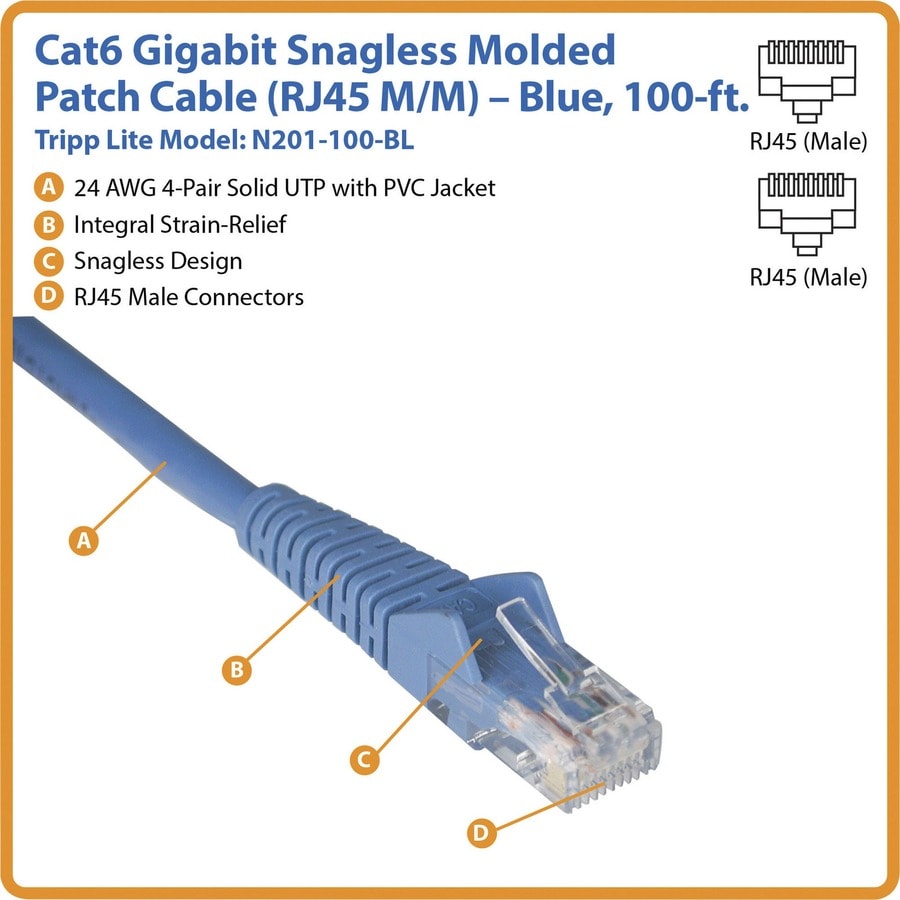

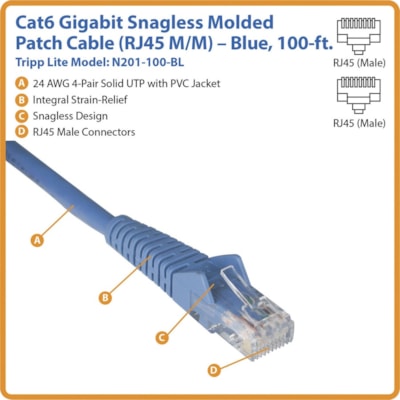

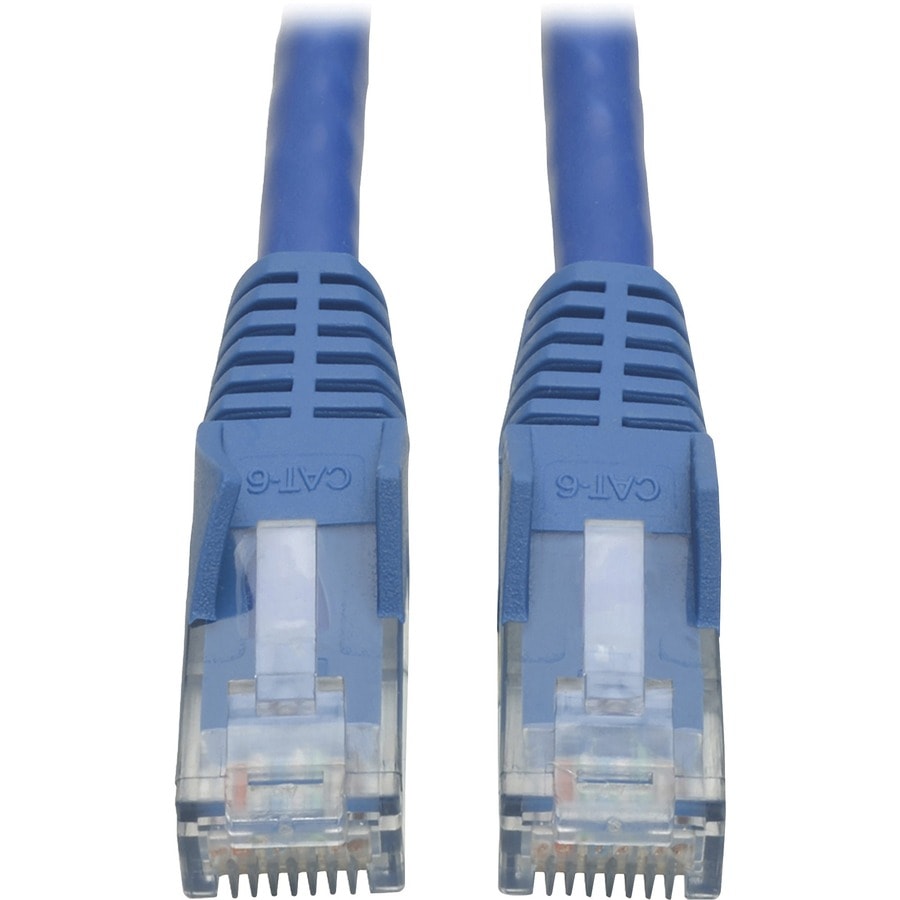

Tripp Lite series 100-ft. (30.5 m) Cat6 Blue Gigabit Patch Cord Snagless Molded - 100 ft (30.48 m) Category 6 Network Cable for Network Device - First End: 1 x RJ-45 Network - Male - Second End: 1 x RJ-45 Network - Male - 10 Gbit/s - Patch Cable - Gold Plated Contact - CM - 24 AWG - Blue
N201-100-BL
Also known as SY4883306
MARKETING INFORMATION
This category 6, molded patch cable lets you stay ahead of the game by using a high-speed cable to distribute data, voice and video. Cable delivers stable performance up to 550MHz. High-quality copper wire and a staggered-pin plug design keep near-end cross-talk levels to a minimum. Snagless design protects the locking tabs on the RJ45 connectors from being damaged or snapped off during installation. 100' cable is designed for use in category 6, category 5e and category 5 applications.
DETAILS
- Cable Type : Category 6
- Cable Characteristic : Patch Cable
- Cable Length : 100 ft (30.48 m)
- Connector Type on First End : RJ-45 Network - Male
- Connector on First End Details : 1 x RJ-45 Network - Male
- Connector Type on Second End : RJ-45 Network - Male
- Connector on Second End Details : 1 x RJ-45 Network - Male
- Contact Plating : Gold
- Shielding : No
- Jacket Type : CM
- Device Supported : Network Device
- American Wire Gauge : 24 AWG
- Data Transfer Rate : 10 Gbit/s
- Boot Type : Snagless
- Number of Pairs : 4
- Features : Snag Resistant,Stranded,Strain Relief,Molded,Minimized Near-End Crosstalk (NEXT),Damage Resistant
- Color Family : Blue
- Product Color : Blue
- Package Contents :
- Cat6 UTP Patch Cable
- 20-ft. Cat6 Blue Gigabit Patch Cord Snagless Molded
- Environmentally Friendly : Yes
- Country of Origin : China
- Environmental Compliance : Restriction of Hazardous Substances (RoHS),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS) 3
- Limited Warranty : Lifetime
- Premium cabling for Category 6, Category 5e and Category 5 applications-rated for 550 MHz/1 Gbps communications
- Designed to meet Category 6 specifications; reduces cross-talk and return loss
- IEC 802.3ab
- PVC 4-pair solid UTP
SPECIFICATIONS
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | N201-100-BL |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | N201-100-BL |
| Product Name | 100-ft. (30.5 m) Cat6 Blue Gigabit Patch Cord Snagless Molded |
| Product Type | Network Cable |
| Cable Type | Category 6 |
| Cable Characteristic | Patch Cable |
| Cable Length | 100 ft (30.48 m) |
| Connector Type on First End | RJ-45 Network - Male |
| Connector on First End Details | 1 x RJ-45 Network - Male |
| Connector Type on Second End | RJ-45 Network - Male |
| Connector on Second End Details | 1 x RJ-45 Network - Male |
| Contact Plating | Gold |
| Conductor | Copper |
| Shielding | No |
| Jacket Type | CM |
| Device Supported | Network Device |
| American Wire Gauge | 24 AWG |
| Data Transfer Rate | 10 Gbit/s |
| Boot Type | Snagless |
| Number of Pairs | 4 |
| Features | Damage Resistant |
| Features | Minimized Near-End Crosstalk (NEXT) |
| Features | Strain Relief |
| Features | Stranded |
| Features | Snag Resistant |
| Features | Molded |
| Color Family | Blue |
| Product Color | Blue |
| Shipping Height | 8" (203.20 mm) |
| Shipping Width | 10" (254 mm) |
| Shipping Weight (Approximate) | 10.40 oz (294.84 g) |
| Package Contents |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) 3 |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Country of Origin | China |
| Limited Warranty | Lifetime |
