StarTech.com 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km - Convert and extend a 10/100 Mbps Ethernet connection up to 1.2 miles/2km over Multi Mode ST fiber - fiber converter - ethernet media converter - fibre converter - 10/100 media converter - utp to fiber
ET90110ST2
Also known as SY4867577,DHET90110ST2CA,IM16180S
MARKETING INFORMATION
The ET90110ST2 10/100 Mbps Multimode Fiber Media Converter (ST, 2 km) lets you extend a Fast Ethernet network (10/100 Mbps) over multimode fiber, at distances of up to 2 km (1.2 miles).
A cost-effective solution for connecting a 10/100 Mbps Ethernet (10/100Base-T) network to remote network segments over a 100Base-FX fiber backbone. Designed to offer a durable and convenient Ethernet to fiber solution, the Ethernet to ST Fiber converter features an all-steel chassis, and a simple plug-and-play installation with minimal configuration required.

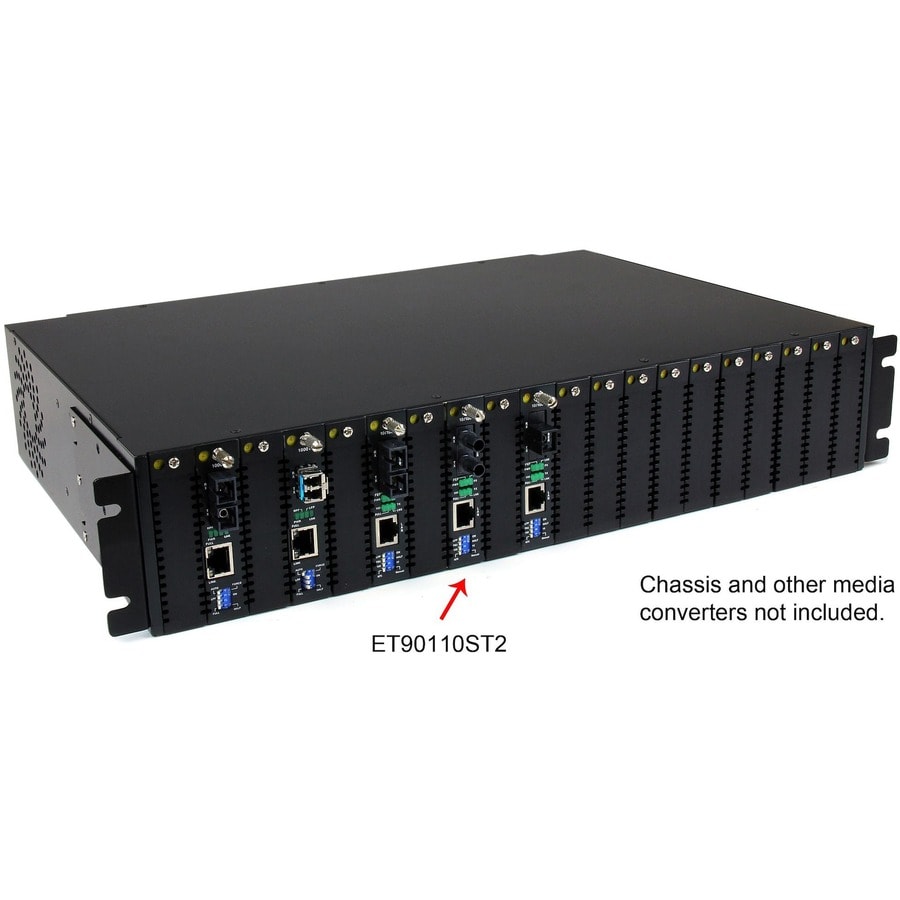

For added versatility, this fiber media converter supports standalone operation, or installation into the 20 Slot, 2U Rackmount Chassis (ETCHS2U).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
DETAILS
- Total Number of Ports : 2
- Network (RJ-45) : Yes
- DVI : No
- USB : No
- Management Port : No
- Number of Network (RJ-45) Ports : 1
- Number of ST Ports : 1
- ST Port Type : Duplex
- Media Type Supported : Twisted Pair,Optical Fiber
- Fiber Mode Supported : Multi-mode
- Fiber Optic Cable Wavelength : 1310 nm
- Maximum Distance Supported : 2 km (1.24 Mile)
- Ethernet Technology : Fast Ethernet
- Network Technology : 10/100Base-TX,100Base-FX
- Power Source : AC Adapter
- Power Consumption : 19.20 W
- Plug/Connector Type : Type M
- Form Factor : Desktop,Rack-mountable
- Height : 0.90" (22.86 mm)
- Width : 3.40" (86.36 mm)
- Depth : 6.10" (154.94 mm)
- Weight (Approximate) : 13.70 oz (388.39 g)
- Package Contents :
- 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km
- 1 x Universal Power Adapter (NA/EU/UK/AU)
- 1 x Grounding Screw
- 1 x Instruction Manual
- Environmentally Friendly : Yes
- Environmental Compliance : Registration, Evaluation, Authorization and Restriction of Chemicals (REACH),Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin : Taiwan
- TAA Compliant : Yes
- Limited Warranty : 2 Year
- Supports standalone operation, or installation into the ETCHS2U Rackmount Chassis
- Cost-effective way to extend/bridge networks using fiber cabling
- Advanced features include Link-loss forwarding, remote monitor status, two frame lengths
- Supports a maximum fiber cable length of 2 km
- Supports full or half-duplex operation
- Quick and simple installation, easy to use
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ET90110ST2 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 10/100 Mbps Multi Mode Fiber Media Converter ST 2 km |
| Packaged Quantity | 1 Each |
| Product Type | Transceiver/Media Converter |
| Total Number of Ports | 2 |
| Network (RJ-45) | Yes |
| DVI | No |
| USB | No |
| Parallel Port | No |
| Digital Audio | No |
| Digital Audio/Video | No |
| Management Port | No |
| Number of Network (RJ-45) Ports | 1 |
| Number of ST Ports | 1 |
| ST Port Type | Duplex |
| Media Type Supported | Optical Fiber |
| Media Type Supported | Twisted Pair |
| Fiber Mode Supported | Multi-mode |
| Maximum Distance Supported | 2 km (1.24 Mile) |
| Ethernet Technology | Fast Ethernet |
| Network Technology | 100Base-FX |
| Network Technology | 10/100Base-TX |
| Power Source | AC Adapter |
| Input Voltage | 12 V DC |
| Power Consumption | 19.20 W |
| Plug/Connector Type | Type M |
| Color Family | Black |
| Product Color | Black |
| Form Factor | Rack-mountable |
| Form Factor | Desktop |
| Height | 0.90" (22.86 mm) |
| Width | 3.40" (86.36 mm) |
| Depth | 6.10" (154.94 mm) |
| Weight (Approximate) | 13.70 oz (388.39 g) |
| Package Contents |
|
| Compatibility | ETCHS2U Rackmount Chassis |
| Certifications & Standards |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Limited Warranty | 2 Year |
