MARKETING INFORMATION

A rack/tower UPS with line interactive topology, the CyberPower Smart App CPS1500AVR provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The CPS1500AVR uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently. The CPS1500AVR comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

• Data Line Protection
  Prevents power surges that travel through telephone, coaxial, and Ethernet lines from causing damage to electronics.
• Surge Protection
  Diverts excess voltage away from sensitive electronic equipment during an AC power surge or power spike to prevent damage.
• Line Interactive Topology
  Exists when a line interactive UPS has an autotransformer that regulates low voltages (e.g., brownouts) and over voltages (e.g., spikes) without having to switch to battery.
• Automatic Voltage Regulation (AVR)
  Provides clean, consistent AC power by automatically regulating low voltages and over voltages, within defined tolerances, when incoming utility power has minor fluctuations.
• Simulated Sine Wave Output
  Uses pulse wave modulation to generate a stepped, approximated sine wave to supply cost-effective battery backup power for equipment that does not require sine wave output.
• Rack/Tower Versatility
  Allows for horizontal rack or vertical tower installation.
• LED Status Lights
  Indicate Power On, Wiring Fault.
• PowerPanel® Business Edition Software
  Provides IT professionals with tools for monitoring and managing the UPS and backup power. This software offers remote management functionality. Free software download available. See the Download tab.
• Three-Year Warranty
  CyberPower will repair or replace a defective UPS system (including batteries) within three years of the purchase date. See warranty for details.
• Connected Equipment Guarantee
  CyberPower will repair or replace properly connected equipment if it is damaged by a power surge.

DETAILS

• AVR : Yes
• Plug/Connector Type : NEMA 5-15P
• Receptacle Type : NEMA 5-15R

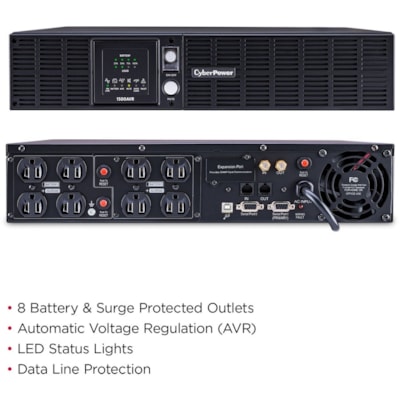

• Receptacle Detail : 8 x NEMA 5-15R
• Number of Battery & Surge Outlets : 8
• Transfer Time : 4 ms
• Dataline Protection : RJ-45,RJ-11,Coax
• Protection Type : Surge,Spike
• Overload Protection : Yes
• EMI/RFI Noise Filter : Yes
• Load Capacity (VA) : 1.50 kVA
• Input Voltage : 120 V AC
• Output Voltage : 120 V AC
• Waveform Type : Simulated Sine Wave
• Surge Energy Rating : 1840 J
• Network Management : SNMP Manageable
• Serial Port : Yes
• Network (RJ-45) : Yes
• USB : Yes
• USB (HID Compliant) Port : Yes
• Number of Batteries : 2
• Battery Characteristics : Maintenance-free
• Battery Chemistry : Lead Acid
• Backup/Run Time (Full Load) : 7 Minute
• Backup/Run Time (Half Load) : 18 Minute
• Typical Battery Recharge Time : 8 Hour
• Maximum Operating Temperature : 104°F (40°C)
• Product Color : Black
• Form Factor : Rack/Tower
• Rack Height : 2U

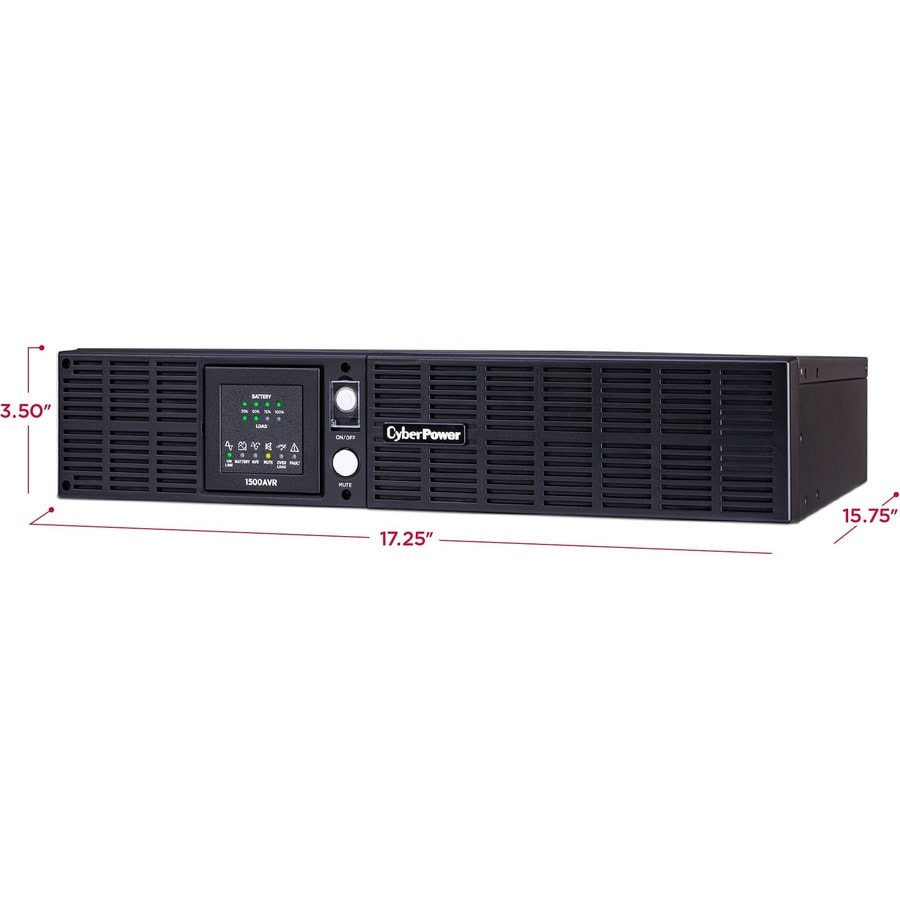

• Height : 3.50" (88.90 mm)
• Width : 17.25" (438.15 mm)
• Depth : 15.75" (400.05 mm)
• Weight (Approximate) : 50.50 lb (22906.41 g)
• Software Included : PowerPanel Business Edition
• Energy Star : No
• Country of Origin : China
• Environmentally Friendly : Yes
• Limited Warranty : 3 Year

• Works adequately in situations where the supply is prone to sags and surges
• Keep your sensitive devices powered with a backup of up to 7 minute at full load
