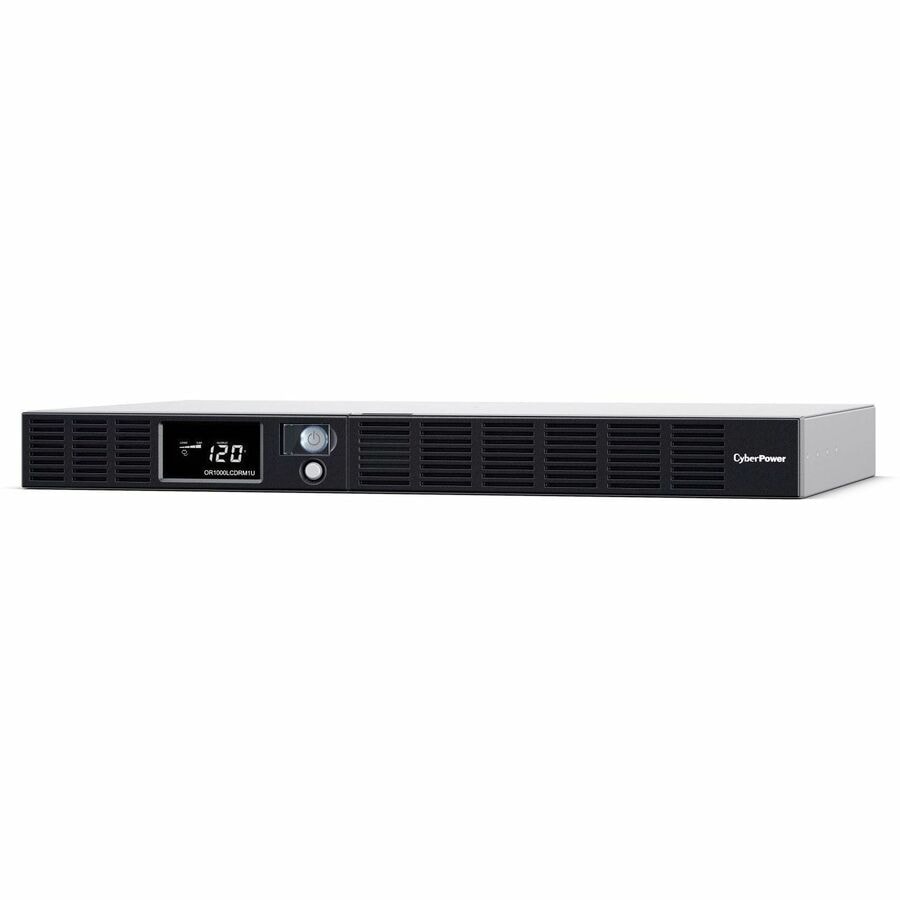

CyberPower OR1000LCDRM1U Smart App LCD UPS Systems - 120 VAC, NEMA 5-15P, 1U, Rackmount, 6 Outlets, LCD, PowerPanel® Business, $300000 CEG, 3YR Warranty

OR1000LCDRM1U
Also known as SY4754814,OR1000LCDRM1UCN

New! Log in or create an account to see price and availability


MARKETING INFORMATION

A rackmount UPS with line interactive topology, the CyberPower Smart App LCD OR1000LCDRM1U provides battery backup (using simulated sine wave output) and surge protection for department servers, workgroup servers, workstations, network devices, and telecom installations without active PFC power supplies. The OR1000LCDRM1U uses Automatic Voltage Regulation (AVR) to correct minor power fluctuations without switching to battery power, which extends battery life. AVR is essential in areas where power fluctuations occur frequently.

This model accepts the RMCARD205 network management card for remote management and control via a standard web browser or network management system. The OR1000LCDRM1U comes with a three-year warranty and a $300,000 Connected Equipment Guarantee.

DETAILS

  • AVR : Yes
  • Plug/Connector Type : NEMA 5-15P
  • Receptacle Type : NEMA 5-15R

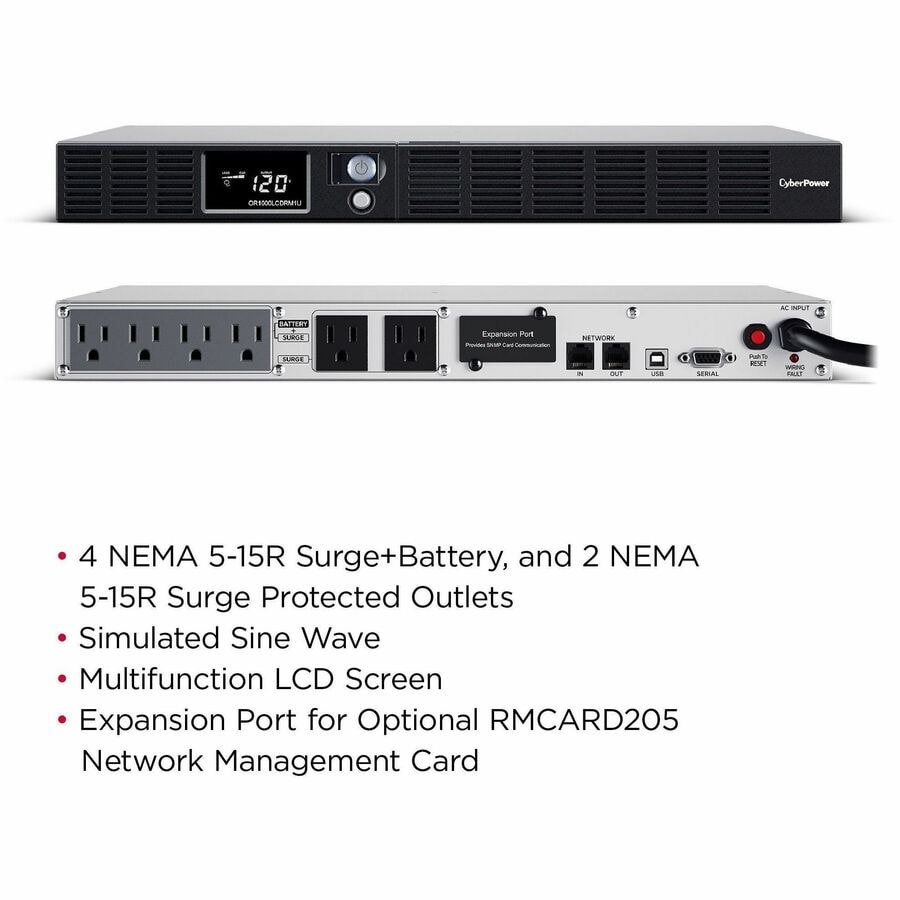

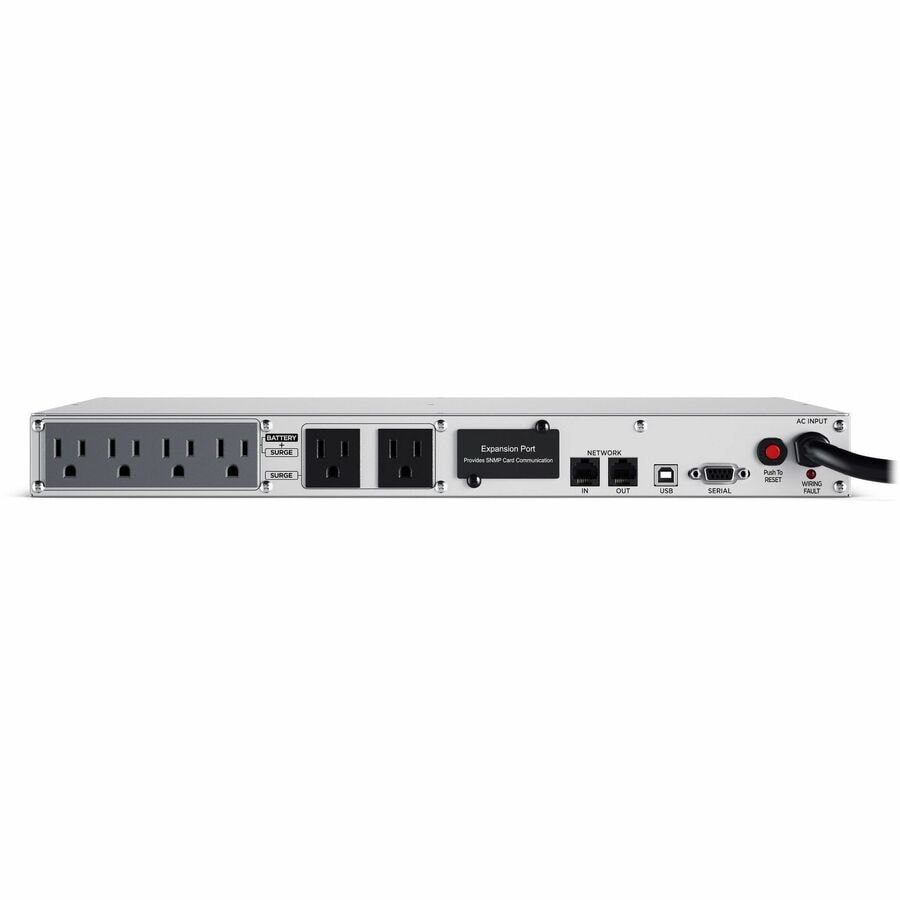

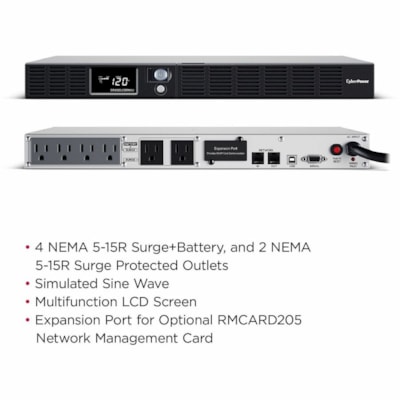

  • Receptacle Detail : 6 x NEMA 5-15R
  • Number of Battery & Surge Outlets : 4
  • Number of Surge-only Outlets : 2
  • Dataline Protection : RJ-45
  • Overload Protection : Yes
  • Transfer Time : 8 ms
  • EMI/RFI Noise Filter : Yes
  • Energy Saving : GreenPower UPS™ Bypass Technology
  • Application/Usage : Workstation,Server,Network Device,Telecommunication
  • Load Capacity (VA) : 1 kVA
  • Load Capacity (Watt) : 600 W
  • Input Voltage : 120 V AC
  • Input Voltage Range : 90 V AC - 140 V AC
  • Input Frequency : 63 Hz
  • Output Frequency : 60 Hz
  • Waveform Type : Simulated Sine Wave
  • Surge Energy Rating : 1150 J
  • Network Management : SNMP Manageable
  • Alarm : Low Battery,Fault,Overload,Battery Mode
  • Serial Port : Yes
  • USB : Yes
  • USB (HID Compliant) Port : Yes
  • Number of Batteries : 4
  • Battery Characteristics : Maintenance-free
  • Battery Chemistry : Lead Acid
  • Battery Size : 6V
  • Battery Capacity : 7000 mAh
  • Backup/Run Time (Full Load) : 3 Minute
  • Backup/Run Time (Half Load) : 13 Minute
  • Battery Life : 6 Year
  • Hot Swappable : Yes
  • Typical Battery Recharge Time : 8 Hour
  • Replaceable Battery : Yes
  • Maximum Operating Elevation : 10000 ft (3048000 mm)
  • Maximum Storage Elevation : 50000 ft (15240000 mm)
  • Maximum Operating Temperature : 95°F (35°C)
  • Product Color : Black

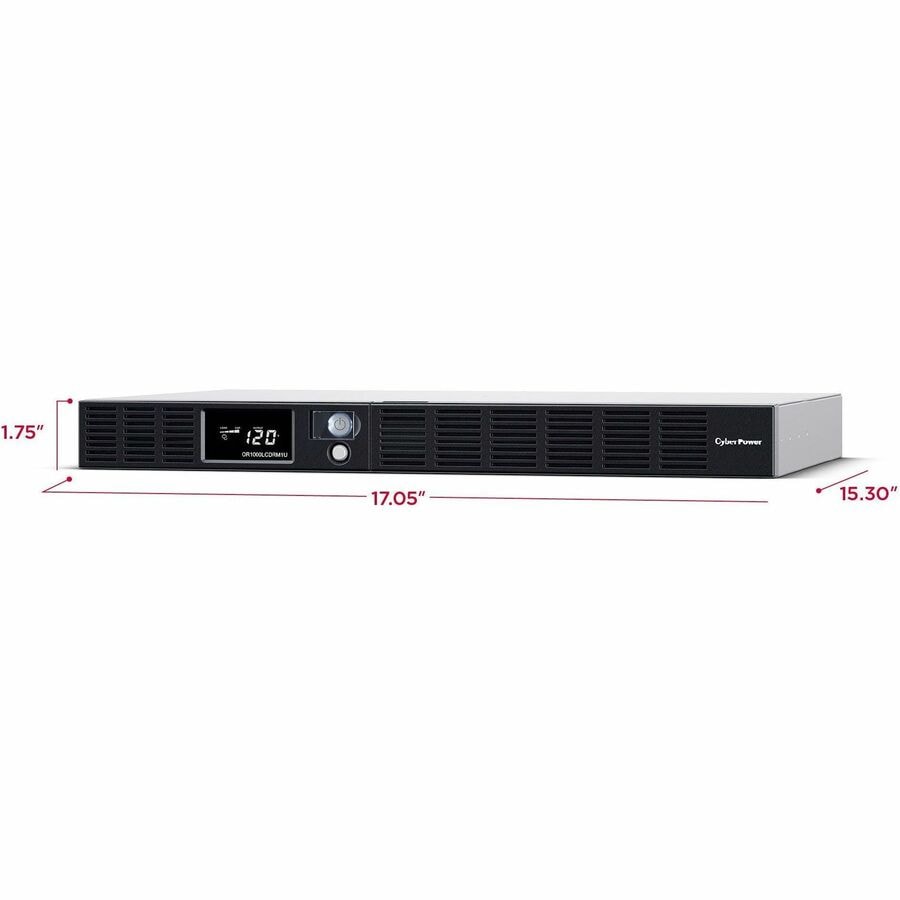

  • Height : 1.75" (44.45 mm)
  • Width : 17.05" (433.07 mm)
  • Depth : 15.30" (388.62 mm)
  • Rack Height : 1U
  • Form Factor : Rack-mountable
  • Weight (Approximate) : 30.20 lb (13698.49 g)
  • Package Contents :
    • Smart App Intelligent LCD OR1000LCDRM1U 1000VA UPS
    • User's Manual
    • Rackmount Brackets
    • USB A+B Type Cable
  • Software Included : PowerPanel Business Edition Software
  • Energy Star : Yes
  • Country of Origin : China
  • Environmentally Friendly : Yes
  • Environmental Compliance : Restriction of Hazardous Substances (RoHS)
  • Limited Warranty : 3 Year
  • Capacity: 1000 VA / 600 W
  • Topology: Line Interactive
  • Waveform: Simulated Sine Wave
  • Output: 120 VAC ± 10%
  • Plug type & cord: NEMA 5-15P, 10 ft. cord
  • Outlet types: 6 × NEMA 5-15R
  • Communication: USB, Relay, SNMP
  • Management software: PowerPanel® Business
  • Remote management: Yes, with optional RMCARD205
  • Warranty: 3 year

SPECIFICATIONS

Manufacturer CyberPower Systems, Inc
Manufacturer Part Number OR1000LCDRM1U
Manufacturer Website Address https://www.cyberpowersystems.com/
Brand Name CyberPower
Product Series Smart App LCD UPS
Product Model OR1000LCDRM1U
Product Name Smart App LCD OR1000LCDRM1U 1000VA Rack-mountable UPS
Product Type Line-interactive UPS
AVR Yes
Plug/Connector Type NEMA 5-15P
Receptacle Type NEMA 5-15R
Receptacle Detail 6 x NEMA 5-15R
Number of Battery & Surge Outlets 4
Number of Surge-only Outlets 2
Dataline Protection RJ-45
Protection Type Black Out
Protection Type Sag
Protection Type Dataline Surge
Protection Type AC Surge
Overload Protection Yes
Bypass Switch Not Provided
Emergency Power OFF No
Transfer Time 8 ms
EMI/RFI Noise Filter Yes
Energy Saving GreenPower UPS™ Bypass Technology
Application/Usage Server
Application/Usage Workstation
Application/Usage Network Device
Application/Usage Telecommunication
Load Capacity (VA) 1 kVA
Load Capacity (Watt) 600 W
Input Voltage 120 V AC
Input Voltage Range 90 V AC - 140 V AC
Input Frequency 63 Hz
Output Frequency 60 Hz
Waveform Type Simulated Sine Wave
Surge Energy Rating 1150 J
Network Management SNMP Manageable
Alarm Battery Mode
Alarm Overload
Alarm Low Battery
Alarm Fault
Status Indicators

On Unit:

  • Power On
  • Wiring Fault

LCD Panel:

  • Input Voltage
  • Output Voltage
  • Battery Capacity
  • Load Level
  • Runtime
  • On Battery
  • Overload
  • Silent Mode
Serial Port Yes
USB Yes
USB (HID Compliant) Port Yes
Number of Batteries 4
Battery Characteristics Maintenance-free
Battery Chemistry Lead Acid
Battery Size 6V
Battery Capacity 7000 mAh
Backup/Run Time (Full Load) 3 Minute
Backup/Run Time (Half Load) 13 Minute
Battery Life 6 Year
Typical Battery Recharge Time 8 Hour
Hot Swappable Yes
Replaceable Battery Yes
Maximum Operating Temperature 95°F (35°C)
Maximum Operating Elevation 10000 ft (3048000 mm)
Maximum Storage Elevation 50000 ft (15240000 mm)
Color Family Black
Product Color Black
Height 1.75" (44.45 mm)
Width 17.05" (433.07 mm)
Depth 15.30" (388.62 mm)
Rack Height 1U
Form Factor Rack-mountable
Weight (Approximate) 30.20 lb (13698.49 g)
Package Contents
  • Smart App Intelligent LCD OR1000LCDRM1U 1000VA UPS
  • User's Manual
  • Rackmount Brackets
  • USB A+B Type Cable
Additional Information
  • Replacement Battery Cartridge Quantity | 1
  • Adjustable Voltage Range | 88 - 144 VAC
  • Circuit Breaker | 15A
  • Plug Style | Straight
  • Automatic Voltage Regulation | Single Boost
  • Network Protection RJ45 | 1-in / 1-Out (10/100/1000)
  • LCD | Multifunction LCD
  • Management Cable | USB Cable
  • Serial Port | 1 Dry Contact
  • SNMP / HTTP Remote Monitoring | Yes - with optional RMCARD205
  • Material of Construction | Metal
  • Operating Relative Humidity | 0 - 95 % (non-condensing)
  • Storage Relative Humidity | 0 - 95% (non-condensing)
Certifications & Standards
  • FCC Class B certified
  • cUL
  • UL 1778
Software Included PowerPanel Business Edition Software
Energy Star Yes
Country of Origin China
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)
Limited Warranty 3 Year
Additional Warranty Information

CyberPower stands behind its products by offering an industry leading 3-year warranty. CyberPower also has a #1 rated technical support team that will assist you with product, installation, or warranty concerns --- Free of charge.

Directly Connected Equipment Guarantee $300000
