Ergotron StyleView 45-273-026 Multi Component Mount for Flat Panel Display, Keyboard, CPU - Polished Aluminum - Height Adjustable - 1 Display(s) Supported - 24" Screen Support - 29 lb (13154.18 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Plastic

45-273-026
Also known as SY4753825

Ergotron StyleView 45-273-026 Multi Component Mount for Flat Panel Display, Keyboard, CPU - Polished Aluminum - Height Adjustable - 1 Display(s) Supported - 24" Screen Support - 29 lb (13154.18 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Plastic Sit-Stand Combo System with Sm all CPU Holder (poli

New! Log in or create an account to see price and availability


MARKETING INFORMATION

With Small Black CPU Holder. This complete system provides easy re-positioning of your entire workstation-move your display, keyboard, mouse and barcode scanner in a single motion!

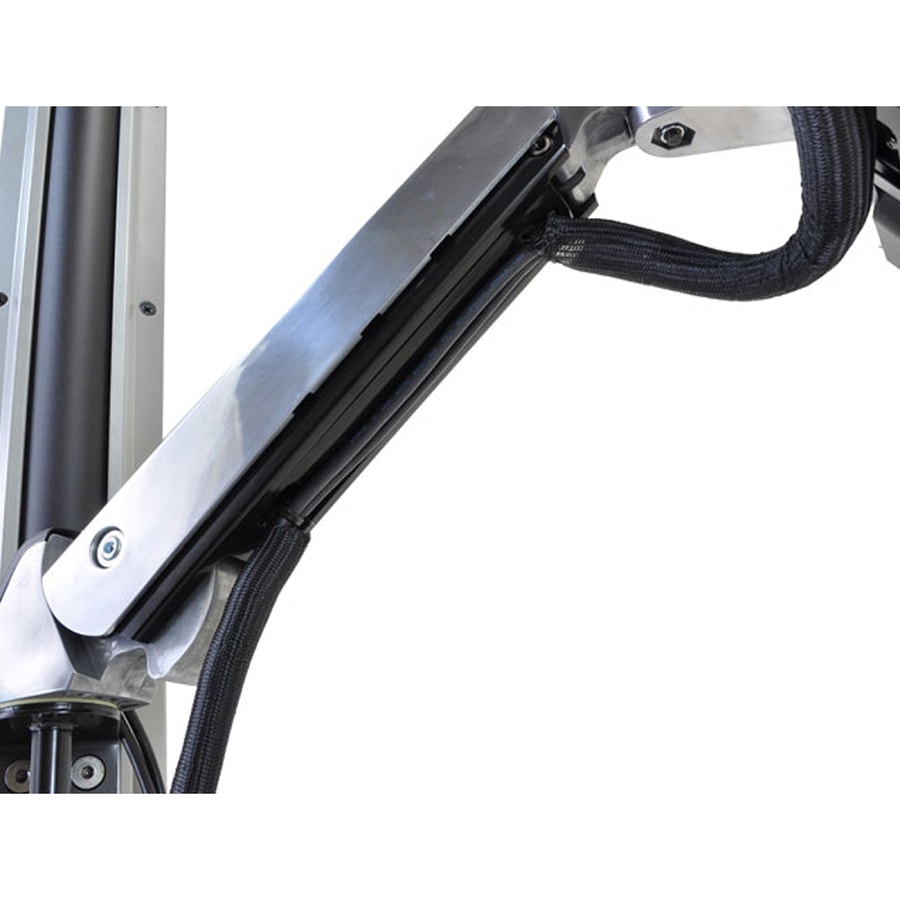

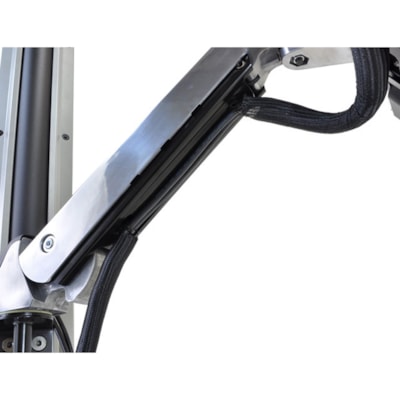

Durable polished aluminum construction! Work sitting or standing with the arm's ergonomic 25" (64 cm) LCD height adjustment range. A unique cable management system conceals and organizes cords, making cleaning easy.

DETAILS

  • Device Supported : Flat Panel Display,Keyboard,CPU
  • Number of Displays Supported : 1
  • Maximum Load Capacity : 29 lb (13154.18 g)
  • Maximum Screen Size Supported : 24"
  • Height Adjustable : Yes
  • Features : Tilt,Swivel,Durable,Locking System
  • Color Family : Gray
  • Product Color : Polished Aluminum
  • Product Material : Plastic
  • VESA Mount Compatible : Yes
  • Mounting Pattern : 75 x 75,100 x 100
  • Weight (Approximate) : 36.80 lb (16692.20 g)
  • Country of Origin : China
  • Limited Warranty : 5 Year
  • Sustains a maximum load capacity of 29 lb (13154.18 g)
  • Compatible with the screen size of 24"

SPECIFICATIONS

Manufacturer Ergotron, Inc
Manufacturer Part Number 45-273-026
Manufacturer Website Address http://www.ergotron.com
Brand Name Ergotron
Product Line StyleView
Product Model 45-273-026
Product Name StyleView Sit-Stand Combo System (Polished Aluminum)
Product Type Multi Component Mount
Device Supported Flat Panel Display
Device Supported CPU
Device Supported Keyboard
Number of Displays Supported 1
Maximum Load Capacity 29 lb (13154.18 g)
Maximum Screen Size Supported 24"
Features Locking System
Features Swivel
Features Tilt
Features Durable
Height Adjustable Yes
Color Family Gray
Product Color Polished Aluminum
VESA Mount Compatible Yes
Mounting Pattern 75 x 75
Mounting Pattern 100 x 100
Product Material Plastic
Weight (Approximate) 36.80 lb (16692.20 g)
Package Contents
  • HD Combo Arm
  • 34 Inch Wall Track with 2 x Black Track Covers
  • Small Black CPU Holder
  • CPU Spacer
  • 2 x 10 Inch Cable Channels
  • CPU and Arm Track Mount Bracket Kit
  • CPU Direct Wall Mount Kit
  • LCD Mount
  • Wrist Rest
  • Scanner and Mouse Holder
  • VESA Monitor Mounting Kit
  • Cable Ties
Additional Information
  • Flexible, open-architecture design is scalable for future computer equipment
  • Comfortable, ergonomic data entry work sitting or standing with 20" single-motion lift adjustment
  • Five-inch independent LCD height adjustment ergonomically accommodates individual users
  • Easy-to-clean features promote superior infection control
  • Barcode scanner holder provides easy access to hand-held scanner
  • Maintains the relative position of screen and keyboard throughout full range of motion
  • Weight Capacity: display = 6-18 lbs or up to 25 lbs; keyboard, mouse and barcode scanner = 4 lbs; CPU = 50 lbs
  • Monitor up/down tilt = +25°/-5°
  • Keyboard tray is 18.6"W x 9"D (47.2 x 22.8 cm)
Certifications & Standards

VESA:

  • FDMI
  • MIS-D
  • C (hole patterns = 100 x 100 mm and 75 x 75 mm)
Country of Origin China
Limited Warranty 5 Year
