StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter - Add 2 FireWire-800 and 1 FireWire-400 port through a Mini PCI Express slot

MPEX1394B3
Also known as SY4694264

StarTech.com 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter - Add 2 FireWire-800 and 1 FireWire-400 port through a Mini PCI Express slot ress FireWire Card Adapter FireWire 800)

New! Log in or create an account to see price and availability


MARKETING INFORMATION

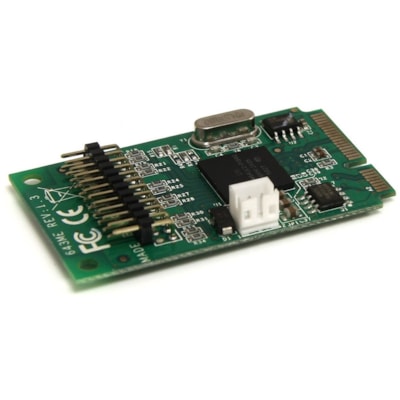

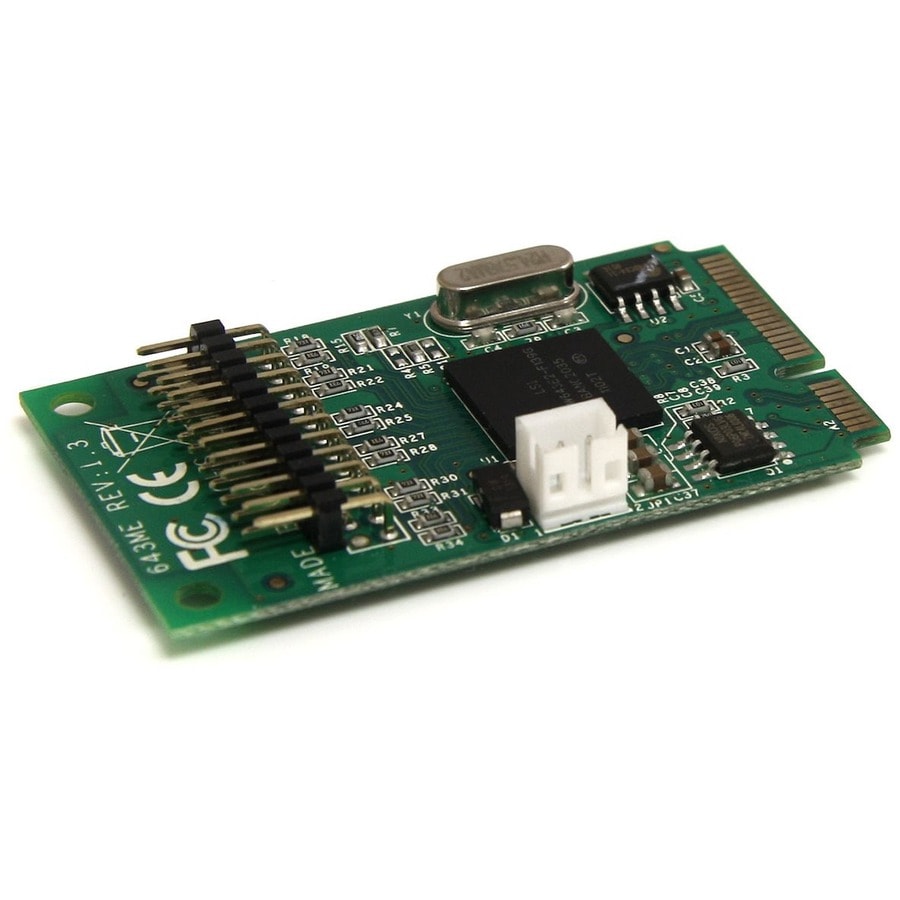

The MPEX1394B3 3-Port Mini PCI Express FireWire Card is a PCI Express to FireWire-800/FireWire-400 adapter that enables you to add external FireWire connectivity on very small form factor or embedded systems. The PCIe FireWire card provides two FireWire-800 ports and one FireWire-400 port, this adapter card supports the latest external FireWire storage devices at data transfer speeds of up to 800 Mbps.
Using the Mini PCI Express (Mini Card) form factor, this adapter card is designed for use in the latest very small form factor computer systems, such as Mini-ITX or custom embedded solutions where a full-sized PCI Express card would not fit.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.

More from the Manufacturer

More from the Manufacturer

DETAILS

  • Host Interface : Mini PCI Express
  • Data Transfer Rate : 400 MB/s,800 MB/s
  • Total Number of FireWire/i.LINK Ports : 3
  • Number of FireWire/i.LINK 400 Ports : 1
  • Number of FireWire/i.LINK 800 Ports : 2
  • Operating System Supported : Windows 2000,Windows XP,Windows Vista,Windows 7,Windows 8,Windows 8.1,Windows 10,Windows 11,Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019,Windows Server 2022,Mac OS X 10.6 Snow Leopard,Mac OS X 10.8 Mountain Lion,Mac OS X 10.10 Yosemite,Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.13 High Sierra,Mac OS X 10.14 Mojave,Mac OS X 10.15 Catalina,Mac OS X 11.0 Big Sur,Mac OS X 12.0 Monterey,Mac OS X 13.0 Ventura,Linux 3.5.x
  • Form Factor : Plug-in Card
  • Height : 0.20" (5.08 mm)
  • Width : 1.20" (30.48 mm)
  • Length : 2" (50.80 mm)
  • Weight (Approximate) : 3.20 oz (90.72 g)
  • Platform Supported : PC,Linux
  • Country of Origin : Taiwan
  • TAA Compliant : Yes
  • Environmentally Friendly : Yes
  • Limited Warranty : 2 Year
  • 2 external 9-pin FireWire-800 ports with support for data transfer rates up to 800 Mbps
  • 1 external 6-pin FireWire-400 port with supported transfer rates up to 400 Mbps
  • Compliant with PCI Express Mini Card specification 1.2
  • Optional external power support for high-powered FireWire devices
  • Compliant with IEEE 1394b and backward compatible with IEEE 1394a - 2000 as well as 1394-1995 standards
  • Plug-and-Play and hot-swap compatible

SPECIFICATIONS

Manufacturer StarTech.com
Manufacturer Part Number MPEX1394B3
Manufacturer Website Address http://www.startech.com
Brand Name StarTech.com
Product Name 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter
Packaged Quantity 1 Each
Product Type FireWire Adapter
Host Interface Mini PCI Express
Data Transfer Rate 400 MB/s
Data Transfer Rate 800 MB/s
Total Number of FireWire/i.LINK Ports 3
Number of FireWire/i.LINK 400 Ports 1
Number of FireWire/i.LINK 800 Ports 2
Operating System Supported Mac OS X 10.6 Snow Leopard
Operating System Supported Mac OS X 10.8 Mountain Lion
Operating System Supported Mac OS X 10.10 Yosemite
Operating System Supported Mac OS X 10.11 El Capitan
Operating System Supported Mac OS X 10.12 Sierra
Operating System Supported Mac OS X 10.13 High Sierra
Operating System Supported Mac OS X 10.14 Mojave
Operating System Supported Mac OS X 10.15 Catalina
Operating System Supported Mac OS X 11.0 Big Sur
Operating System Supported Mac OS X 12.0 Monterey
Operating System Supported Mac OS X 13.0 Ventura
Operating System Supported Linux 3.5.x
Operating System Supported Windows Server 2022
Operating System Supported Windows Server 2016
Operating System Supported Windows Server 2012
Operating System Supported Windows Server 2008 R2
Operating System Supported Windows Server 2003
Operating System Supported Windows 11
Operating System Supported Windows 10
Operating System Supported Windows 8.1
Operating System Supported Windows 8
Operating System Supported Windows 7
Operating System Supported Windows Vista
Operating System Supported Windows XP
Operating System Supported Windows 2000
Operating System Supported Windows Server 2019
Form Factor Plug-in Card
Height 0.20" (5.08 mm)
Width 1.20" (30.48 mm)
Length 2" (50.80 mm)
Weight (Approximate) 3.20 oz (90.72 g)

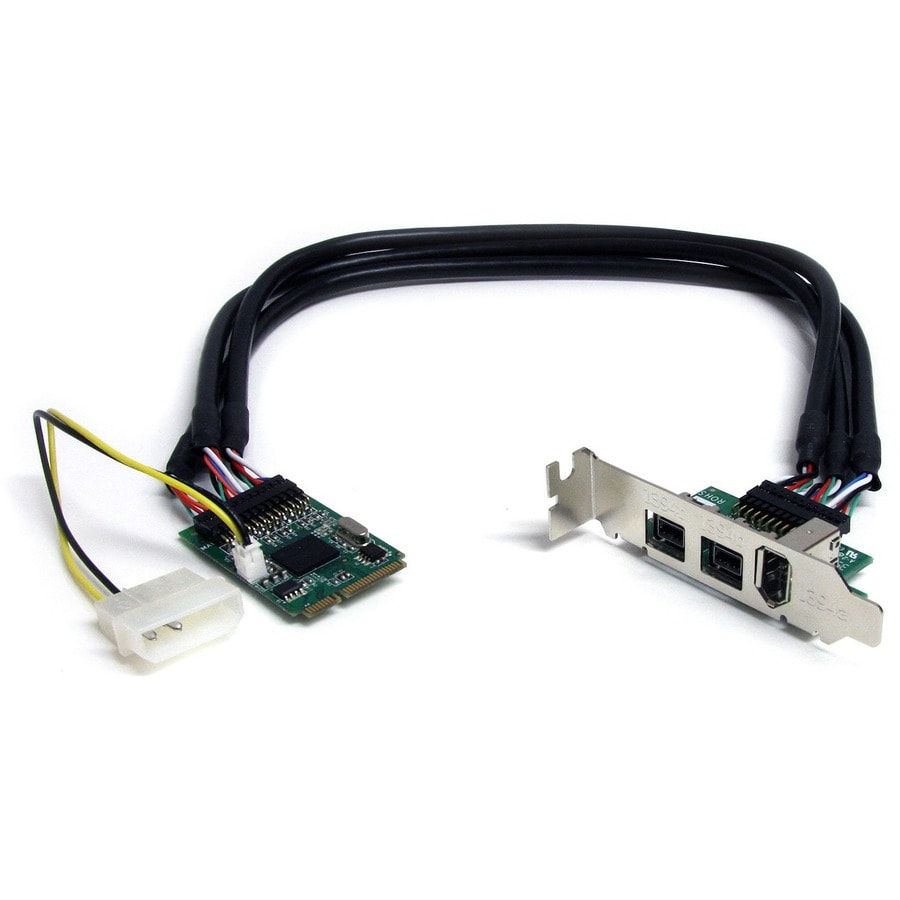

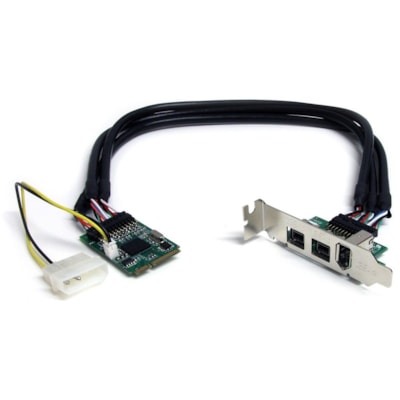

Package Contents
  • 3 Port 2b 1a 1394 Mini PCI Express FireWire Card Adapter
  • 1 x Internal Data Cable

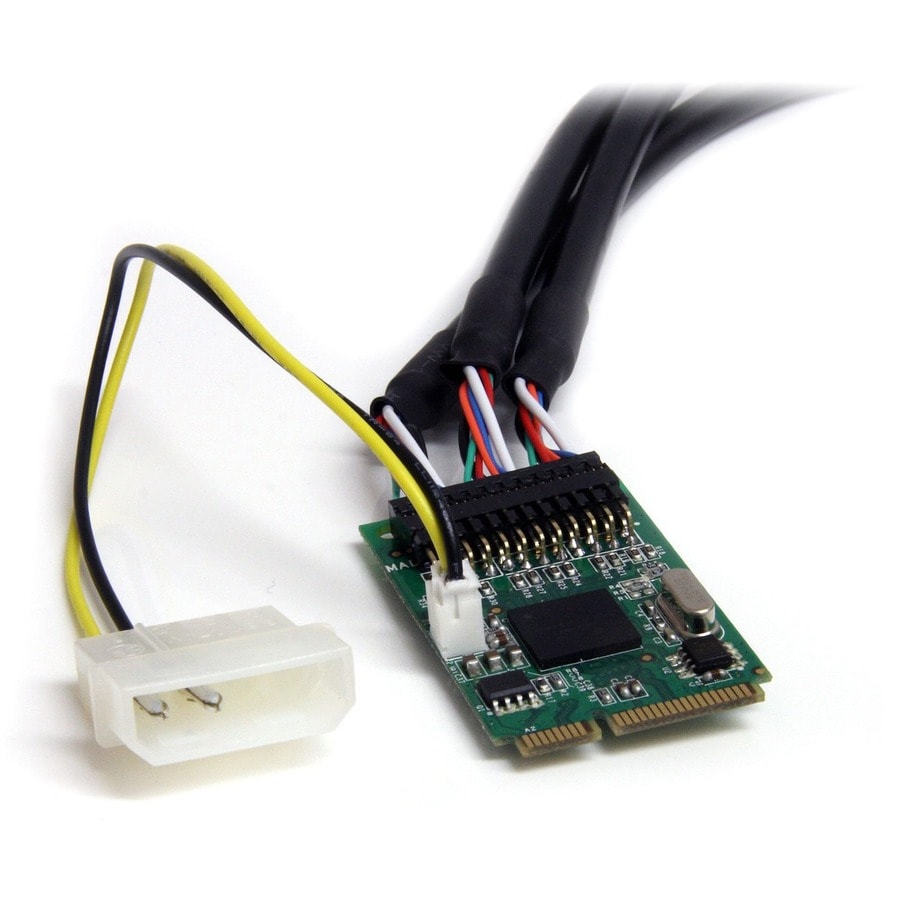

  • 1 x 4xpin LP4 Molex Adapter Cable

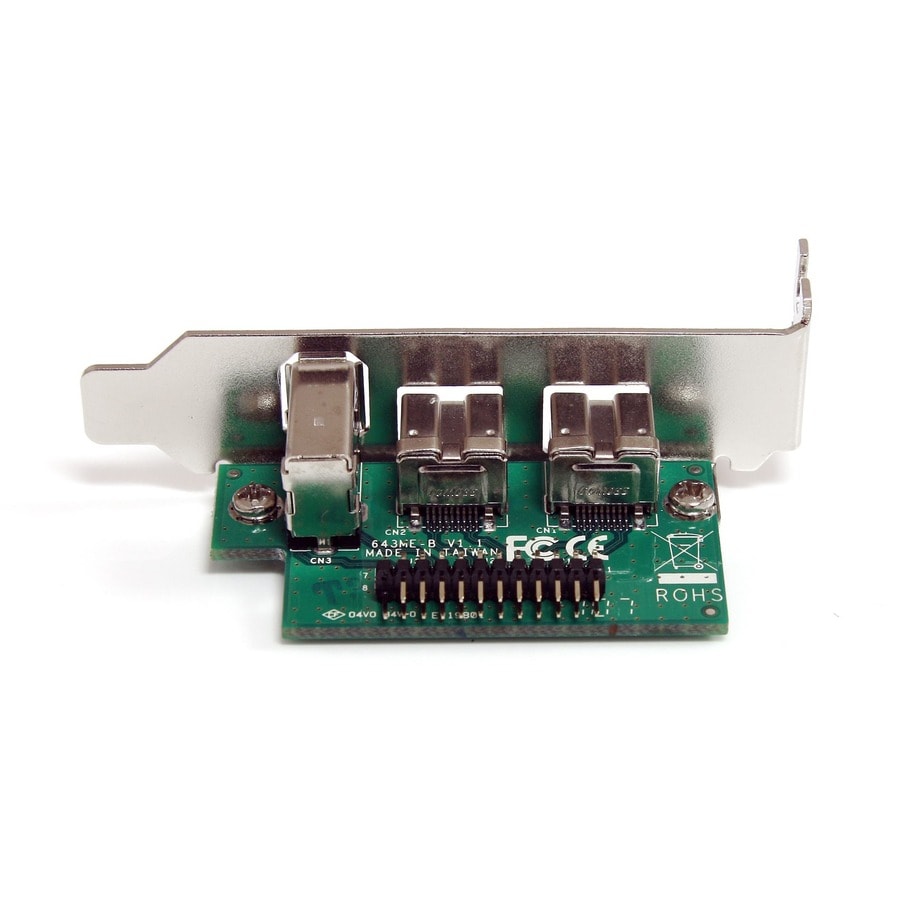

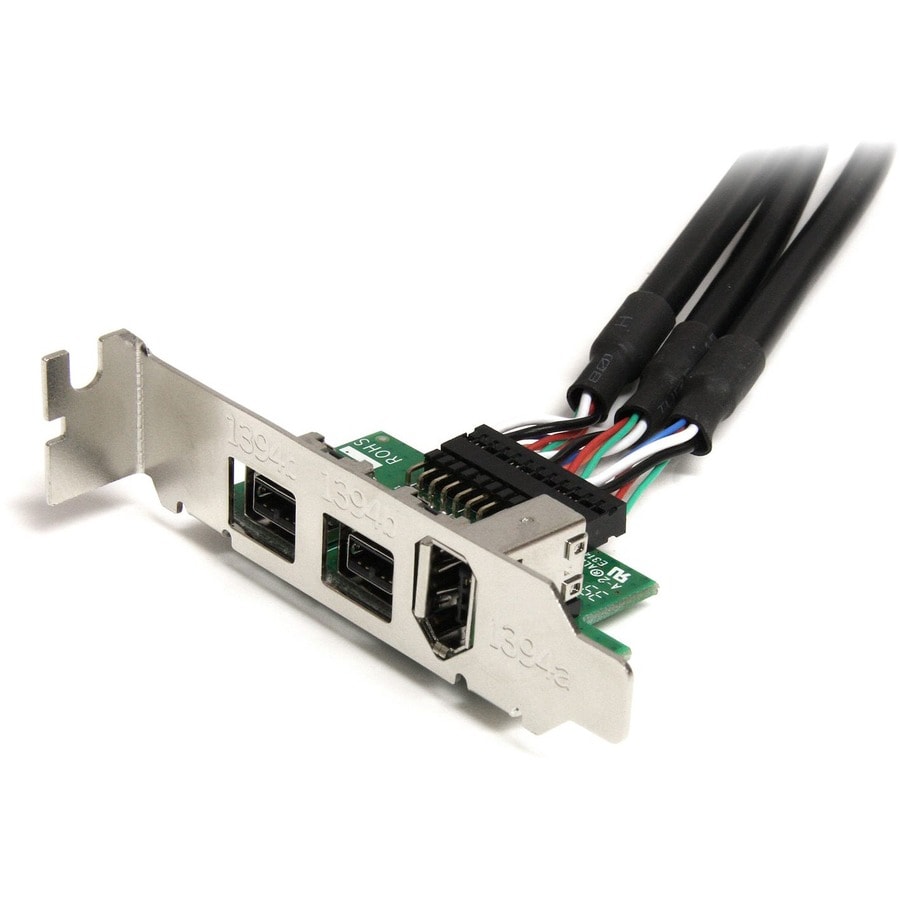

  • 1 x Full Profile Bracket
  • 1 x Video Editing Software CD
  • 1 x Instruction Manual
Additional Information
  • A Mini PCI Express form factor designed for use in some small form factor and embedded systems
  • Backed by a StarTech.com 2-year warranty and free lifetime technical support

OS Compatibility:

  • Windows® 2000, XP, Vista, 7, 8, 8.1, 10, 11
  • Windows Server® 2003, 2008 R2, 2012, 2016, 2019
  • macOS 10.6 to 10.15, 11.0, 12.0, 13.0
  • Linux 3.5.x and up - LTS Versions only
Platform Supported Linux
Platform Supported PC
Country of Origin Taiwan
TAA Compliant Yes
Environmentally Friendly Yes
Limited Warranty 2 Year
