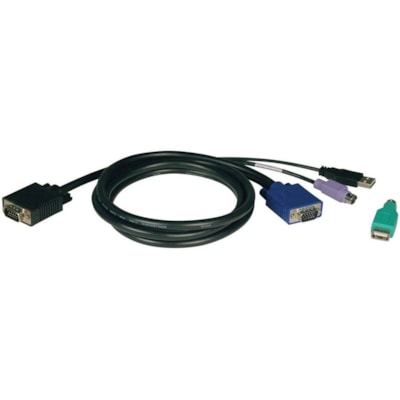

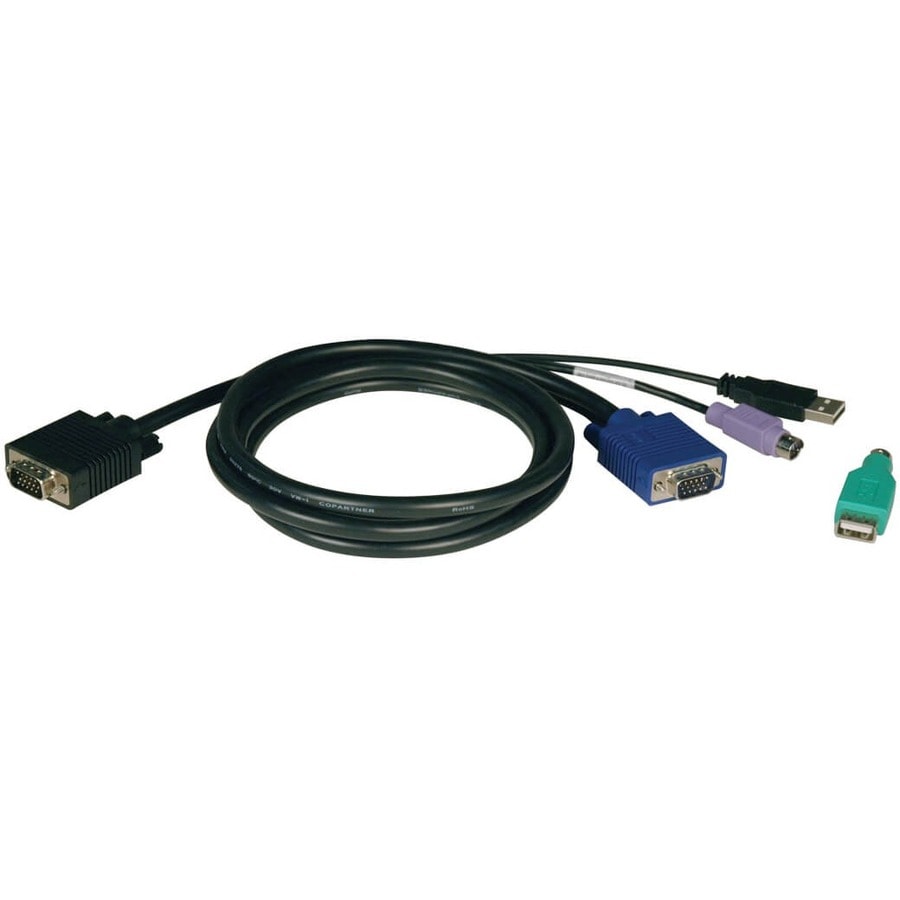

Tripp Lite P780-010 KVM Cable - HD-15 Male - HD-15 Male, mini-DIN (PS/2) Male, Type A Male USB - 3.05m
P780-010
Also known as SY4645801
MARKETING INFORMATION
Tripp Lite's 10-ft. USB/PS2 (All-in-1) KVM cable kit is designed to connect a USB or PS/2 computer to Tripp Lite's NetController KVM Switches (B042-Series KVM Switches). This premium All-in-1 cable provides superior performance and cable management. The KVM Switch side of the cable kit consists of a HD15 Male cable. The computer side of the cable kit consists of a HD15 Male cable, a PS/2 (MiniDIN6) Male Keyboard cable, a USB A Male cable and a USB A Female to PS/2 (MiniDIN6) Male Adapter. All cables are manufactured from superior molded cabling with integral strain relief and foil shielding for maximum EMI/RFI protection. Tripp Lite warrants this product to be free from defects in materials and workmanship for life.
DETAILS
- Cable Length : 10 ft (3.05 m)
- Connector Type on First End : HD-15 - Male
- Connector on First End Details : 1 x 15-pin HD-15 - Male
- Connector Type on Second End : HD-15 - Male,Mini-DIN (PS/2) - Male,USB Type A - Male
- Connector on Second End Details : 1 x 15-pin HD-15 - Male,1 x Mini-DIN (PS/2) - Male,1 x USB Type A - Male
- Device Supported : Computer,KVM Switch
- Features : Molded
- Color Family : Black
- Product Color : Black
- Package Contents :
- P780-010 KVM Cable
- 10 ft. USB/PS2 All-in-1 KVM Cable Kit
- Compatibility :
Tripp Lite B042-Series KVM Switches
- Country of Origin : China
- Limited Warranty : Lifetime
- Connects a USB or PS/2 Computer to Tripp Lite's NetController KVM Switches (B042-Series KVM Switches)
- All-in-1 construction and slim size makes management and organization of cables much easier
- KVM Switch side of the cable kit consists of a HD15 Male cable
- Computer side of the cable kit consists of a HD15 Male cable, a PS/2 (MiniDIN6) Male Keyboard cable, a USB A Male cable and a USB A Female to PS/2 (MiniDIN6) Male Adapter
- Molded, color-coded connectors
SPECIFICATIONS
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | P780010 |
| Manufacturer Website Address | http://www.eaton.com/EatonCom/Markets/NorthAmerica |
| Brand Name | Tripp Lite series |
| Product Model | P780-010 |
| Product Name | P780-010 KVM Cable |
| Product Type | KVM Cable |
| Cable Length | 10 ft (3.05 m) |
| Connector Type on First End | HD-15 - Male |
| Connector on First End Details | 1 x 15-pin HD-15 - Male |
| Connector Type on Second End | USB Type A - Male |
| Connector Type on Second End | Mini-DIN (PS/2) - Male |
| Connector Type on Second End | HD-15 - Male |
| Connector on Second End Details | 1 x Mini-DIN (PS/2) - Male |
| Connector on Second End Details | 1 x USB Type A - Male |
| Connector on Second End Details | 1 x 15-pin HD-15 - Male |
| Conductor | Copper |
| Device Supported | KVM Switch |
| Device Supported | Computer |
| Features | Molded |
| Color Family | Black |
| Product Color | Black |
| Shipping Height | 10" (254 mm) |
| Shipping Width | 8" (203.20 mm) |
| Shipping Weight (Approximate) | 10.88 oz (308.44 g) |
| Package Contents |
|
| Additional Information |
|
| Compatibility | Tripp Lite B042-Series KVM Switches |
| Country of Origin | China |
| Limited Warranty | Lifetime |
