StarTech.com USB to Serial Adapter - 2 Port - RS232 RS422 RS485 - COM Port Retention - FTDI USB to Serial Adapter - USB Serial - Add RS232, RS422 and RS485 support to your laptop or desktop computer via USB - USB to RS232 RS422 RS485 - USB to Serial - USB to DB9 - USB to serial Adapter - USB to seri
ICUSB2324852
Also known as SY4638052
MARKETING INFORMATION

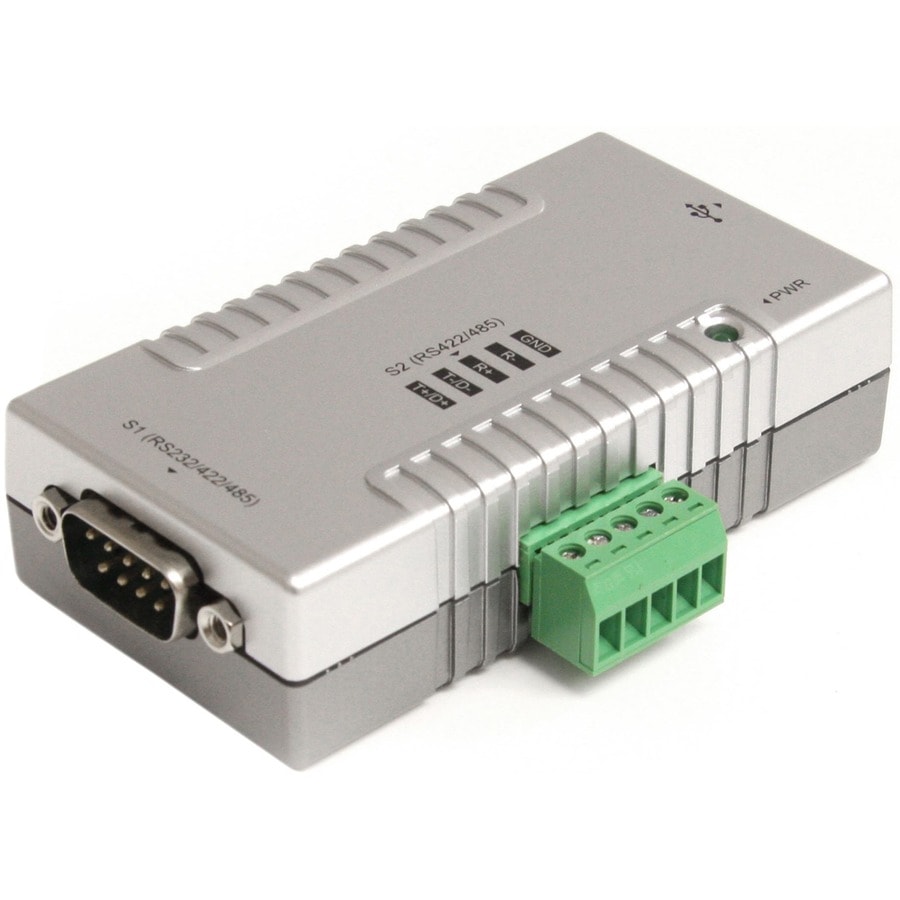

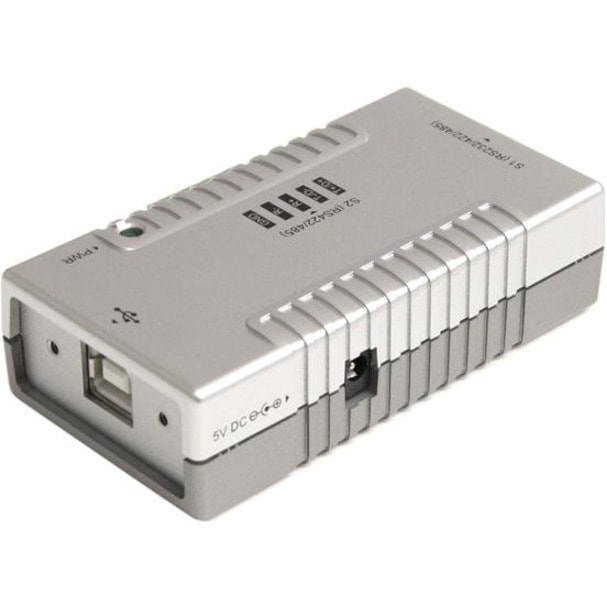

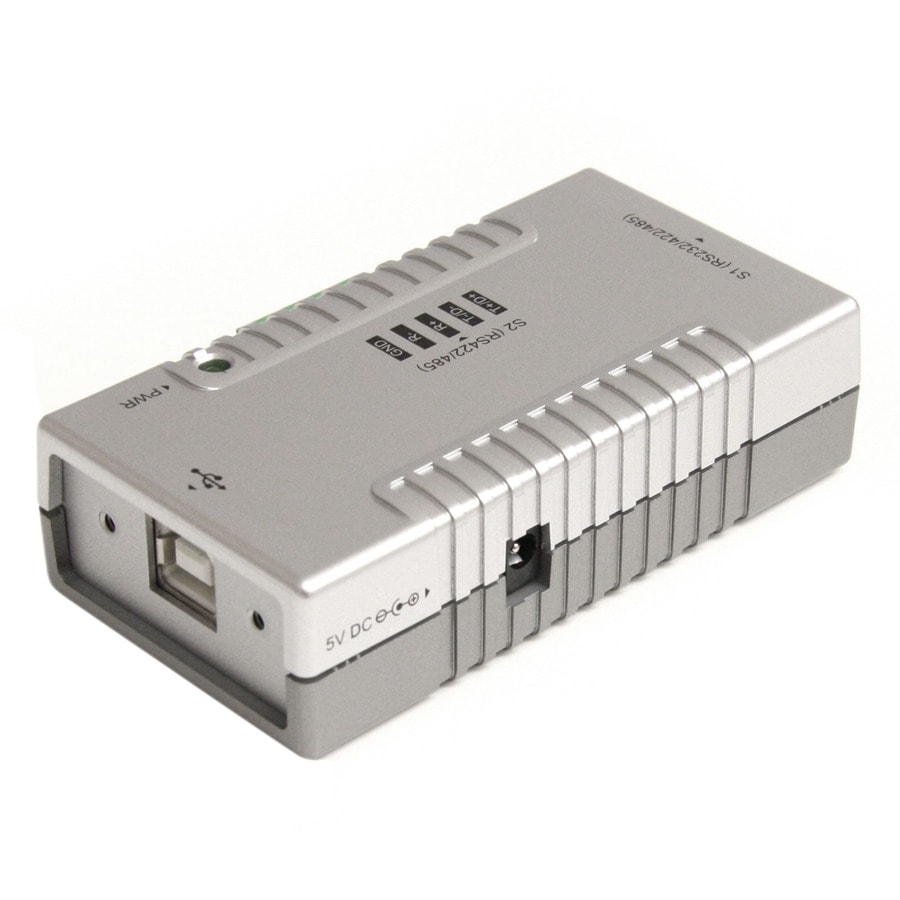

The ICUSB2324852 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention lets you connect every type of serial device to your USB-enabled computer, whether it be for RS232, RS422, or RS485 communication. The adapter features a 9-pin (DB9) male and a 5-pin terminal block serial connector as well as dip-switch controls for easy port configuration with minimal software requirements. The adapter also supports using 2 ports simultaneously, including with mixed protocols; for example RS-232 on port 1, and RS-485 on port 2, or a number of other combinations.
For a convenient, and clean installation in office or industrial settings, the RS232/RS422/RS485 USB Adapter is wall-mountable and fully powered via the host USB connection, providing power to the attached serial device without requiring an external power adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
More from the Manufacturer
DETAILS
- Host Interface : USB 2.0
- Platform Supported : PC
- Number of Serial Ports (External) : 1
- Number of USB Ports : 1
- Form Factor : External
- Height : 0.90" (22.86 mm)
- Width : 1.70" (43.18 mm)
- Weight (Approximate) : 10.58 oz (300 g)
- Package Contents :
- 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention
- Wall Mounting Bracket
- USB A to B Cable
- Driver CD
- Installation Guide
- Environmentally Friendly : Yes
- Environmental Compliance : Restriction of Hazardous Substances (RoHS),Waste Electrical and Electronic Equipment Directive (WEEE),Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Country of Origin : Taiwan
- TAA Compliant : Yes
- Limited Warranty : 2 Year
- Backwards compatible with USB 1.1
- Both ports can function simultaneously with mixed or matched communication protocols
- USB-powered; No additional external power adapter required
- Includes a bracket for wall mounting the USB to Serial adapter
- Features rugged screw-lock USB port to ensure cords are not accidentally disconnected
- Ability to rename devices for easy recognition
- COM Port assignments maintained after reboot
- Port 1 (DB9) configurable for RS232, RS422, or RS485; Port 2 (Terminal Block) configurable for RS422 or RS485
- Multiple interface modes, including: 4 wire RS422(TxD+/-, RxD+/-), and 2 wire RS485 (DATA+, DATA-)
- Supports RS-485 Auto Transceiver Turn Around by Unique Featured ATTA Hardware
SPECIFICATIONS
| Manufacturer | StarTech.com |
| Manufacturer Part Number | ICUSB2324852 |
| Manufacturer Website Address | http://www.startech.com |
| Brand Name | StarTech.com |
| Product Name | 2 Port USB to RS232 RS422 RS485 Serial Adapter with COM Retention |
| Packaged Quantity | 1 |
| Product Type | Serial Adapter |
| Host Interface | USB 2.0 |
| Data Transfer Rate | 921.6kB/s |
| Platform Supported | PC |
| Number of Serial Ports (External) | 1 |
| Number of USB Ports | 1 |
| Form Factor | External |
| Height | 0.90" (22.86 mm) |
| Width | 1.70" (43.18 mm) |
| Length | 3.24" (82.30 mm) |
| Weight (Approximate) | 10.58 oz (300 g) |
| Package Contents |
|
| Additional Information | OS Compatibility:
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Registration, Evaluation, Authorization and Restriction of Chemicals (REACH) |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Country of Origin | Taiwan |
| TAA Compliant | Yes |
| Limited Warranty | 2 Year |
