Ergotron StyleView 60-609-216 Lift for Flat Panel Display, Keyboard, Monitor - White - 24" Screen Support - 33 lb (14968.55 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Steel

60-609-216
Also known as SY4627443

Ergotron StyleView 60-609-216 Lift for Flat Panel Display, Keyboard, Monitor - White - 24" Screen Support - 33 lb (14968.55 g) Load Capacity - 75 x 75, 100 x 100 - VESA Mount Compatible - Steel FT PATIENT ROOM (WHITE)

New! Log in or create an account to see price and availability


MARKETING INFORMATION

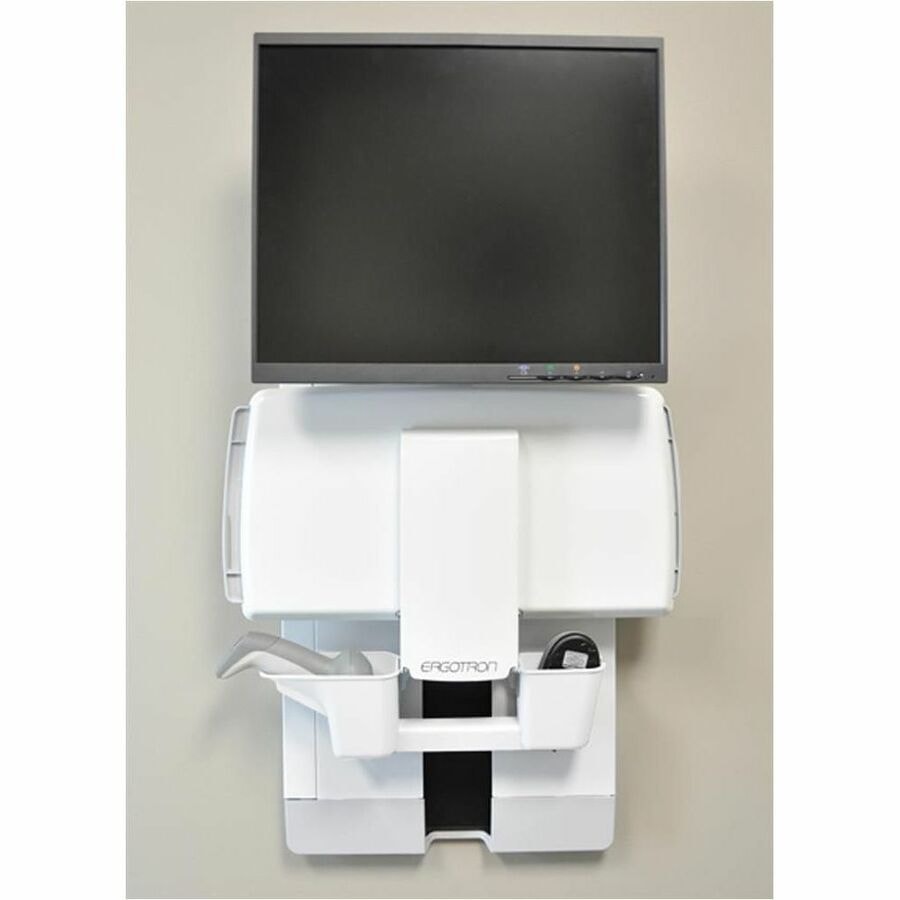

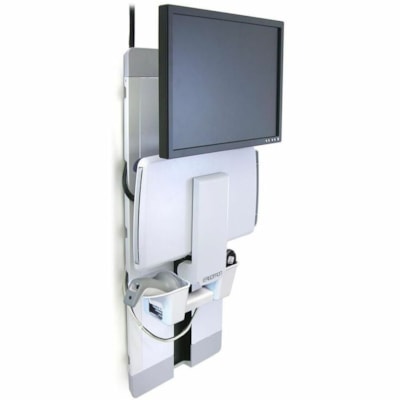

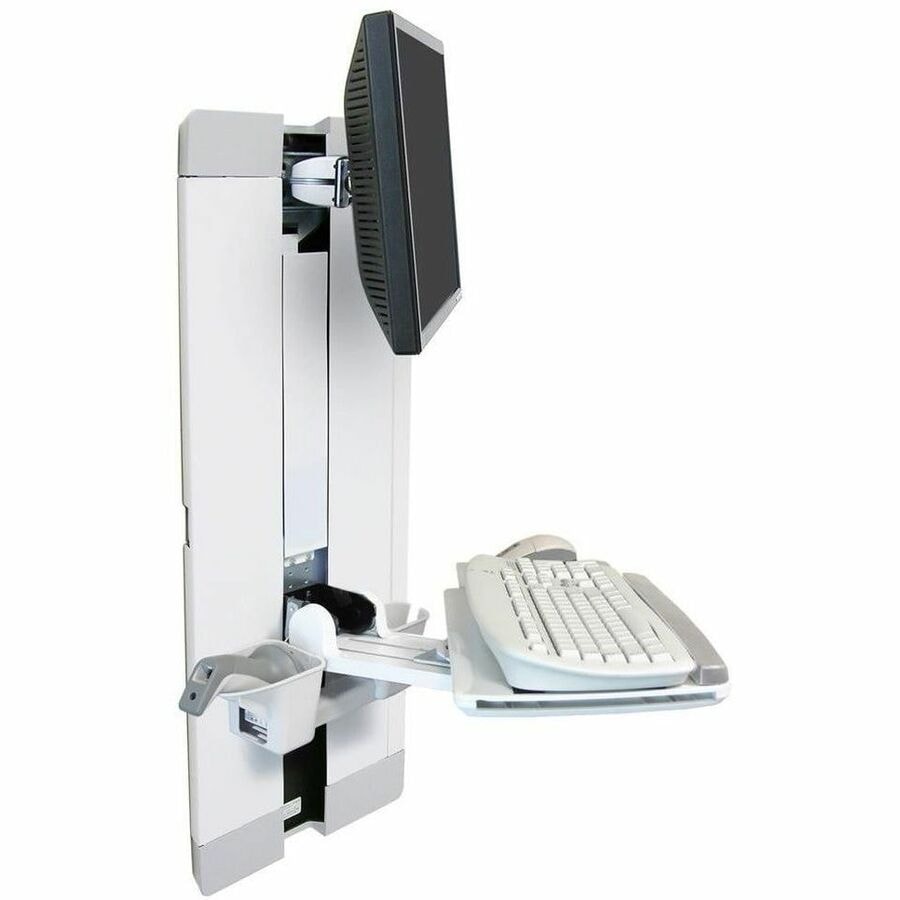

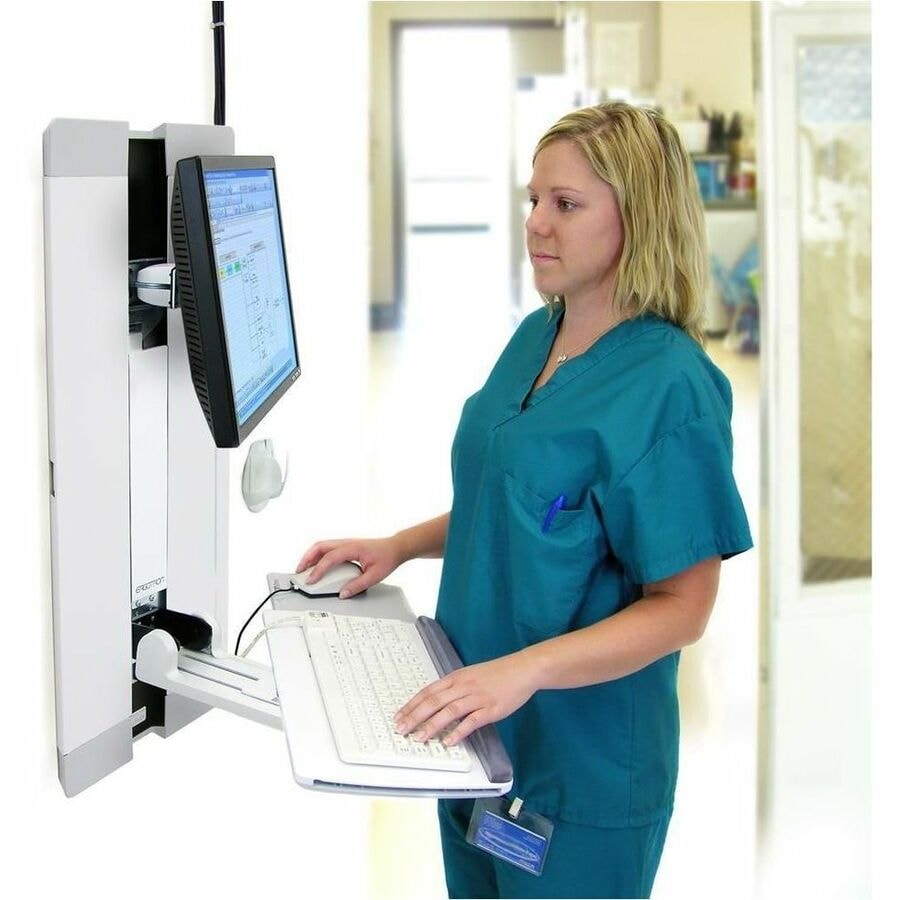

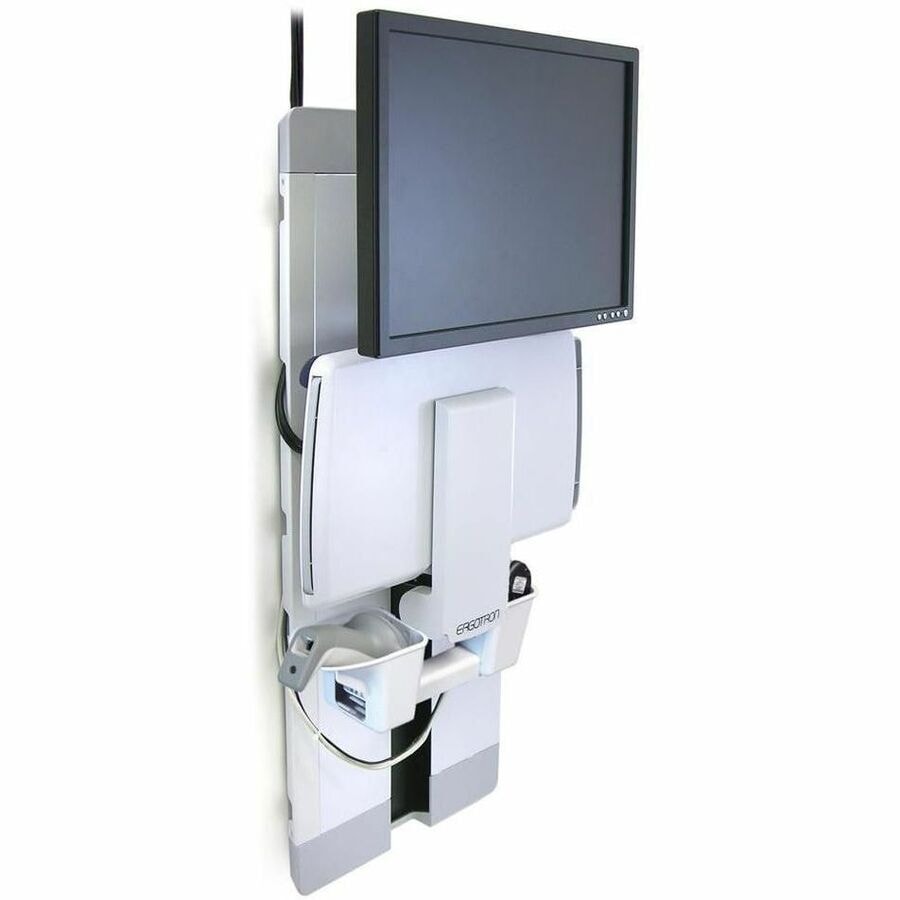

Perfect for space-constrained patient exam rooms, the low-profile vertical lift provides 9" (23 cm) of smooth vertical adjustment and folds into a slim, compact unit when not in use. The slide-out, back-tilt keyboard enhances user comfort, while the monitor and keyboard pan capability promote patient-caregiver interaction. A unique cable management system conceals and organizes cords and makes cleaning a snap.

DETAILS

  • Device Supported : Flat Panel Display,Keyboard,Monitor
  • Maximum Load Capacity : 33 lb (14968.55 g)
  • Maximum Screen Size Supported : 24"
  • Features : Cable Management,Vertical Adjustment,Ergonomic,Pan,10° Tilt
  • Color Family : White
  • Product Color : White
  • Product Material : Steel
  • VESA Mount Compatible : Yes
  • Mounting Pattern : 75 x 75,100 x 100
  • Form Factor : Wall Mountable
  • Application/Usage : Healthcare
  • Country of Origin : China
  • Limited Warranty : 5 Year
  • Can withstand a maximum weight of 33 lb (14968.55 g)
  • Supports the screen size of 24"

SPECIFICATIONS

Manufacturer Ergotron, Inc
Manufacturer Part Number 60609216
Manufacturer Website Address http://www.ergotron.com
Brand Name Ergotron
Product Line StyleView
Product Model 60-609-216
Product Name StyleView Vertical Lift, Patient Room (white)
Product Type Lift
Device Supported Monitor
Device Supported Keyboard
Device Supported Flat Panel Display
Maximum Load Capacity 33 lb (14968.55 g)
Maximum Screen Size Supported 24"
Features Pan
Features Ergonomic
Features Vertical Adjustment
Features Cable Management
Features 10° Tilt
Color Family White
Product Color White
VESA Mount Compatible Yes
Mounting Pattern 75 x 75
Mounting Pattern 100 x 100
Product Material Steel
Form Factor Wall Mountable
Application/Usage Healthcare
Additional Information
  • Monitor pans left/right up to 50° (varies per size of monitor)
  • Fold-down keyboard with built-in mouse pad surface
  • Keyboard tray extends out up to 5" (127 mm) inches when in use
  • Keyboard tray pans left/right up to 120°
  • Back-tilt keyboard tray adjustable (0 to -10 degrees)

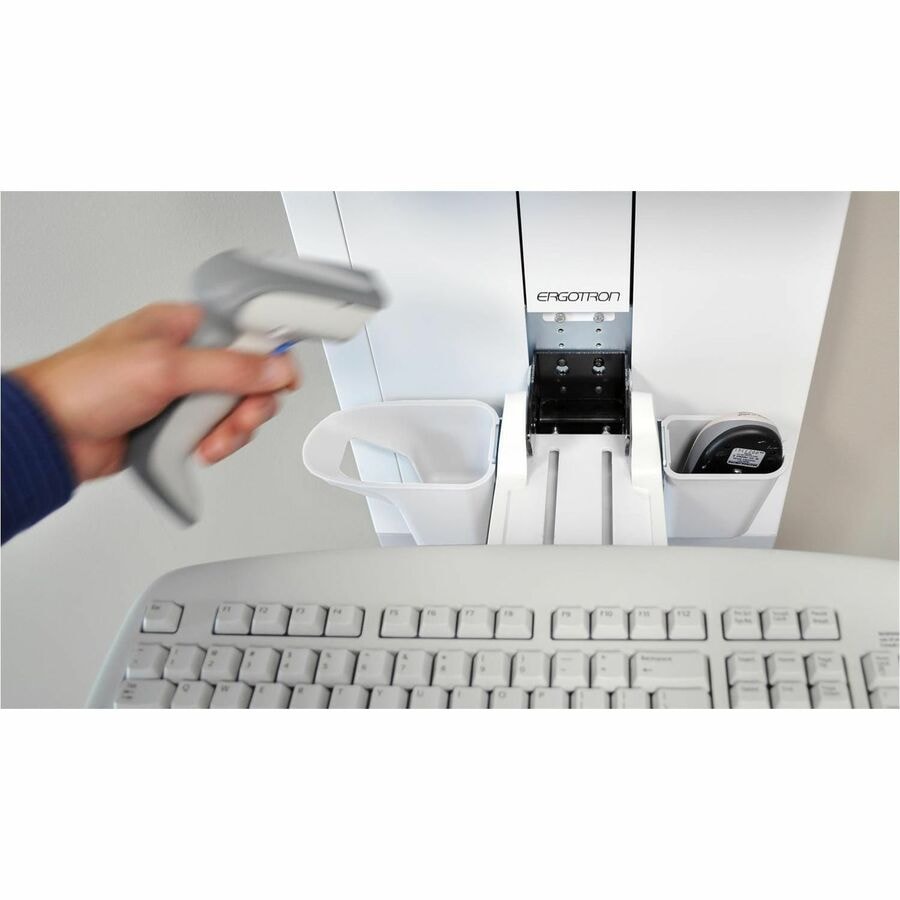

  • Scanner and mouse holder integrated into the keyboard tray
  • Integrated cable management system can be configured on either side
  • Easy-to-clean exterior
Country of Origin China
Limited Warranty 5 Year
